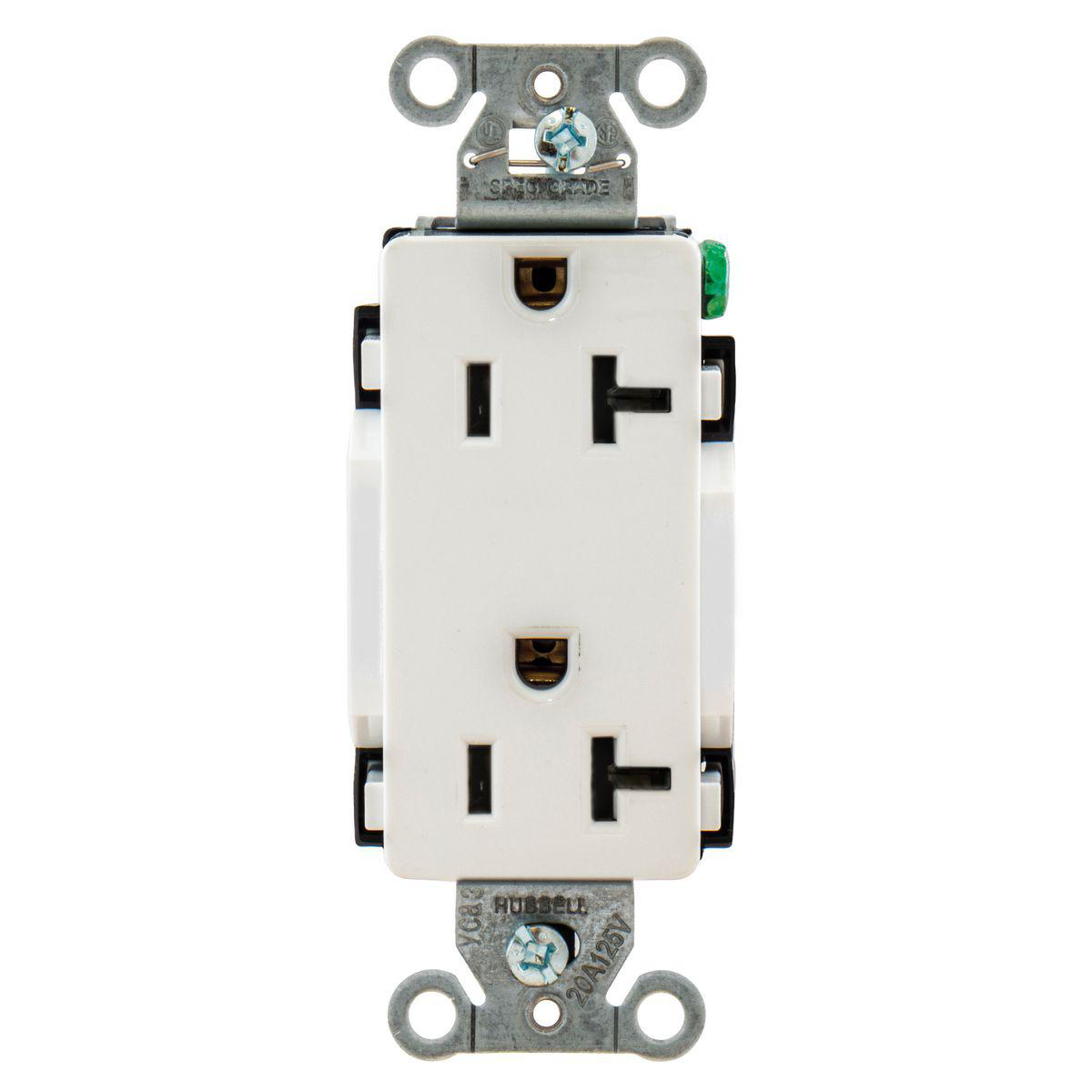

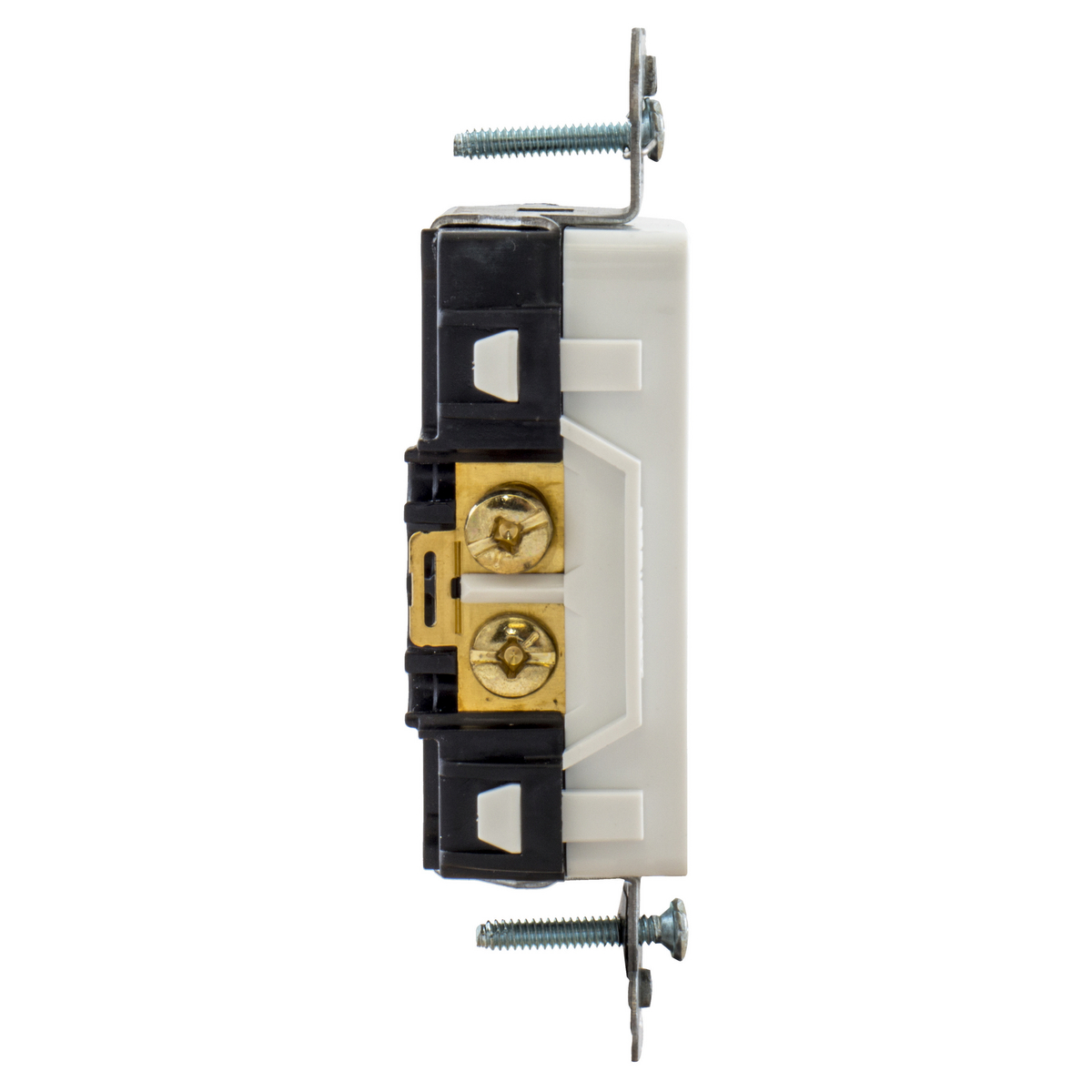

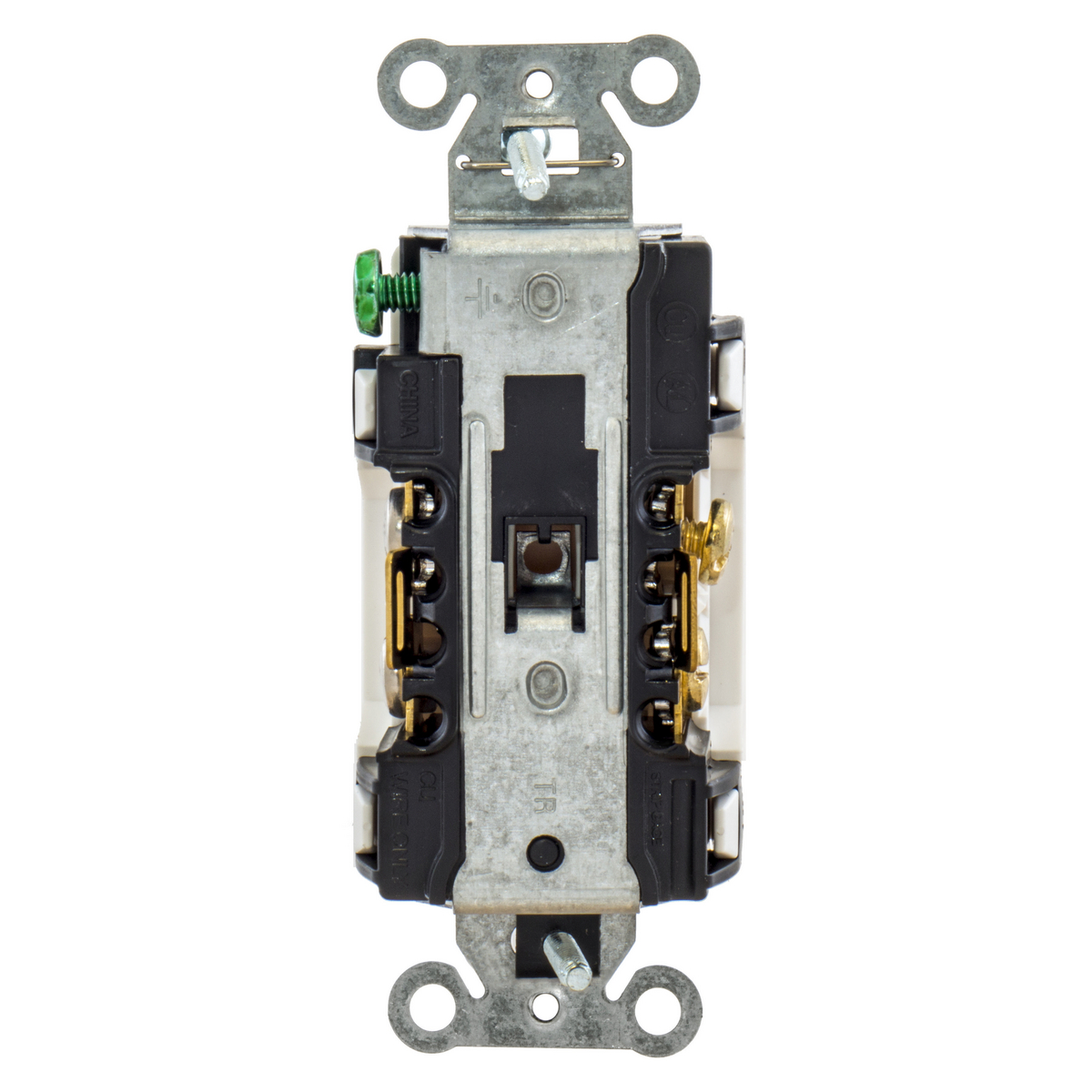

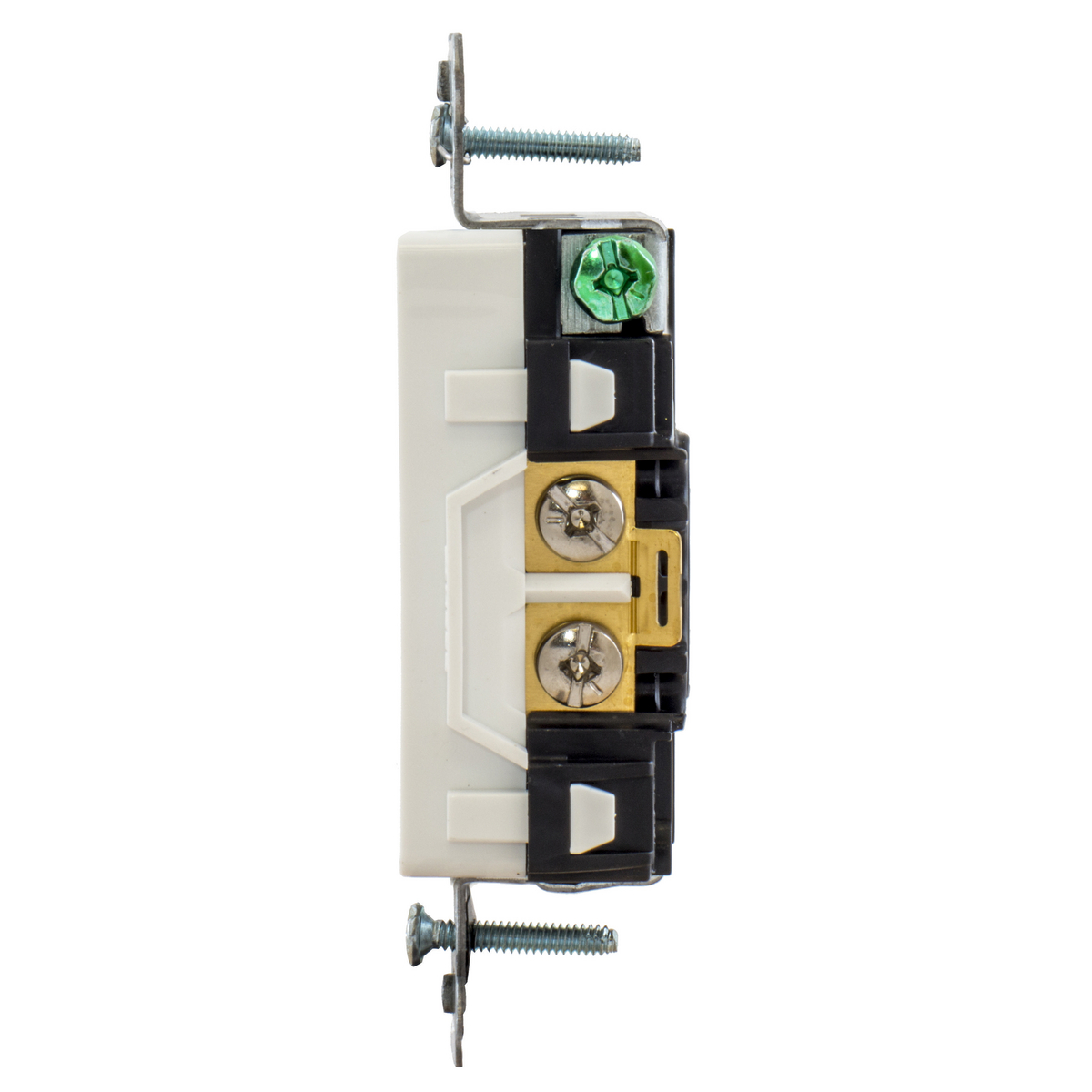

Product image for HUB DR20WHI RECEPTACLE 20A 125V SB DECORA COMMERCIAL GRADE WHITE 5-20R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

HUB DR20WHI RECEPTACLE 20A 125V SB DECORA COMMERCIAL GRADE WHITE 5-20R

Manufacturer: Hubbell Wiring Devices | Catalog # DR20WHI | Electrozad South Part # 198508
$3.95 /ea
pc
Log in or register to view your price, purchase history, and more!
86 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual
Hubbell STYLELINE receptacles strait blade are made of nylon plastic rectangular flat face duplex outlet, known commonly as Decora. Available in almond, brown, black, gray, ivory, light almond, white, off white (commercial and hospital grade) and orange (isolated ground), standard, WR (weather resistant) and TR (tamper proof) versions. They come in duplex 2 poles, 3 wires 15 or 20 amp, 125 volts.

Technical Information

Amperage
20 A
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
TC Connection
Back and Side Wired
Type
Decorator
Voltage
125 V
Wattage
2000 W
Wire Count
3
Wire Size
12 - 10

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585127903
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585127903
Product Series
Commercial Specification Grade
Product UPC
78358512790
Weight
0.15 lb

Dimensions

Height
1.29 in
Length
3.28 in
Width
1.06 in

Certifications & Compliance

Country of Origin
China
