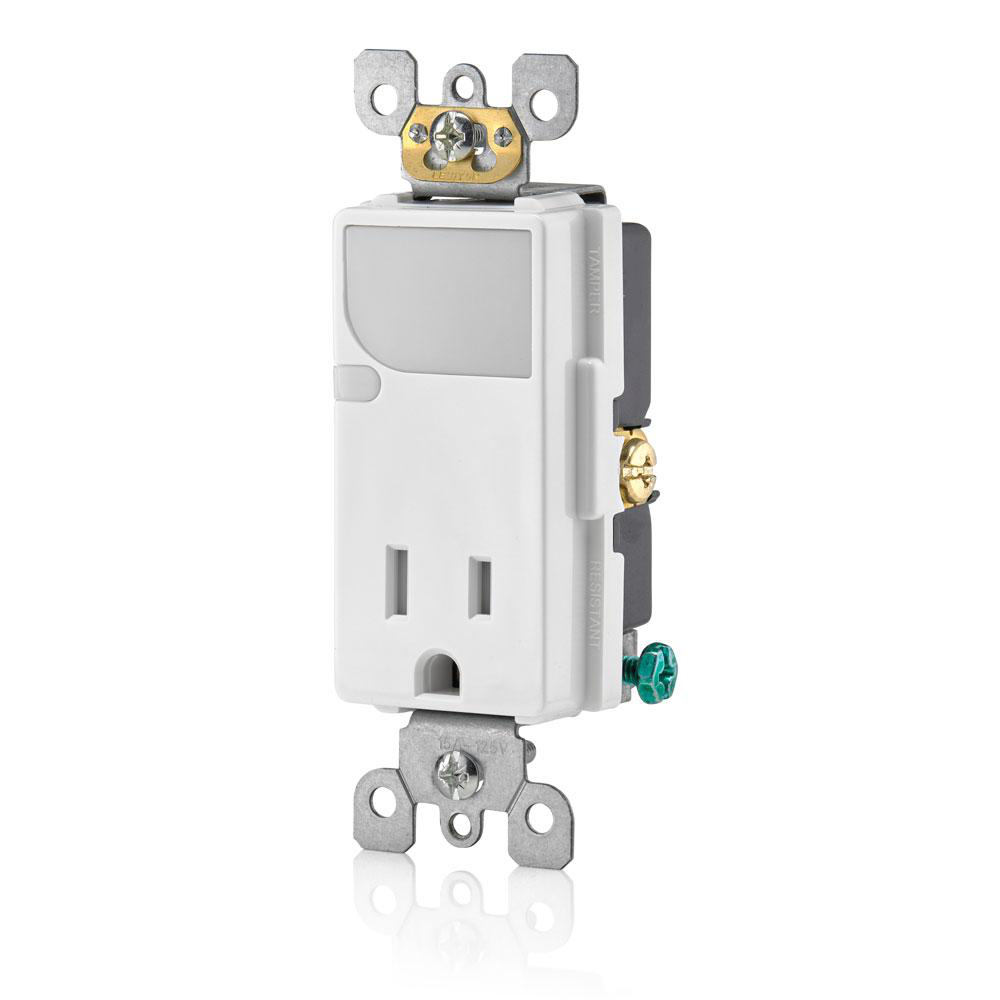

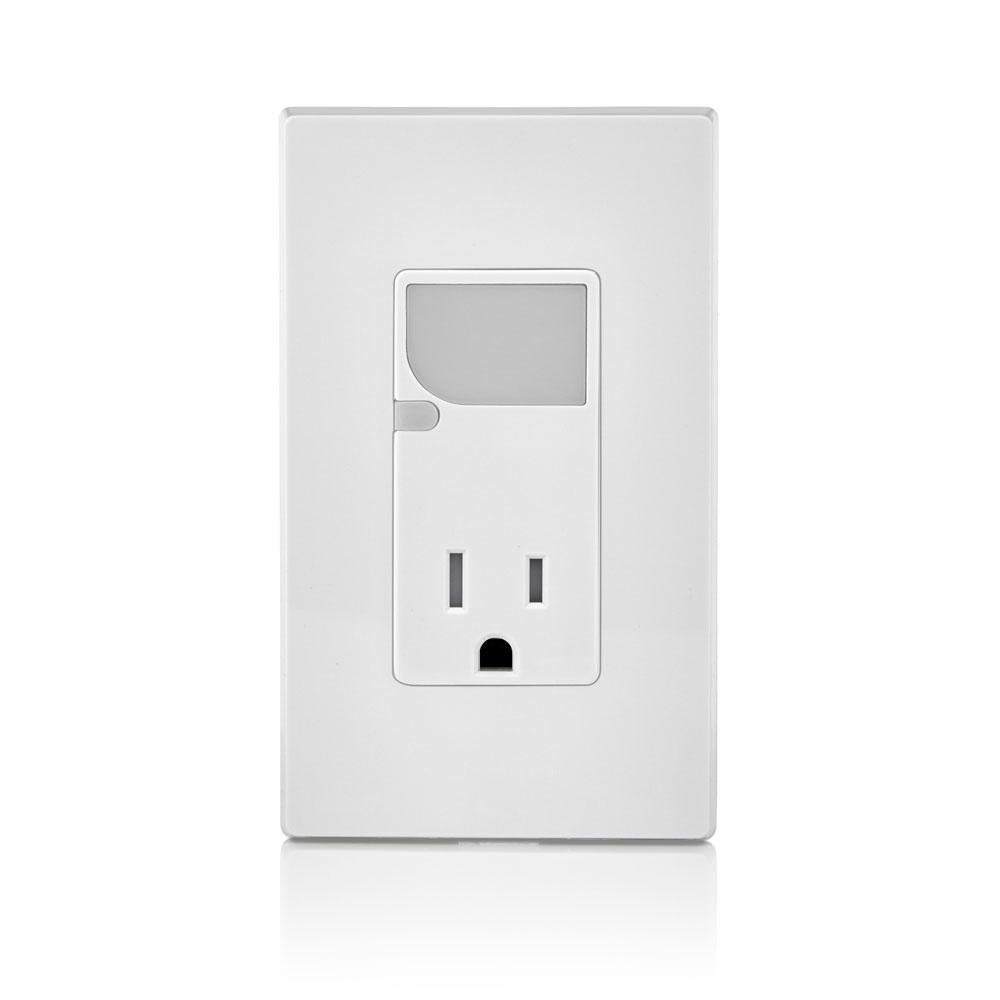

LEVITON T6525-W RECEPTACLE 15A 125VAC COMBO DECORA TAMPER RESISTANT SE WHITE W/ LED GUIDE LIGHT

Manufacturer: Leviton Manufacturing | Catalog # T6525-W | Electrozad South Part # 199095
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
LEV T6525-W 15A RCPT LED GUIDELITE

Technical Information

Actuator
Rocker
Amperage
15 A
Applications
Residential use
Connection Type
Back Wired,Side Wired
Contact Rating
125 V
Material
Plastic
Mounting Type
Flush, Screw, Wall
NEMA
5-15R
Number of Outlets
1
Operating Temperature
-40 To 120 degrees C
Size
4.18 H x 1.31 W x 18 D IN
Standard
CSA Certified (LR-3413),NOM Certified (057),UL Listed (E-7458)
Switch Type
Rocker
TC Connection
Back Wired;Side Wired
Temperature Rating
-40 to 120 degrees C
Torque
14 lb-in
Type
Tamper-Resistant
Voltage
125 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477454176
Color
White
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTiN
00078477454176
Product Type
Outlet/Guide Light Combo
Product UPC
06867950681

Certifications & Compliance

Country of Origin
China
