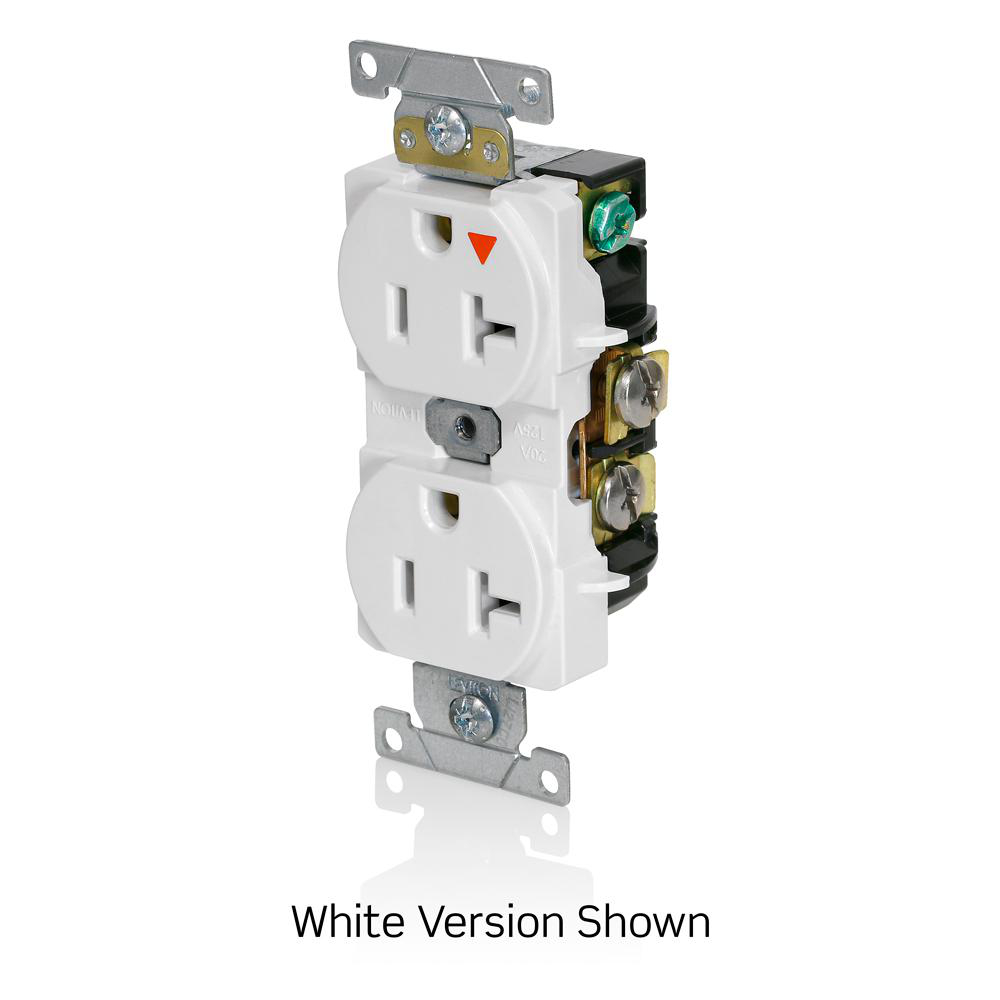

Receptacle duplex isolated ground nylon 20A 125V white

Manufacturer: Leviton Manufacturing | Catalog # 5362-IGW | Electrozad South Part # 199274

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Duplex receptacle, NEMA 5-20R. 2-pole, 3-wire. Industrial series extra heavy duty specification grade. Straight blade. Isolated ground. Back and side 8-hole feed through wired. Steel strap. Leviton line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade, etc. These industrial grade devices are the electrical contractor choice for use in factories, schools, hospitals and commercial office buildings.

Technical Information

Amperage
20 A
Applications
Industrial
Body Material
Thermoplastic Nylon
Connection Type
Back And Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
WD-1
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.33 W x 1.12 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Duplex Outlet,Straight Blade
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477053270
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477053270
Product UPC
07847705327

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
