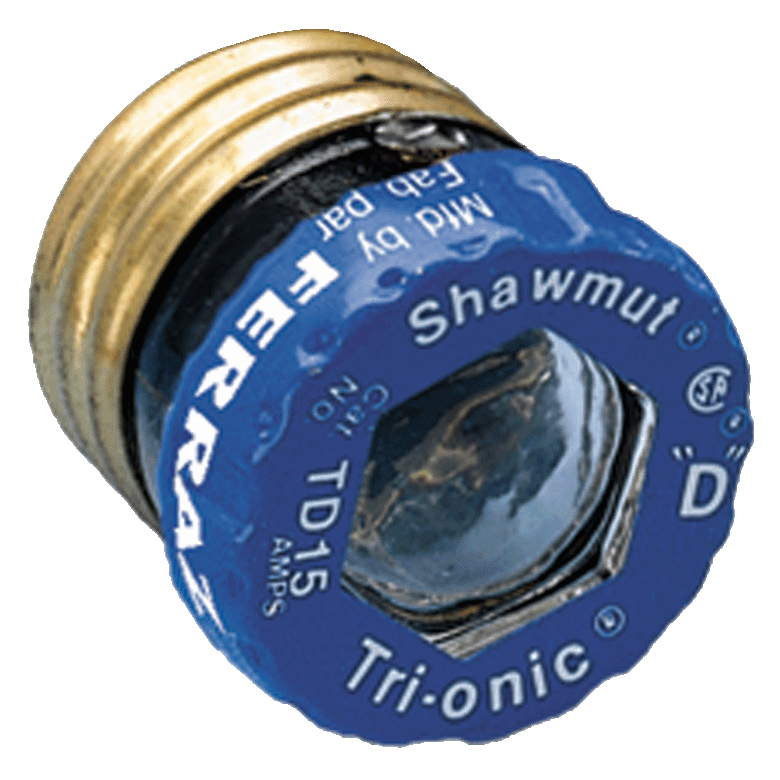

MERSEN TD15 FUSE PLUG 15A TIME DELAY 125V TYPE D EDISON BASE CSA

Manufacturer: Ferraz Shawmut Mersen | Catalog # TD15 | Electrozad South Part # 19974
$5.82 /ea
ea
Log in or register to view your price, purchase history, and more!
25 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet

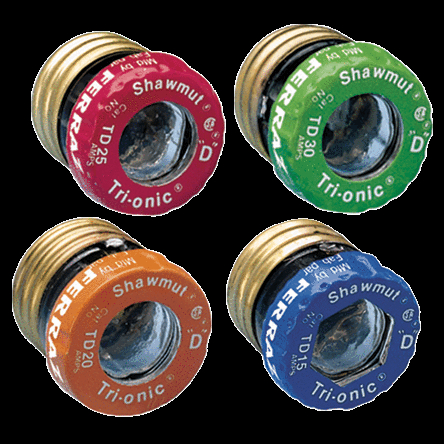

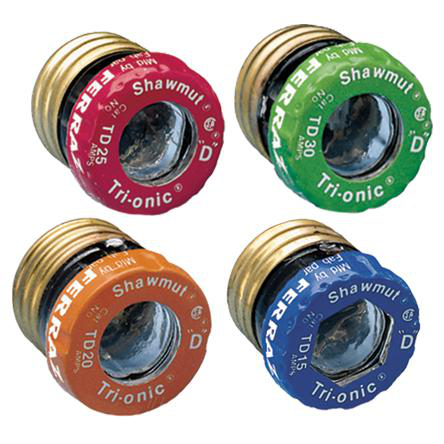

Mersen Plug Fuses are for industrial and residential applications. Standard non-time delay fuses are for receptacle and lighting circuits. Standard time delay fuses are for motor loads. For Canadian requirements, a type ...P... fuse is used for non-motor loads and type ...D... fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements. Low-Temp time delay plug fuses have thermal sensitivity are also for cycling loads and motor circuits. Type ...S... plug fuses are time delay and tamper-resistant.

Technical Information

Amperage
15 A
Applications
For Industrial and Residential, Receptacle and Lighting Circuits
Connection Type
Screw
Frequency
50/60 Hz
Fuse Class
Plug
Indicator
Visual Indicator
Insulation Material
Glass
Interrupt Rating
10 kA
Material
Screw In
Mounting Type
Screw-in, Plug-in
Rated Voltage AC
125 V
Size
1.126 x 1.29 Inches
TC Connection
Screw In
Terminal Material
Brass
Terminal Type
Screw
Type
Time-Delay

Packaging

Package Qty
4

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
068938839901
GTIN
30068938839902
Product UPC
06893883990
Weight
0.06 lb

Dimensions

Diameter
1.13 in
Length
1.29 in
