Connector wire push-in 250/box In-Sure

Manufacturer: Ideal Industries | Catalog # 30-1033J | Electrozad South Part # 199858
$43.64 /ea
ea
Log in or register to view your price, purchase history, and more!
11 available

For Delivery

Not in local stock *
Check another branch
Product Brochure D BRAND LOGO IMAGE URL G USERS MANUAL URL

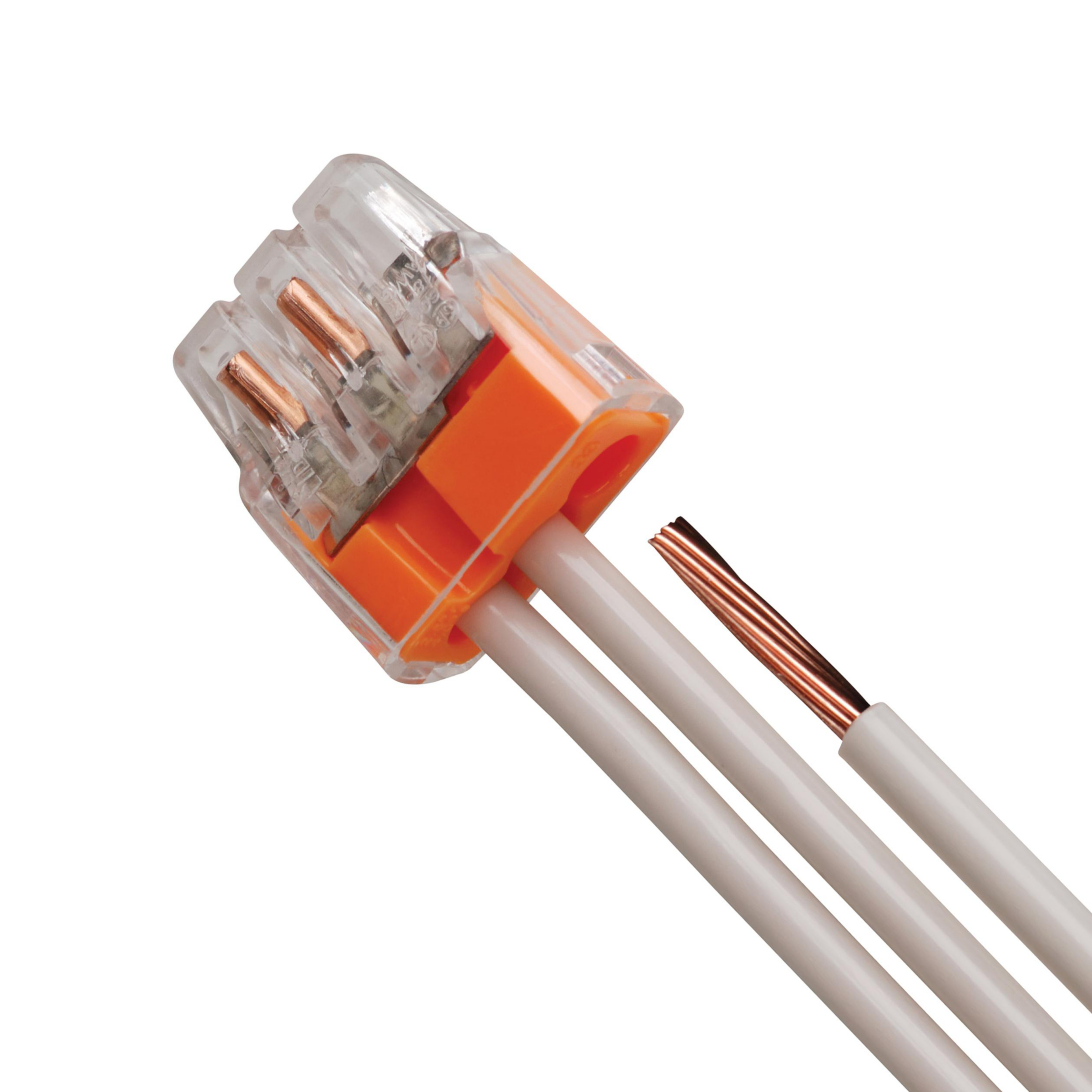

In-Sure™ push-in wire connector with low insertion force for fast and easy connections. No-twist connection reduces repetitive motion fatigue. Compact size makes installation easy. Clear shell gives visual verification of connection. UL Listed to 486C and CSA Certified to C22.2 #188. UL 467 Listed for grounding and bonding applications.

Technical Information

Applications
For Grounding And Bonding Applications
Conductor Size
20-12 AWG Solid, 16-12 AWG (< 19 Strand), 18 AWG (7 Strand) Stranded, 18-14 AWG (< 19 Strand) Stranded (Tin Bonded)
Material
Polycarbonate
Number of Conductors
3
Number of Ports
3
Size
0.780 IN Length X 0.690 IN Width X 0.380 IN Height
TC Connection
3 Ports
Temperature Rating
105 C
Type
Push-In
Wire Size
#12 AWG - #20 AWG Solid, #12 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand) Stranded, #14 AWG - #18 AWG (19 Strand Or Less) Stranded (Tin Bonded)
Wire Type
Solid, Stranded, Stranded (Tin Bonded)

Manufacturer Information

Brand
Ideal
Sub Brand
In-Sure™

General Product Info

12-Digit UPC
783250693559
Color
Orange
GTIN
00783250693559
Product UPC
78325069355

Dimensions

Length
0.78 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Overview
  • The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.
  • Approved for bonding and grounding applications

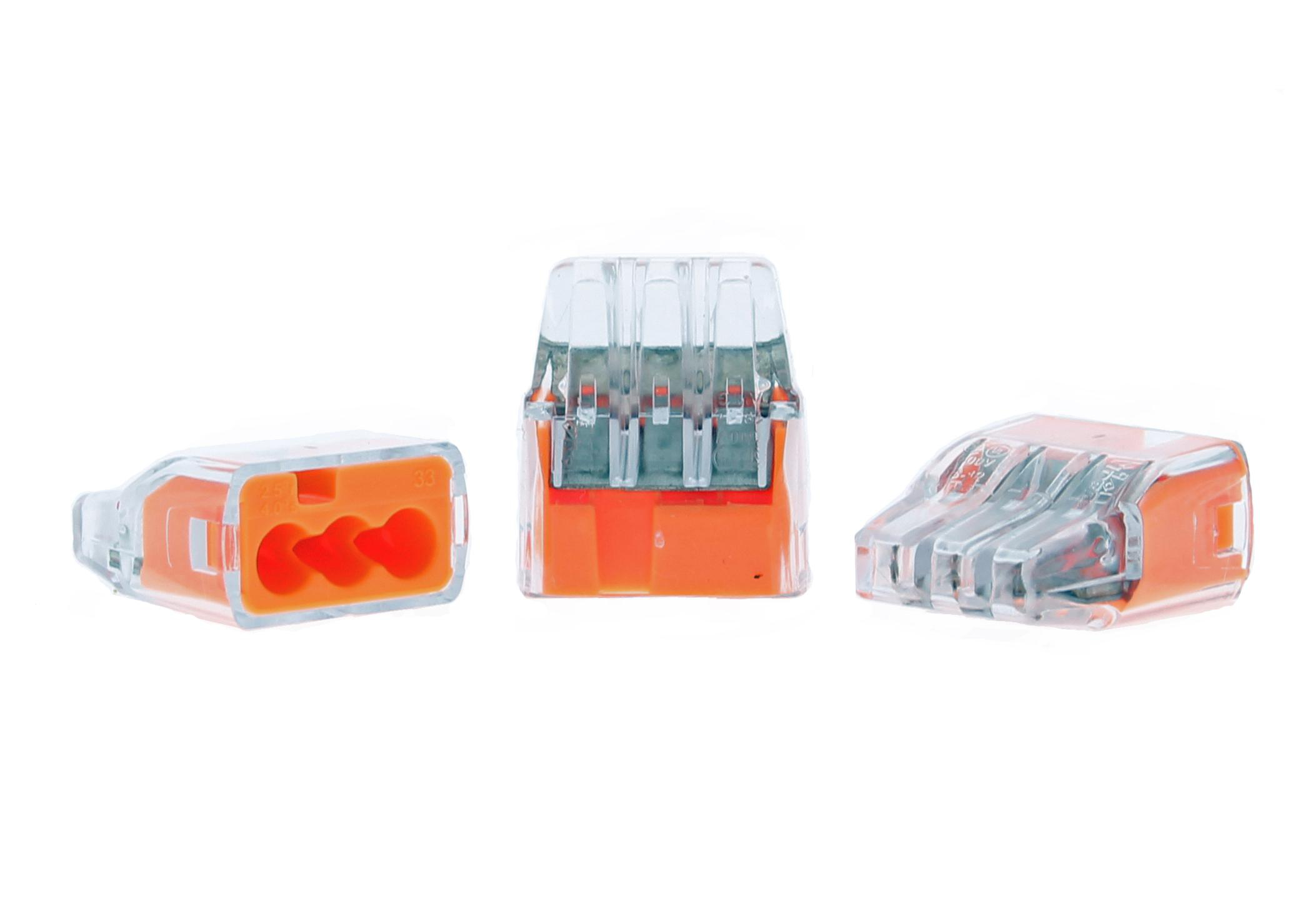

  • The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection.

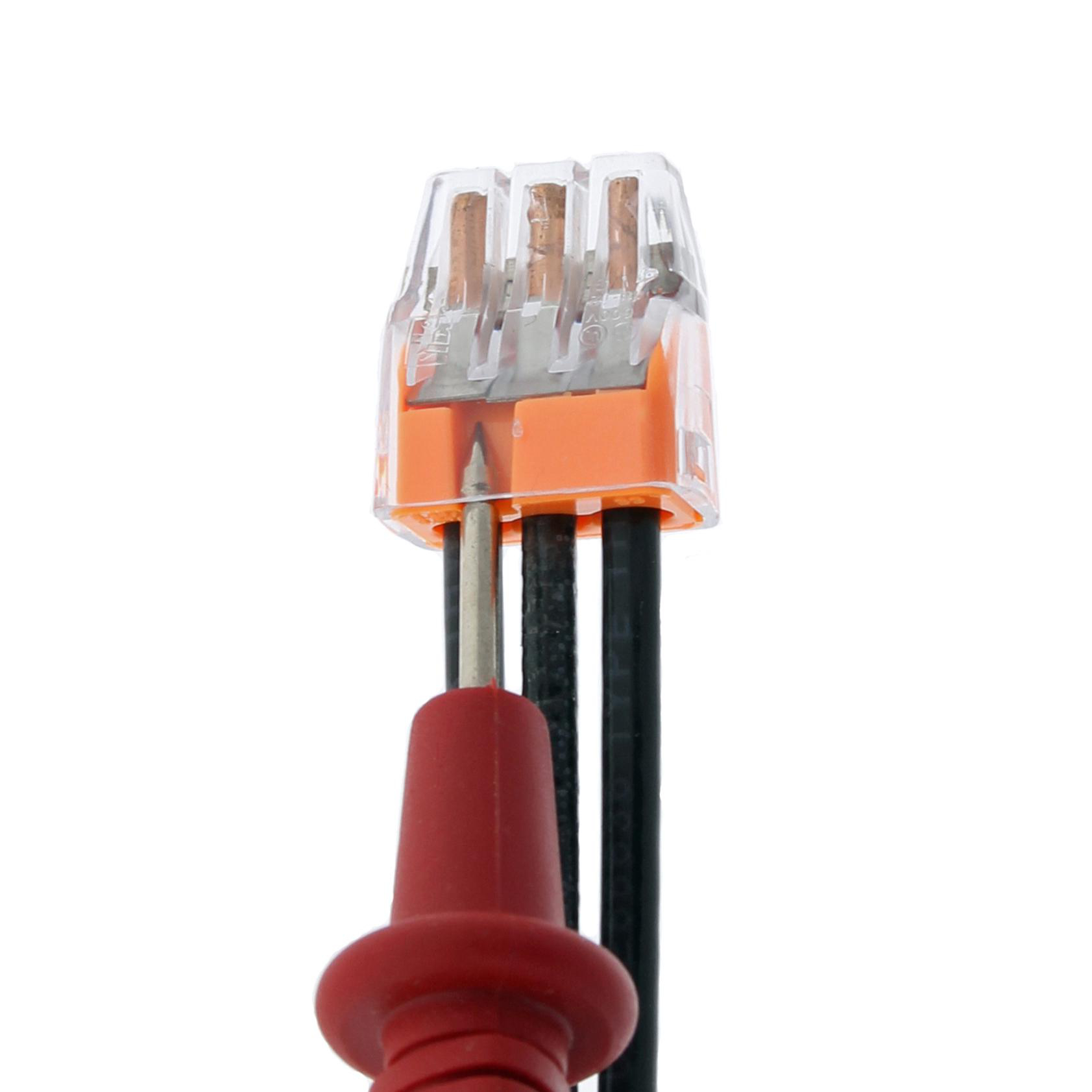

  • Clear shell gives visual verification of connection
  • Ergonomic design for easy grip and comfortable installation
  • Low insertion force for fast and easy connections

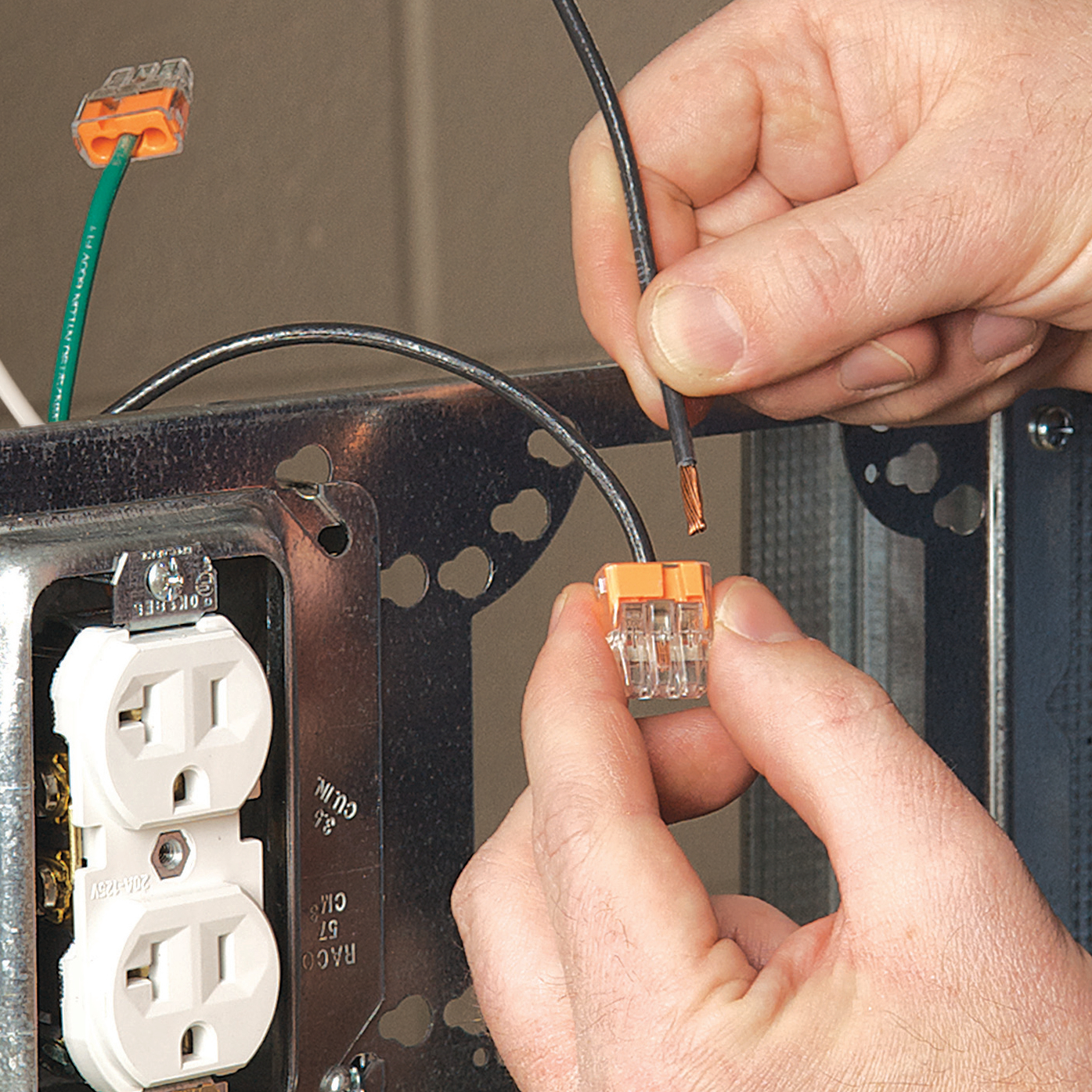

  • The In-Sure Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used.
  • The ergonomic design is easier to grip which means more comfortable push-in connections.
  • UL Listed, CSA Certified, and rated to 600V the In-Sure saves time and improves productivity while perfecting connections.
  • Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)
