PANDUIT BT3I-C BARBTY 11"L INTERMEDI NYLON CABLE TIE TYRAP WHITE 100/PK

Manufacturer: Panduit | Catalog # BT3I-C | Electrozad South Part # 20016
$43.75 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure

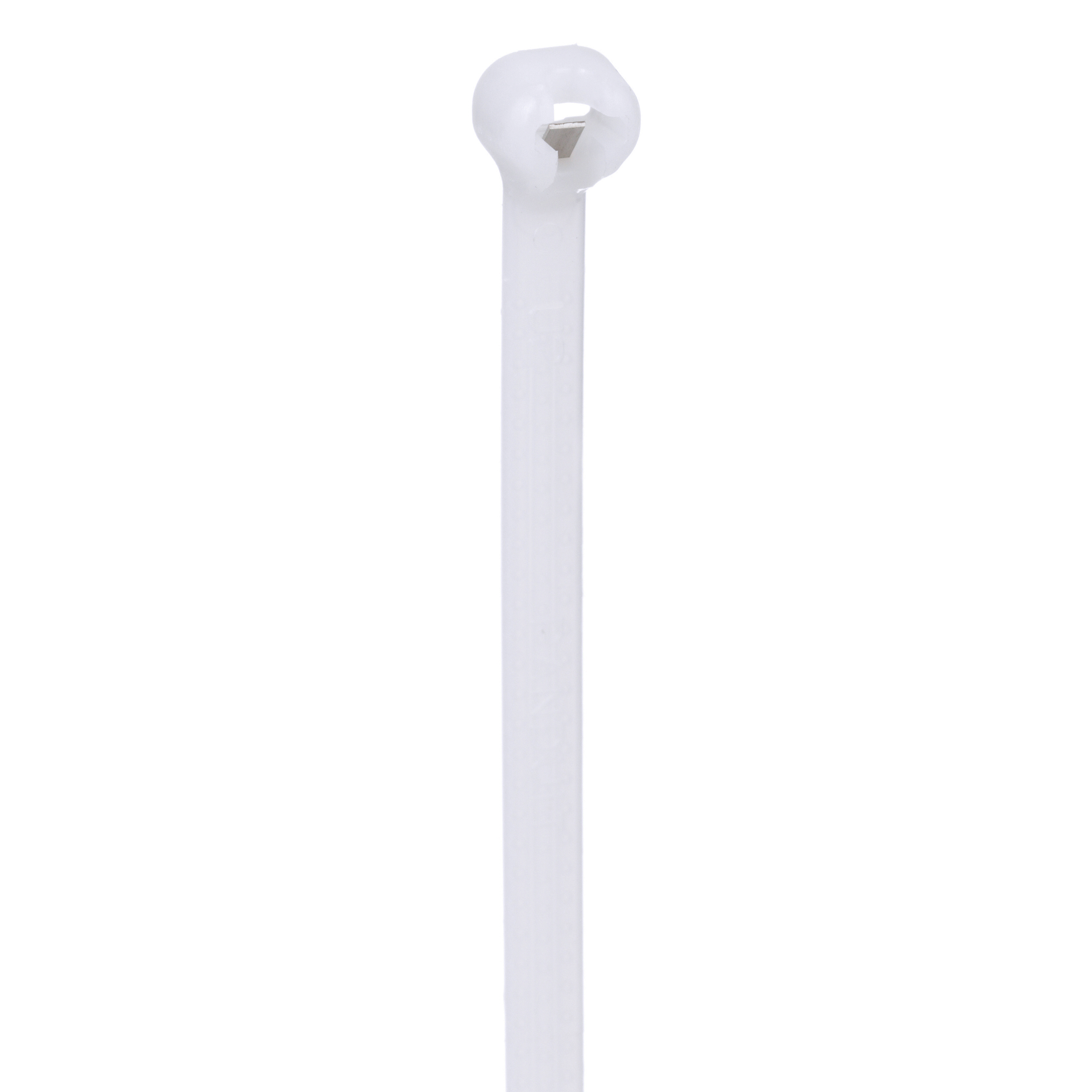

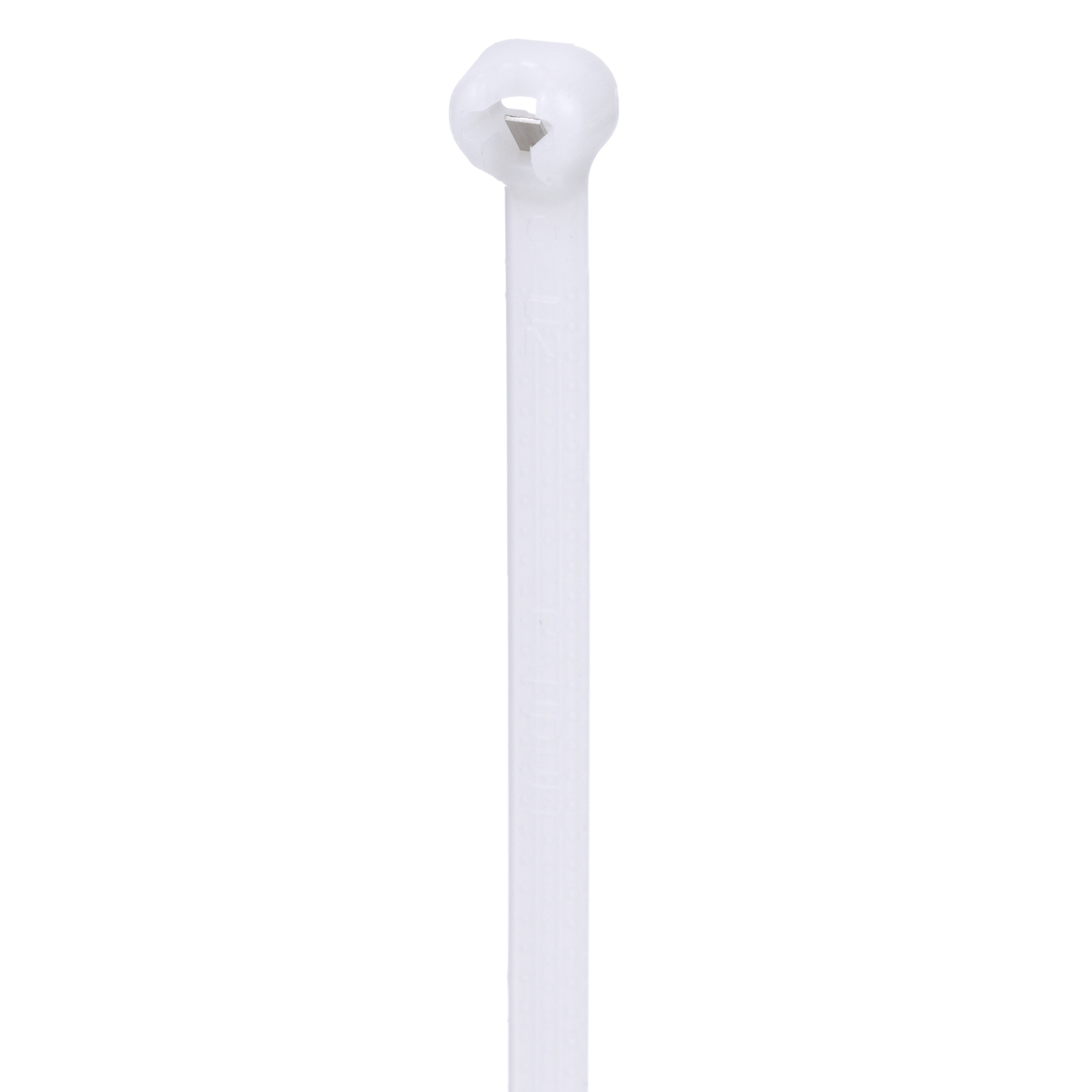

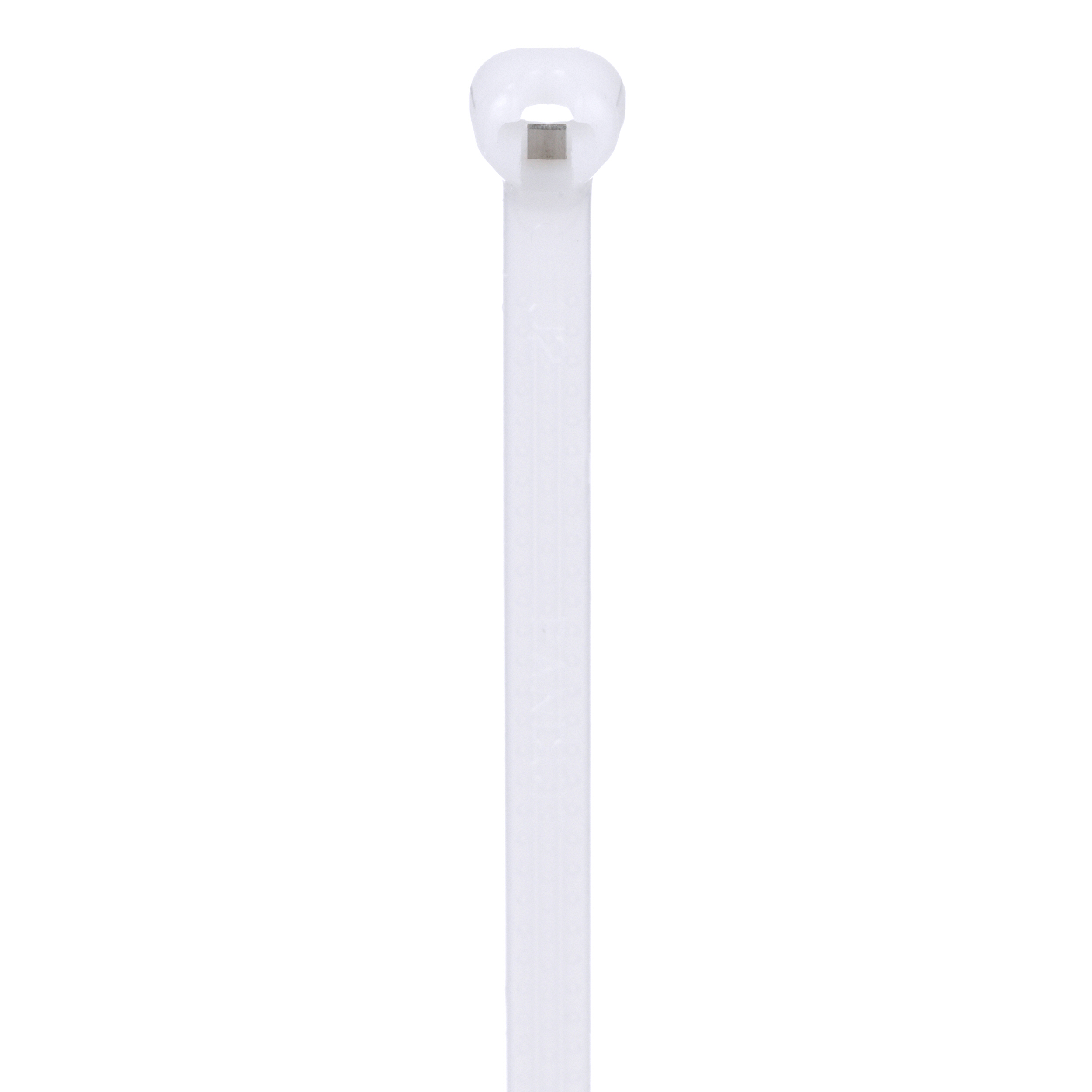

Dome-Top® barb ty cable tie with intermediate cross section for indoor use. Dome-top head features unique patented design with round, smooth edges. Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range. High strength and low thread force, curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation and UL Listed for use in plenum or air handling spaces per NEC.

Technical Information

Applications
For General use
Body Thickness
0.049 in
Body Width
0.142 in
Bundle Diameter
76 mm
Material
Nylon 6/6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Tensile Strength
178 N
Type
Internal Toothing, Barb Ty, Locking

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Dome-Top

General Product Info

12-Digit UPC
074983413669
Color
Natural
Environment
Indoor
GTIN
00074983413669
Product UPC
07498341366

Dimensions

Length
11.3 in
Overall Length
287 mm
Thickness
1.2 mm
Width
3.6 mm

Certifications & Compliance

Country of Origin
Costa Rica
