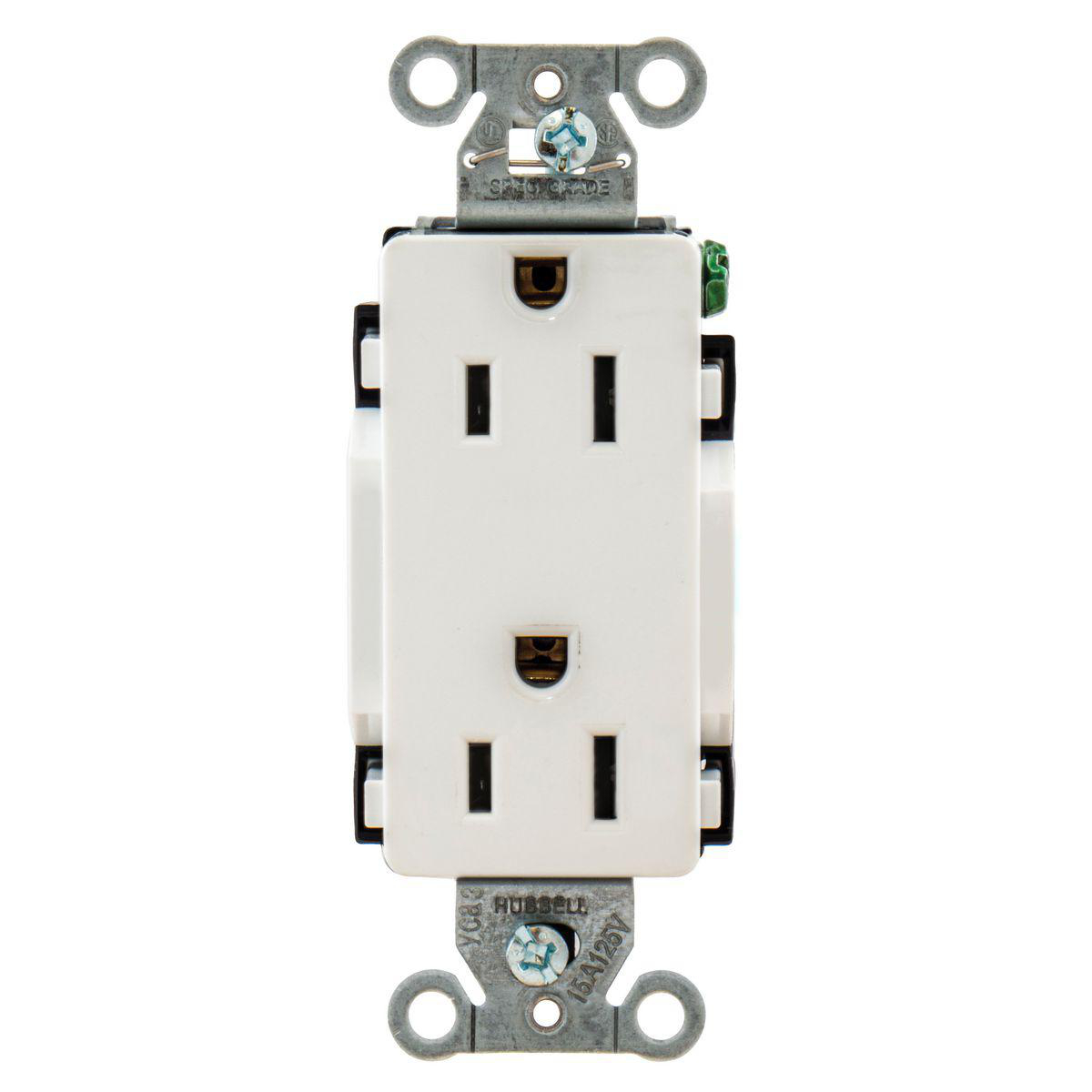

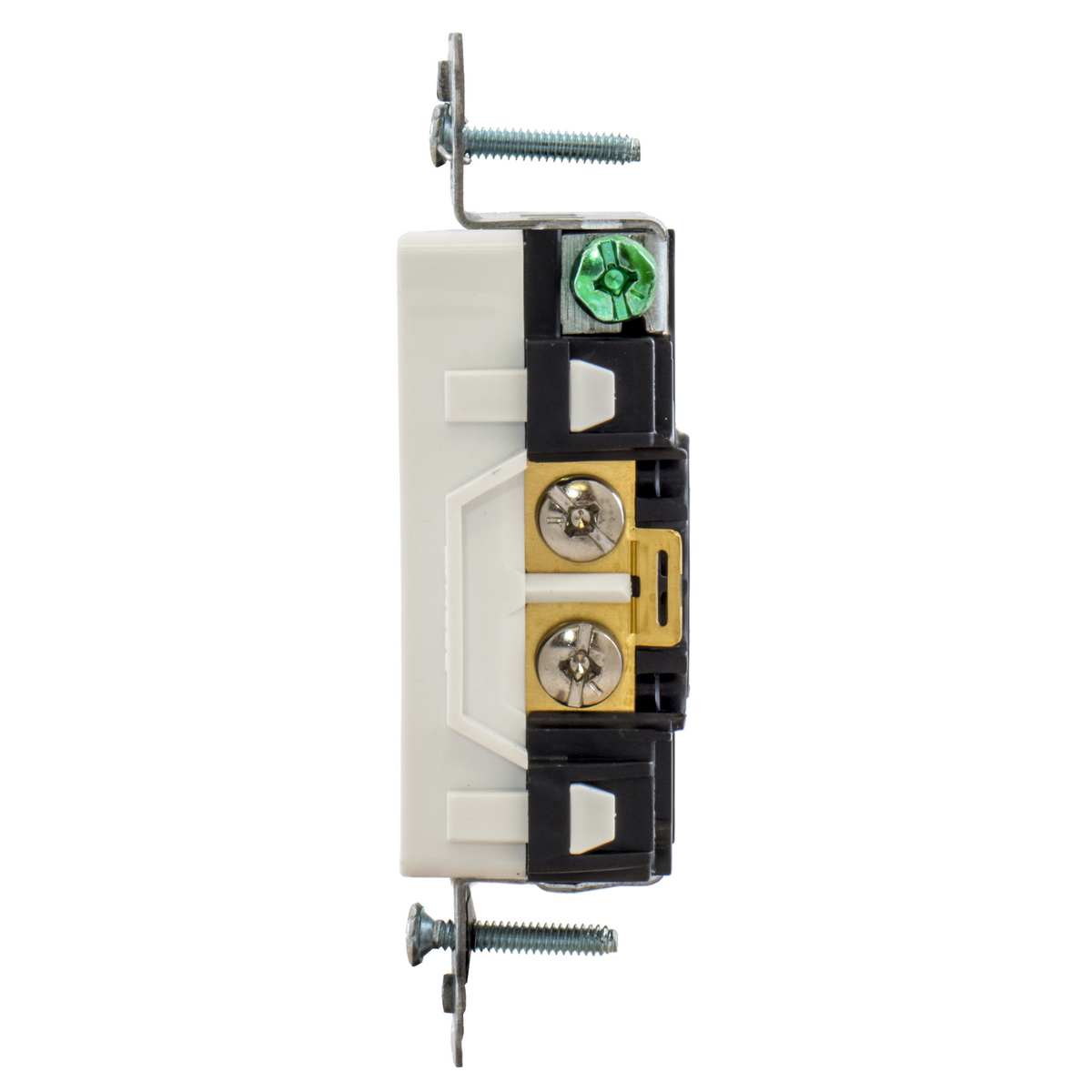

Receptacle 5-15R TR duplex 2P 15A 125V DECO whit

Manufacturer: Hubbell Wiring Devices | Catalog # DR15WHI | Electrozad South Part # 200562
$5.70 /ea
pc
Log in or register to view your price, purchase history, and more!
280 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell STYLELINE receptacles strait blade are made of nylon plastic rectangular flat face duplex outlet, known commonly as Decora. Available in almond, brown, black, gray, ivory, light almond, white, off white (commercial and hospital grade) and orange (isolated ground), standard, WR (weather resistant) and TR (tamper proof) versions. They come in duplex 2 poles, 3 wires 15 or 20 amp, 125 volts.

Technical Information

Amperage
15 A
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
TC Connection
Back and Side Wired
Type
Decorator
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
14 - 10 W

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585127828
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585127828
Product Series
Commercial Specification Grade
Product UPC
78358512782
Weight
0.2 lb

Dimensions

Height
3.28 in
Length
1.29 in
Width
1.06 in

Certifications & Compliance

Country of Origin
China
Overview
  • Triple wipe contacts
  • Aesthetic Style Line® decorator design
  • Smooth face
