Panduct® F.75X1.5LG6 Base Wiring Duct | Electrozad South

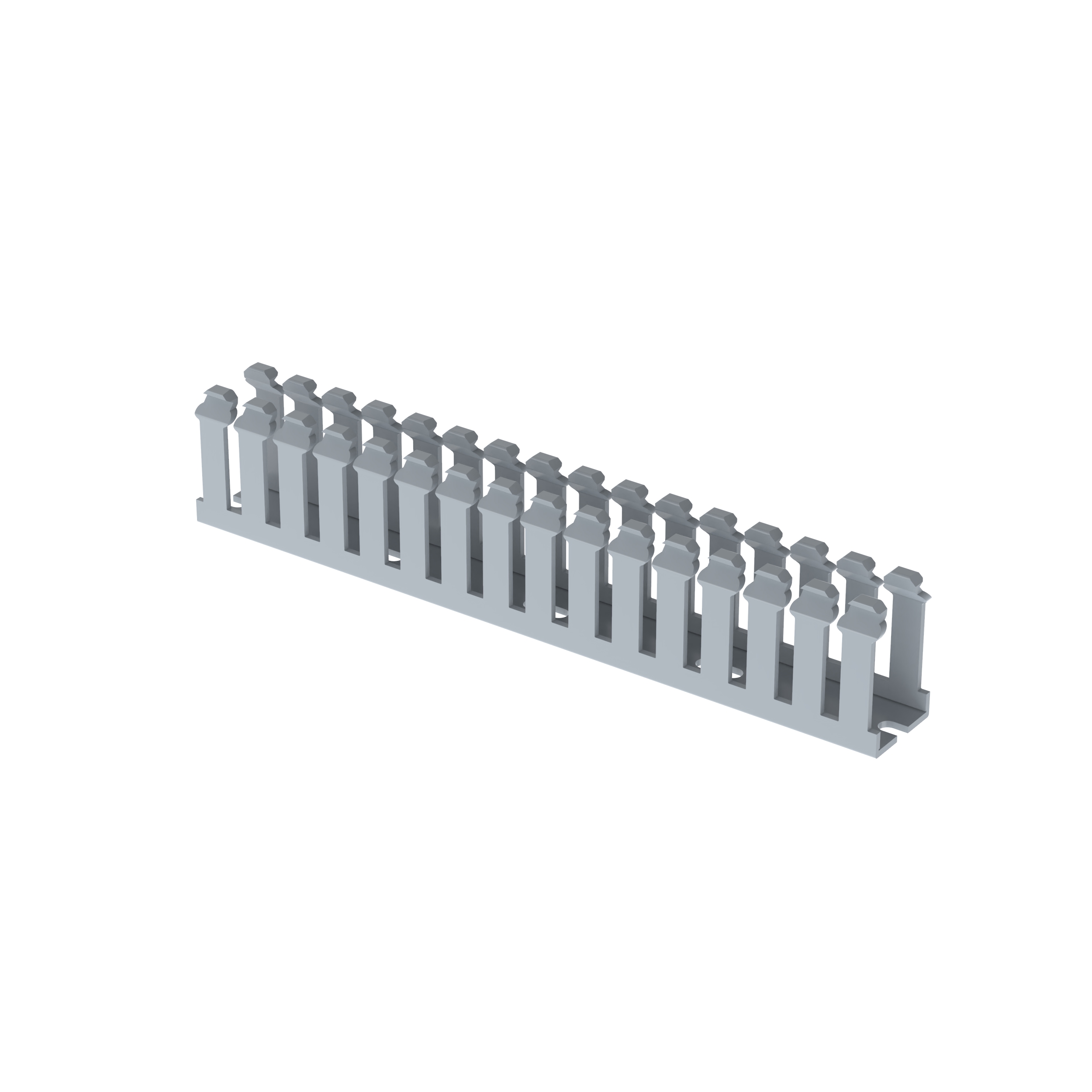

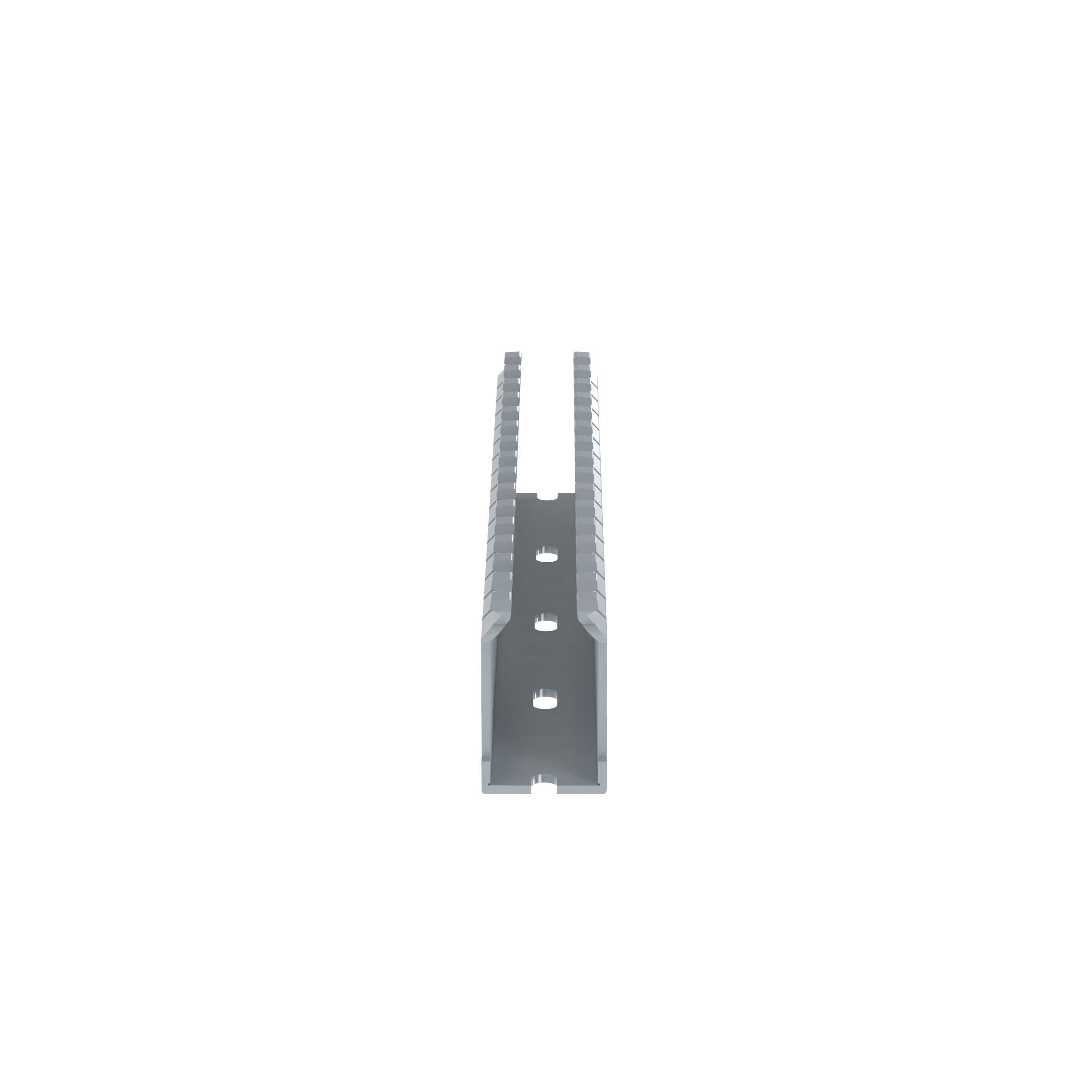

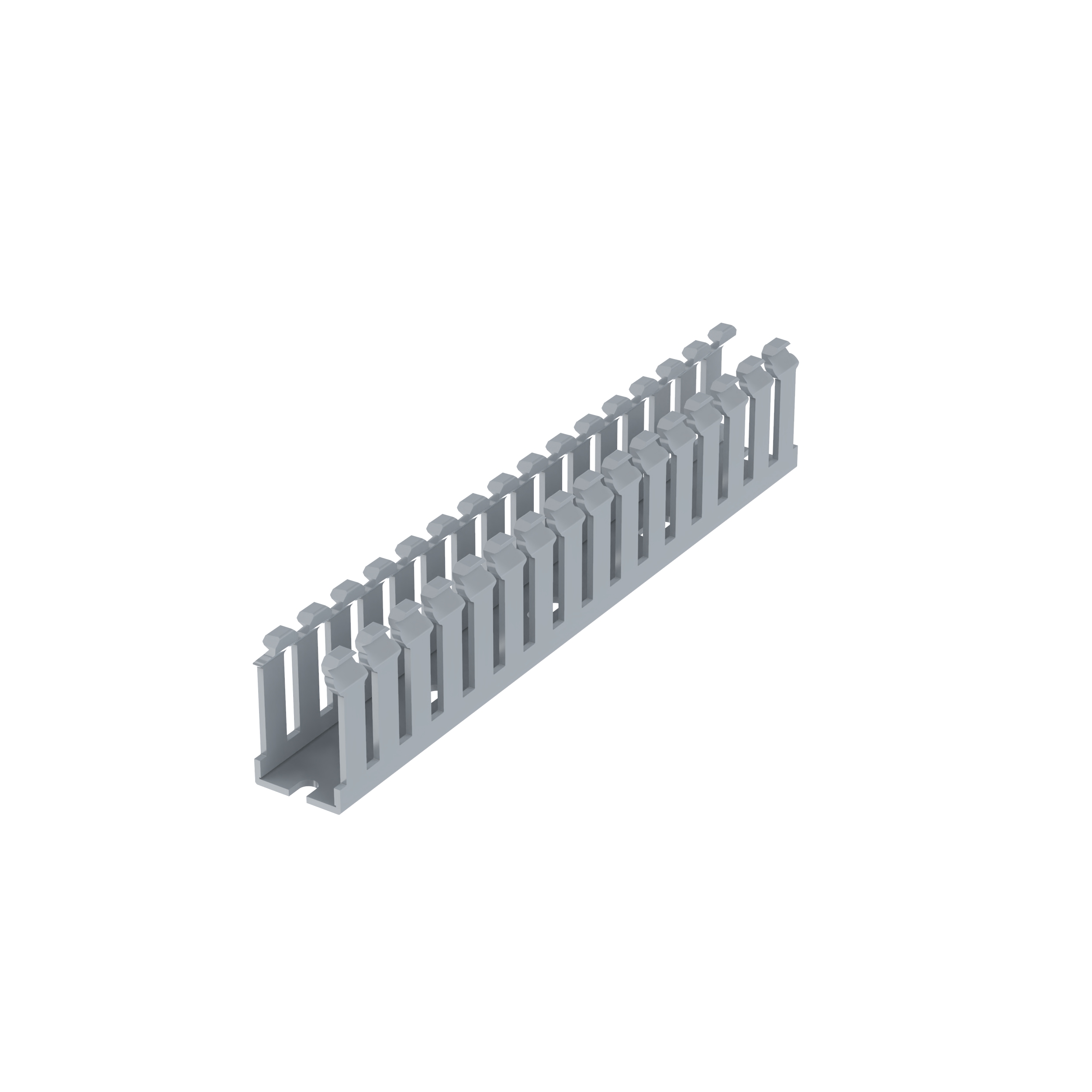

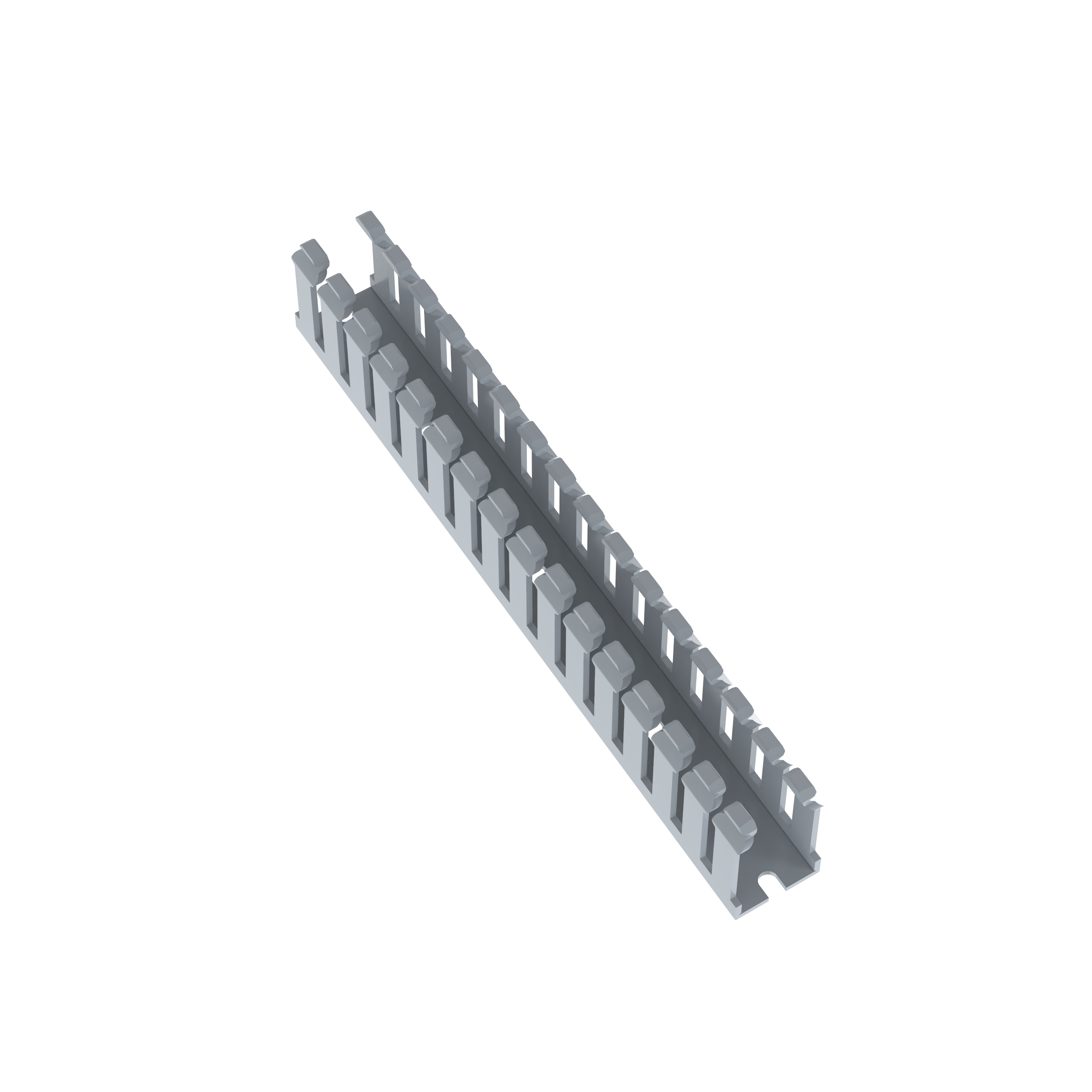

Product image for Panduct® F.75X1.5LG6 Base Wiring Duct
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduct® F.75X1.5LG6 Base Wiring Duct

Manufacturer: Panduit | Catalog # F.75X1.5LG6 | Electrozad South Part # 20120
$6.48 /ft
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
84 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The F.75X1.5LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. .75" x 1.5" (19.05 mm x 38.1 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.

Technical Information

Applications
Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Material
PVC
Mounting Type
Standard Mounting Hole
Size
0.75 x 1.50
Slot Size
5 mm
TC Connection
Mounting Holes
Type
Type F, Narrow Slot

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983374977
Color
Light Gray
GTIN
00074983374977
Product UPC
07498337497

Dimensions

Depth
39.9 mm
Height
1.57 in
Length
6 ft
Overall Length
6 ft
Thickness
0.07 IN
Width
23.6 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
