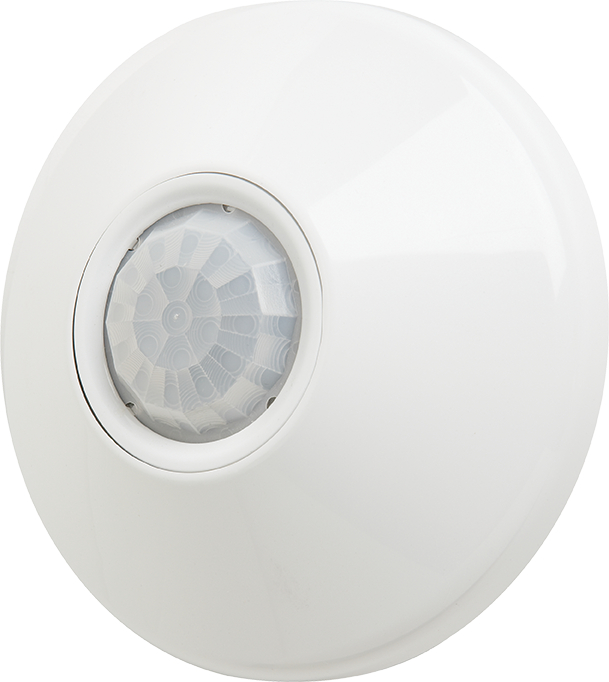

CEILING MOUNT SENSOR, PASSIVE DUAL TECHN

Manufacturer: Lithonia Lighting | Catalog # CM PDT 10 | Electrozad South Part # 202677
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL
The Wall Sensor Switch uses passive infrared technology to automatically turn lights on and off. By using sensors, energy consumption and costs are greatly reduced. The sensors detect body heat in motion and must be located where full line-of-sight is possible.

Technical Information

Applications
Automotive & Parking,Bridges & Tunnels,Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Roadways,Sports And Recreation,Transportation,Warehouses
Lens Material
Plastic
Material
Plastic
Mounting Type
Surface
Response Time
10 min
Sensing Range
360 degrees
Sensor Type
Passive Infrared
Temperature Rating
-10 to 71 degrees C
Type
Sensor

Manufacturer Information

Brand
Sensor Switch Motion Controls

General Product Info

12-Digit UPC
745975808243
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss,Matte
GTIN
00745975808243
Product UPC
74597580824
Weight
1 lb

Dimensions

Height
4.5 in
Length
4.5 in
Warranty Length
5 yr
Width
2.500 in

Certifications & Compliance

Country of Origin
Mexico
Overview
  • WARRANTY: 5-Year Limited Warranty
  • COVERAGE: 360 degree coverage
  • MOTION DETECTION: Best choice for large motion detection
  • LAMP: 100-hour lamp burn-in timer mode
  • UNIQUE FEATURE: For rooms with obstructions, these sensors offer Passive Dual Technology (PDT), which combines Microphonics noise detection and passive infrared (PIR) motion detection
  • TIME DELAY: Time delay feature can be set for 30 seconds to 20 minutes
  • RADIAL COVERAGE: 24 foot radial coverage when mounted at 9 feet; 7-15 foot mounting heights provide 16-36 feet radial coverage
  • SENSORS: Up to 14 sensors per power pack
  • DIMENSIONS:: 4.55 in. W x 1.55 in. D (116mm x 40mm)
  • RATINGS: Energy Management Equipment, UL916 (E167435), RoHS compliant
