Dry-Shrink™ HSTT12-Y Heat Shrink

Manufacturer: Panduit | Catalog # HSTT12-Y | Electrozad South Part # 203135
$21.41 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

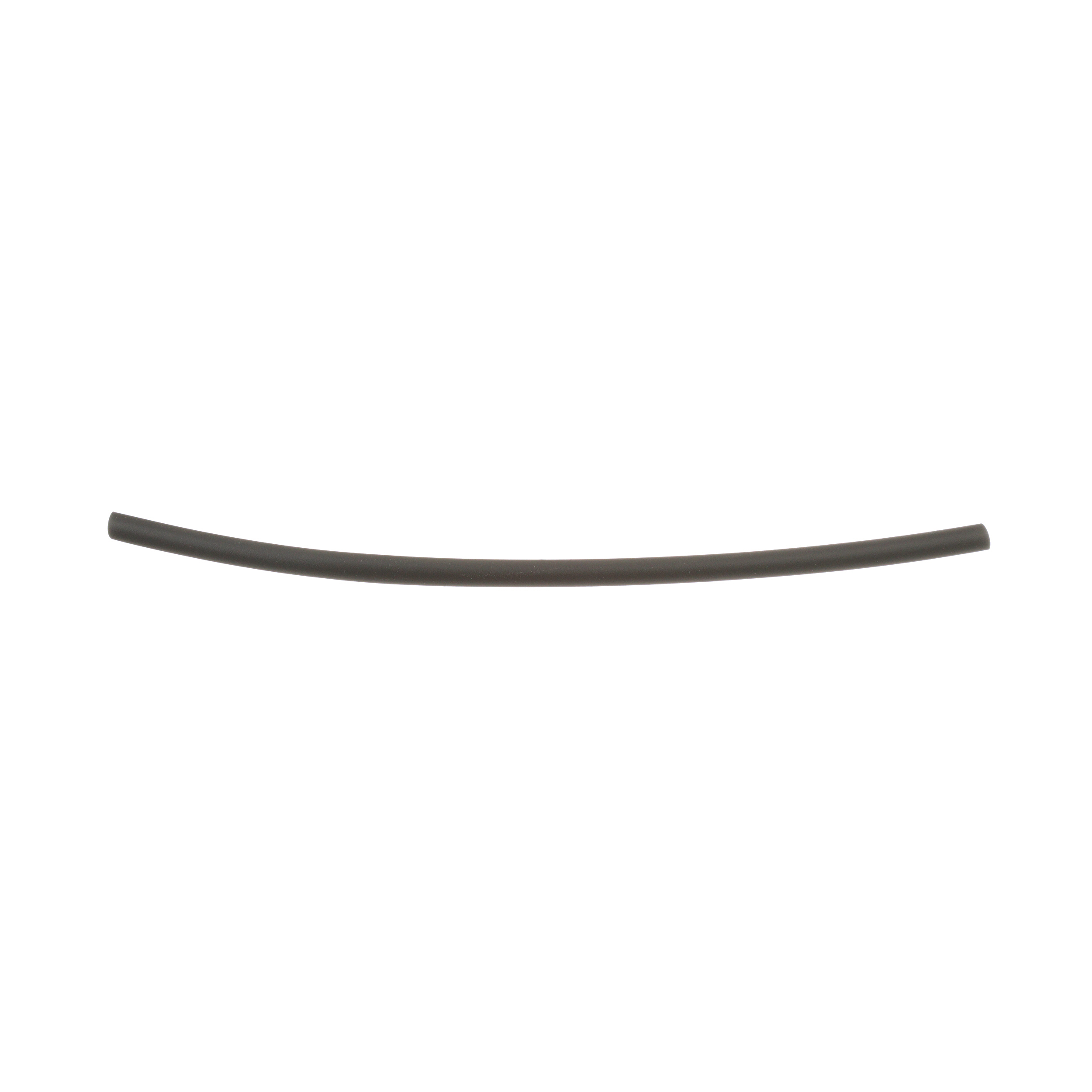

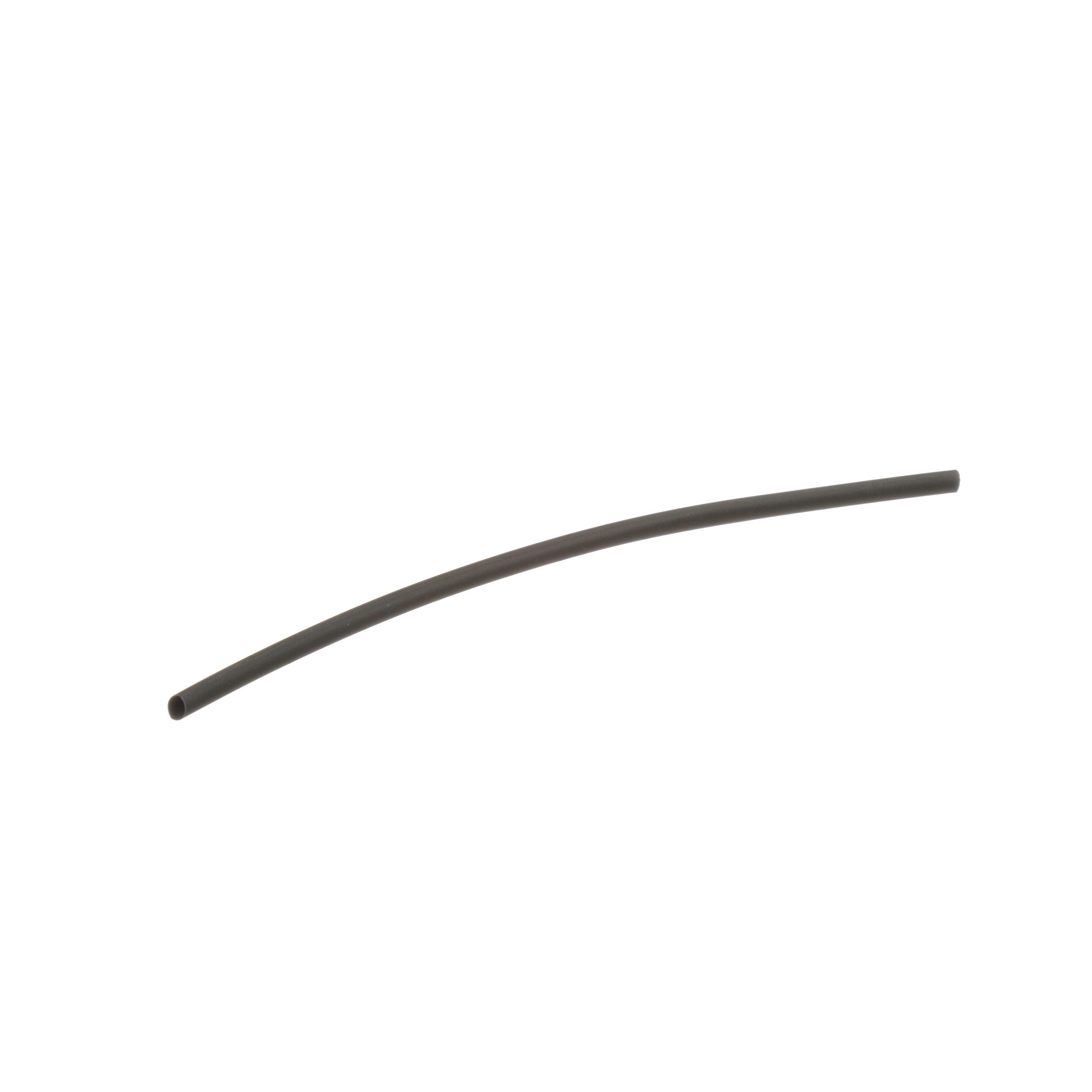

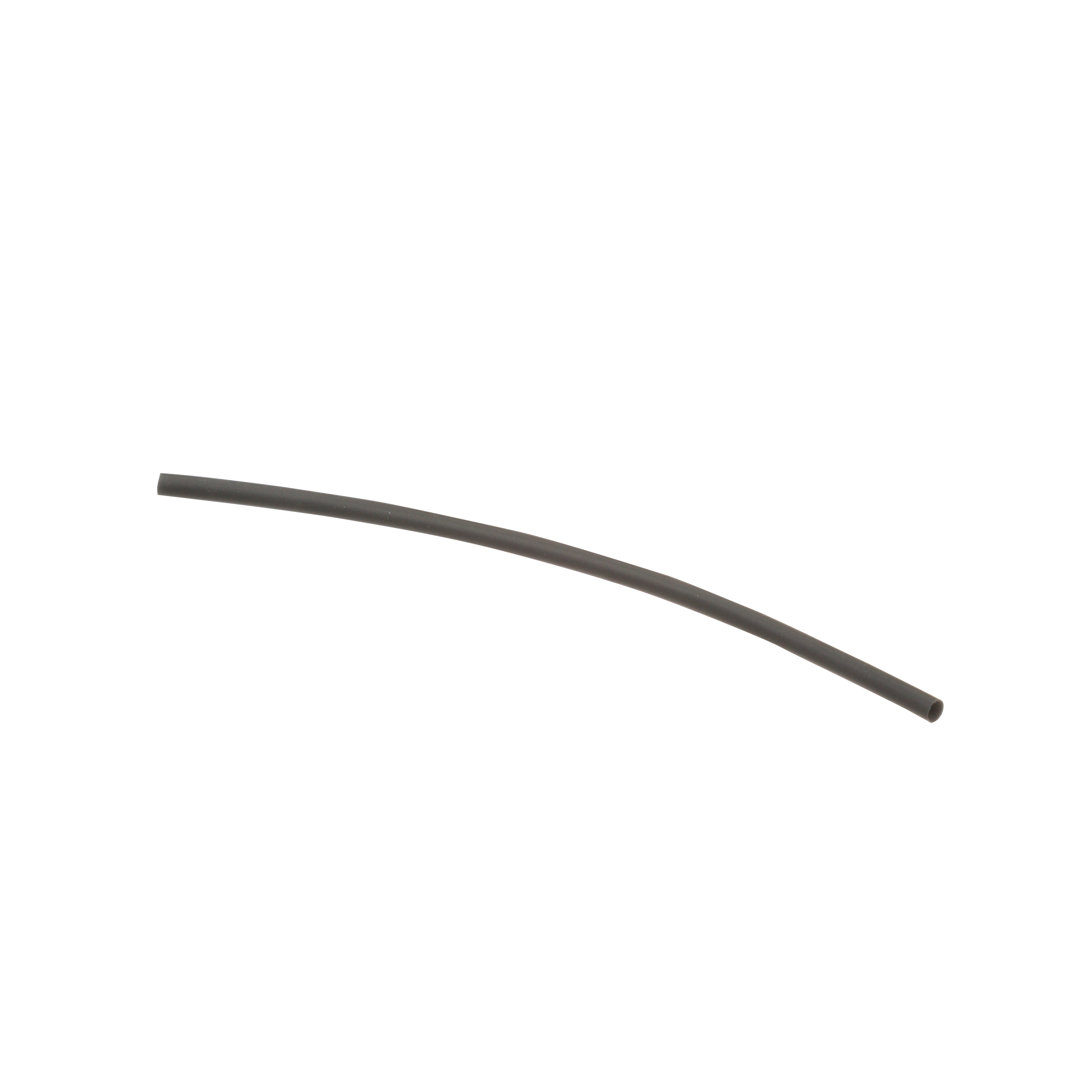

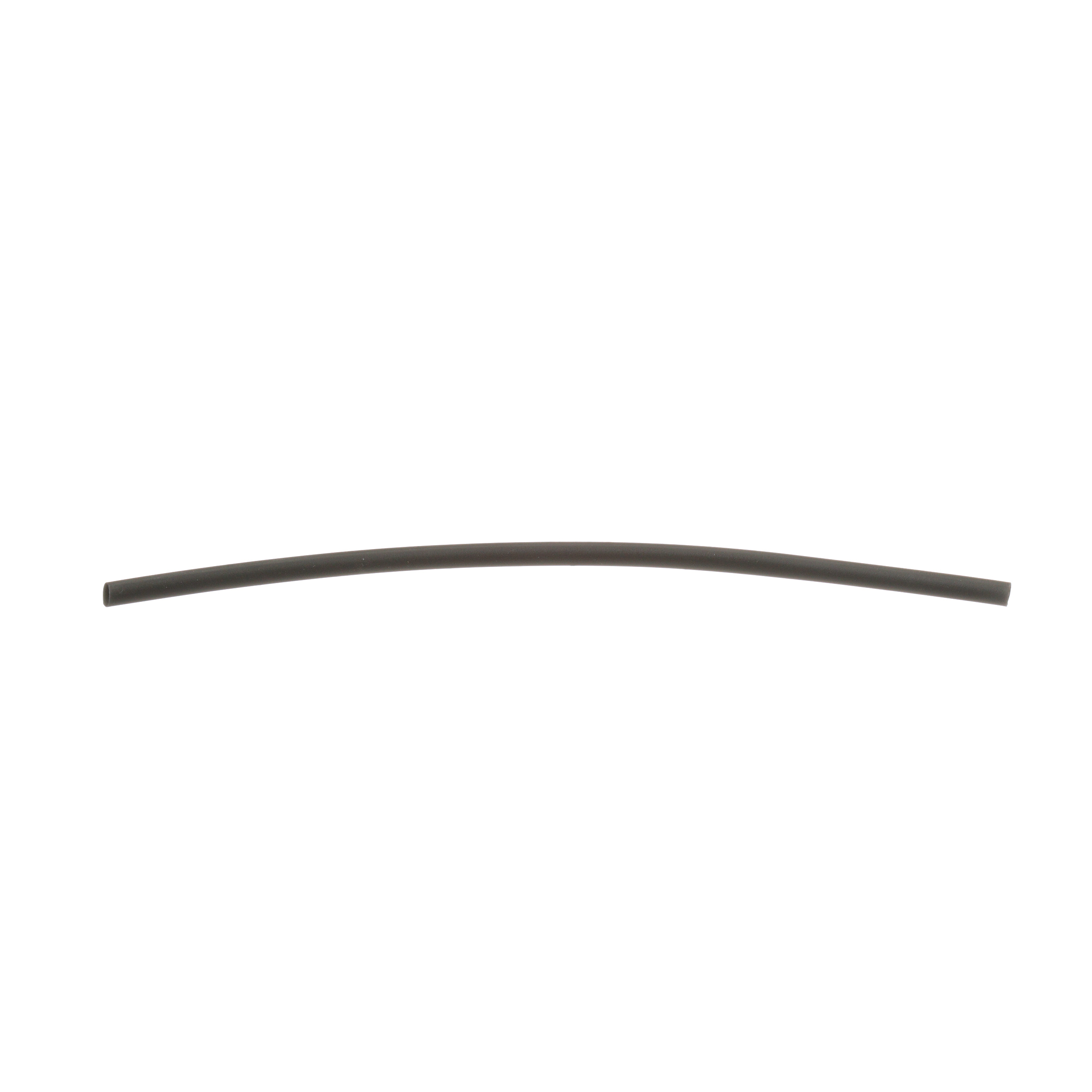

Thin wall heat shrink in 6" pieces, black, single diameter, .12" (3.2mm) diameter, cross-linked polyolefin.

Technical Information

Applications
For use with 0.50 inch FM8 conduit bodies. Seals and protects.
Material
Polyolefin
Max Operating Temperature
135 degrees C
Minimum Operating Temperature
-55 degrees C
Shrink Ratio
2:1
Standard
Yes
Type
Flame Retardant

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Dry-Shrink

General Product Info

12-Digit UPC
074983906970
Color
Black,Orange,White
GTIN
00074983906970
Product UPC
07498390697
UNSPSC
39121723

Dimensions

Inside Diameter
1.6 mm
Outside Diameter
3.2 mm
Overall Length
0.5 ft
Thickness
0.5 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
CN,KR
