Safety switch+window 3P 100A 600V 3fuse NEMA12

Manufacturer: Siemens Distribution | Catalog # HFC363JW | Electrozad South Part # 204181
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL

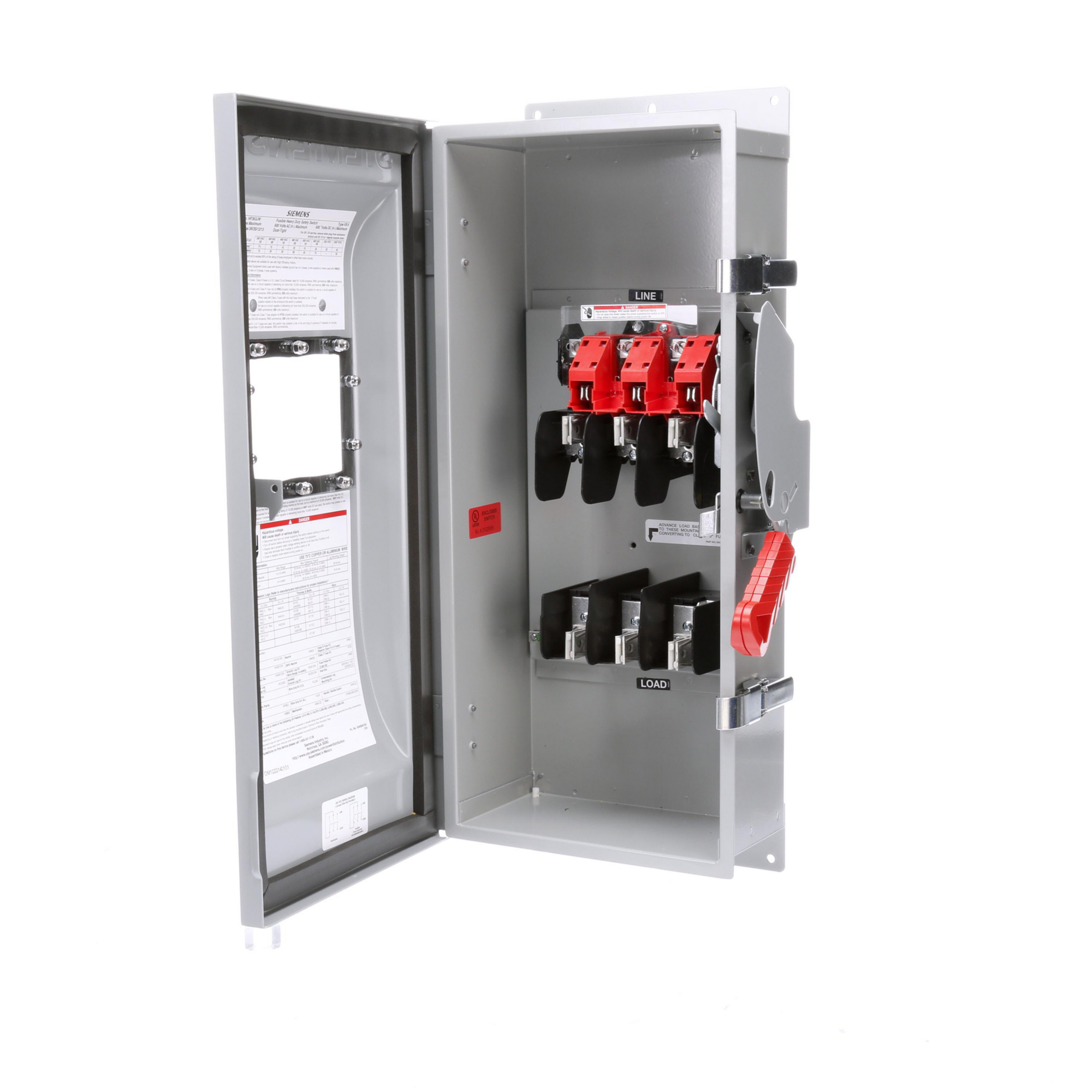

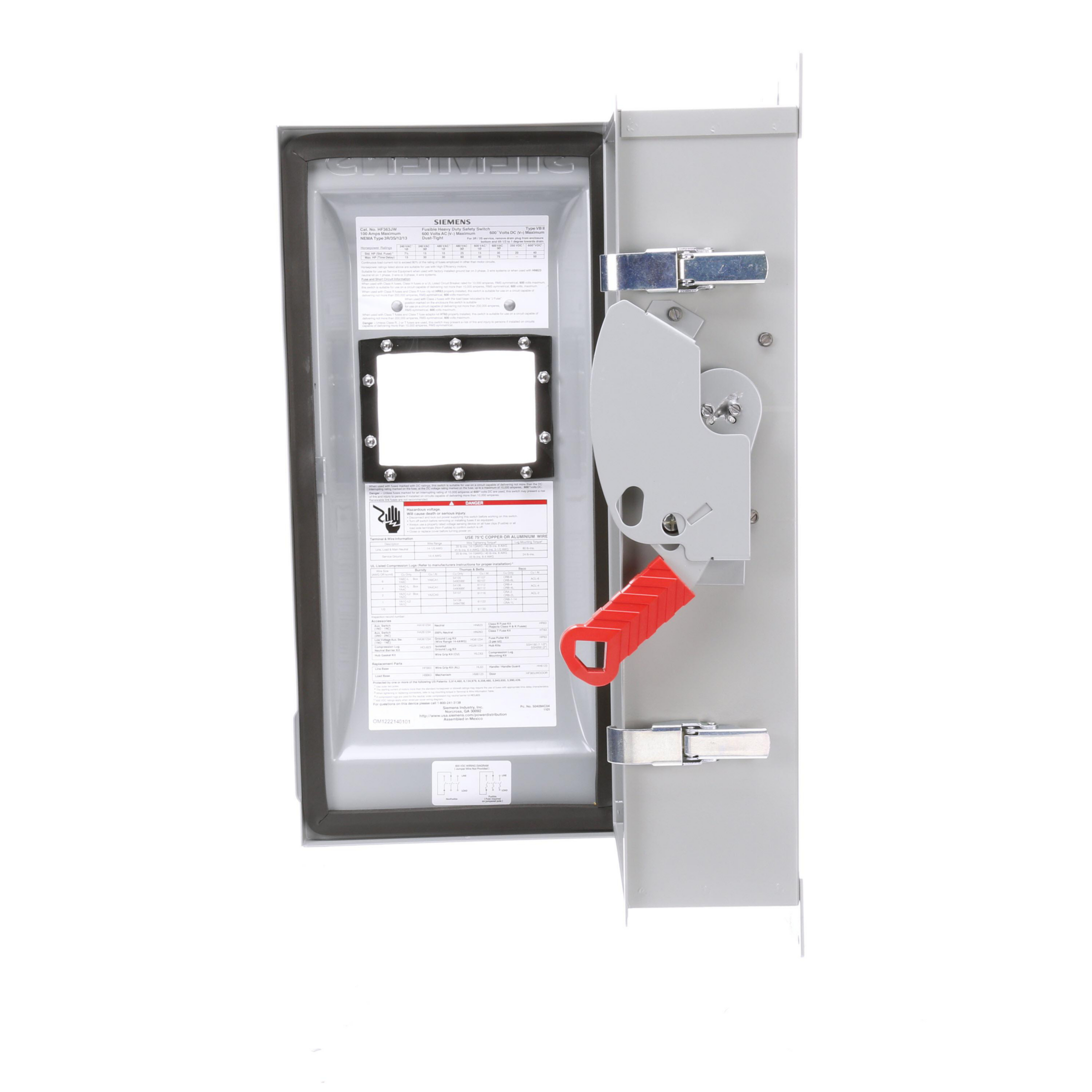

Safety switch are heavy duty models intented for use in industrial rugged area where reliable service and maintenance free are required with fault current higher than 10 KA. Available in versions 2 poles 2 fuses solid neutral 240vac, 3 poles 3 fuses 240600vac and 3 poles no fuses 600vac. Enclosures come in type 1 indoor use, type 12 industrial use, type 4X stainless steel corrosive area available with or without outlet receptacle. Available with window door to view fuses and contacts.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage
100 A
Applications
For Industrial use
Connection Type
MECHANICAL LUGS
Enclosure
NEMA12
Fuse Type
A2/A3
Interrupt Rating
10 kA
Load Rating
3 W
Material
Steel
Mounting Type
2 or 3 Point Mounting Holes
Number of Poles
3
Number of Wires
3
Operating Cycles
10000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Temperature Rating
-20 to 120 degrees F Ambient
Type
Heavy Duty, Fused, Toggle, Single Throw
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
Safety Switches

General Product Info

12-Digit UPC
783643221727
GTIN
00783643221727
Housing Material
304 Stainless Steel
Product UPC
78364322172
Weight
26.200 lb

Dimensions

Height
27.000 in
Length
14.000 in
Width
8.000 in

Certifications & Compliance

Country of Origin
Mexico
