LOW PEAK DUAL ELEMENT

Manufacturer: Bussman Cooper Fuses | Catalog # LPN-RK-50SP | Electrozad South Part # 2061
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure H TECHNICAL DRAWING URL

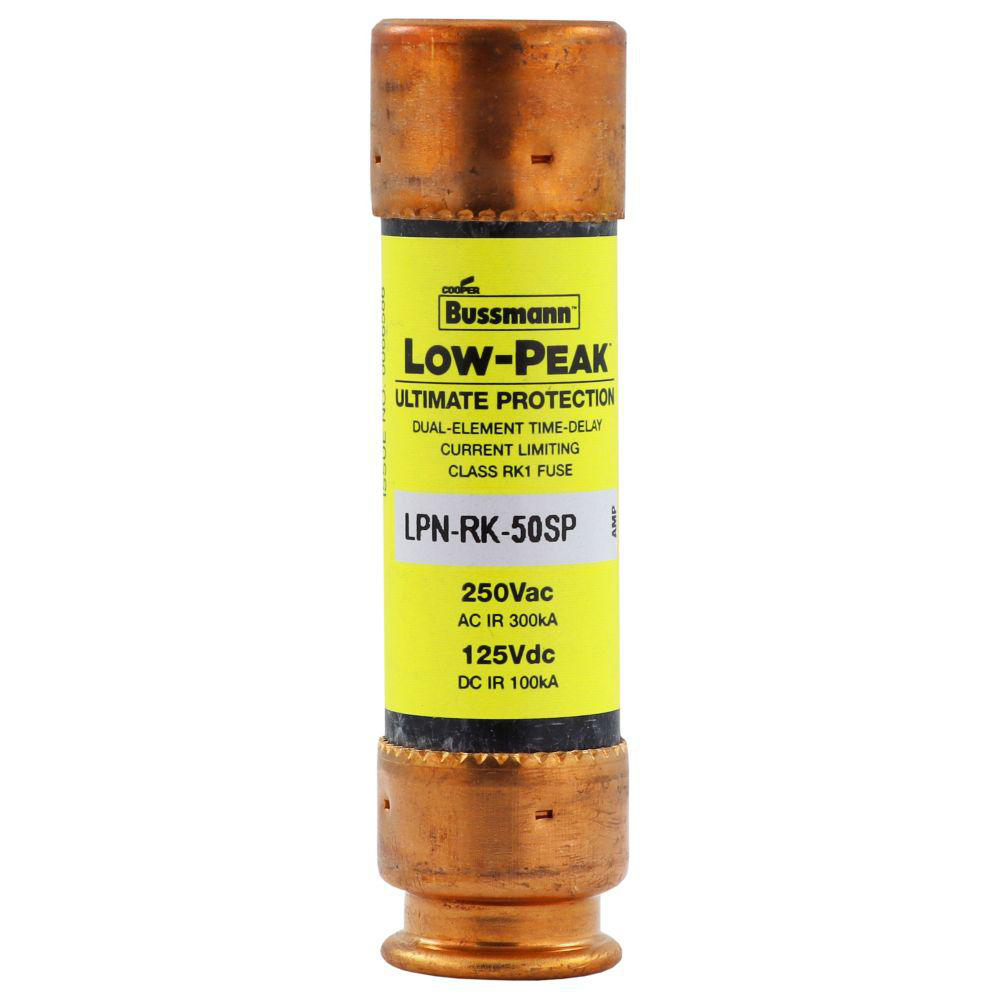

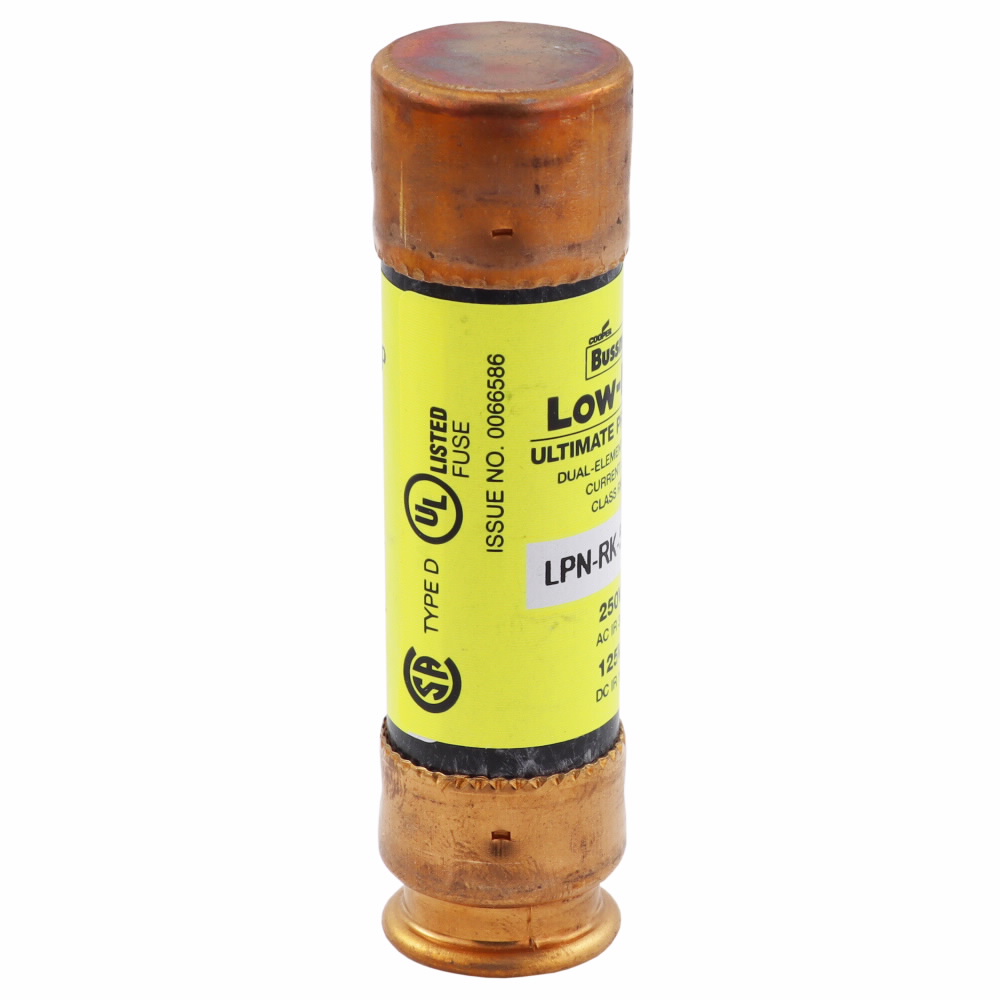

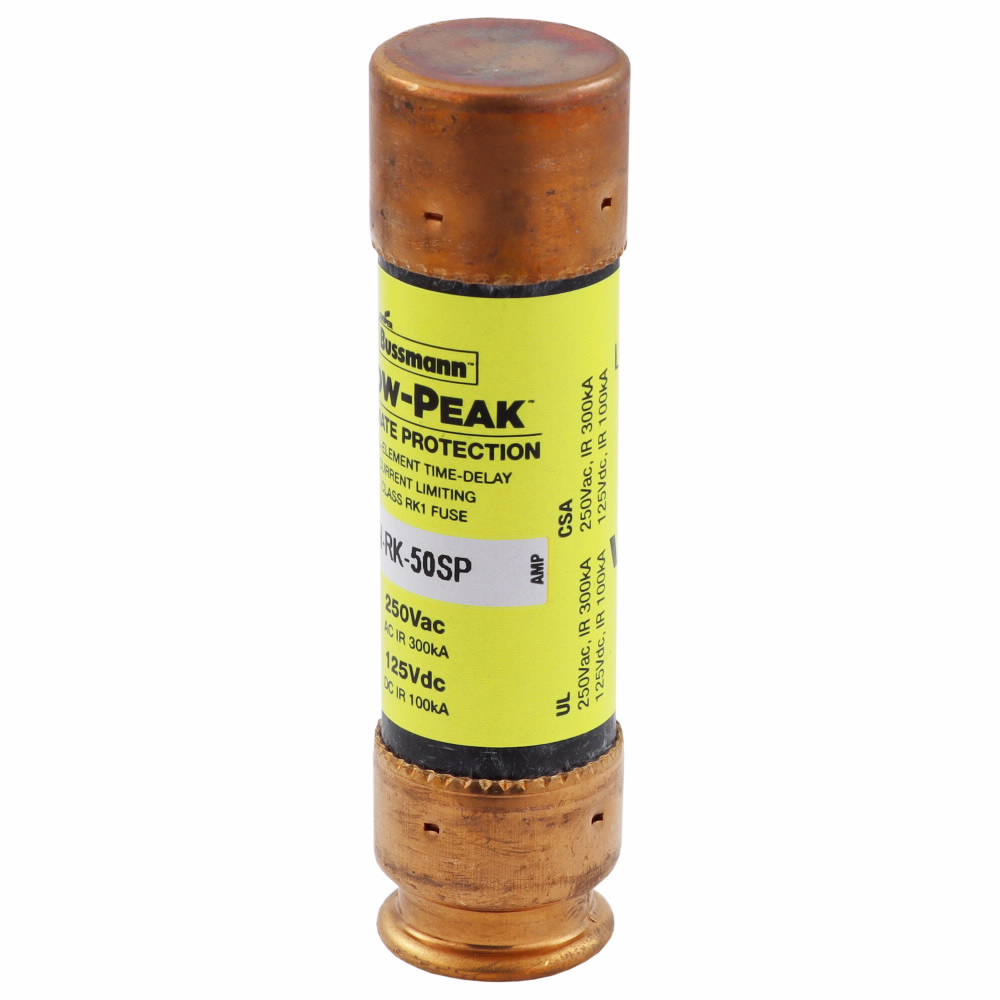

Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 50 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc

Technical Information

Amperage
50 A
Applications
Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Machinery Disconnect Switches
Connection Type
Ferrule
Element
Dual
End Type
Ferrule
Interrupt Rating
100000 A
Response Time
10 seconds at 500%
Size
0.81 In Diameter X 3.00 In Length
Standard
CE,CSA C22.2,UL
TC Connection
Ferrule End X Ferrule End
Type
Current Limiting, Time Delay
Voltage
125 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Low-Peak

General Product Info

12-Digit UPC
051712538404
Class
Class RK1
GTIN
00051712538404
Product UPC
51712538404
Weight
.13 lb

Dimensions

Height
2.99 in
Length
.81 in
