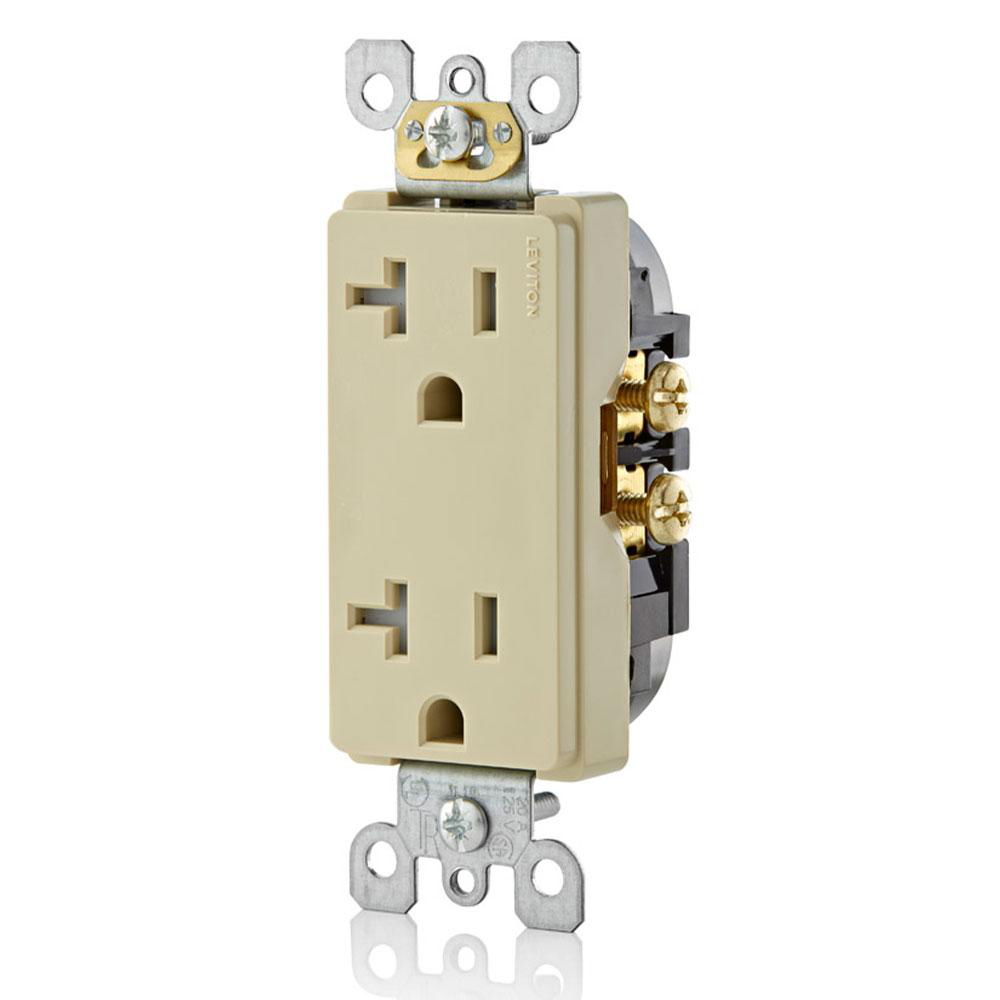

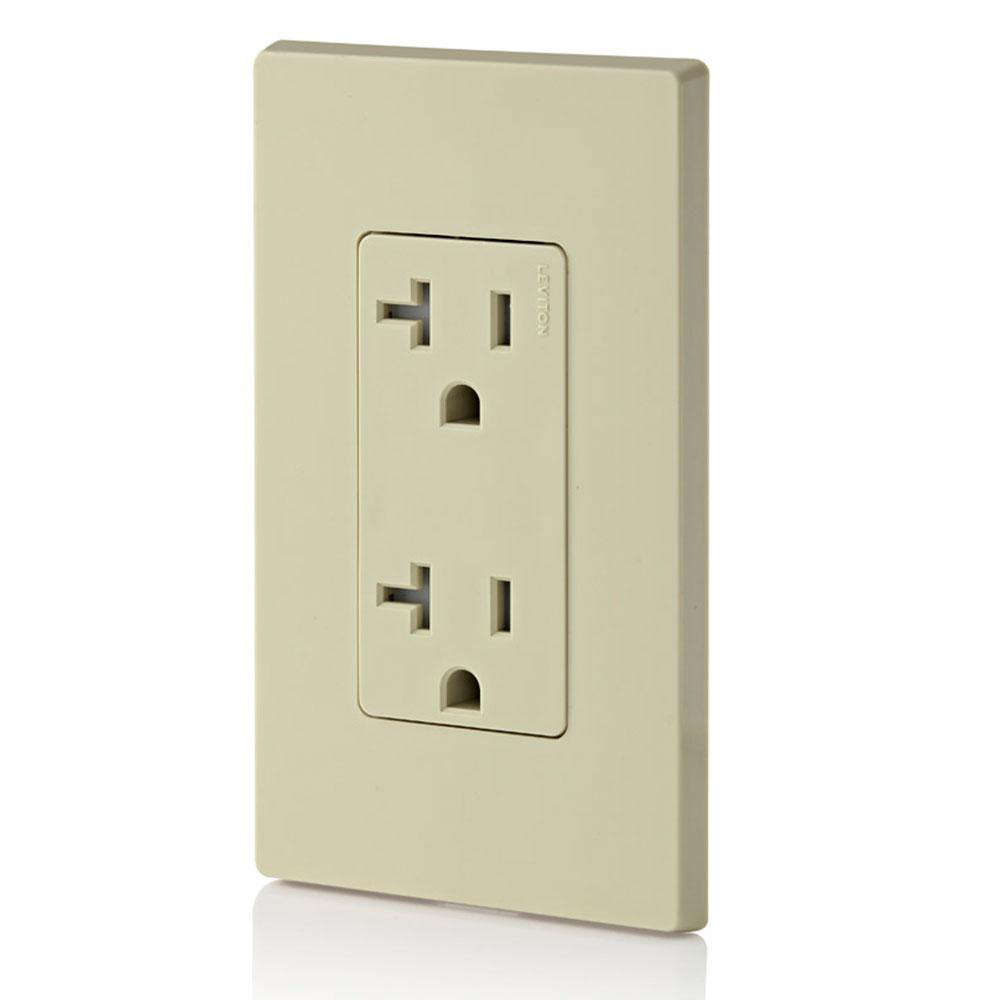

Product image for Receptacle 5-20R TR duplex decora 20A 125V ivo
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 4
Email

Receptacle 5-20R TR duplex decora 20A 125V ivo

Manufacturer: Leviton Manufacturing | Catalog # T5825I | Electrozad South Part # 206994
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Tamper resistant receptacle designed for a chic appearance, quick installation and durability. The impact-resistant thermoplastic design allows for a long service life and high performance in homes, offices, schools and other settings. It also coordinates beautifully with complete line of decora devices.

Technical Information

Amperage
20 A
Applications
Commercial
Conductor Size
14 AWG
Connection Type
Quickwire Push-In and Side Wired
Grade
Commercial
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
5-20R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Size
4.2 H x 1.351 W x 1.184 D IN
Standard
CSA Certified (File 152105),NOM,UL (Listed)
TC Connection
Quickwire Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Outlet, Tamper-Resistant
Voltage
125 V
Wire Size
14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477450505
Color
Ivory
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477450505
Product Type
Decora
Product UPC
07847745050

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
