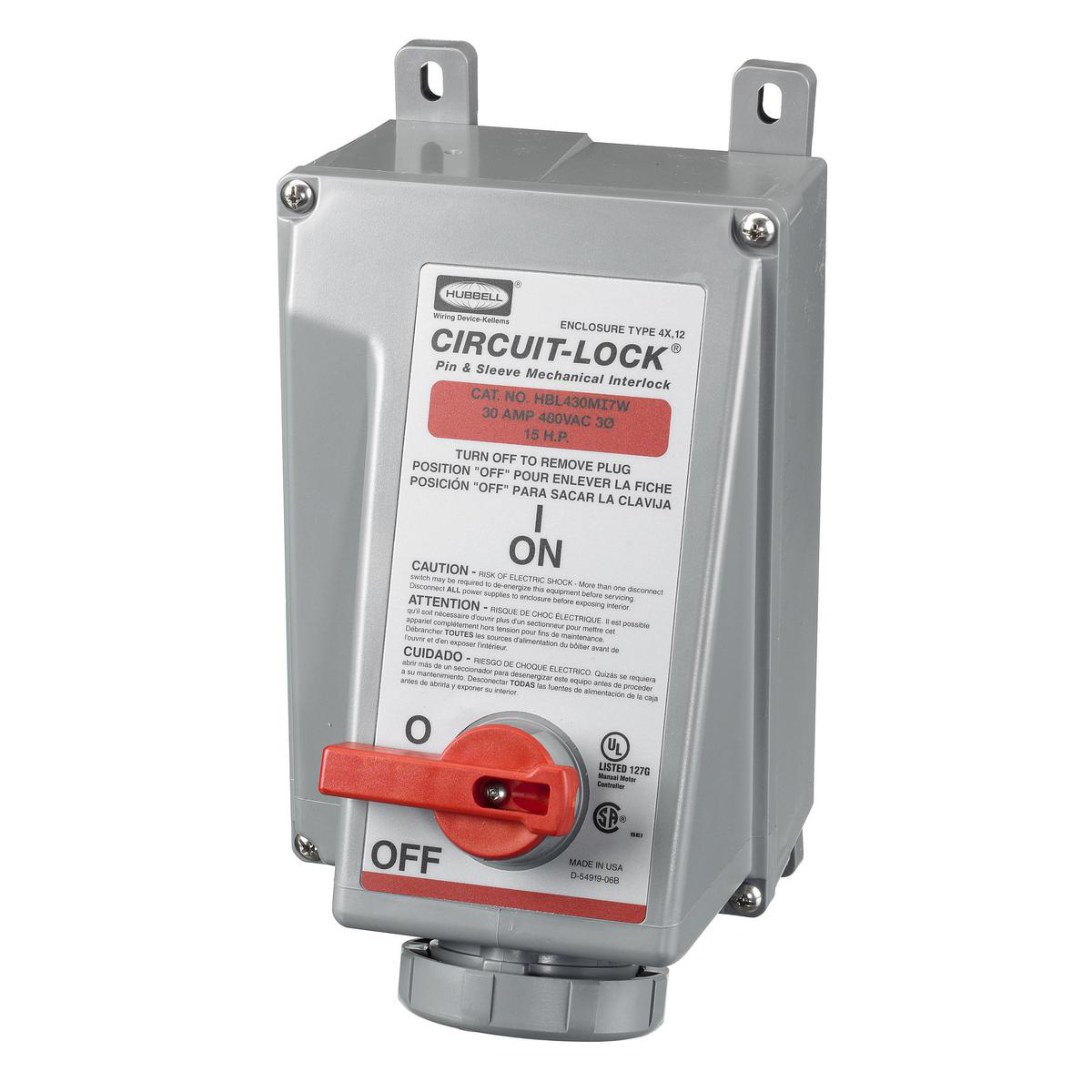

HUB HBL430MI7W RECEPTACLE PIN&SLEEV INTERLOCK 30A 3P 4W 3PH 480V IP67

Manufacturer: Hubbell Wiring Devices | Catalog # HBL430MI7W | Electrozad South Part # 208381
$1,755.44 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual

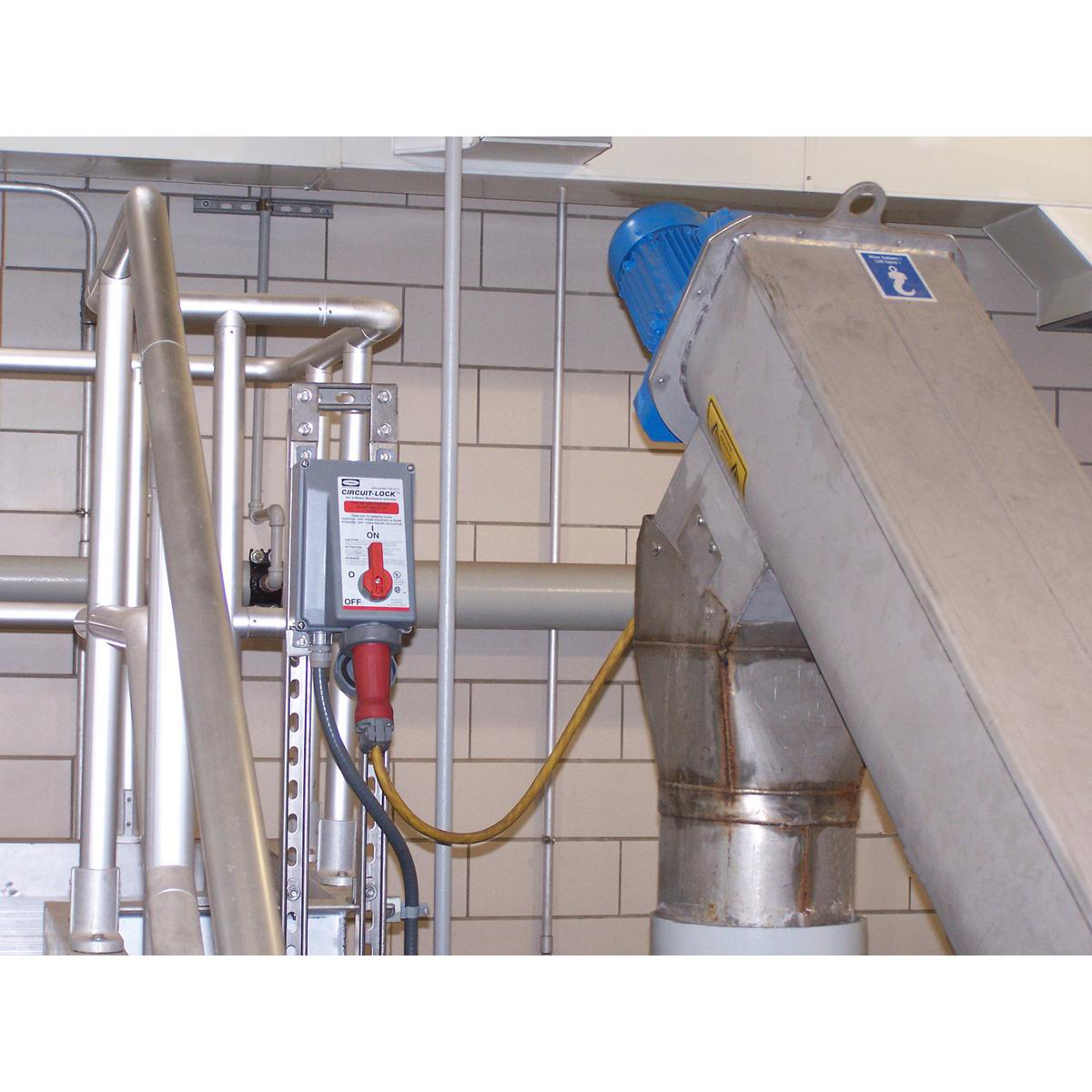

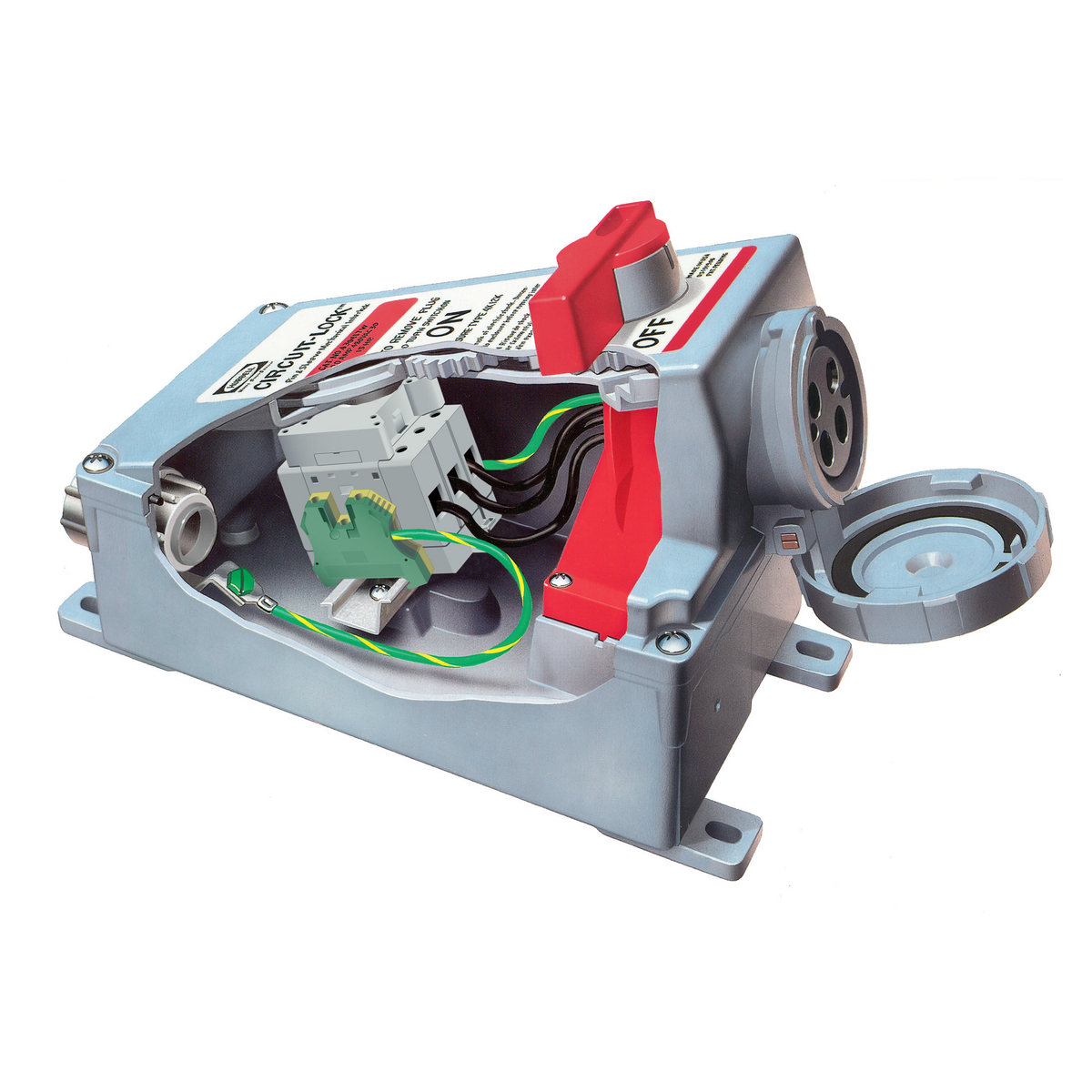

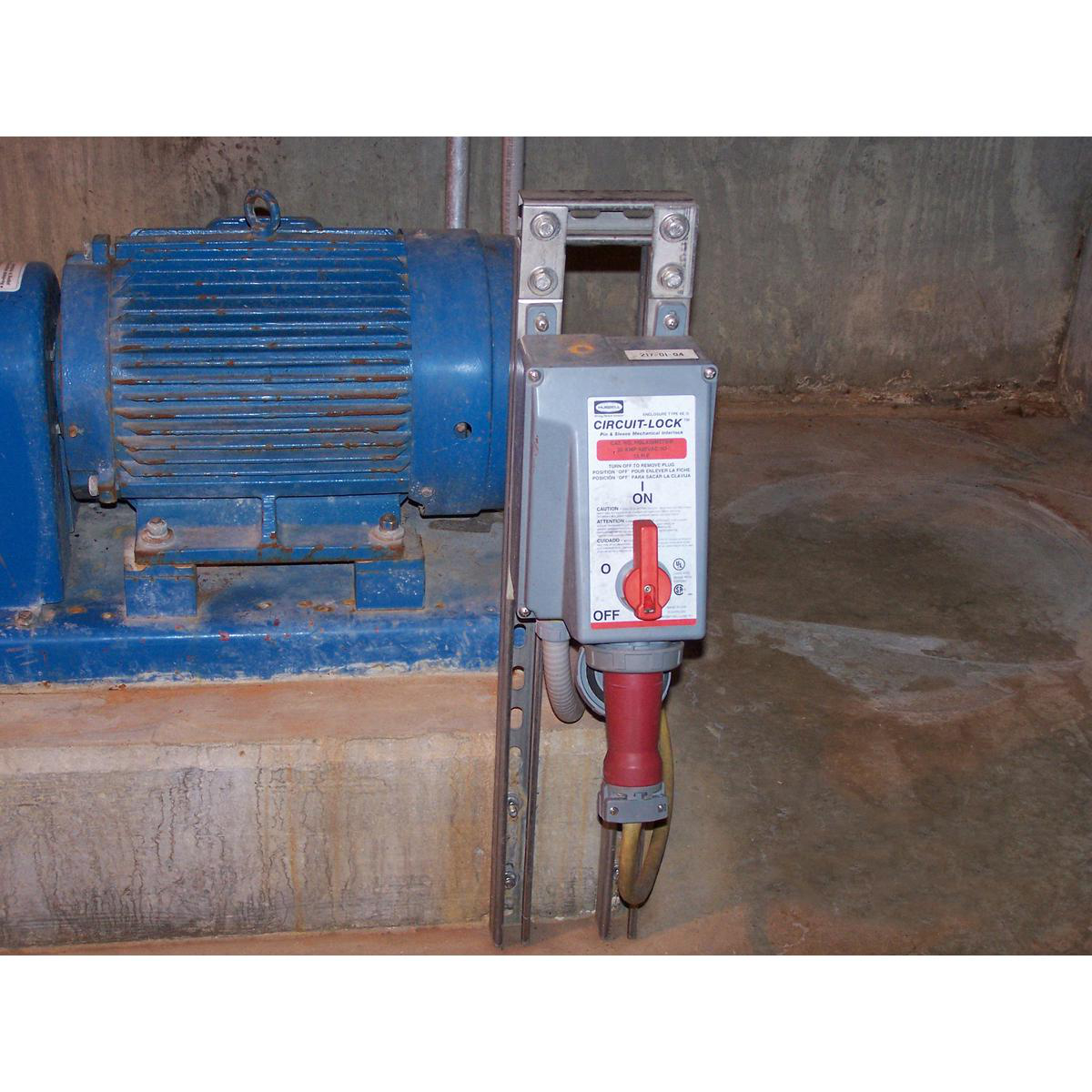

Hubbell CIRCUIT-LOCK motor disconnect withstand 10 000 amp fault short circuit up to 2200 volts. Available in toggle switch unit version 2-3 poles, 30-40-50-60-85 amp, 120-240-480-600 volts alone or enclosures built-in NEMA 1 (aluminium or plastic) toggle control, NEMA 3/3R (aluminium or thermoplastic rain tight) slider control, NEMA 4X ( stainless steel or thermoplastic) rotary control. Auxiliary contacts NO/NC for PLC, class J fuses protection and pin and sleeve receptacle (optional).

Technical Information

Amperage
30 A
Applications
High Ampacity Watertight Connections
Conductor Size
12 - 8 AWG
Current
30 A
Grounding
Grounding
Material
Thermoplastic/Composite
Mounting Type
Screw
Number of Phases
3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
CSA,E2186,UL
Style
Standard Service
TC Connection
Pressure Screw Terminals
Type
Mechanically Interlocked, Single
Voltage
480 V
Wattage
14400 W
Wire Count
4
Wire Size
12 - 8 in

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
IEC 309 Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585405971
Color
Red
Environmental Conditions
Watertight
GTIN
00783585405971
Product UPC
78358540597
Weight
6.2 lb

Dimensions

Height
7.200 in
Length
12.600 in
Width
7.9 in

Certifications & Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
