Receptacle dupx flush rtp 2P3W 15A L5-15R brown

Manufacturer: Hubbell Wiring Devices | Catalog # HBL4700 | Electrozad South Part # 2089
$53.30 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL

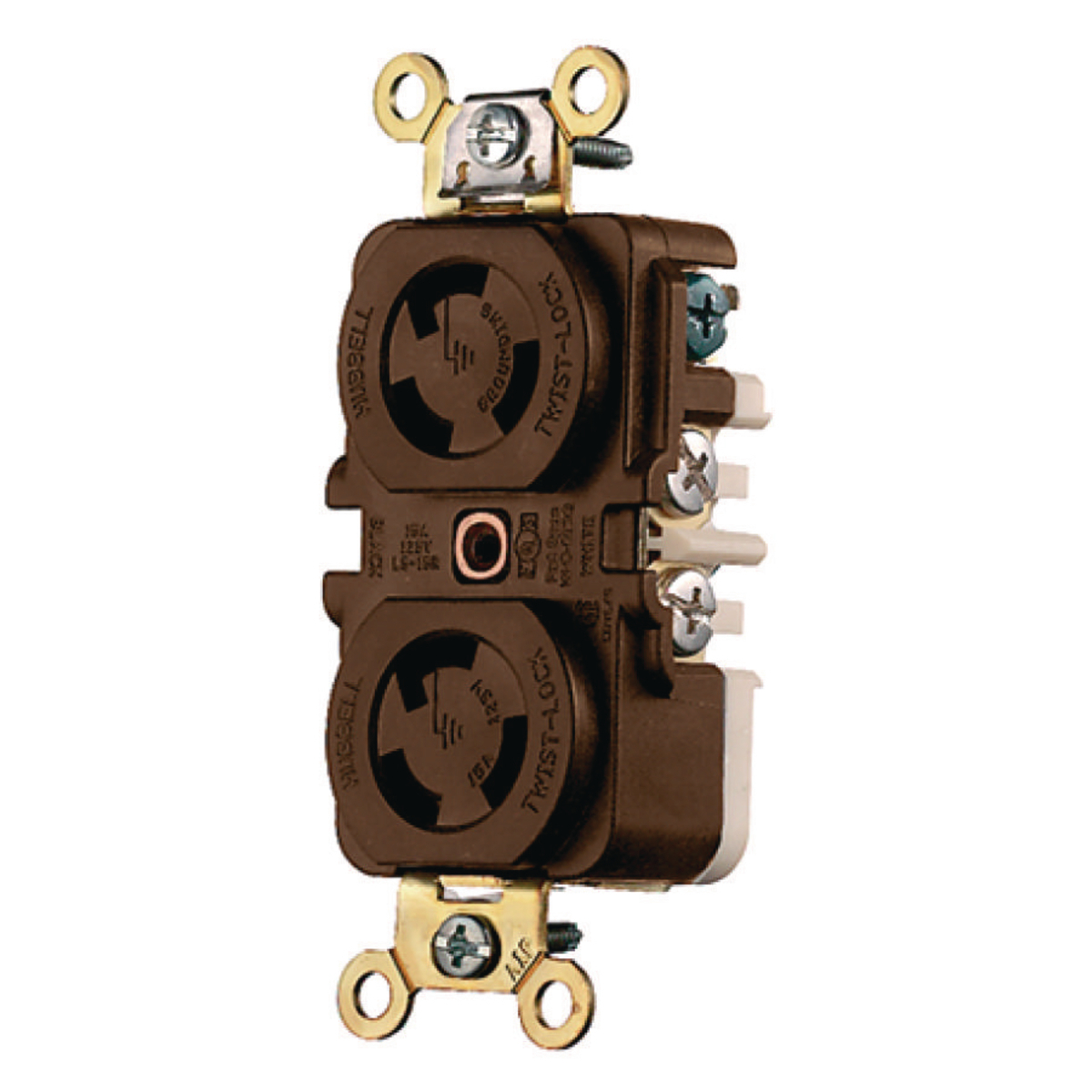

TWIST-LOCK® duplex receptacle made of RTP with 2 pole 3 wire grounding, 125 V.

Technical Information

Amperage
15 A
Applications
Heavy Duty Industrial
Base Material
RTP
Conductor Size
14-12 AWG
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
RTP
Grade
Industrial
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
L5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Heavy Duty
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585002309
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
GTIN
00783585002309
Product UPC
78358500230
Weight
0.25 lb

Dimensions

Height
1.17 in
Length
3.29 in
Width
1.70 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Single point break-off tabs
  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • Mounting strap tabs lock the body and base together
