PANDUIT PISR250-1 SPLICER REDUCER INLINE #10G- 250MCM CU OR ALUMINUM CLEAR PVC INSULATION

Manufacturer: Panduit | Catalog # PISR250-1 | Electrozad South Part # 209374
$4,742.55 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
42 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

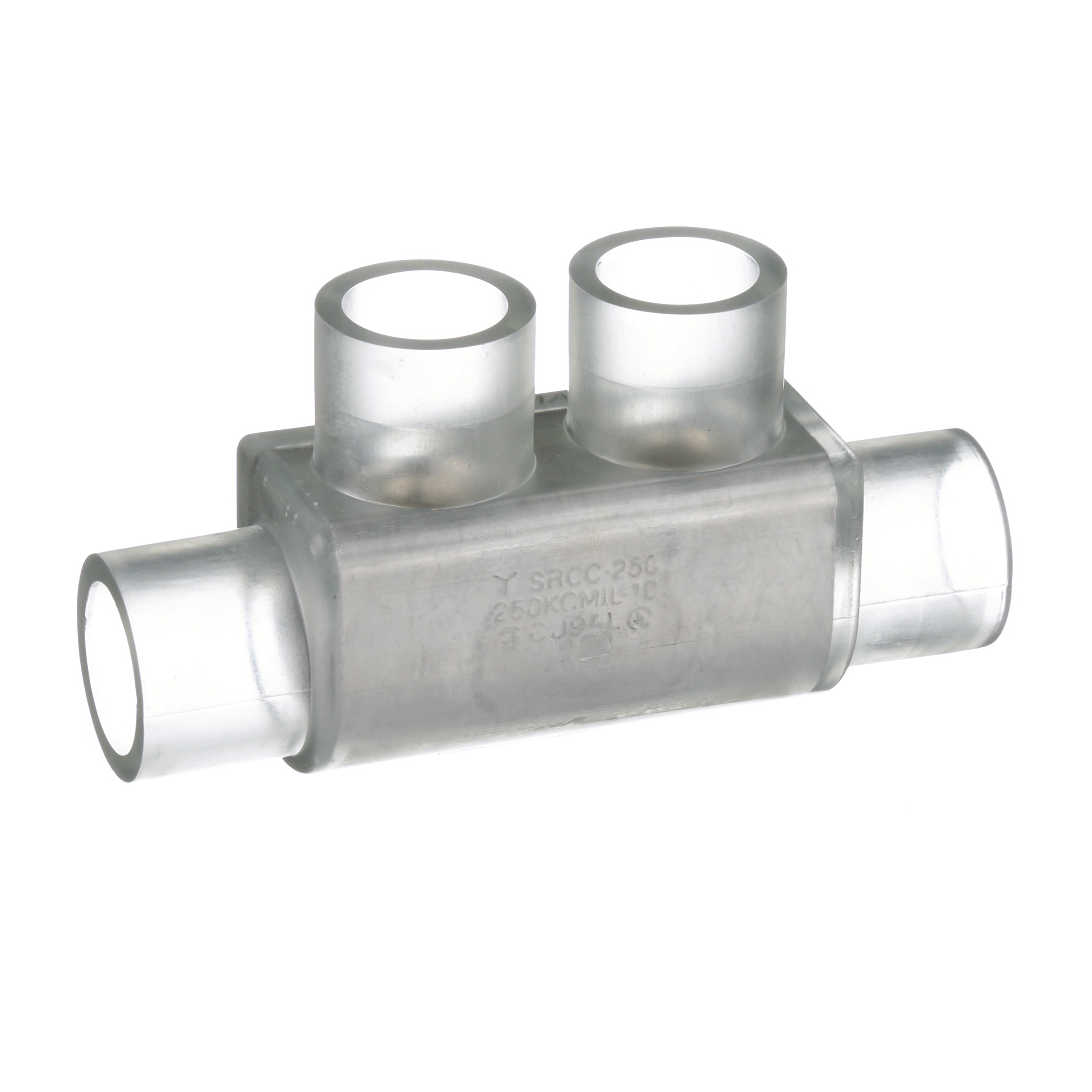

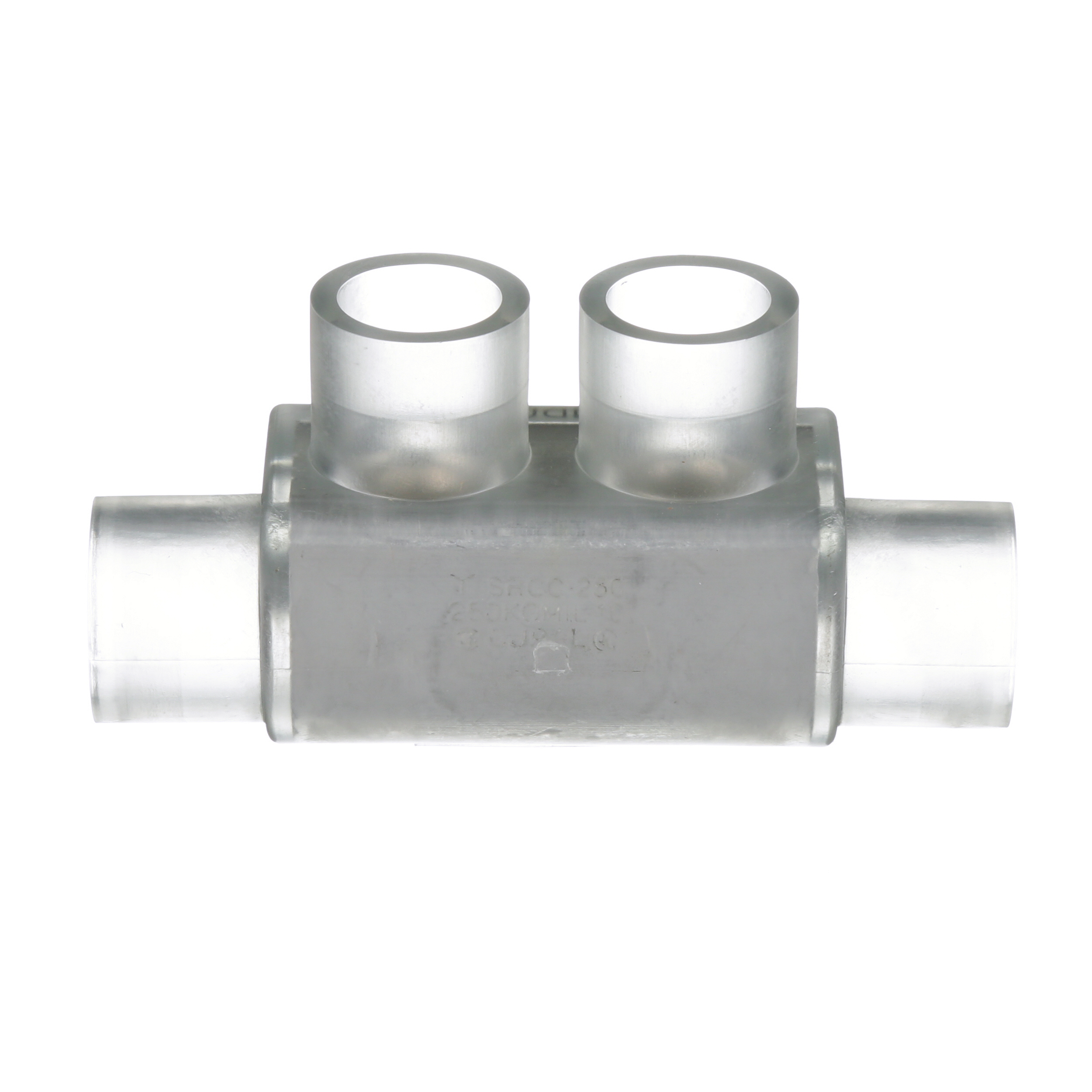

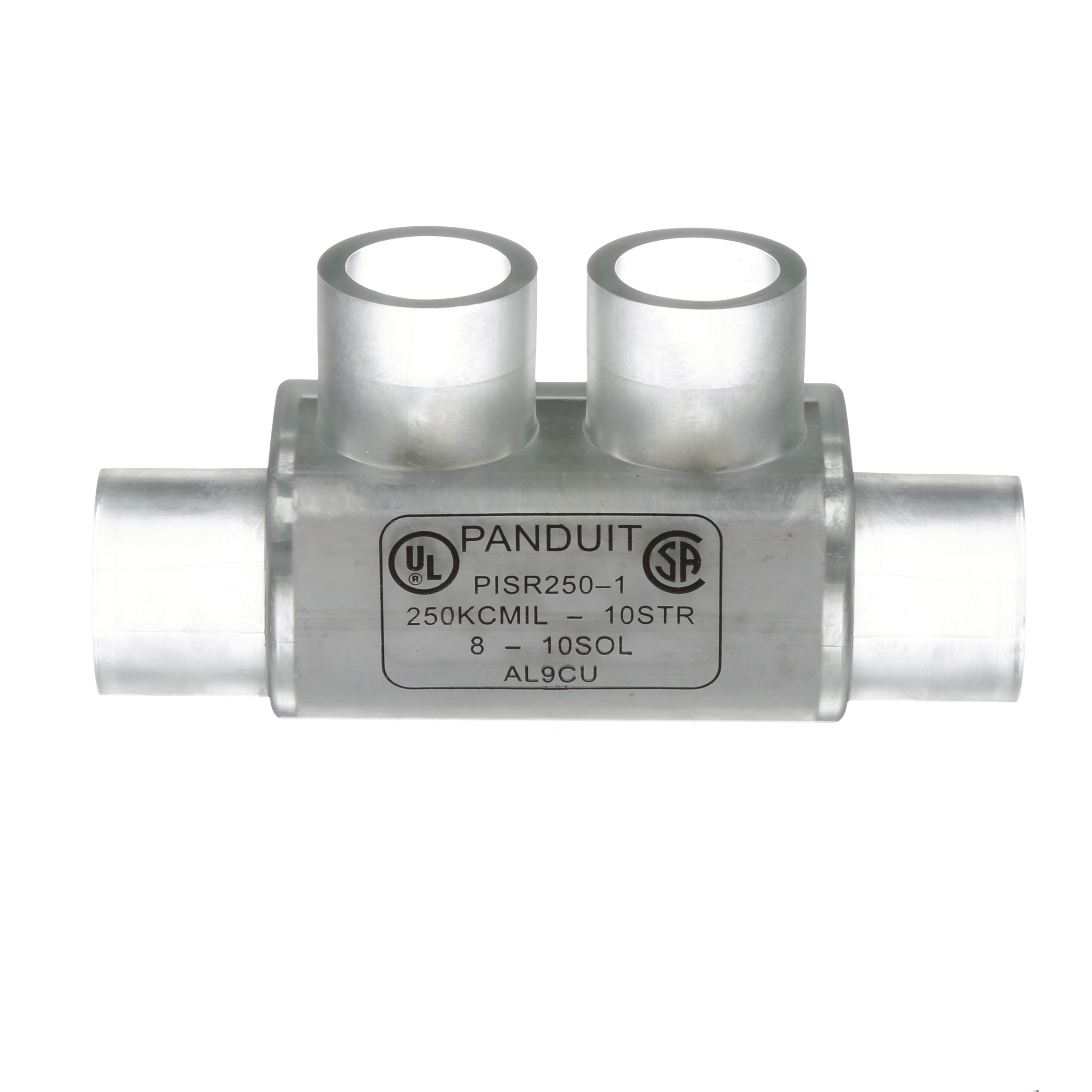

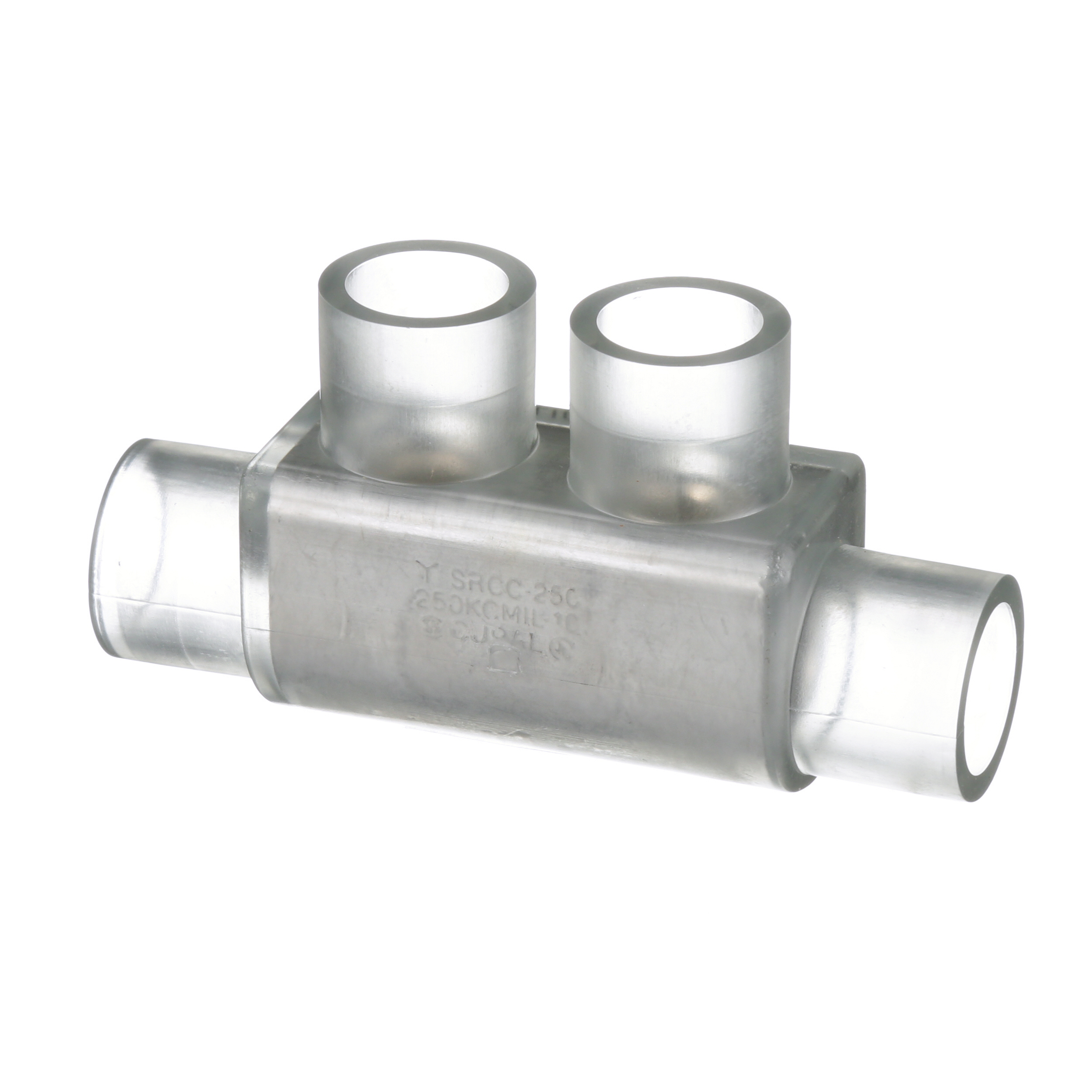

The PISR250-1 Splicer/Reducer Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Dual rated for use with copper or aluminum conductors. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

Technical Information

Barrel Length
4 in
Base Material
Aluminum
Conductor Size
250 kcmil - 10 AWG Stranded, 10-8 AWG Solid
Contact Material
Aluminum/Copper
Material
Aluminum
Size
101.6 mm L x 31.8 mm W x 56.9 mm H
Standard
CSA,E2186,UL
Strip Length
1.12 in
Temperature Rating
90 degrees C
Type
Dual Rated, In-Line, Multi-Tap

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983574957
Color
Clear
Finish
Tin Plated
GTIN
00074983574957
Product UPC
07498357495
Used With
Any Combination for Copper/Aluminum Code Conductor Wire AL9CU Rated

Dimensions

Height
56.9 mm
Length
4.0 in
Overall Length
4 in
Width
1.25 in

Certifications & Compliance

Country of Origin
USA
