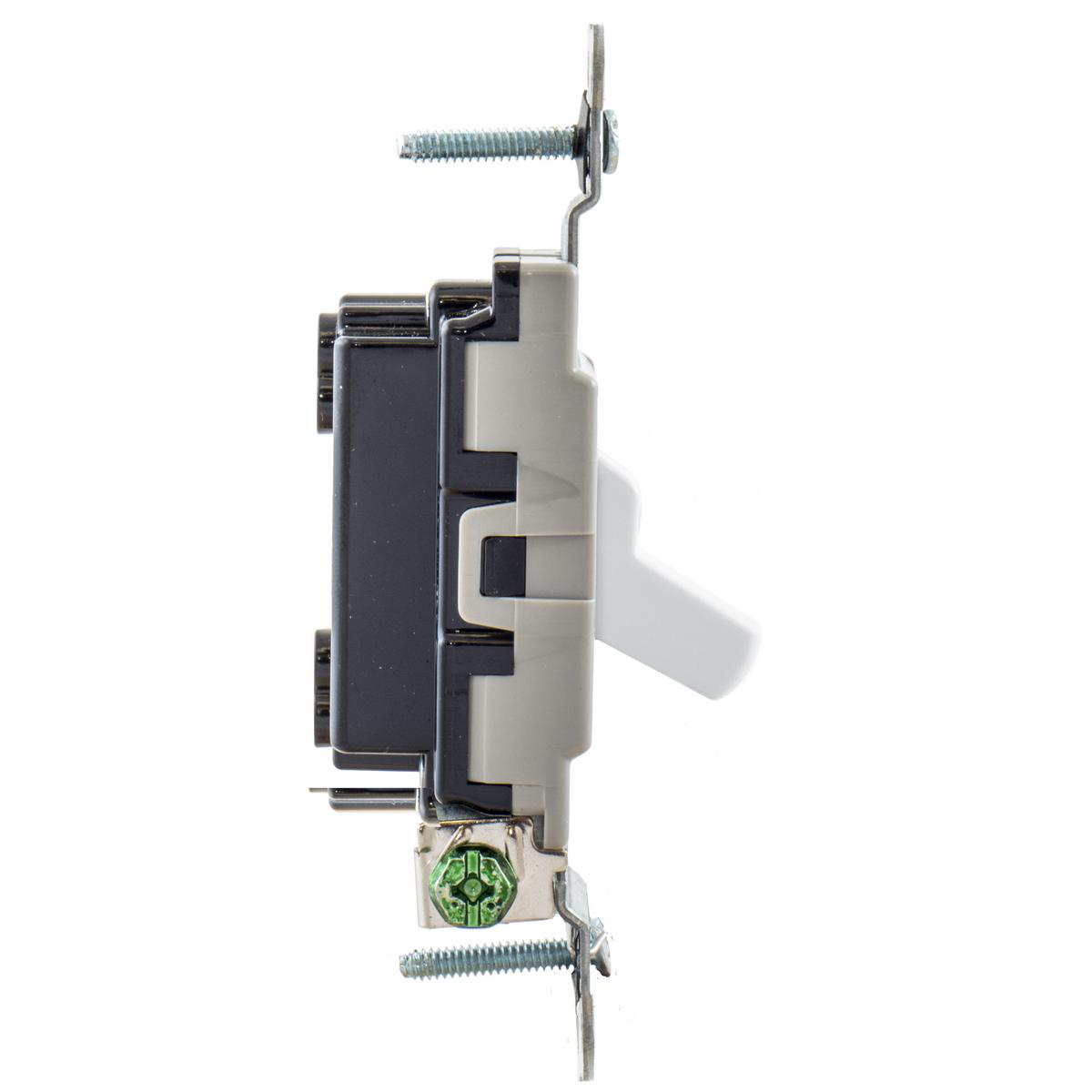

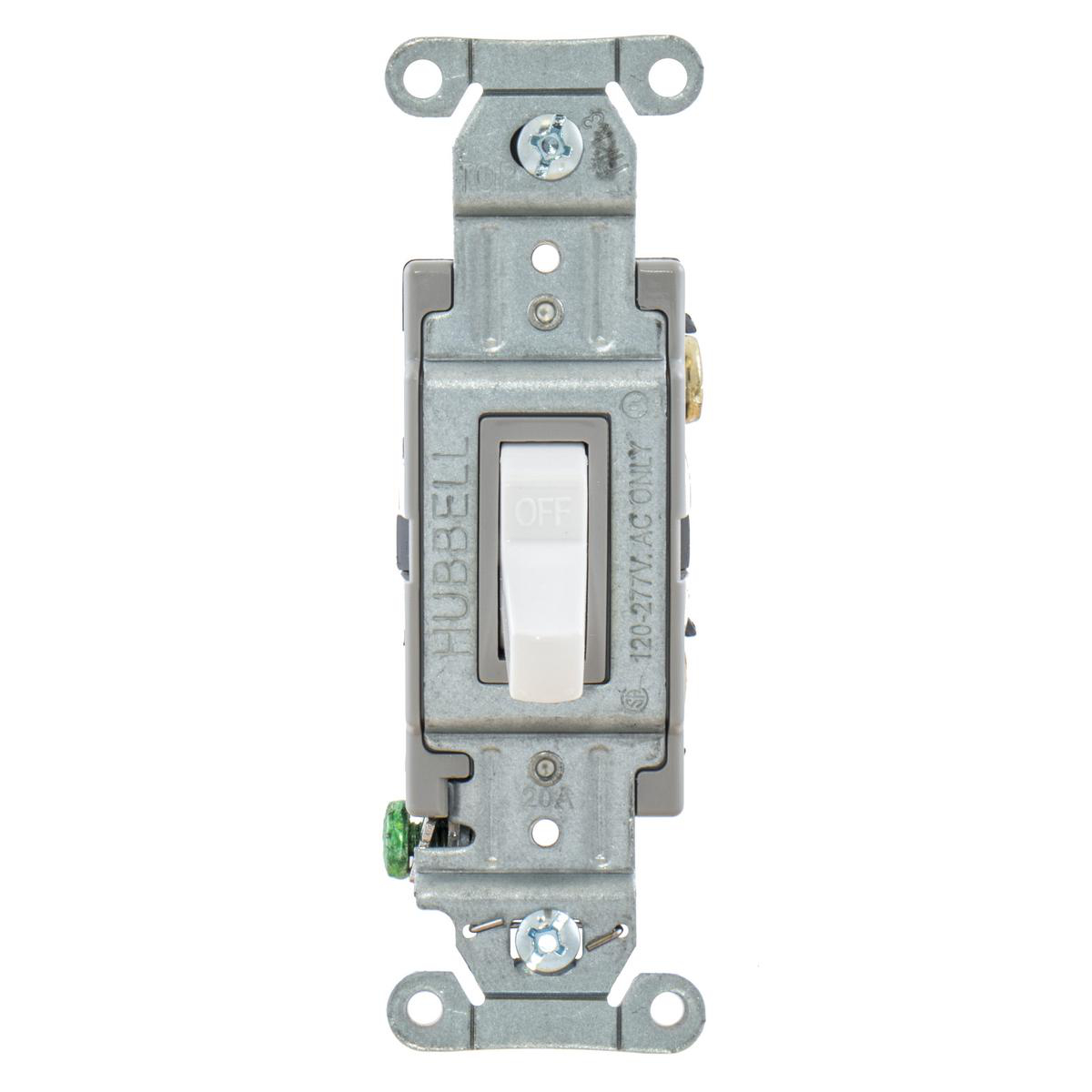

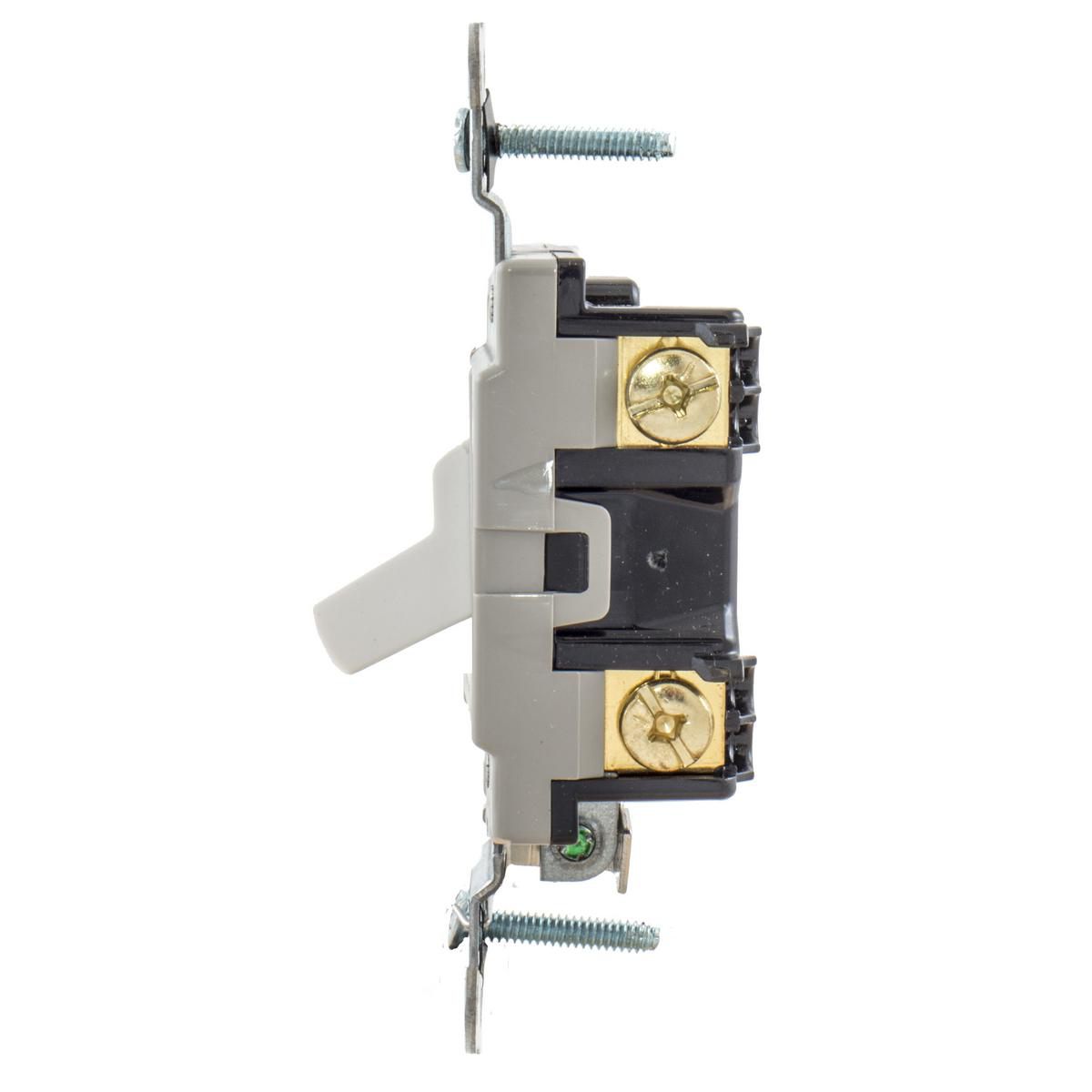

Product image for HUB CSB115W SWITCH 15A SP 120V- 277V 1P TOGGLE COMMER GRADE WHITE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

HUB CSB115W SWITCH 15A SP 120V- 277V 1P TOGGLE COMMER GRADE WHITE

Manufacturer: Hubbell Wiring Devices | Catalog # CSB115W | Electrozad South Part # 209382
$4.88 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Specification grade commercial series single-pole toggle switch. Back and side wired. Two switch handle positions. Thread cleaning captive mounting screw. Abuse resistant nylon toggle. Steel, zinc plated bridge is corrosion resistant.

Technical Information

Action
Positive Snap, Off
Actuator
Toggle
Amperage
15 A
Applications
Commercial Spec Grade
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
15 A
Enclosure
None
Grade
Commercial
Material
Thermoplastic
Number of Poles
1
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
4.18 in x 1.49 in x 1.83 in
Standard
UL
Style
Single Pole
Switch Type
Single Pole
TC Connection
Back and Side Wired
Type
General Purpose, 2 Position, Standard
Voltage
120-277 V
Wattage
4,155 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585153780
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585153780
Product Series
General Purpose
Product UPC
78358515378
Weight
0.15 lb

Dimensions

Height
1.83 in
Length
4.18 in
Width
1.49 in

Certifications & Compliance

Country of Origin
China
