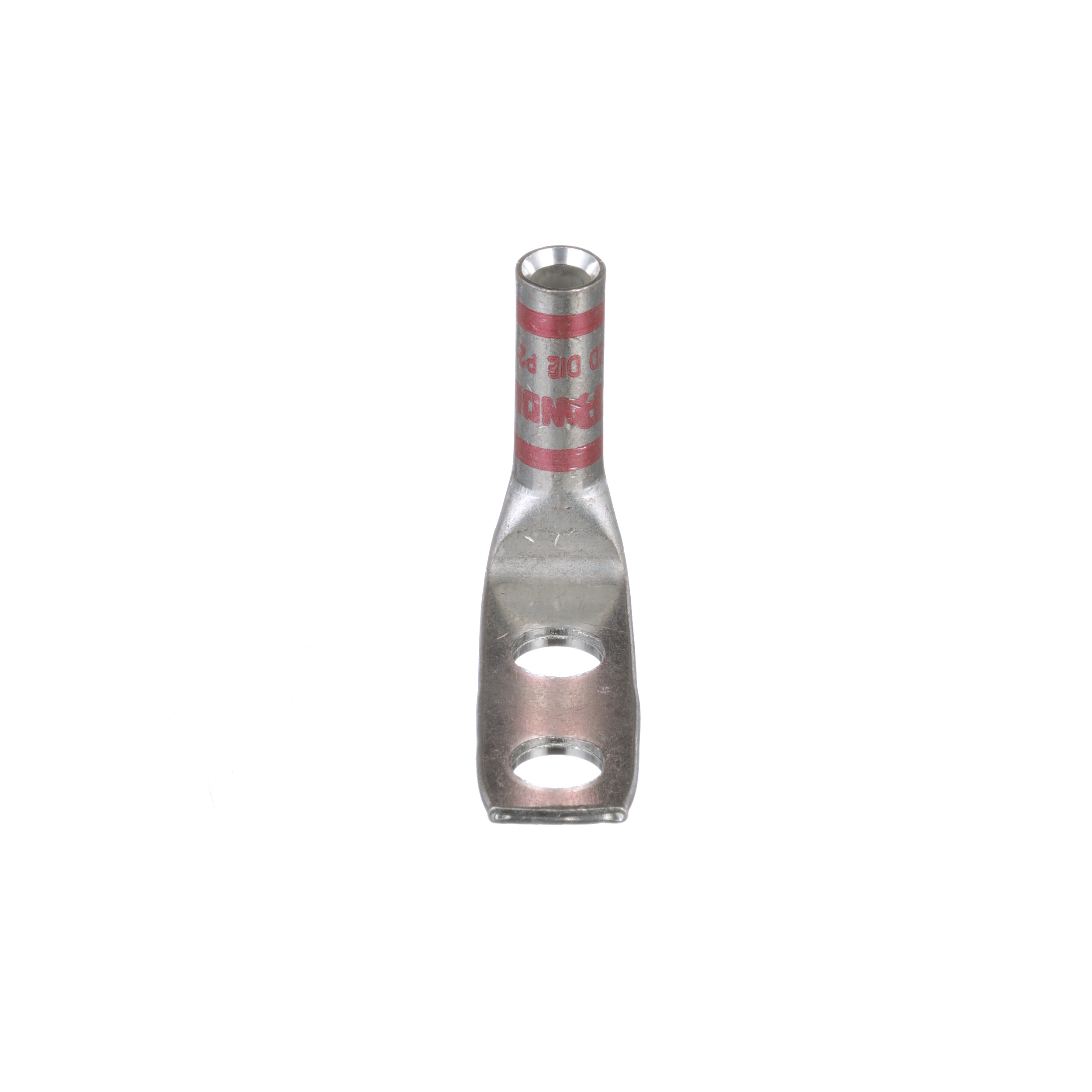

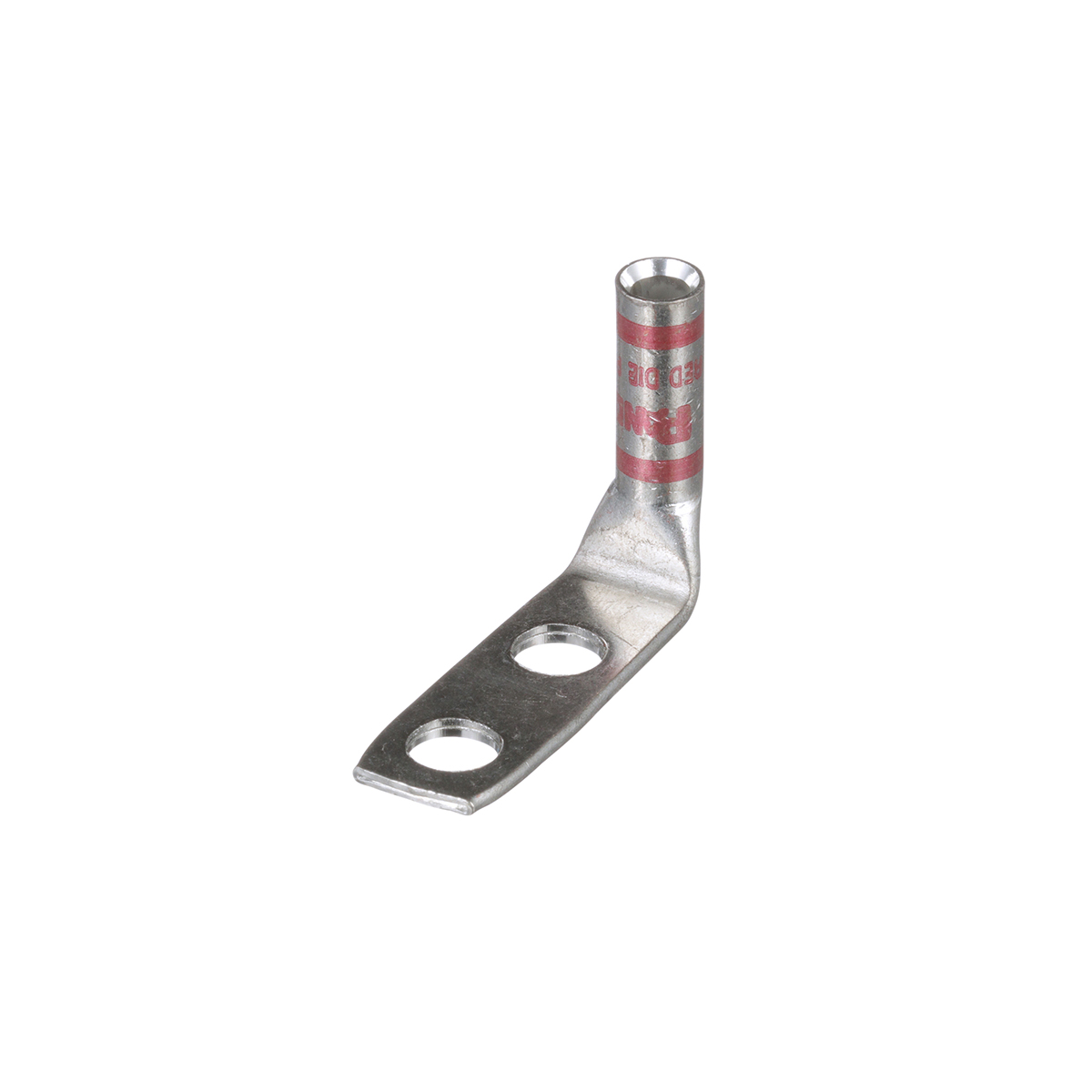

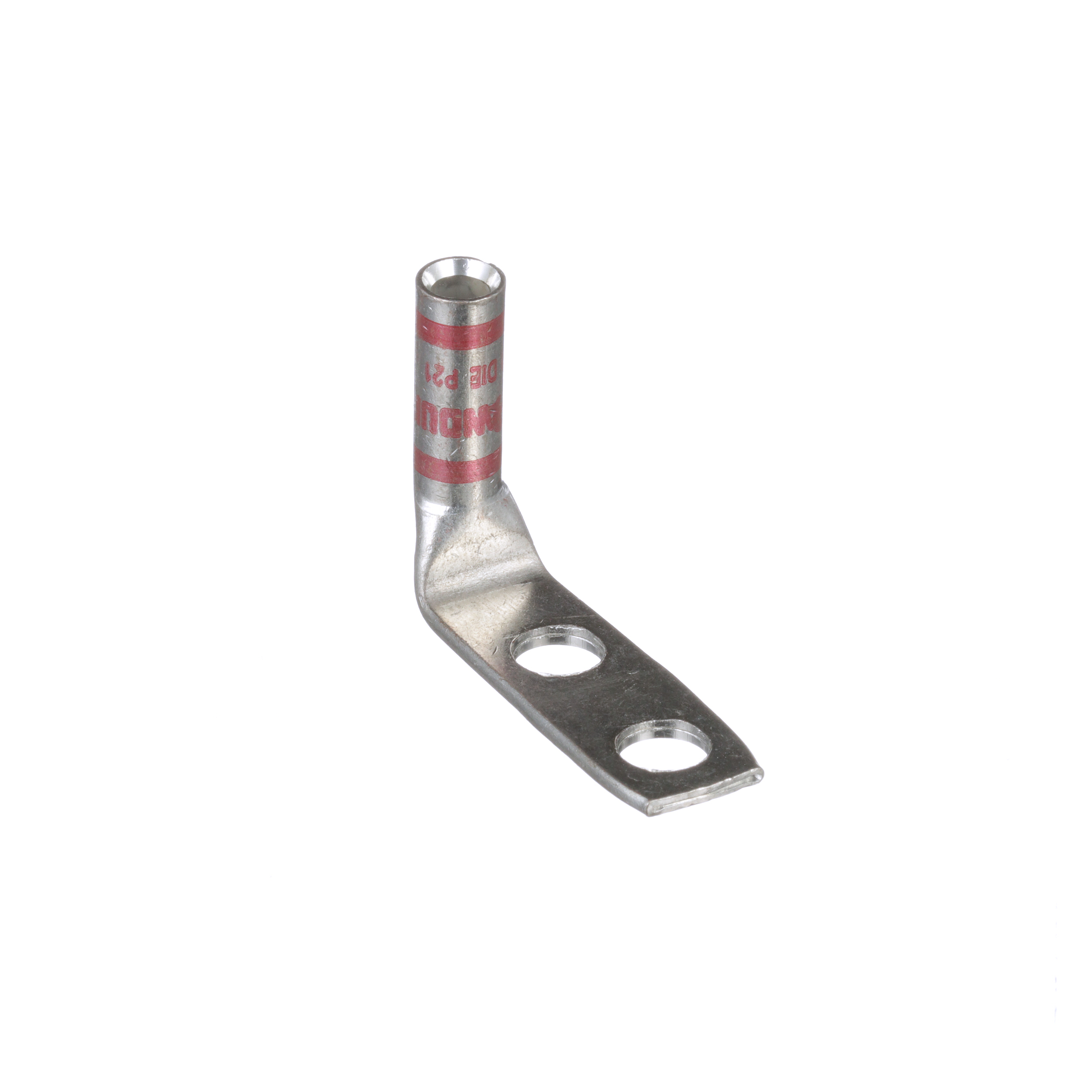

Lug long barrel window 8AWG copper 0.63" stud hole spacing

Manufacturer: Panduit | Catalog # LCC8-14AF-L | Electrozad South Part # 209607
$1,429.37 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
PANDUIT® Code conductor two-hole window long barrel lug with 90.. angle maximizes number of crimps and provides premium wire pull-out strength and electrical performance. Inspection window to visually assure full conductor insertion. Color-coded barrels marked with specified competitor die index numbers for proper crimp die selection. Tin-plated to inhibit corrosion.

Technical Information

Angle
90°
Barrel Length
0.7 in
Barrel Type
Long without Inspection Window
Cable Size
AWG
Color Coding
Red
Material
Copper
Number of Holes
2
Size
#8 AWG Code
Stud Size
1/4 in
Tongue Angle
90 degrees
Tongue Thickness
0.07 in
Tongue Type
Standard
Tongue Width
0.48 in
Type
Type LCC-F

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983899814
Color
Amber,Green,Red,White
Finish
Tin Plated
GTIN
00074983899814
Product UPC
07498389981
UNSPSC
39121405

Dimensions

Overall Length
1.62 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
