Meter clamp true RMS off 660A AC/DC TightSight

Manufacturer: Ideal Industries | Catalog # 61-765 | Electrozad South Part # 211173
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure D BRAND LOGO IMAGE URL

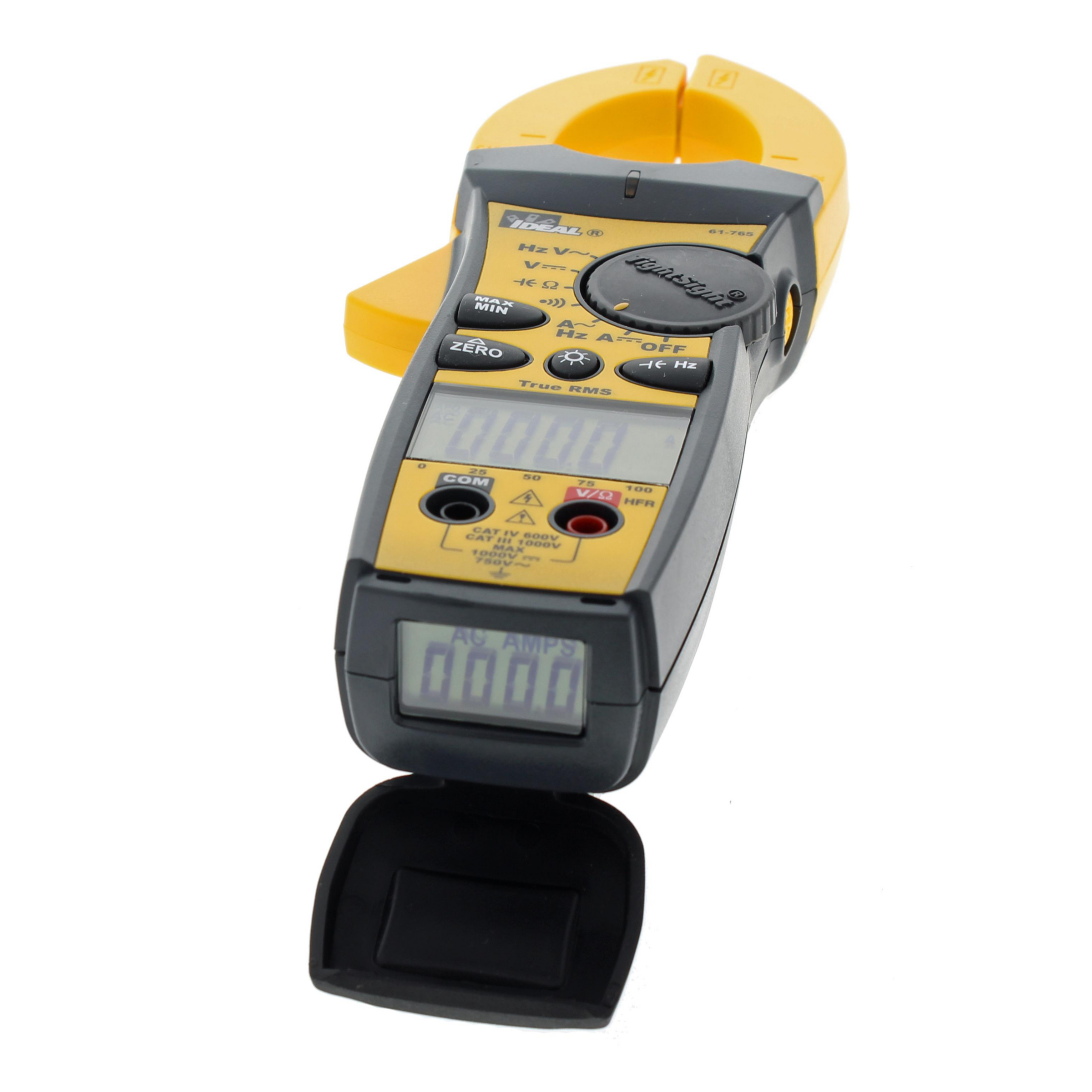

TightSight® 660A AC/DC clamp meter with bottom display makes hard-to-reach measurements convenient. Features includes: Tapered jaws with hook tip, Measures AC current, True RMS, AC/DC voltage, Audible continuity, Frequency via clamp head or test leads.

Technical Information

Accuracy
Stated Accuracy At 23 DEG C Plus Or Minus 5 DEG C, Less Than 75 PCT R.H
Applications
For A Variety Of Industrial And Commercial Environments
Jaw Capacity
36 mm
Resistance
0 To 999.9 OHM , 1000 To 9999 OHM At 1.5PCT + 5 Accuracy
Standard
C 12966,CAT III-1000V,CAT IV - 600V,CE,UL 61010 Listed
Temperature Rating
0 To 50 degrees C
Type
AC/DC, Manual Selection
Voltage
750 V

Manufacturer Information

Brand
Ideal
Sub Brand
TightSight

General Product Info

12-Digit UPC
783250659470
GTIN
00783250659470
Product UPC
78325065947

Certifications & Compliance

BAA | Buy American Compliant
Y
Overview
  • Backlit display, Low battery indicator
  • High frequency rejection
  • Selectable audible and visual alerts when potentially hazardous voltages are detected at the probe terminals
  • True RMS current and AC/DC voltage
  • TightSight bottom display
  • Tapered jaws with hook tip
  • Peak hold, Max/min hold, Data hold
  • Selectable auto power off
  • Reads accurately on noisy electrical circuits
  • Audible continuity
