PANDUIT PLT1M-M30 PAN-TY 3.9"LONG TS MINIATURE LOCKING CABLE TIE .098"WIDE HEAT STAB BLACK | Electrozad South

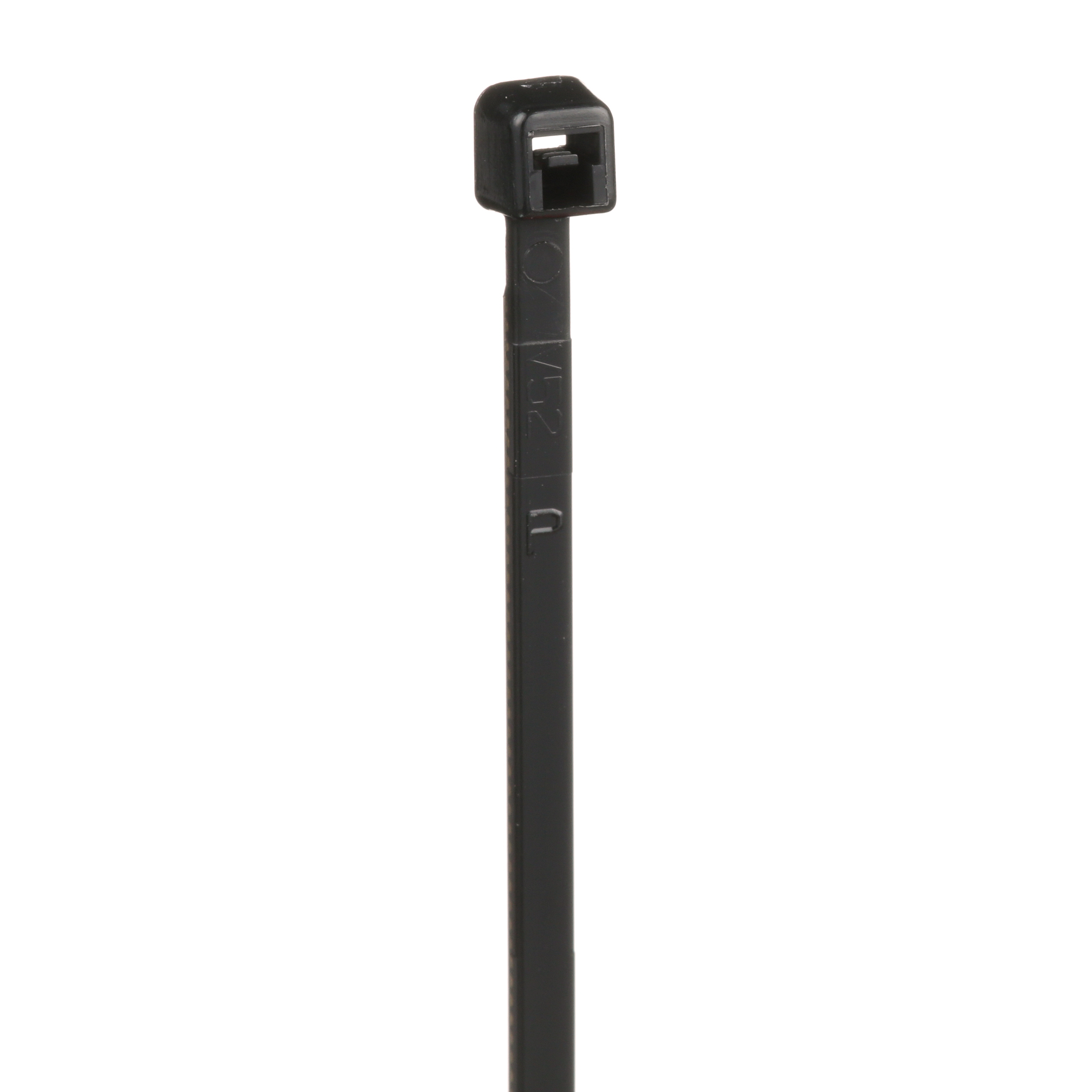

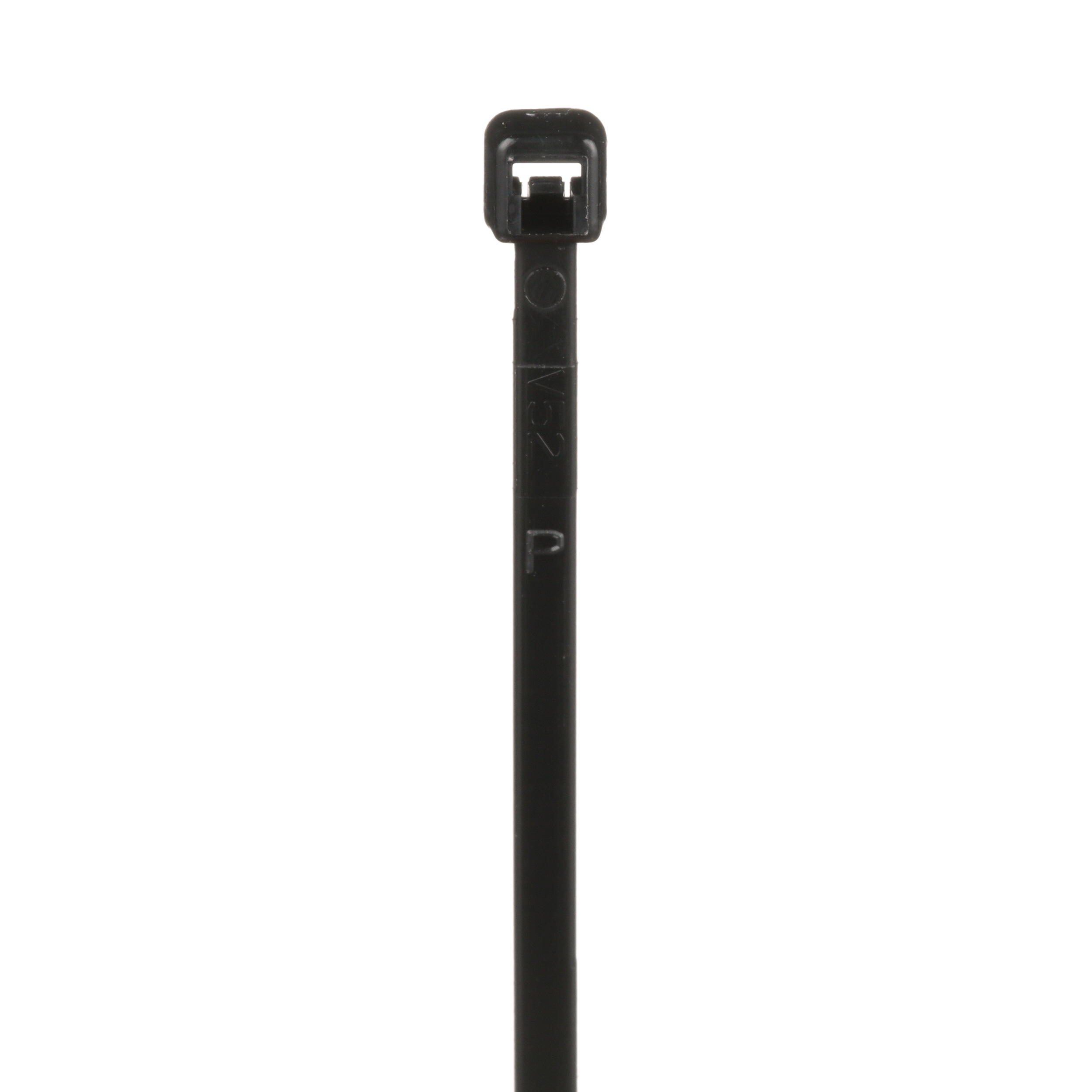

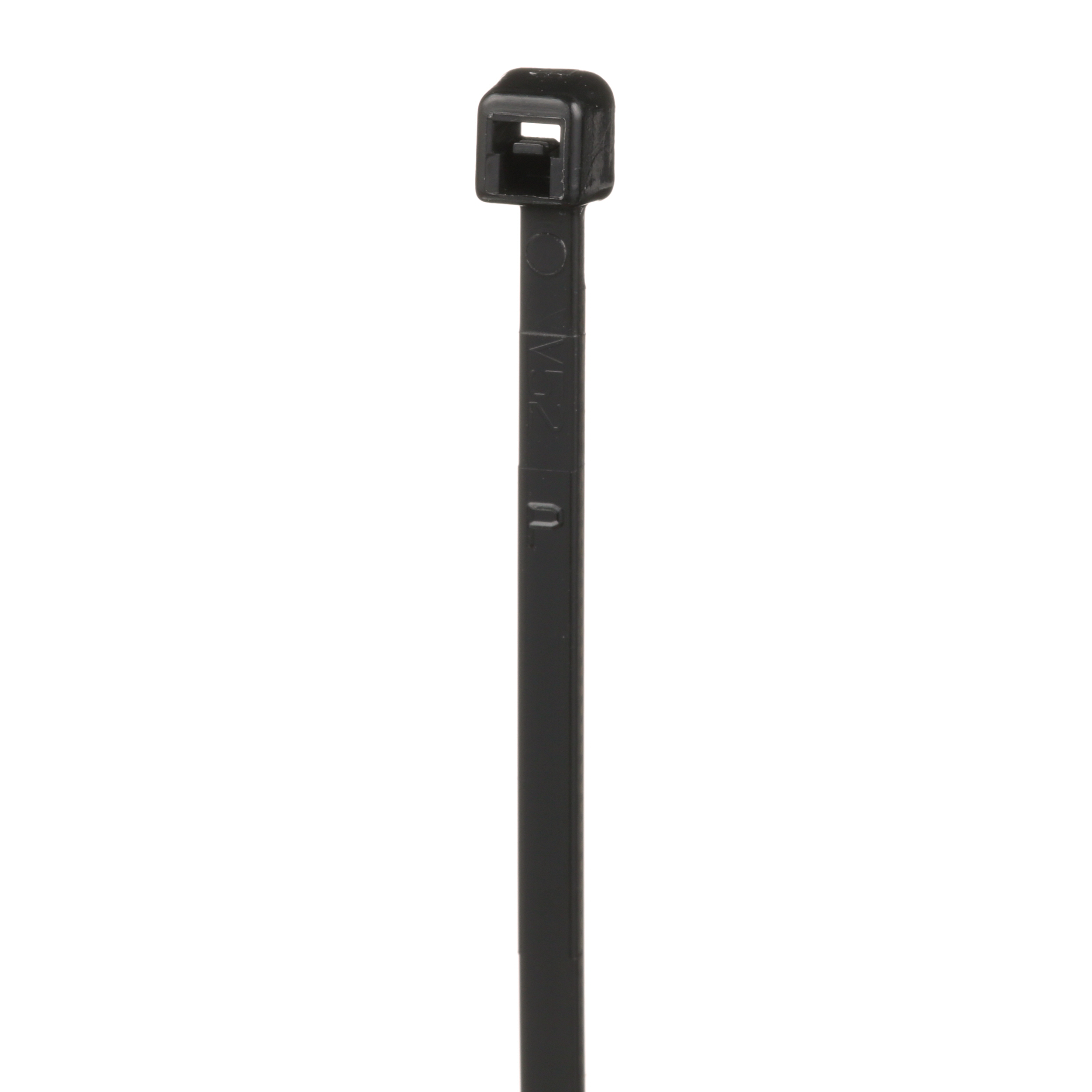

Product image for PANDUIT PLT1M-M30 PAN-TY 3.9"LONG TS MINIATURE LOCKING CABLE TIE .098"WIDE HEAT STAB BLACK
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT PLT1M-M30 PAN-TY 3.9"LONG TS MINIATURE LOCKING CABLE TIE .098"WIDE HEAT STAB BLACK

Manufacturer: Panduit | Catalog # PLT1M-M30 | Electrozad South Part # 21286
$88.56 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Panduit PLT1M-M30 Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Miniature cross section, 3.9... (99mm) length. For Indoor use and high temperature applications, made of heat stabilized Nylon 6.6, are black in color and come in packages of 1000.

Technical Information

Applications
For High Temperature Applications
Body Thickness
0.043 in
Body Width
0.098 in
Bundle Diameter
0.87 in
Material
Nylon 6/6
Max Operating Temperature
115 degrees C
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 115 degrees F
Tensile Strength
80 N
Type
Heat-Stabilized

Packaging

Package Qty
1000
Standard Packaging Qty
1000/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983549702
Color
Black
Environment
Indoor
GTIN
00074983549702
Product UPC
07498354970

Dimensions

Length
3.9 in
Overall Length
99 mm
Thickness
0.043 in
Width
0.098 in

Certifications & Compliance

Country of Origin
CR,MY
