Pan-Lug™ LCAX350-12H-6 Copper Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LCAX350-12H-6 | Electrozad South Part # 213737
$5,170.07 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

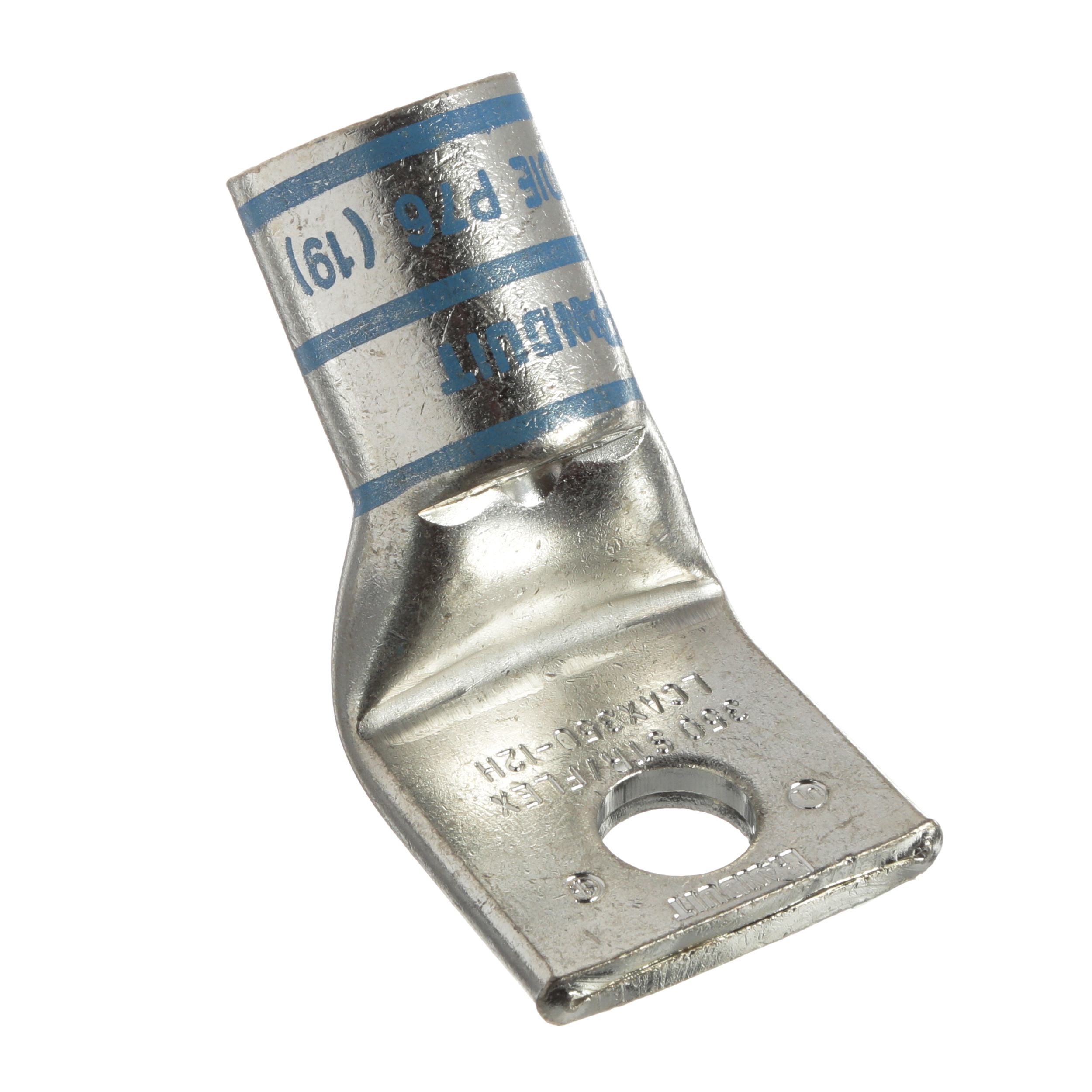

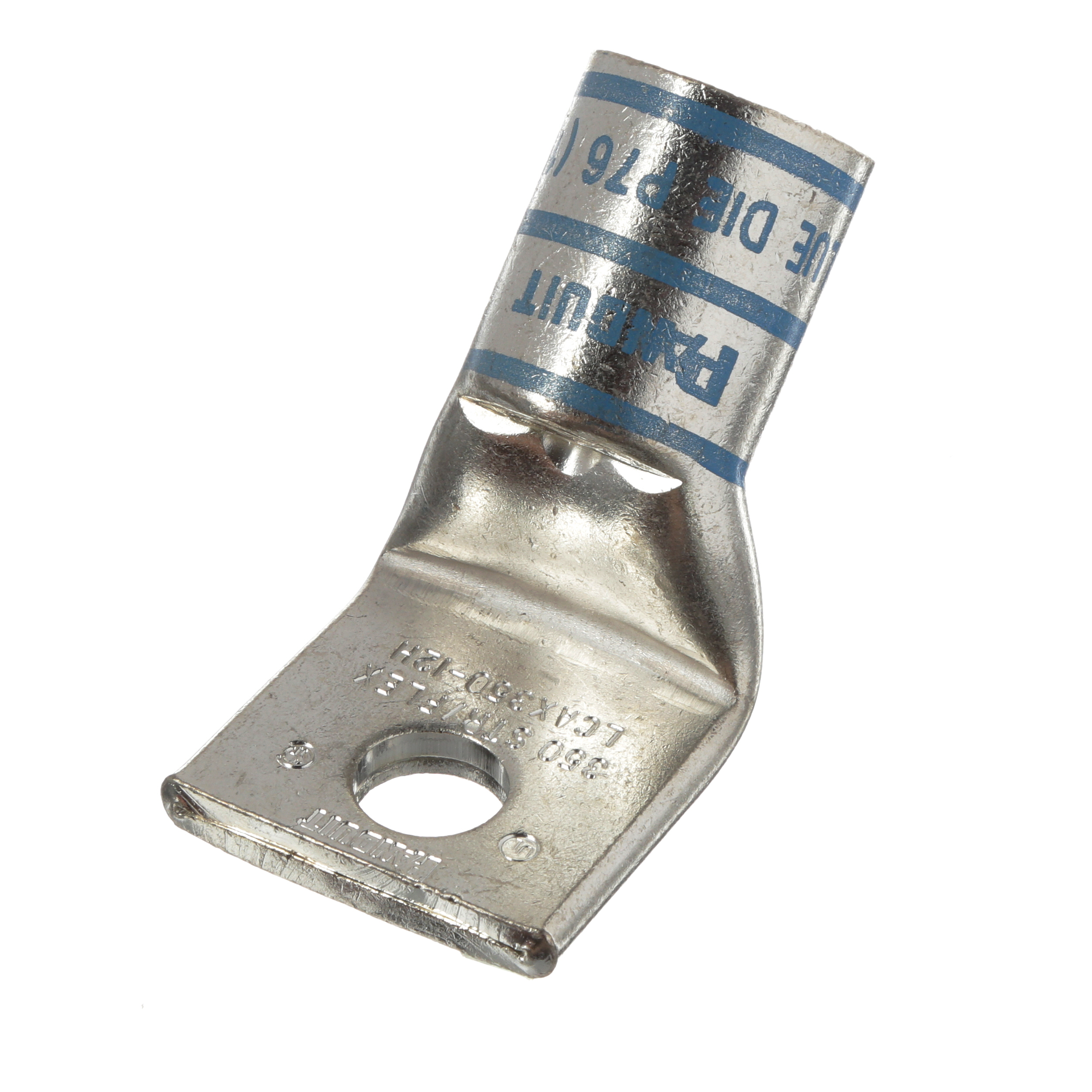

One-hole, flex lug, 350 kcmil cable, 1/2 stud hole, 45.. angle tongue.

Technical Information

Angle
45°
Barrel Length
1.29 in
Barrel Type
Standard with Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
1
Size
350 kcmil Class G, H, I, K, M and 373.7 kcmil DLO
Standard
ANSI C-73
Stud Size
0.5 in
Tongue Angle
45 degrees
Tongue Thickness
0.22 in
Tongue Type
Standard
Tongue Width
1.54 in
Type
Preterminated Copper Trunk, Category 6

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983435920
Color
Olive, Orange, Royal Blue and Yellow
GTIN
00074983435920
Product UPC
07498343592
UNSPSC
39121405

Dimensions

Overall Length
2.78 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
