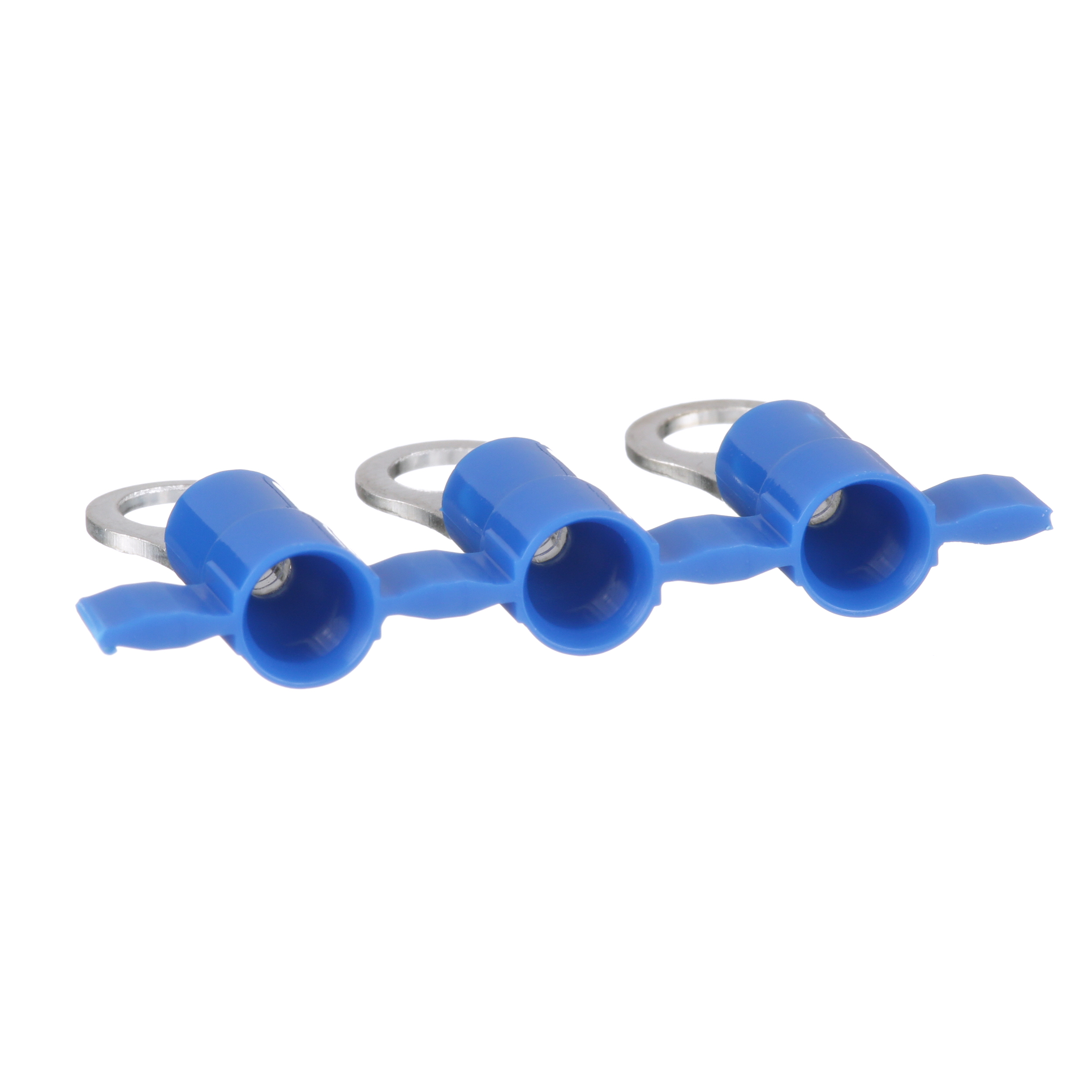

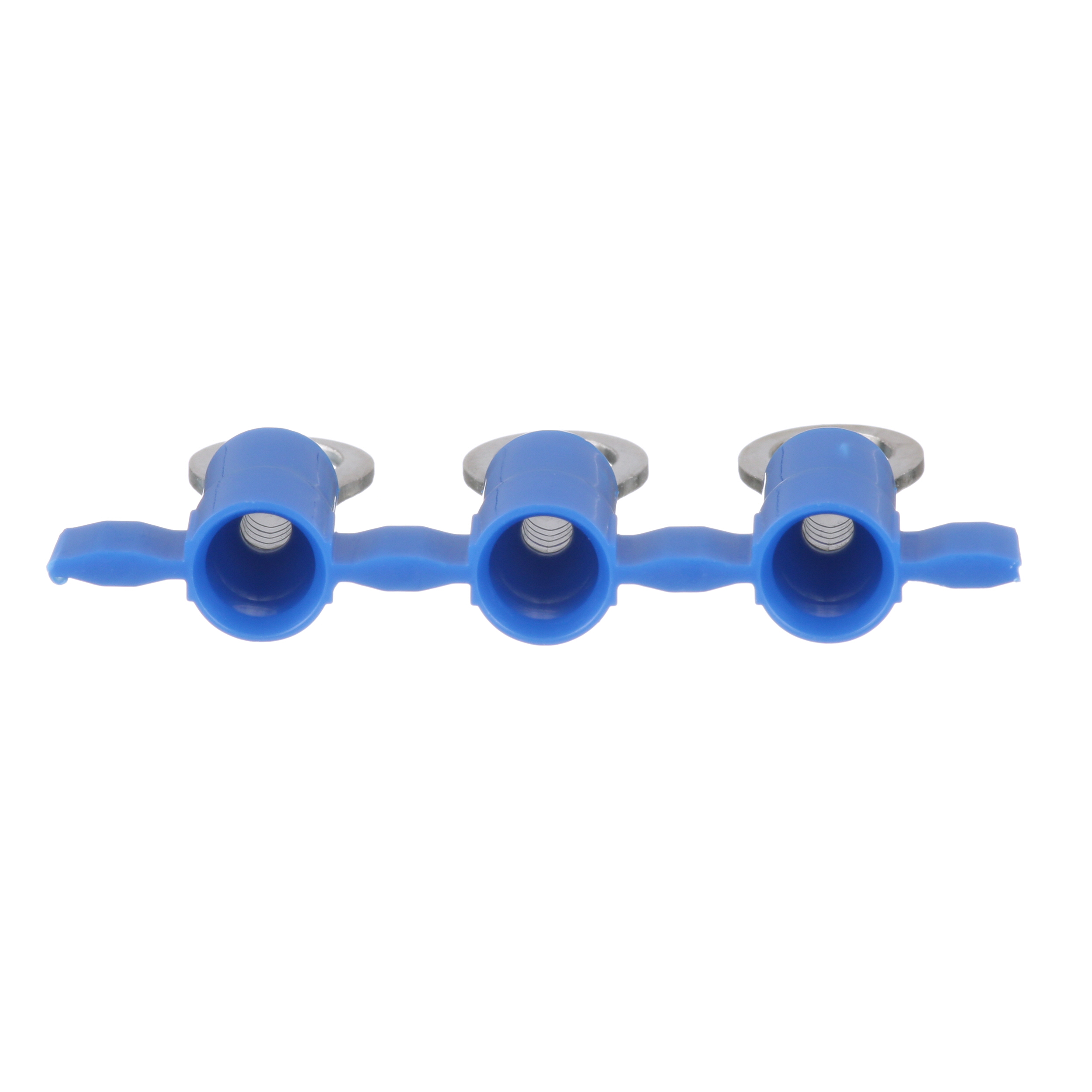

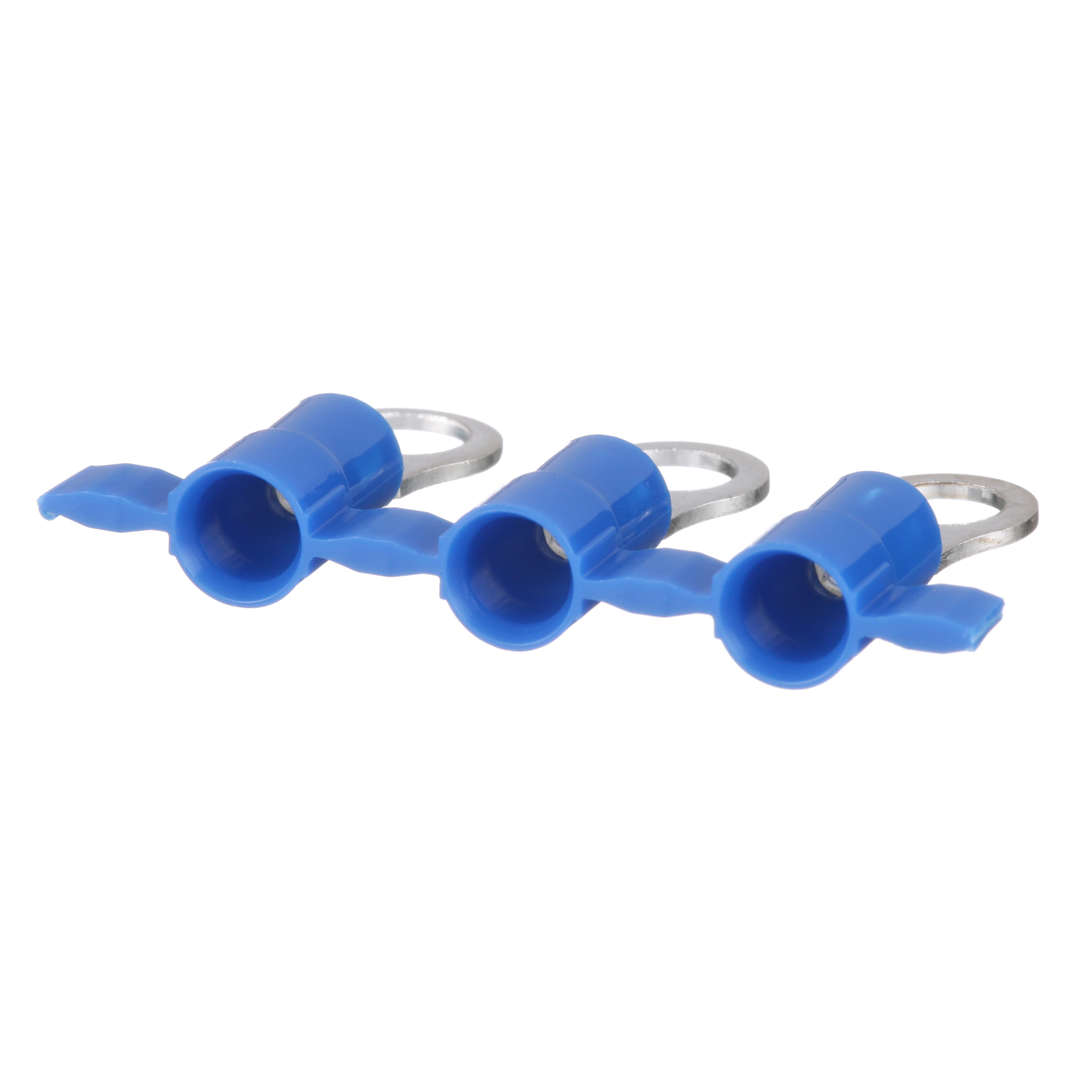

Product image for Reel Smart™ PV14-10RB-3K Ring Terminal, Blue, Vinyl, 14-16 AWG, #10 Stud,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Reel Smart™ PV14-10RB-3K Ring Terminal, Blue, Vinyl, 14-16 AWG, #10 Stud,

Manufacturer: Panduit | Catalog # PV14-10RB-3K | Electrozad South Part # 214484
$346.07 /m (1000 ea)
ea
Order in multiples of 3000 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The PV14-10RB-3K Reel Smart™ Terminal is a continuously molded and fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength

Technical Information

Barrel Length
0.43 in
Barrel Type
Funnel
Conductor Size
16-14 AWG
Enclosure
Ring shape
Insulation Material
PVC
Material
Copper
Max Operating Temperature
105 degrees C
Size
10 in
Standard
CSA C22.2 No. 85,UL E23018,cULus
Stud Size
#10
TC Connection
Funnel
Temperature Rating
221 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Bell End
Wire Size
1.5 - 2.5

Packaging

Package Qty
3000

Manufacturer Information

Brand
Panduit
Sub Brand
Reel Smart™

General Product Info

12-Digit UPC
074983803576
Color
Blue
Finish
Tin Plated
GTIN
00074983803576
Product UPC
07498380357

Dimensions

Overall Length
0.86 in
Width
0.31 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico,USA
