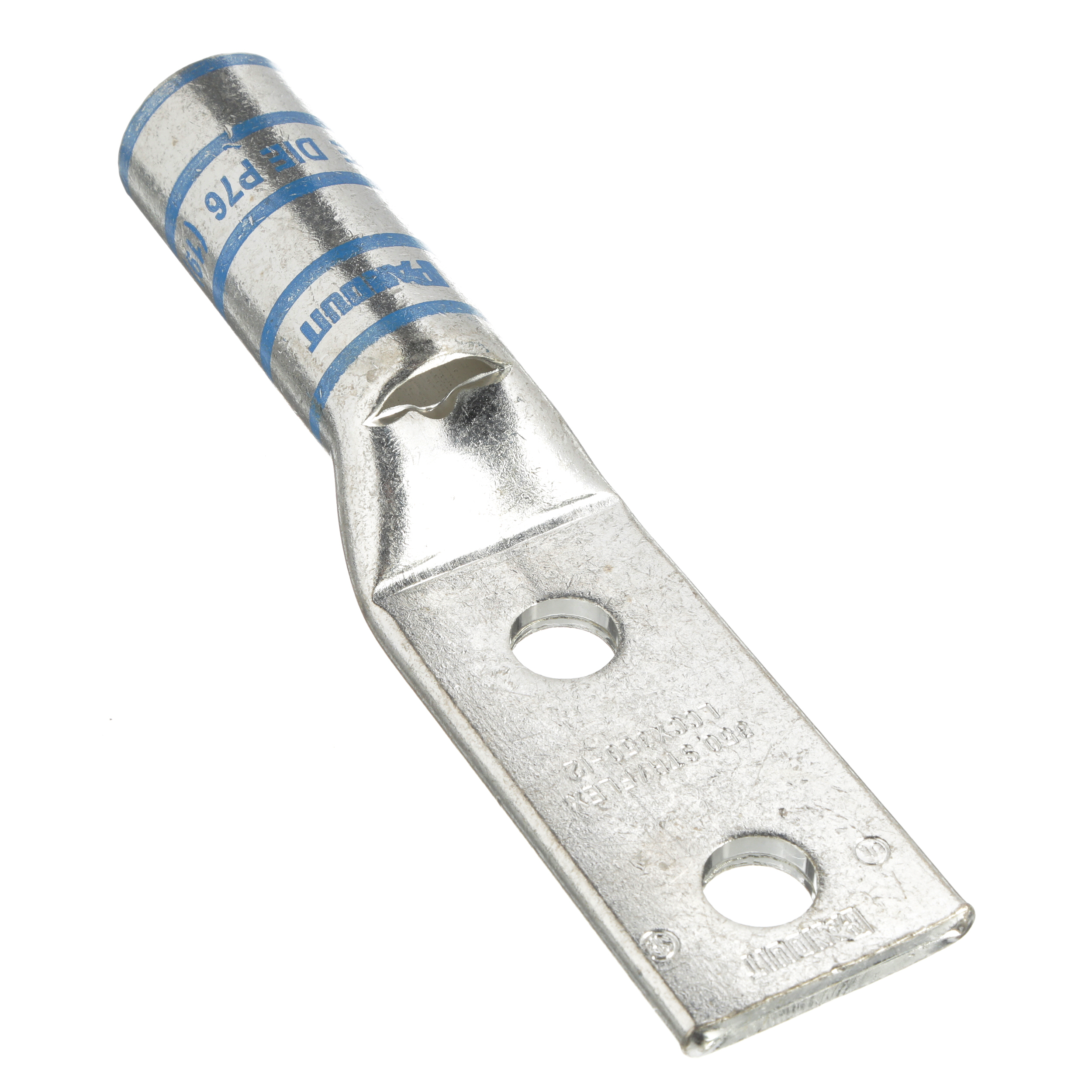

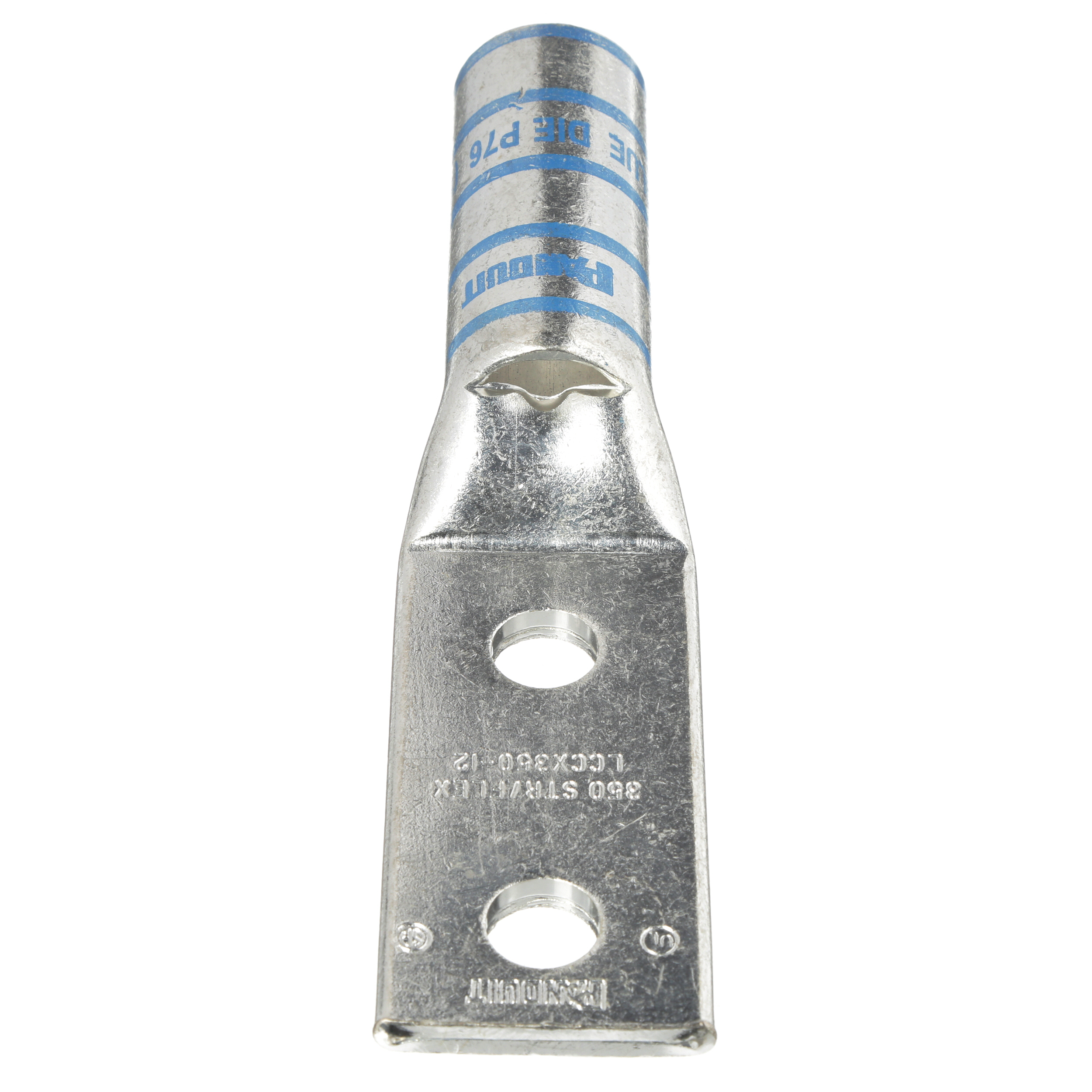

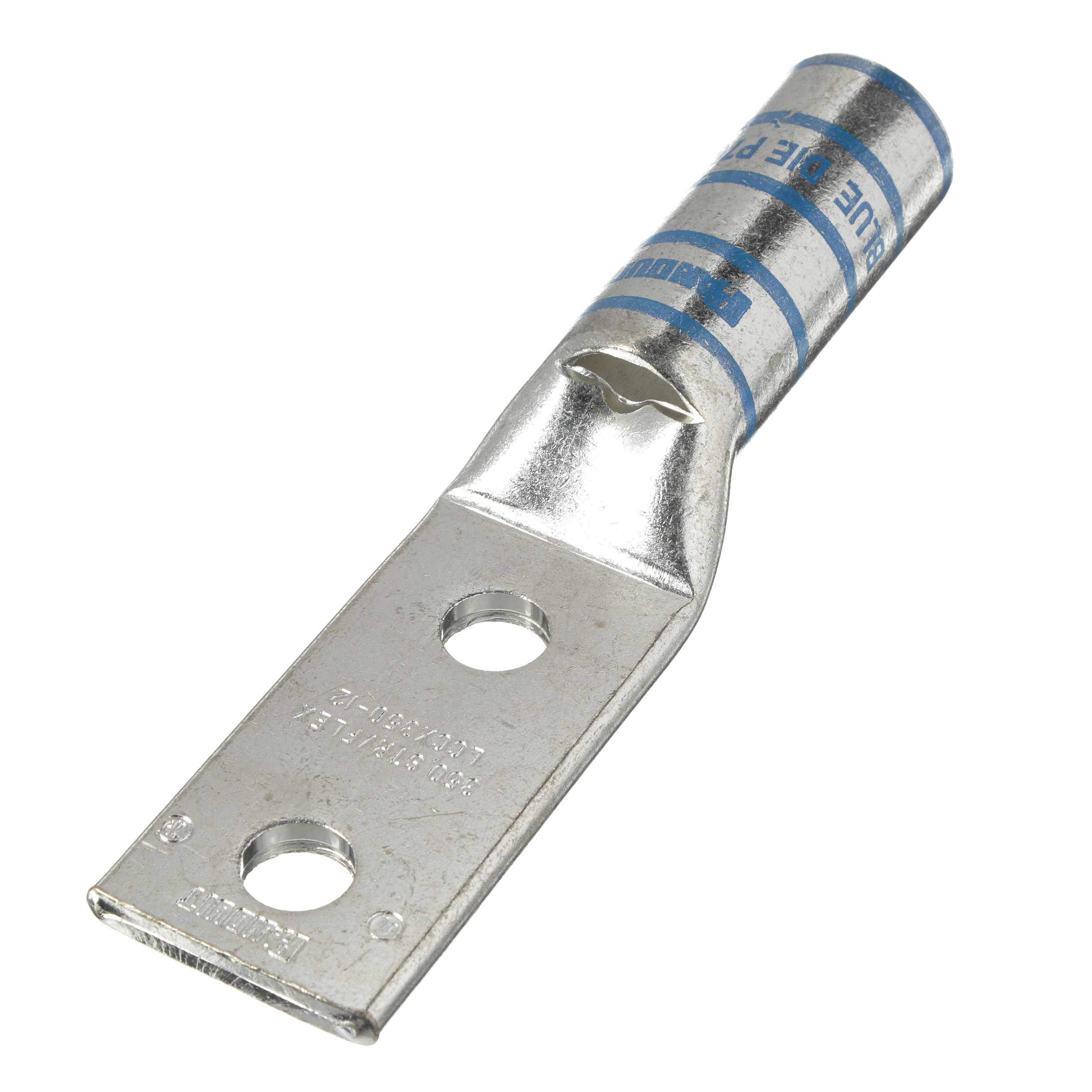

Pan-Lug™ LCCX350-12-6 Comp. Lug, 350, Flex, Tin Plt Copper, Strt, Two 1/2" Stud

Manufacturer: Panduit | Catalog # LCCX350-12-6 | Electrozad South Part # 215592
$5,972.82 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The LCCX350-12-6 Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
2.5 in
Barrel Type
Long
Cable Size
AWG
Material
Copper
Number of Holes
2
Size
350 kcmil Class G, H, I, K, M and 373.7 kcmil DLO
Stud Size
1/2 in
Tongue Thickness
0.22 in
Tongue Type
Standard
Tongue Width
1.54 in
Type
Preterminated Copper Trunk, Category 6

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983426256
Color
Olive, Orange, Royal Blue and Yellow
GTIN
00074983426256
Product UPC
07498342625

Dimensions

Outer Diameter
1.06 in
Overall Length
6.13 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
