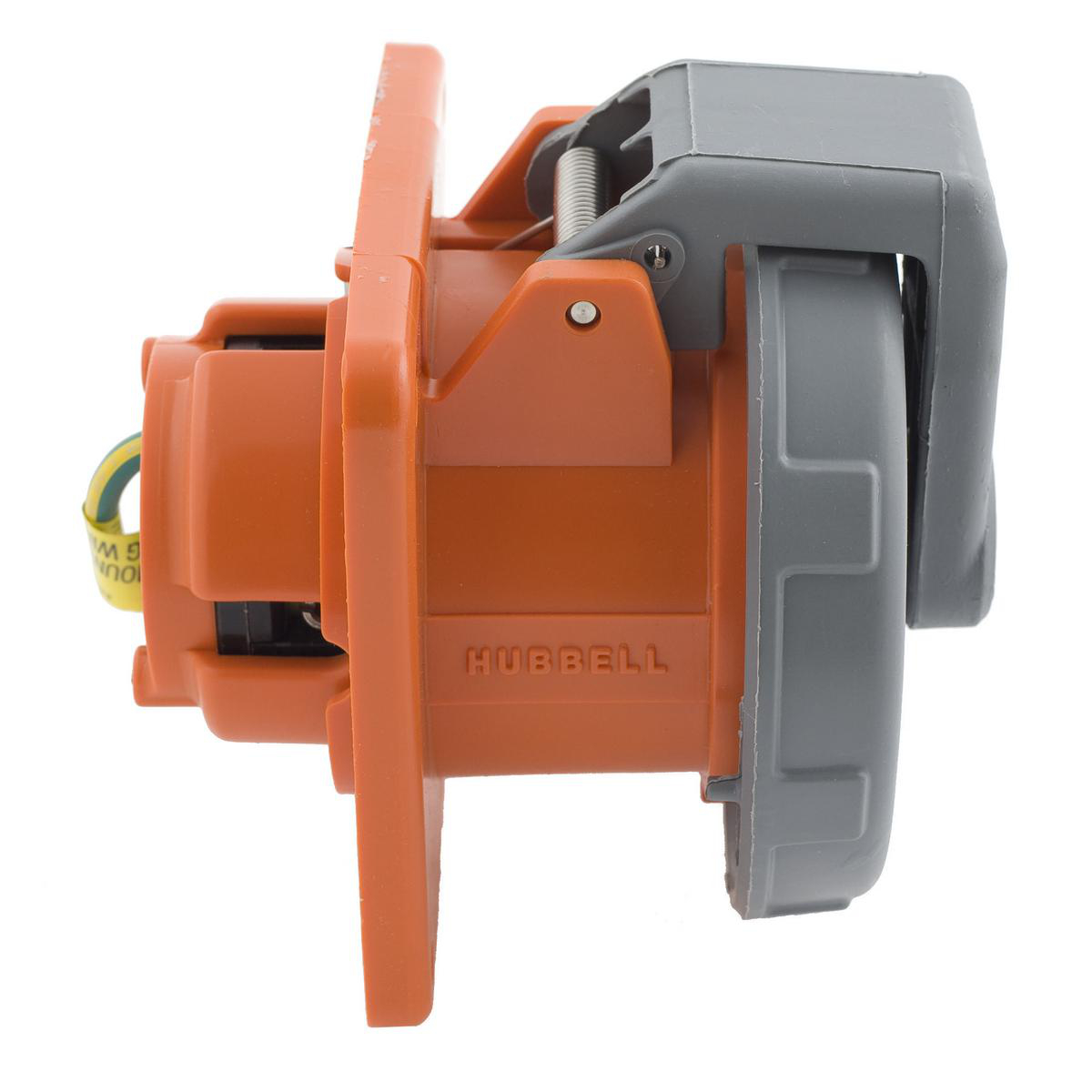

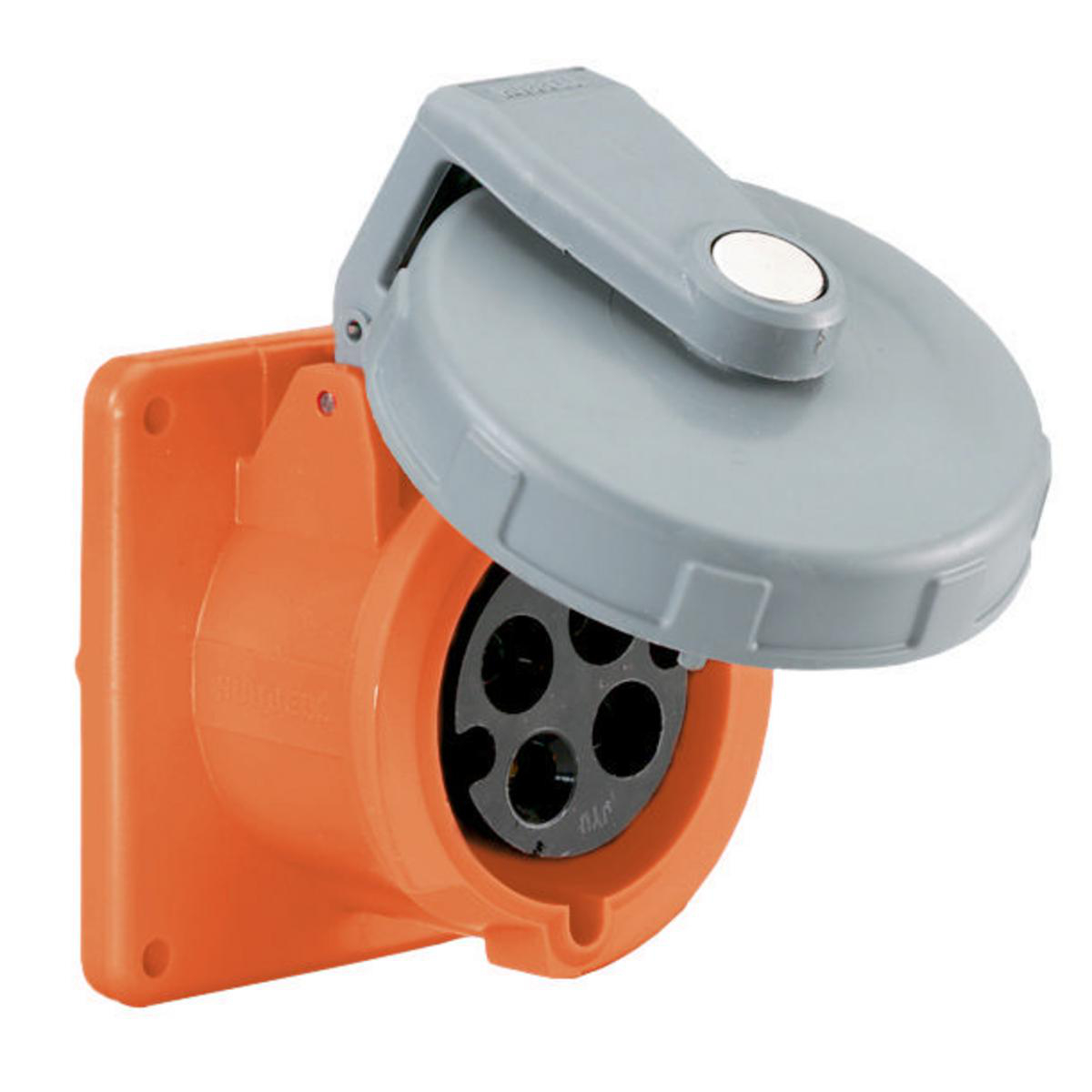

Receptacle pin/sleeve nylon 3P4W 250V 100A orng

Manufacturer: Hubbell Wiring Devices | Catalog # HBL4100R12W | Electrozad South Part # 215699
$1,003.65 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Watertight IEC pin and sleeve receptacle with zytel 101 nylon housing, beryllium copper multi-contact insert with silver plating. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service.

Technical Information

Amperage
100 A
Applications
High Ampacity Watertight Connections
Conductor Size
3 to 1/0 AWG
Current
100 A
Grounding
Grounding
Material
Thermoplastic/Composite
Mounting Type
Screw, External, Surface
Number of Phases
1
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
Standard UL1682
Style
Standard Service
TC Connection
Pressure Plate
Type
Single Flanged
Voltage
125/250 V
Wattage
25000 W
Wire Count
4
Wire Size
3 - 1/0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585404080
Color
Orange
Environmental Conditions
Watertight
GTIN
00783585404080
Product UPC
78358540408
Weight
3.9 lb

Dimensions

Height
5.750 in
Length
7.000 in
Width
6.400 in

Certifications & Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Overview
  • Super tough insulated non-metallic housing
  • Self-closing gasketed cover
  • Color coded housings for easy identification
