Jack universal thermoplastic Cat6 blue NEXTSPEED

Manufacturer: Hubbell Wiring Devices | Catalog # HXJ6B | Electrozad South Part # 217854
$20.73 /ea
pc
Log in or register to view your price, purchase history, and more!
26 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL

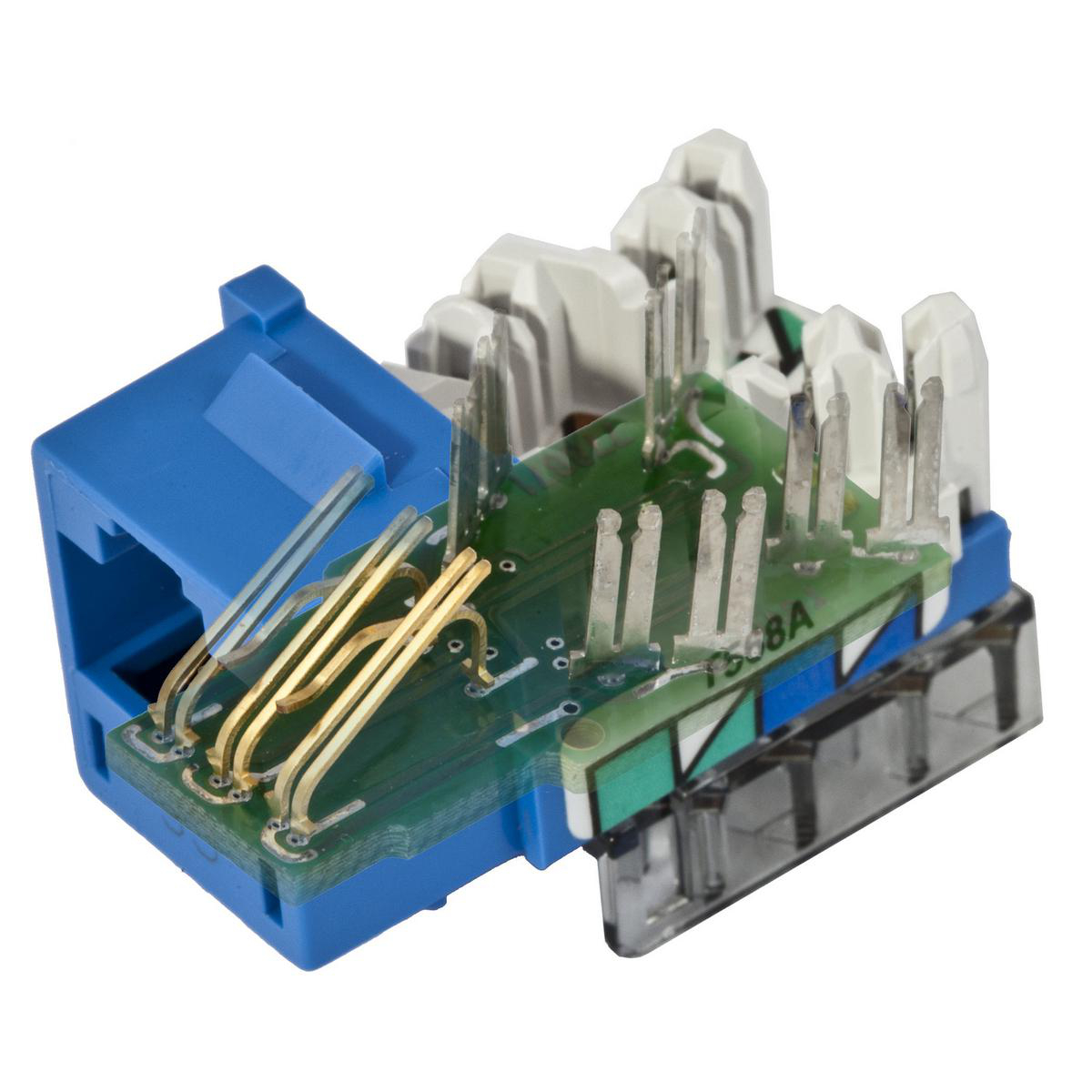

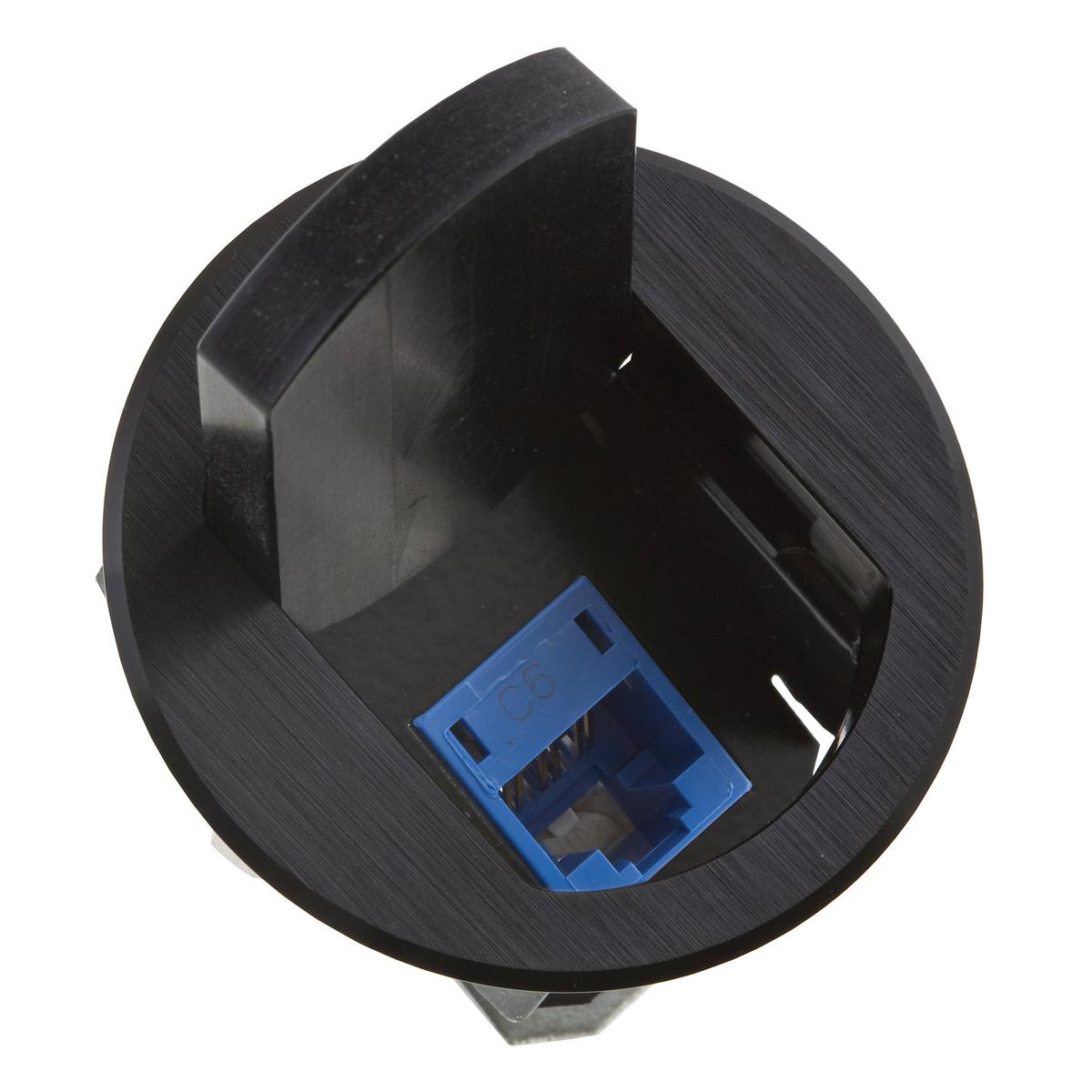

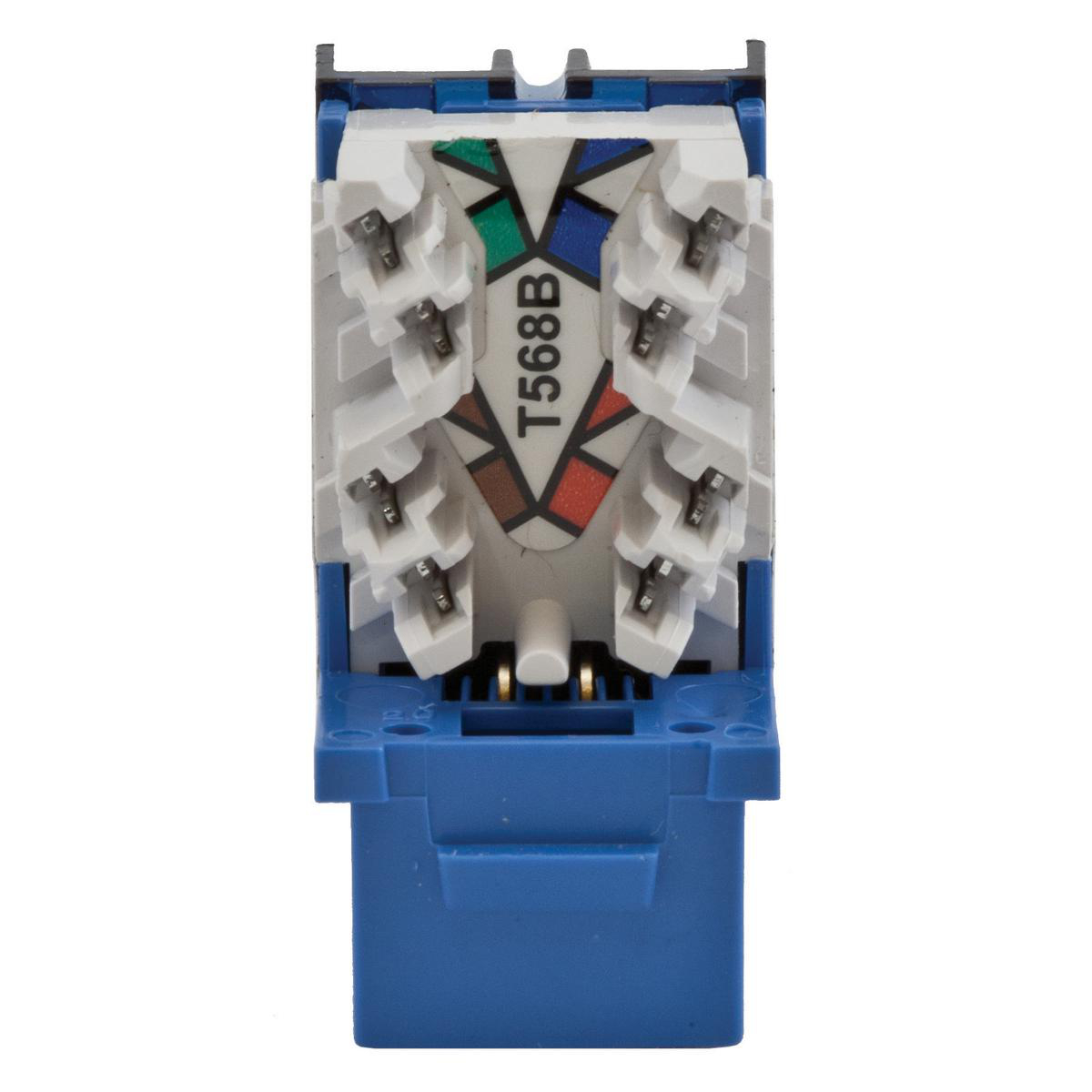

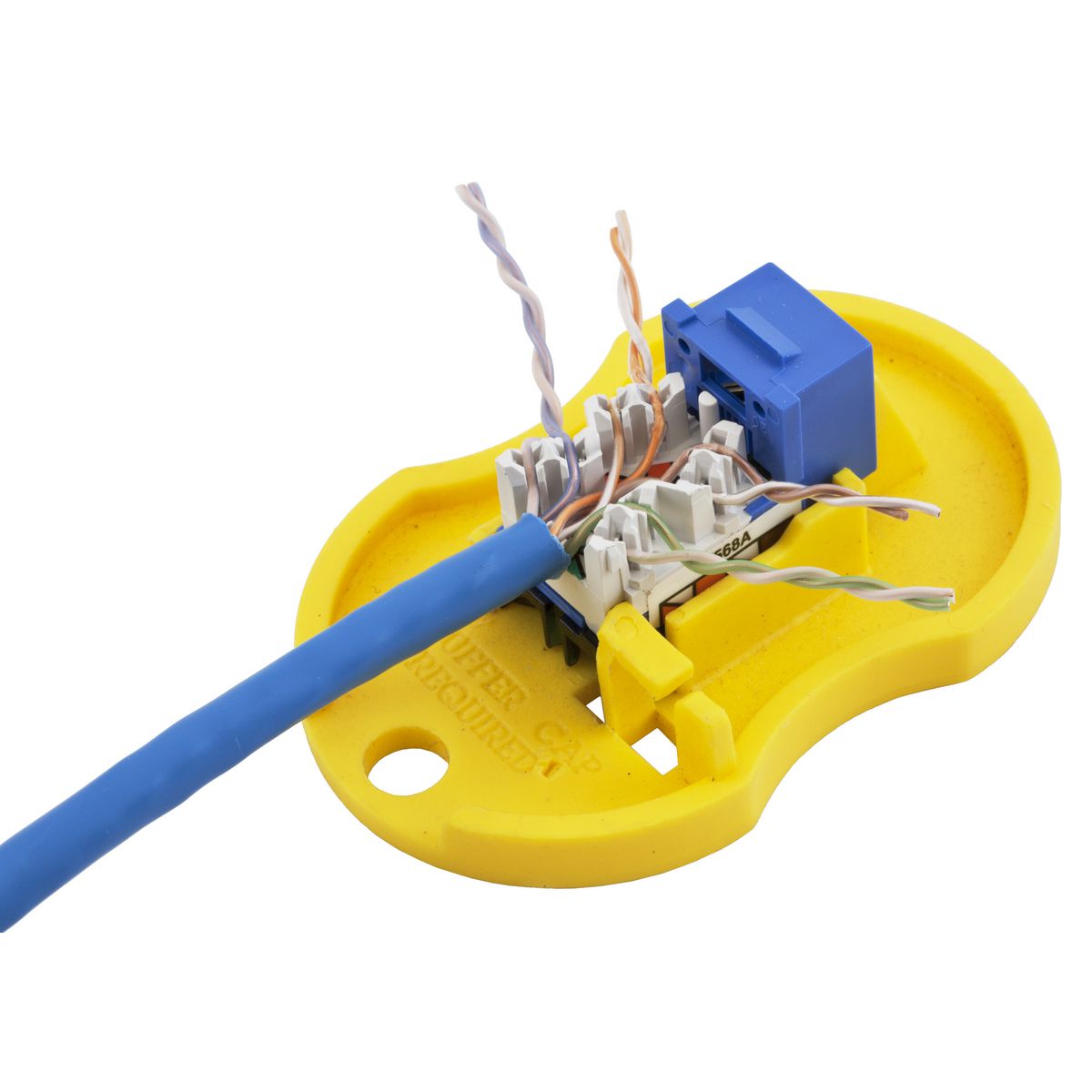

XCELERATOR™ NEXTSPEED® universal modular jack with high impact thermoplastic housing, lexan stuffer cap and polypropylene dust cover. Designed to deliver headroom beyond 500 MHz for dependable multi-gigabit ethernet applications. Universal Hubbell keystone design fits into all Hubbell iSTATION™ and Delivery Plus™ products. Termination towers provide easy pair splitting, simple lacing and fast punch-down.

Technical Information

Applications
Telephone and Data Distribution Jack
Cable Type
Category 6
Contact Base Material
Phosphor Bronze With 100 Micro-Inch Tin Over Plating
Contact Material
Beryllium Copper
Material
Beryllium Copper
Size
Standard Sized Product
Standard
60603-7-41 Category 6 Component,ANSI,EIA-568-C.2 Category 6 Component,ISO 11801,TIA
TC Connection
Insulation Displacement
Temperature Rating
Per TIA
Type
HXJ, Standard

Manufacturer Information

Brand
Hubbell Premise Wiring
Sub Brand
Xcelerator™

General Product Info

12-Digit UPC
662620825403
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Smooth
GTIN
00662620825403
Product Series
Cat 6
Product UPC
66262082540
Weight
0.05 lb

Dimensions

Height
0.6 in
Length
5.000 in
Width
0.950 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Mating Cycles Exceed Industry Standard by Four Times
  • Third Party Verified Category 6 Component Compliant
  • Quick-Lace Towers Accelerate Termination
