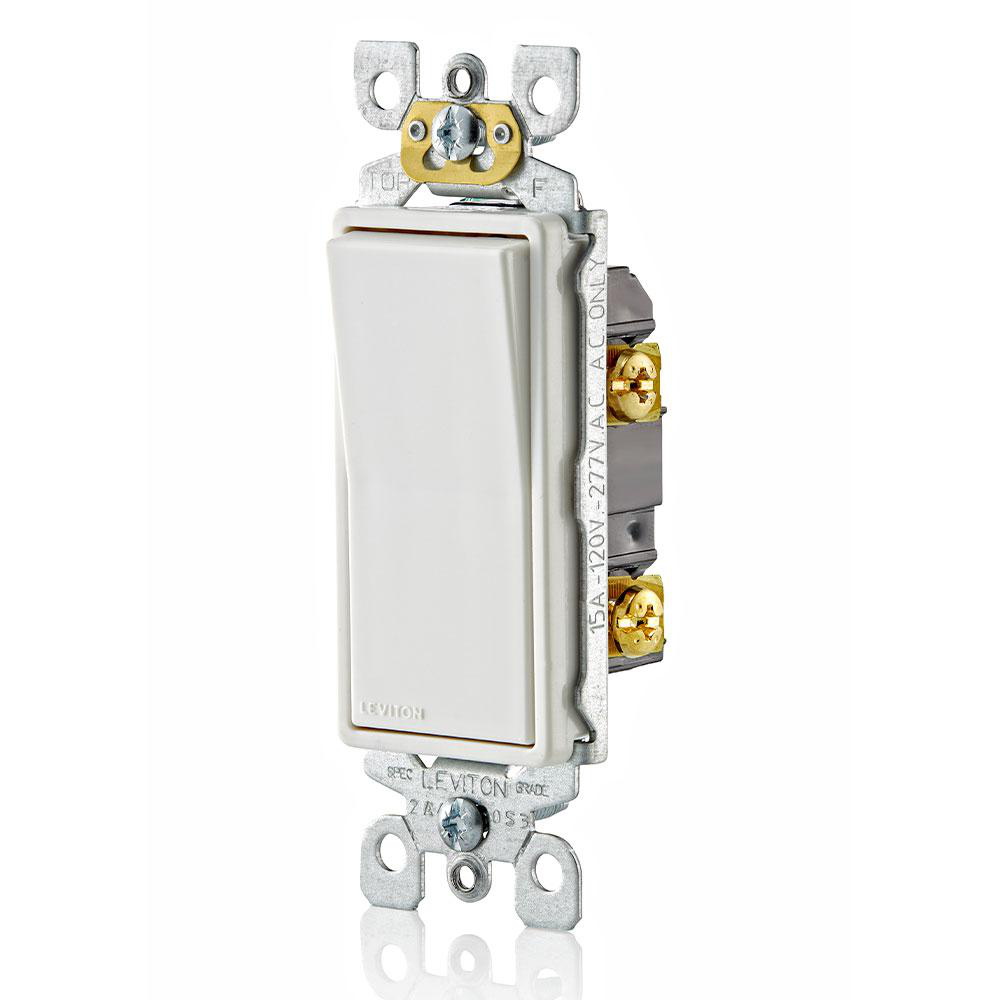

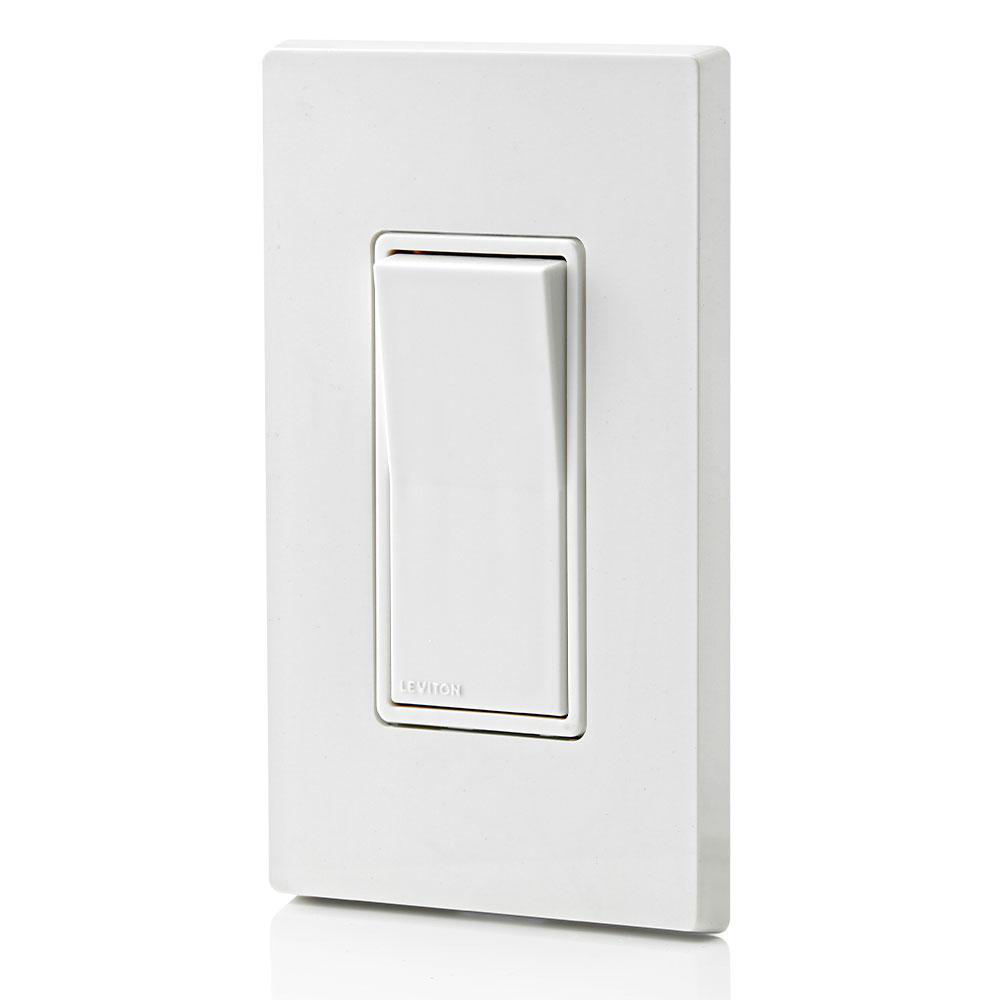

Switch rocker 15a 120/277v 1pole ac quiet white

Manufacturer: Leviton Manufacturing | Catalog # 5601-P2W | Electrozad South Part # 218247
$1.95 /ea
ea
Log in or register to view your price, purchase history, and more!
3,516 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Decora® designer rocker switch are sleek simplicity and smooth, quiet operation stem from quality materials fitted to tight tolerances and finished with great care ensuring years of trouble-free service. Easy to wire, they work with tungsten, fluorescent and resistive loads. Their sturdy construction and dependable performance are everything you...d expect from the pre-eminent switch maker.

Technical Information

Actuator
Rocker/Button
Amperage
15 A
Applications
Residential
Body Material
Thermoplastic
Connection Type
Quickwired Push-In,Side Wired
Contact Rating
120/277 VAC, 15 A
Grounding
Grounding Strap With Clip
Horsepower
1/2 hp
Material
Thermoplastic Actuator, Steel Strap
Max Current
12 A
Mounting Type
Wallplate
Number of Poles
1
Operating Temperature
-40 To 120 degrees C
Size
4.200 H x 1.399 W x 1.453 D IN
Standard
CSA,UL
TC Connection
Quickwired Push-In, Side Wired
Temperature Rating
-40 to 120 degrees C
Terminal Type
Screw
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Rocker Switch
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477339565
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477339565
Product UPC
07847733956

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
USA
