ADVBAL ICN3P32N35M 109116 BALLAST T8 FLUOR 3LAMP F17/F25/F32 120V- 277V ELECTRONIC CENTIUM | Electrozad South

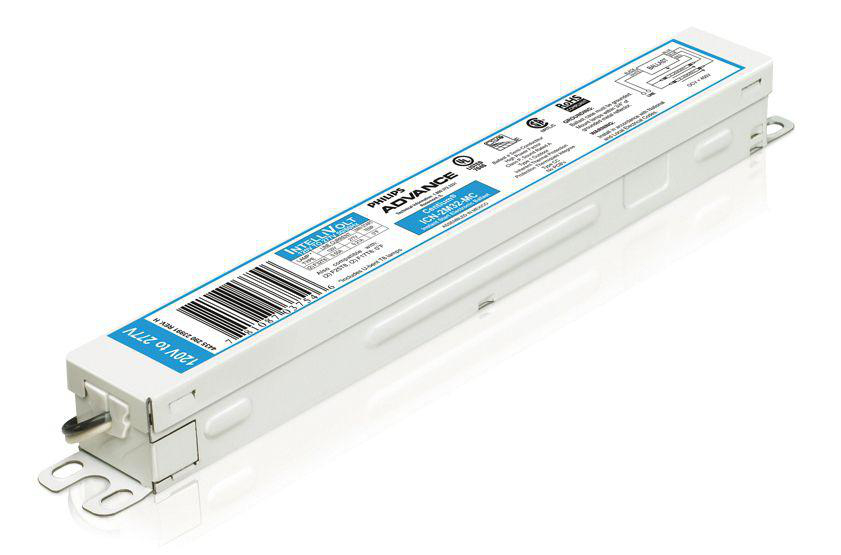

Product image for ADVBAL ICN3P32N35M 109116 BALLAST T8 FLUOR 3LAMP F17/F25/F32 120V- 277V ELECTRONIC CENTIUM
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2

Email

ADVBAL ICN3P32N35M 109116 BALLAST T8 FLUOR 3LAMP F17/F25/F32 120V- 277V ELECTRONIC CENTIUM

Manufacturer: Advanced Ballasts | Catalog # ICN3P32N35M | Electrozad South Part # 218288

$32.69 /ea
ea
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check another branch
Energy-efficient, flexible, long-lasting, and easy-to-install, Advance's Centium instant start electronic ballasts for 32 watt T8 fluorescent lamps represent an optimal solution for a broad range of commercial light fixture retrofit applications. These ballasts will deliver silent, flicker-free operation. These ballasts have the same wiring configuration and mounting dimensions as standard size ballasts (so they'll fit in the exact same footprint as the ballasts they are replacing), and use IntelliVolt? multiple-voltage technology (enabling operation from 120 to 277 volts, 50/60Hz with sustained variation of +- 10%). Centium ballasts are high power factor with 10% THD ballasts, making them ideal for utility programs with stringent power quality requirements. They are suitable for use in most office and meeting room light fixtures, and especially for frequent on/off applications (such as areas with lighting controlled by occupancy sensors).

Technical Information

Amperage
0.31 A
Ballast Type
Electronic Fluorescent
Dimmable?
No
Frequency
50/60 Hz
Input Voltage
120/277 V
Input Wattage
85-86 W
Lamp Type
32 W U-Shaped T8 Fluorescent
Lamp Wattage
32 W
Number of Lamps
3
Power Factor
0.98
Start Type
INSTANT START
Thermal Protection
Class I
Type
Electronic, Encapsulated
Voltage
120 V
Wattage
85 W
Wire Size
18 AWG
Wire Type
Solid

Manufacturer Information

Brand
Philips Lighting
Sub Brand
CENTIUM

General Product Info

12-Digit UPC
781087091494
Color
Black
GTiN
00781087091500
Housing Material
Metal
Product UPC
78108709043
Weight
1.008 lb

Dimensions

Height
1.0 in
Length
9.500 in
Width
1.300 in

Certifications & Compliance

Country of Origin
USA
