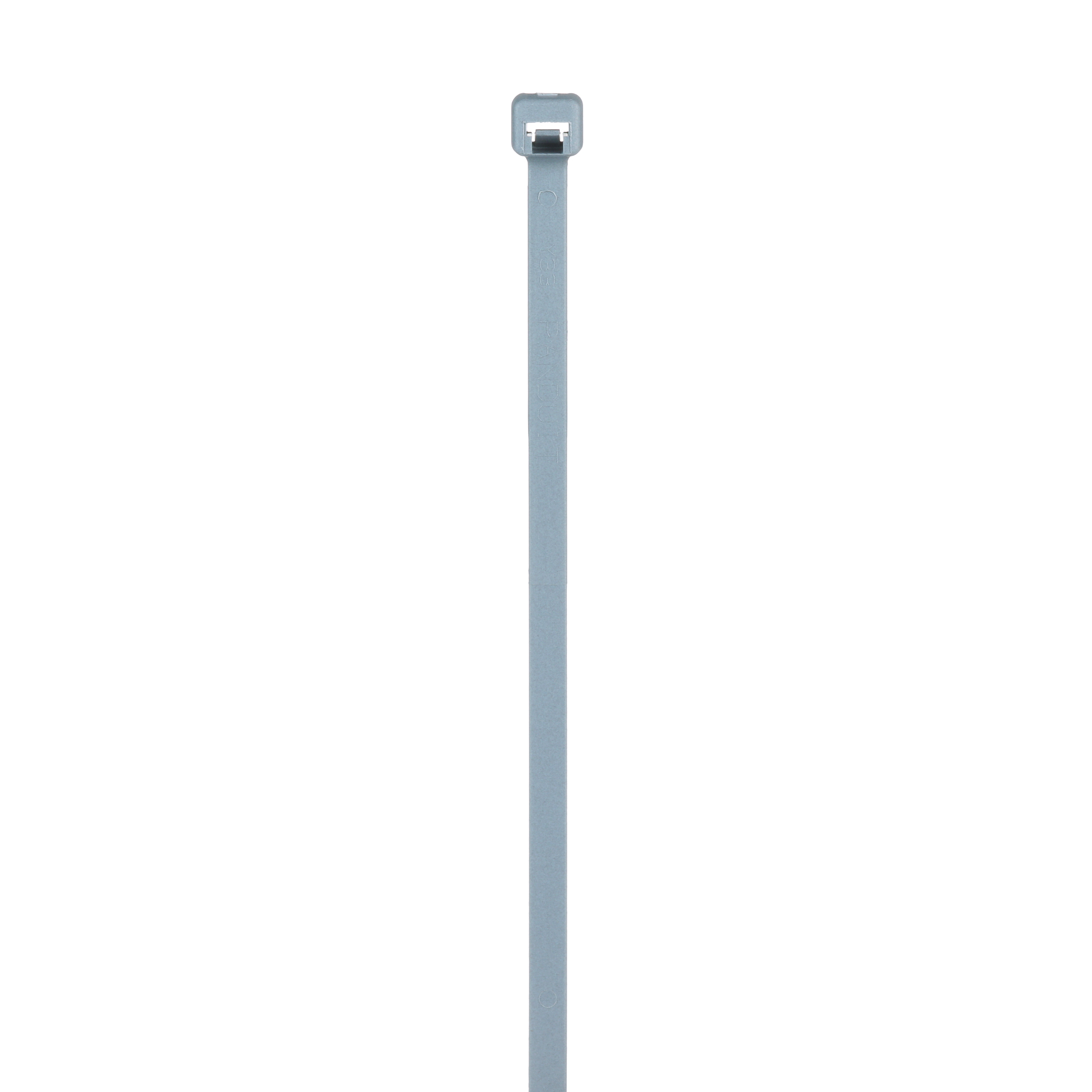

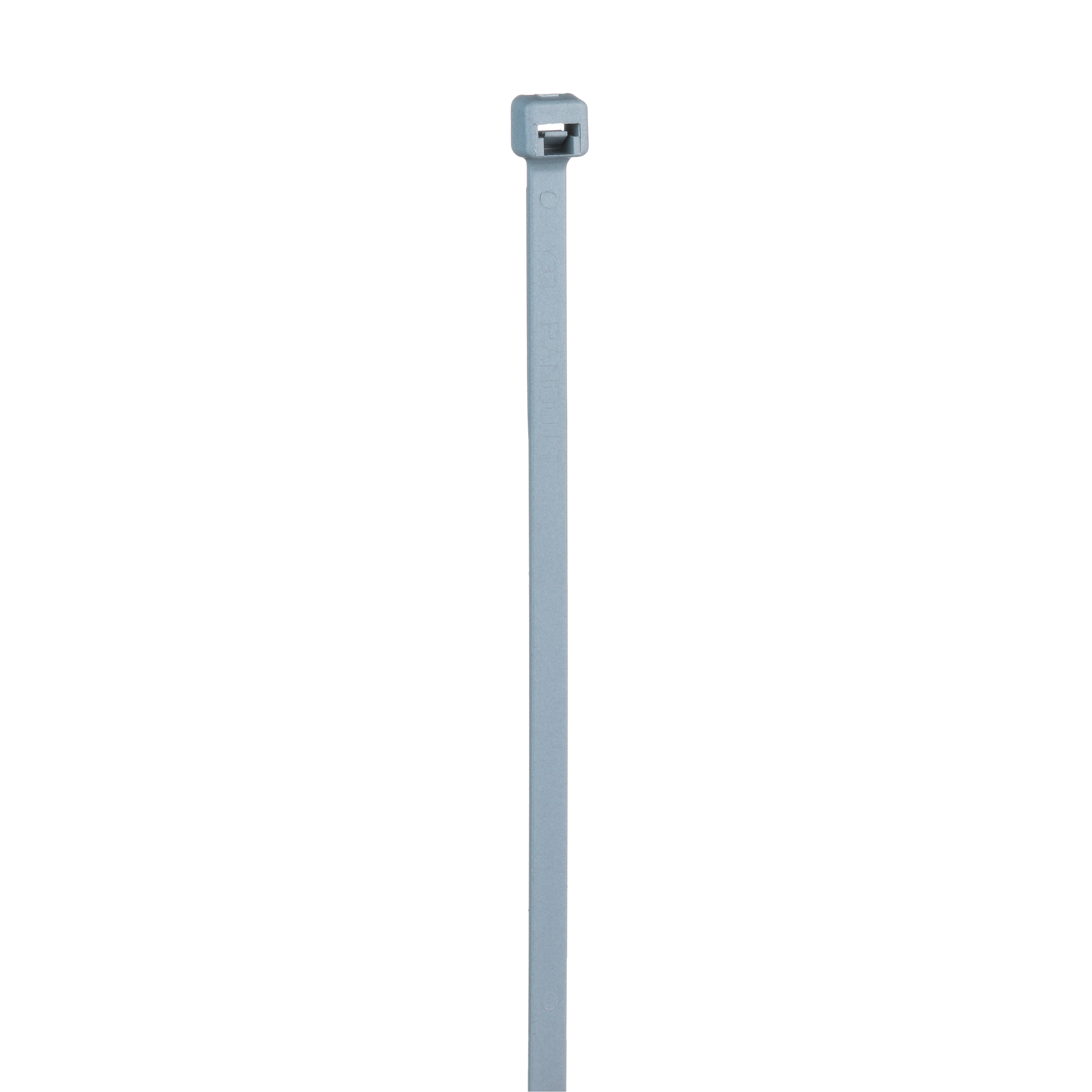

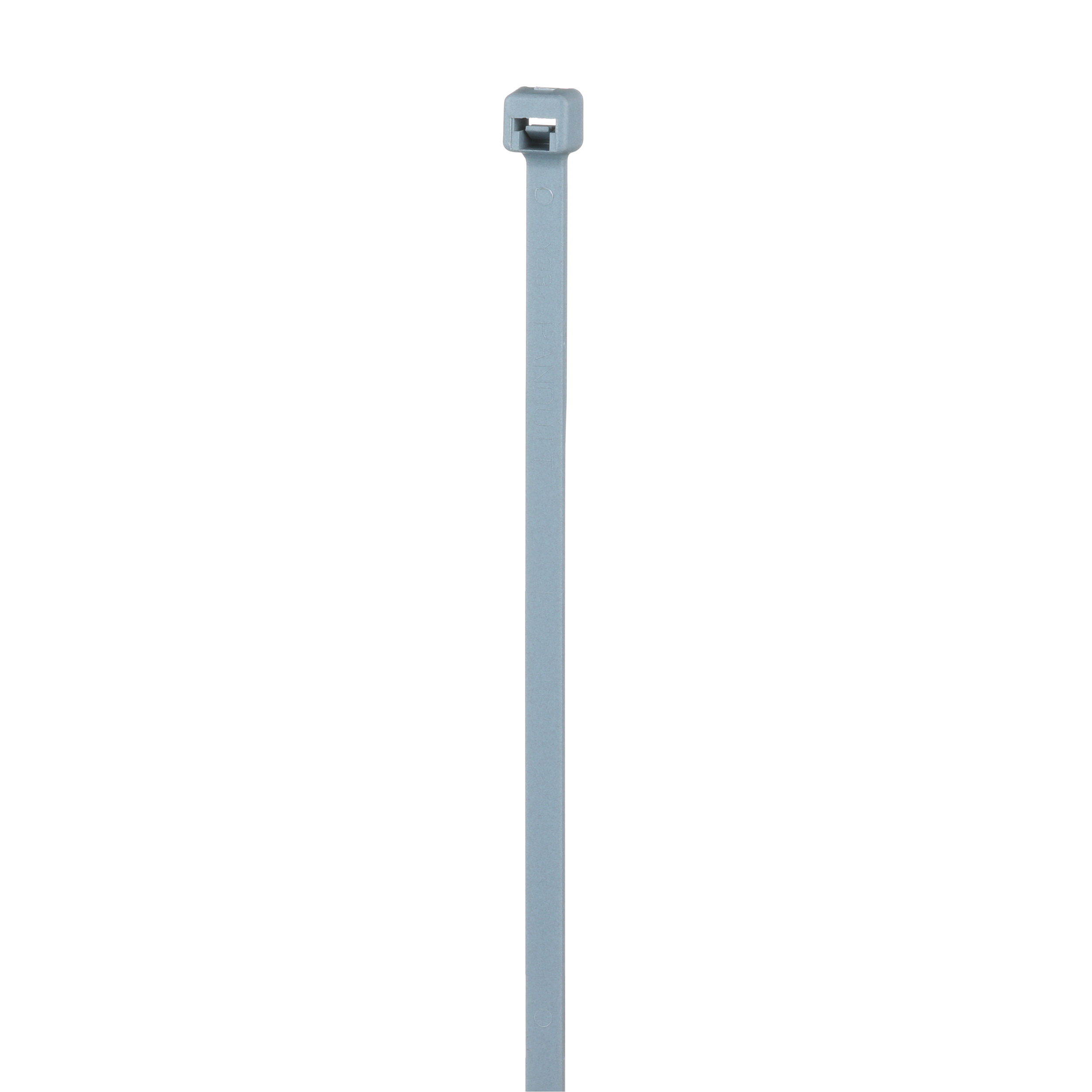

PANDUIT PLT1M-C86 CABLE TIE 3.9L 100MM MINIATURE MET

Manufacturer: Panduit | Catalog # PLT1M-C86 | Electrozad South Part # 218447

$29.12 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Pan-Ty® Metal detectable locking cable tie with miniature cross-section and metal impregnated nylon 6.6 construction. For 0.13 to 0.87 inch bundle diameter. 18 lbs Minimum loop tensile strength. It features one-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. -60 to 85..C Operating temperature range. For metal detectable applications. Metal impregnated material allows identification by metal detectors or x-ray inspection equipment to help meet food, beverage and pharmaceutical safety standards, to help reduce product contamination, loss and recall. Nylon material for general purpose maintenance and repair applications; ideal for use in control panels and overhead cable runs. Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation.

Technical Information

Applications
High Ampacity Connections
Body Thickness
0.044 in
Body Width
0.098 in
Bundle Diameter
0.87 in
Material
Metal Impregnated Nylon 6/6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-40 degrees C
Standard
CSA,RU Listed,RoHS
Temperature Rating
-40 to 85 degrees C
Tensile Strength
18 lb
Type
Locking, Internal Toothing

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983029952
Color
Light Blue
Environment
Indoor
GTIN
00074983029952
Product UPC
07498302995

Dimensions

Length
3.9 in
Overall Length
3.94 in
Thickness
0.044 in
Width
0.098 in

Certifications & Compliance

Country of Origin
Costa Rica,USA
