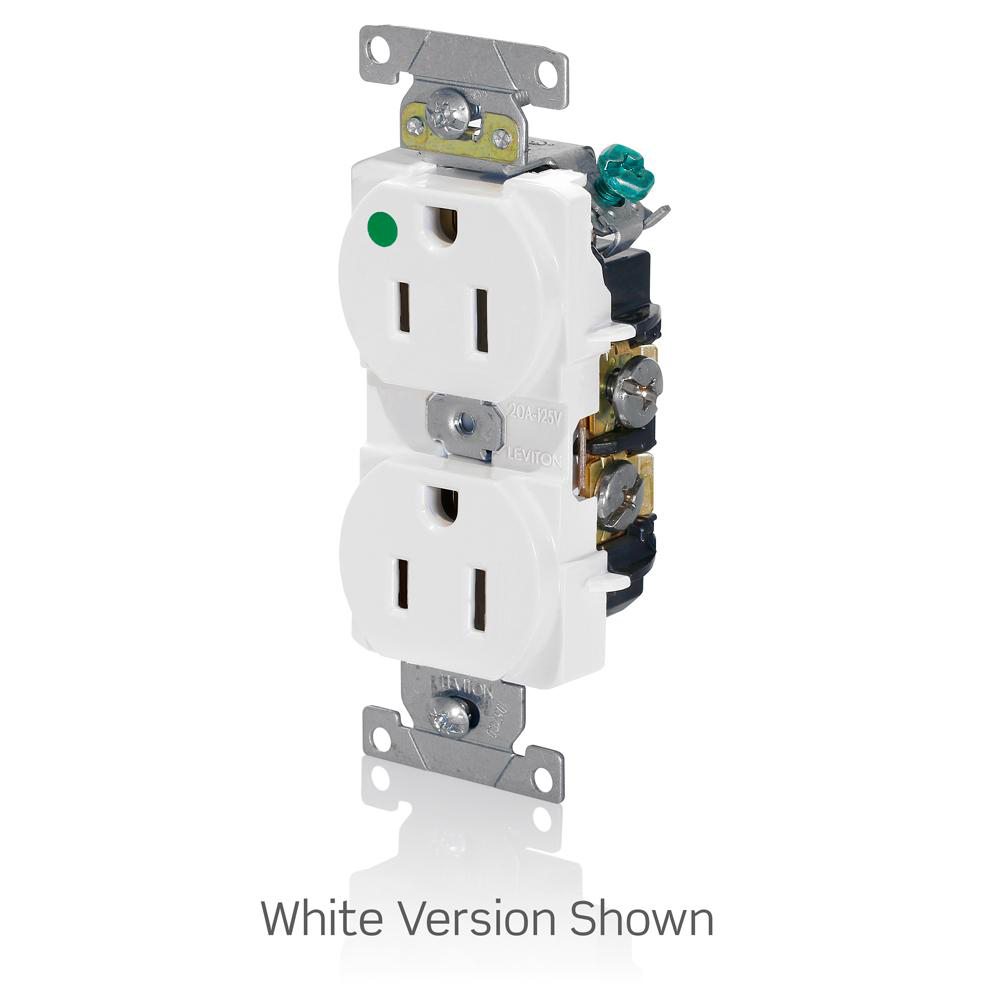

Image thumbnail 1

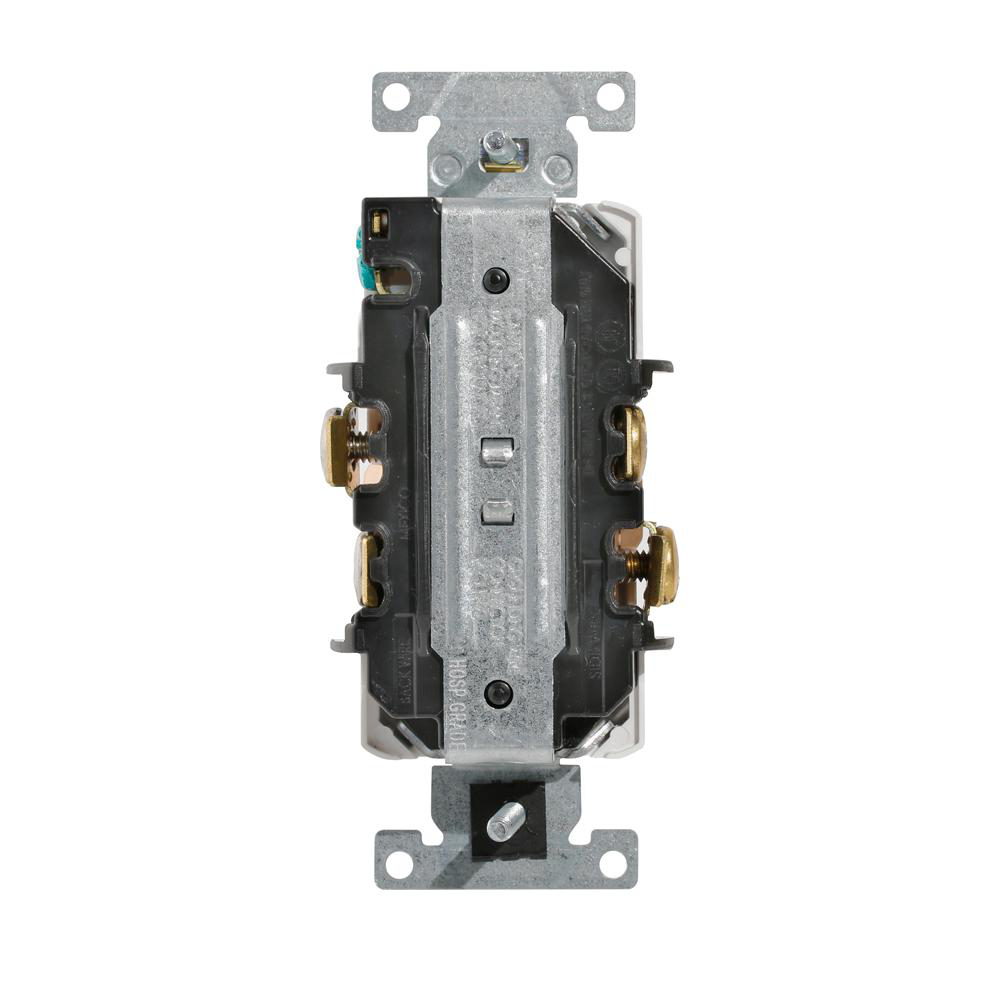

Image thumbnail 2

Email

Receptacle duplex slim design 15A 125V white

Manufacturer: Leviton Manufacturing | Catalog # 8200-HW | Electrozad South Part # 221115

*Call For Price*
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check another branch
Extra heavy-duty hospital grade receptacle. Impact-resistant thermoplastic nylon cover and body. Smooth face does not collect dirt. Four corner latches securely fasten face. Extra heavy-duty triple-wipe, brass T contacts for superior contact and conductivity. High-performance brass No.10-32 terminal screws to reduce conductor oxidation. Back and side-wire ground termination brass strap version. Back and side-wiring options. Break-off tabs for easy two-circuit conversion. Apron barrier to prevent accidental contact between terminal screw heads and metal box. Exclusive V-shaped, serrated back-wiring clamps for superior contact. Power Indication™ provides permanent green dot lens with 100,000 hour LED status indicator. Wire lead receptacles for fast and easy installation. Backed by a limited 10-year warranty.

Technical Information

Amperage
15 A
Applications
Commercial Grade
Body Material
PBT
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
PBT
Flamability Class
Rated V-2 Per UL 94
Grade
Hospital
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
WD-6
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.51 W x 1.18 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Outlet
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477818862
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTIN
00078477818862
Product UPC
07847781886

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
