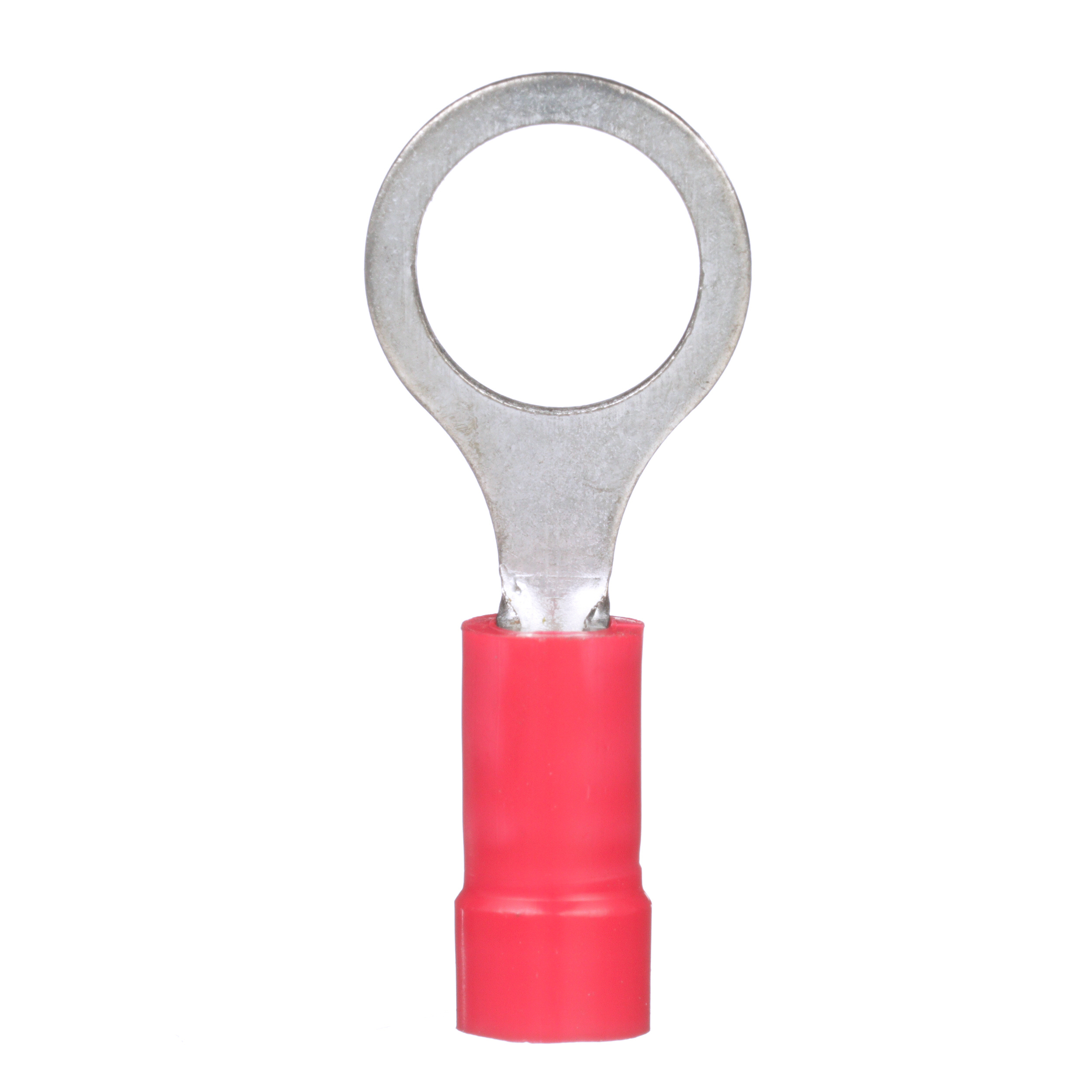

Pan-Term® PV18-56R-CY Ring Terminal, Vinyl Insulated-Funnel Entry

Manufacturer: Panduit | Catalog # PV18-56R-CY | Electrozad South Part # 222012
$110.07 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Ring Terminal, 22 ... 18 AWG, 5/16" stud size, vinyl insulated, funnel entry, standard package.

Technical Information

Barrel Length
0.44 in
Barrel Type
Funnel
Color Coding
Red
Enclosure
Ring shape
Material
High Conductivity Copper Alloy
Max Operating Temperature
167 degrees F
Size
5/16"
Standard
CSA,E2186,UL
TC Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.46 in
Type
Ring Terminal
Wire Size
0.5 - 1.0 mm²

Packaging

Package Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983689217
Color
Amber,Green,Red,White
Finish
Rust-Proof Plating, Vinyl Coated
GTIN
00074983689217
Product UPC
07498368921
UNSPSC
39121409

Dimensions

Outer Diameter
0.15 in
Overall Length
1.11 in
Width
11.7 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
