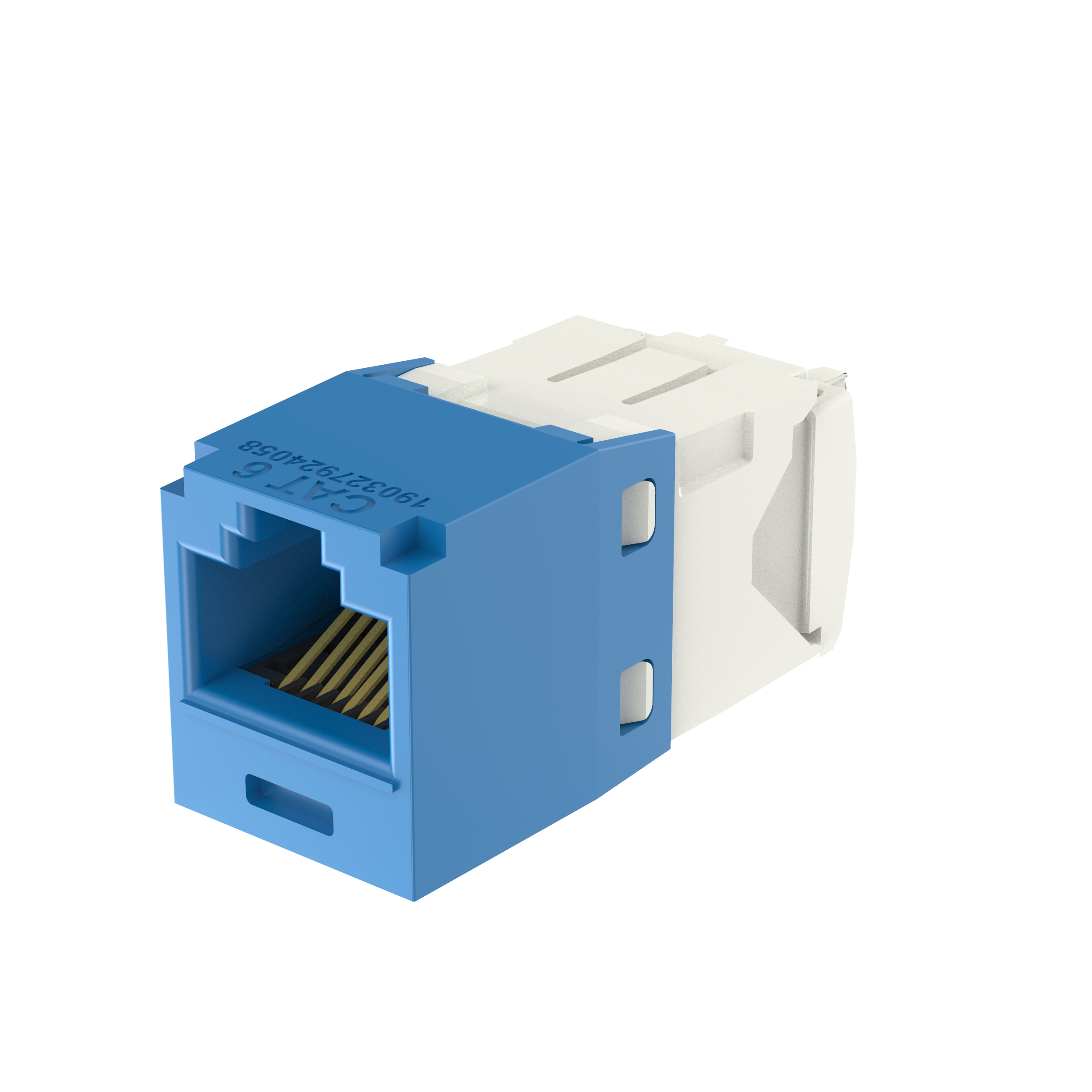

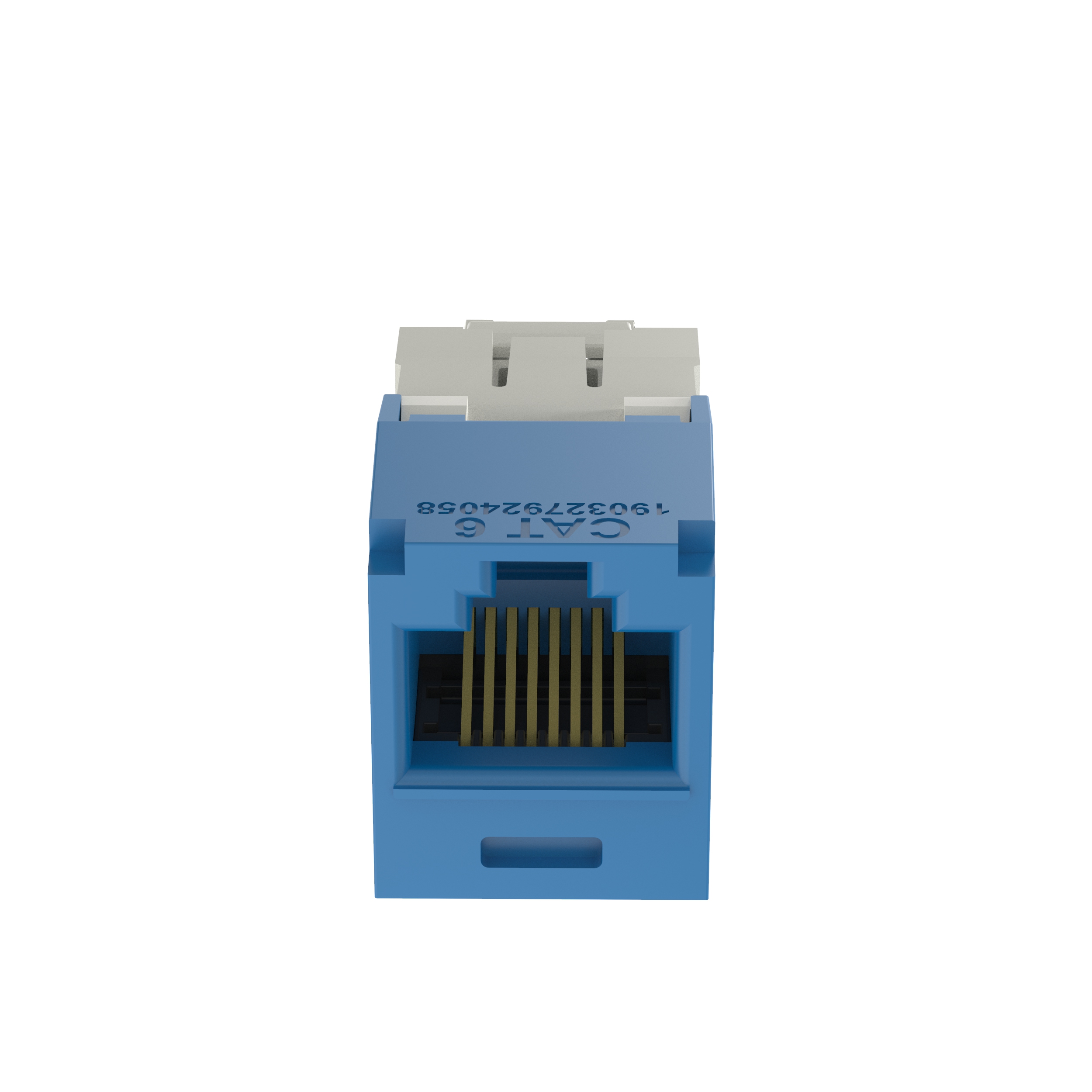

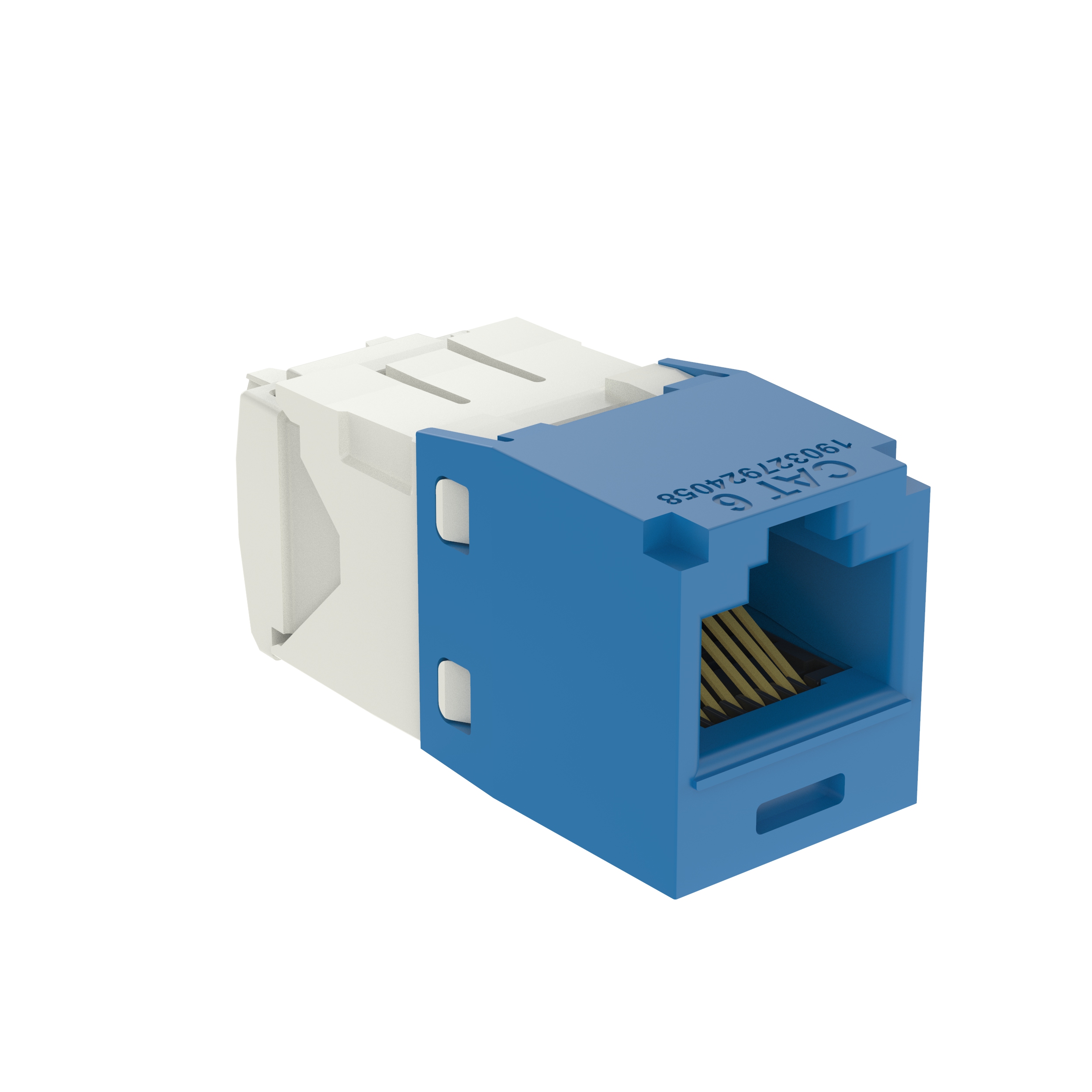

Module jack UTP RJ45 CAT6 class-E blue

Manufacturer: Panduit | Catalog # CJ688TGBU | Electrozad South Part # 223066
$21.21 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Mini-Com® TX6™ PLUS UTP jack module. Category 6/Class E, 8 position, UTP jack module shall terminate 4 pair, 22 to 26 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be colour-coded white to designate Category 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.

Technical Information

Applications
Unshielded
Cable Size
26 - 22 AWG
Cable Type
Category 6
Material
ABS/Plastic
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Type
RJ45, Unshielded, Universal

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983395460
Color
Blue
GTIN
00074983395460
Product UPC
07498339546
Used With
Round and Solid Cables, Litz Wire Conductor

Dimensions

Depth
1.5 in
Height
0.71 in
Overall Length
38.1 mm
Width
15.7 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
