HUB HBL8215CAT CONN SB 15A 125V MAL POSITION ANGLE 15A 125V | Electrozad South

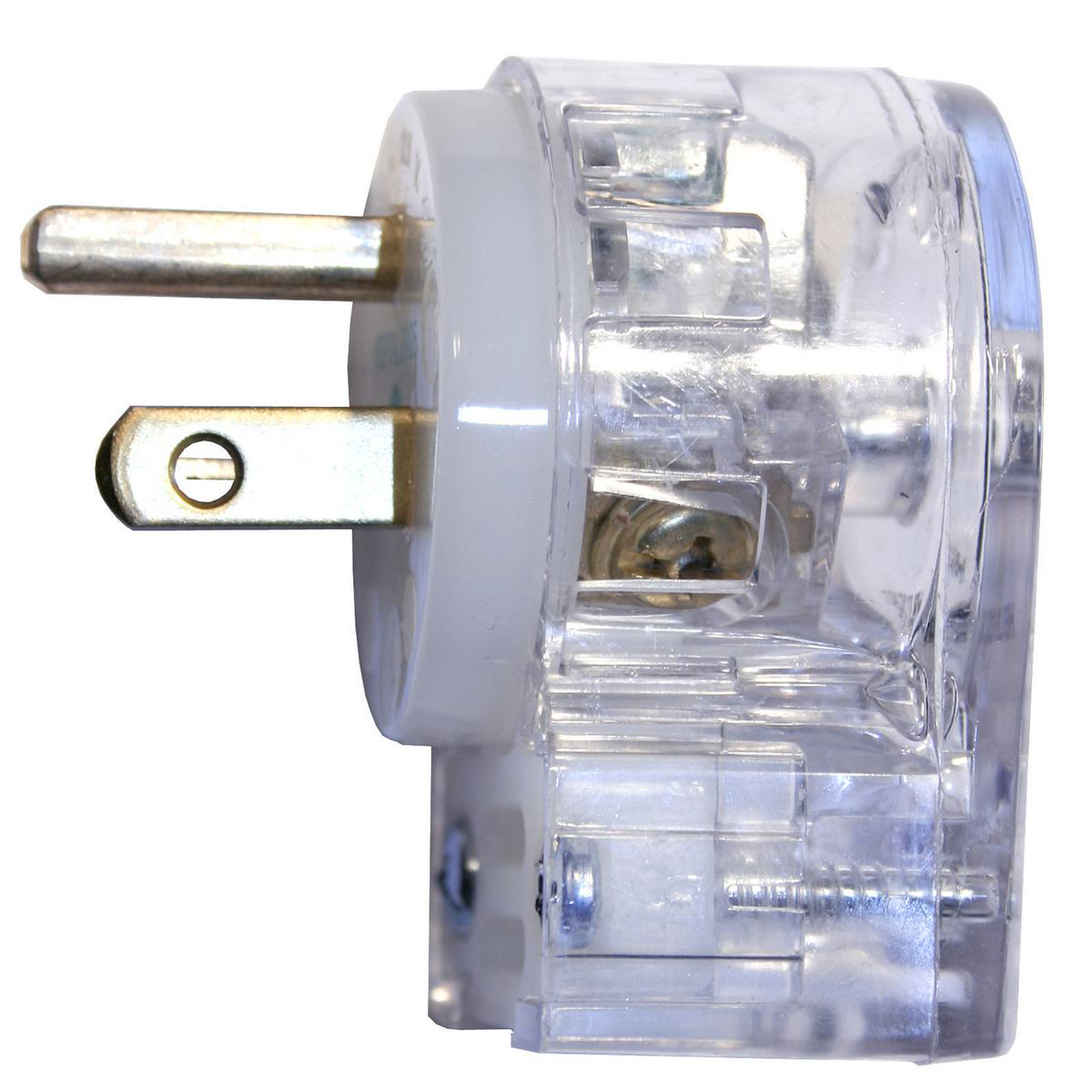

Product image for HUB HBL8215CAT CONN SB 15A 125V MAL POSITION ANGLE 15A 125V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HUB HBL8215CAT CONN SB 15A 125V MAL POSITION ANGLE 15A 125V

Manufacturer: Hubbell Wiring Devices | Catalog # HBL8215CAT | Electrozad South Part # 223953
$52.98 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual
Hubbell INSULGRIP strait blade cable plugs and connectors are made of white nylon locking blade insert, black grip housing and 1 piece screw cable clamp. They come in version 2 poles, 3 wires, 15-20 amp, 125-250 volts. Strait or 90 degree angled models available.

Technical Information

Amperage
15 A
Applications
Hospital Grade
Conductor Size
18-10 AWG
Cord Type
Portable
Current
15 A
Grade
Hospital
Grounding
Yes
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Cord
NEMA
5-15P
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,Fed. Spec. W-C-596,No. 42 File 285,UL,UL498 File E1706
Style
Insulgrip
TC Connection
Terminal Screws
Type
Insulgrip, Standard Sized, Right Angled, 4 Position
Voltage
125 V
Wattage
1,875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585179254
Color
Transparent
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585179254
Product Series
Hospital Grade
Product UPC
78358517925
Weight
0.15 lb

Dimensions

Height
2.11 in
Length
2.420 in
Width
1.53 in

Certifications & Compliance

Country of Origin
USA
