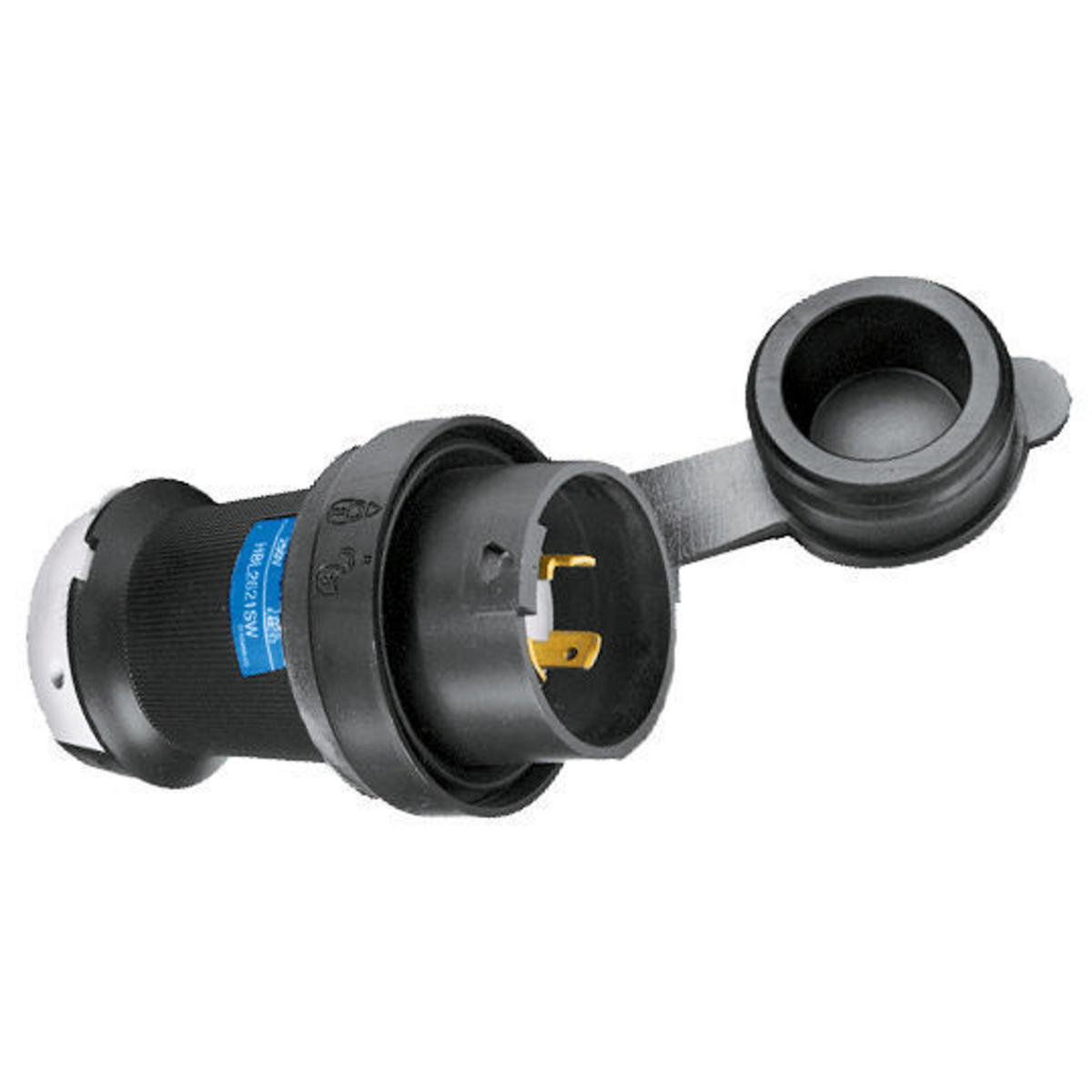

Plug thermoplastic 2P3W 20A 2HP L15-30 blue

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2321SW | Electrozad South Part # 224494
$113.64 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Watertight Safety-Shroud™ Twist-Lock® plug made of thermoplastic. with 2 pole, 3 wire, 250 V.

Technical Information

Amperage
20 A
Applications
For Extra Heavy Duty Industrial Applications
Conductor Size
16-8 AWG
Cord Size
0.36 - 0.93 in
Cord Type
Portable
Current
20 A
Dielectric Strength
2000 V
Grounding
Yes
Material
PBT
Mounting Type
Surface, Cord
NEMA
L6-20P
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
2.77 in x 2.77 in x 4.40 in
Standard
4X,CSA,Type 12,Type 4,UL
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard, Shrouded
Voltage
250 V
Wattage
5000 W
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®, Watertight Safety-Shroud®

General Product Info

12-Digit UPC
783585231105
Color
Black,White
Environmental Conditions
Watertight, UL 94 Requirements, V0 Rated Flammability
GTIN
00783585231105
Product UPC
78358523110
Weight
0.60 lb

Dimensions

Height
4.40 in
Length
2.77 in
Width
2.77 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Reduces exposure to arcing when connecting or disconnecting under load.
  • UL Type 4X Environmental seal protects connection while in use.
  • Impact resistant shroud protects blades against bending and breaking.
  • Superior cord grip design protects terminations from excess strain.
