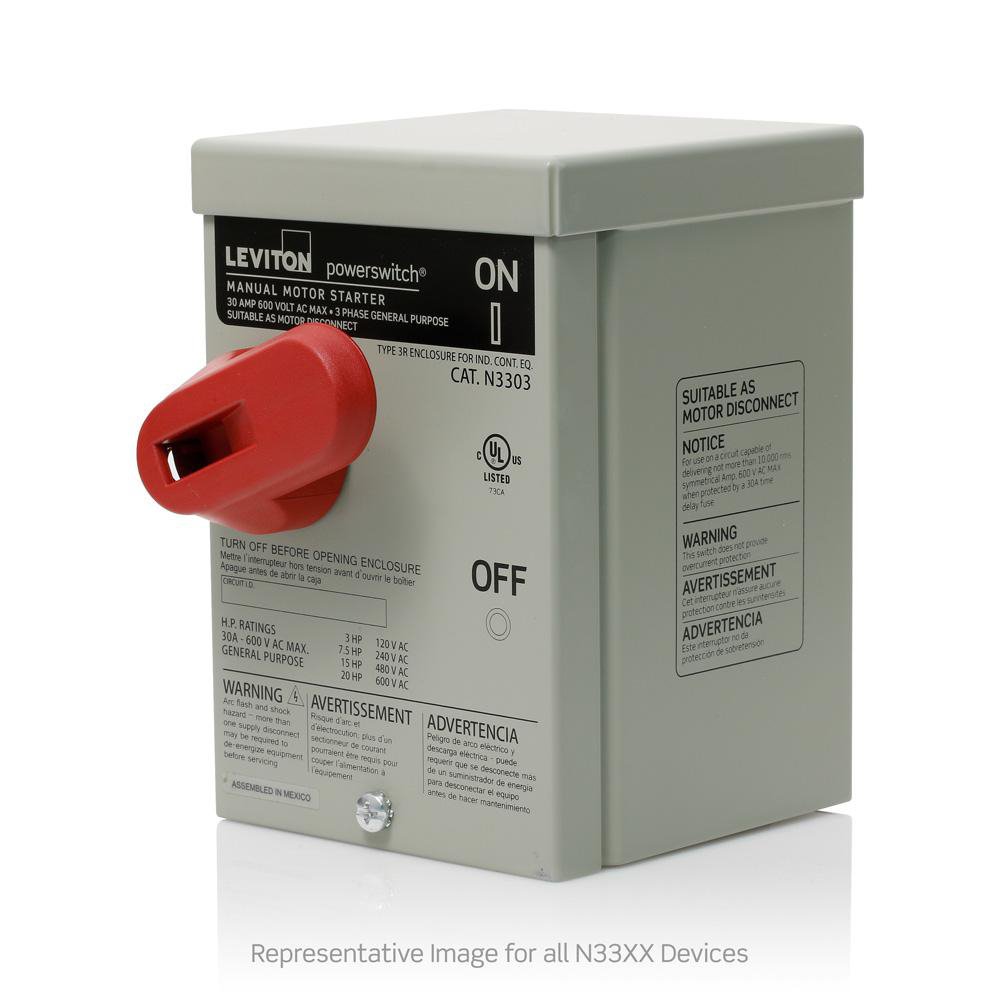

Controller 3-pole AC motor starting manual 30A 600V grey

Manufacturer: Leviton Manufacturing | Catalog # N3303-DS | Electrozad South Part # 224958
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
All molded parts are thermoplastic to resist impact, chemicals, temperature, tracking and arcing. Cam-driven mechanism enhances fast-make or slow-break. Silver-alloy contacts for maximum conductivity and service life. External clamps accept back and side wiring Insulating barrier between terminals provide isolation between phases. Nickel-plated brass mounting yoke for superior strength and corrosion resistance. Oversized toggle provides positive actuation, even with gloved hand.

Technical Information

Action
TPST
Actuator
Toggle
Amperage
30 A
Applications
Commercial
Average Rated Life
6,000 Cycles Inductive Motor Type Load
Base Material
Thermoplastic Polyester
Connection Type
Back Wired,Side Wired
Contact Configuration
TPST
Contact Material
Silver-Cadmium
Control Voltage
600 VAC
Device Type
Enclosed Switch
Dielectric
2200 V
Enclosure
WD-6
Enclosure Material
Steel
Face Material
Thermoplastic Polyester
Flamability Class
Rated V-0 Per UL 94
Grounding
Grounded To Enclosure
Material
Nickel-Plated Brass,Nickel-Plated Brass
NEMA
WD-1
Number of Poles
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2200 V
Screw Material
Nickel-Plated Brass
Screw Size
10-32
Size
6.15 H x 4.26 W x 5.42 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
50 degrees C
Terminal Size
#10-8 AWG
Termination Type
Back Wire,Side Wire
Toggle Material
Thermoplastic Polyester
Torque
25 lb-in
Type
Enclosure With Three-Pole AC Motor Starter Switch
Voltage
600 V

Manufacturer Information

Brand
Leviton
Sub Brand
Powerswitch®

General Product Info

12-Digit UPC
078477374412
Color
Gray
Environmental Conditions
Flammability (Rated V-0 per UL94)
GTIN
60078477374414
Product UPC
07847737441

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
