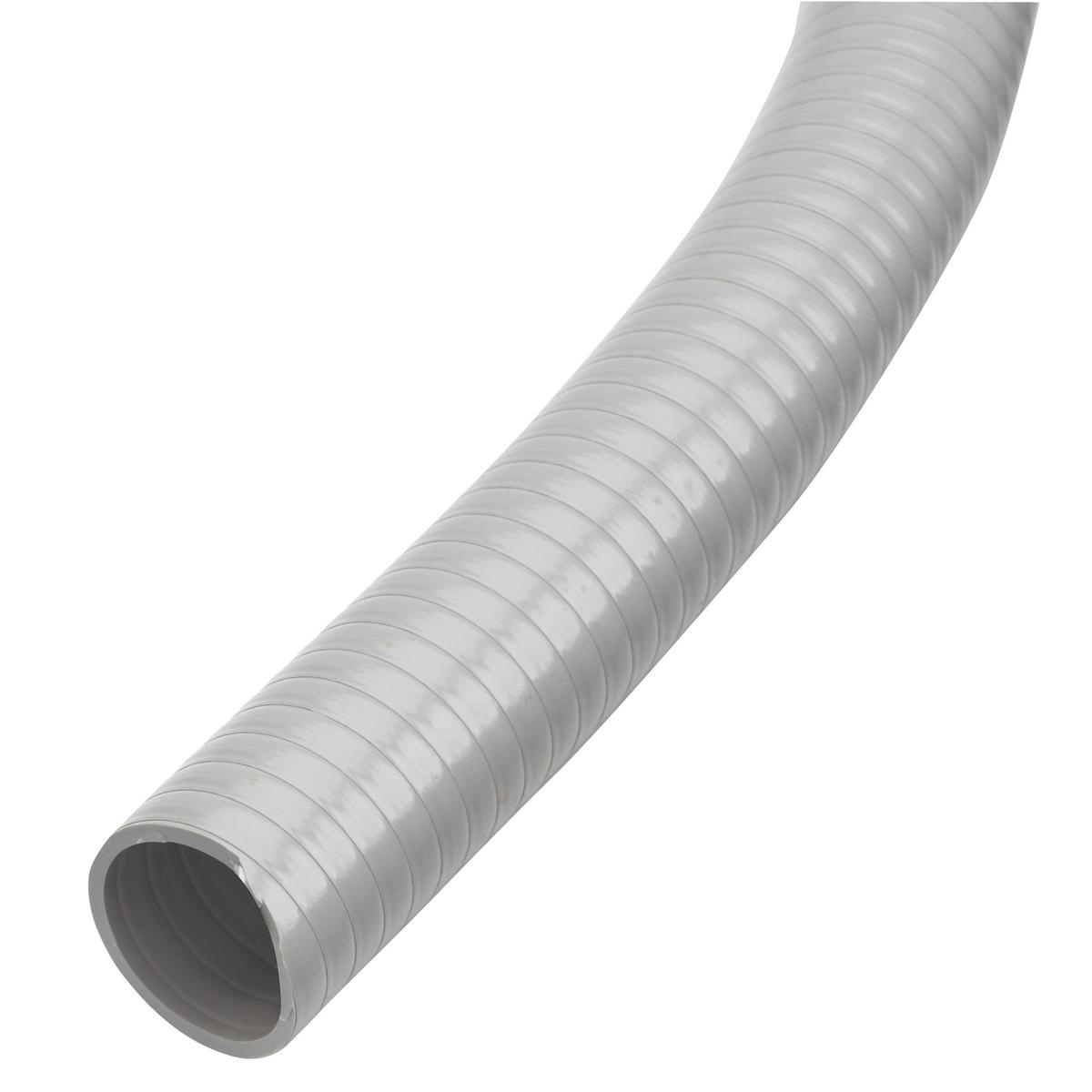

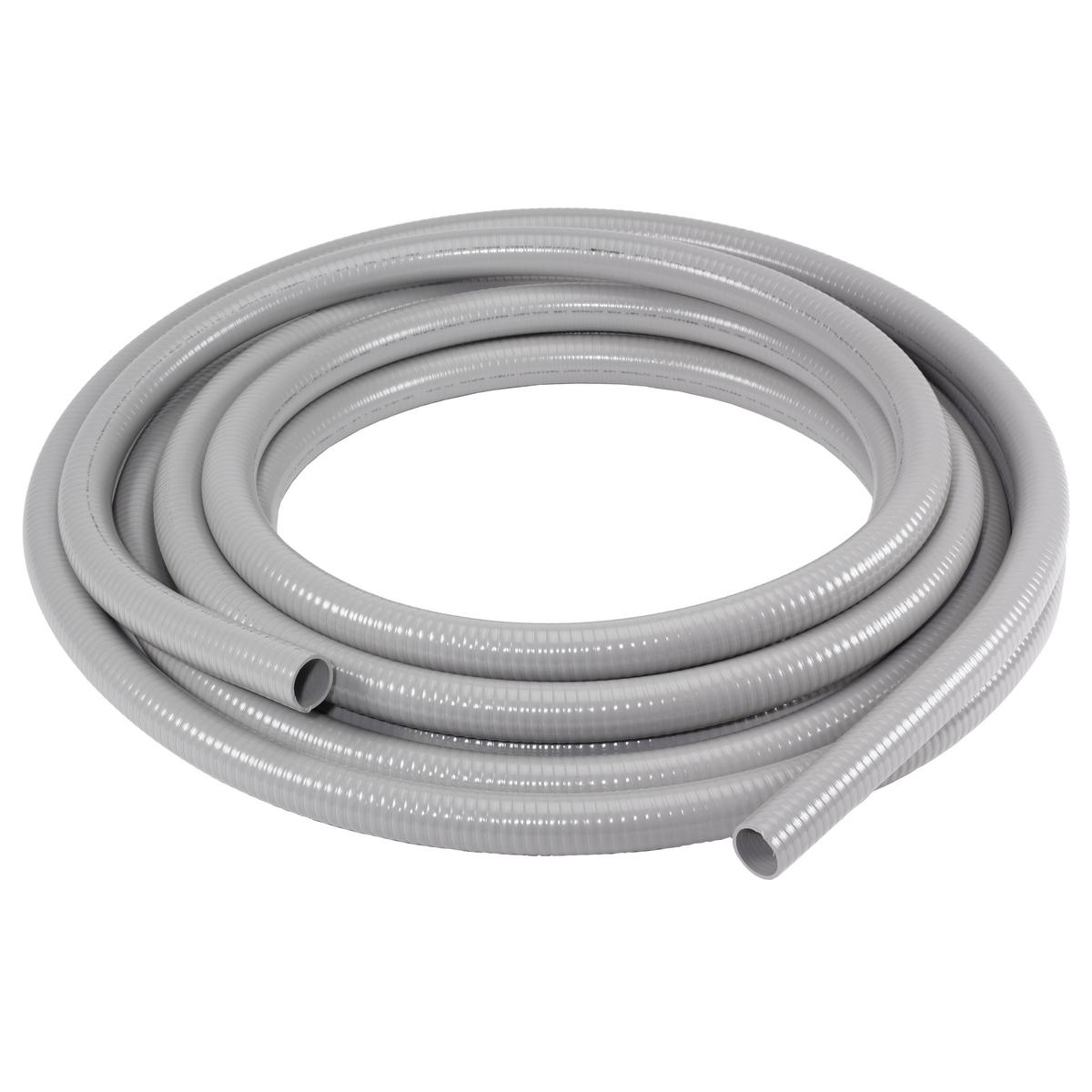

HUB G1050 CUTS POLYTUFF I 1/2" GREY NONMETALLIC LIQUIDTIGHT TUBING

Manufacturer: Hubbell Wiring Devices | Catalog # G1050 | Electrozad South Part # 22553
$1.89 /ft
ft
Log in or register to view your price, purchase history, and more!
393 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page
Flexible nonmetallic liquidtight conduit made of co-extruded rigid and flexible PVC, 3/4in trade Size, 0.63 inch conduit ID, 0.83 inch conduit OD, 3 inch bend radius. -18 to 60 °C wet environment Operating Temperature, -18 to 70 °C oil environment operating temperature, -18 to 80 °C dry environment operating temperature.

Technical Information

Applications
Wet and Damp Locations
Bend Radius
3 in
Connection Type
Cap Nut
Material
PVC
Radius
3.00 in (76.2)
Standard
1660. Approved For Outdoor,Direct Burial,Meets,Of NEC,UL
TC Connection
Cap Nut
Temperature Rating
-18 to 80 degrees C
Trade Size
1/2 in
Type
Non-Metallic, Rigid, Extra Flexible
Voltage
600 V

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
PolyTuff®

General Product Info

12-Digit UPC
783585333632
Color
Gray
Finish
Smooth
GTiN
00783585333632
Product UPC
78358533363

Dimensions

Diameter
16.1 mm ID x 21.1 mm OD
Height
0.5 in
Inside Diameter
.63 in (16.1)
Length
100 ft
Outside Diameter
0.83 in
Width
0.500 in

Certifications & Compliance

Country of Origin
USA
