MERSEN A3T60 FUSE HRCI-T 60A 300V CLASS T FAST ACTING NON TIME DELAY | Electrozad South

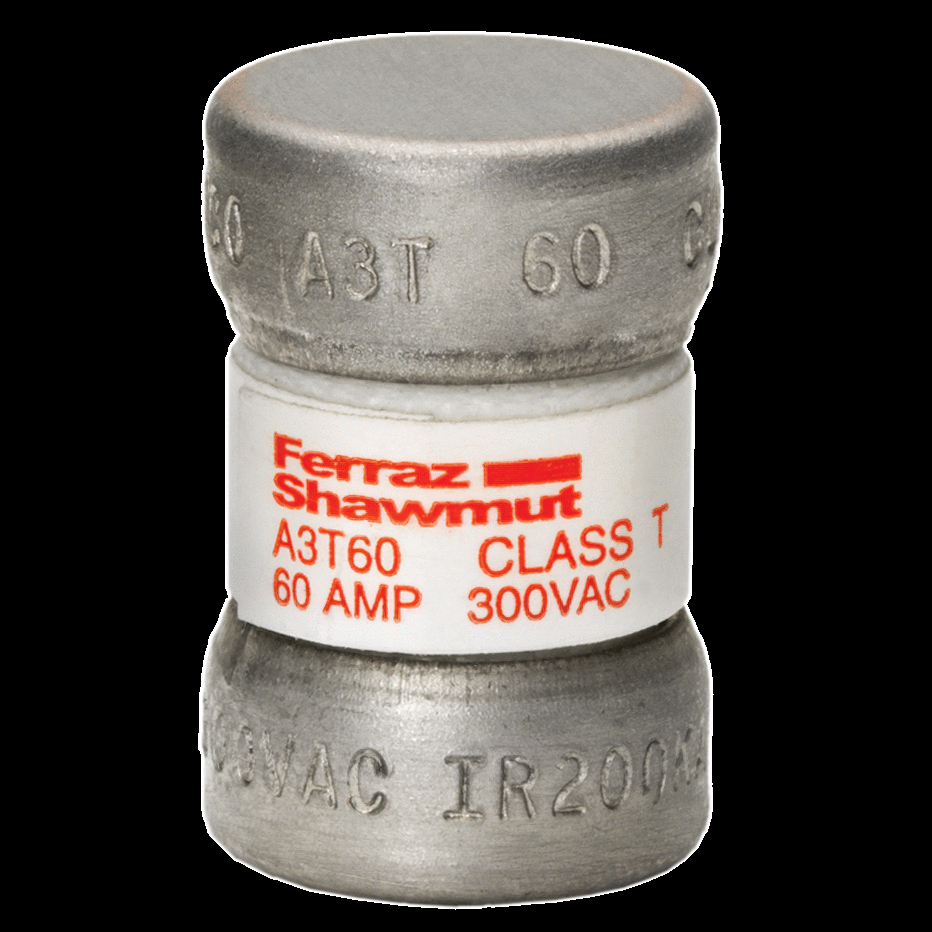

Product image for MERSEN A3T60 FUSE HRCI-T 60A 300V CLASS T FAST ACTING NON TIME DELAY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN A3T60 FUSE HRCI-T 60A 300V CLASS T FAST ACTING NON TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # A3T60 | Electrozad South Part # 22640
$39.93 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Technical Information

Amperage
60 A
Applications
For Load Centers, Panelboards, Switchboards, Circuit Breakers, Metering Centers
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class T
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
300 V
Rated Voltage DC
160 V
TC Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
North American Power Fuses

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001890148
Class
T
GTIN
30782001890149
Product UPC
78200189014
Weight
0.02 lb

Dimensions

Diameter
0.56 in
Length
0.88 in
