MERSEN A3T80 FUSE HRCI-T 80A 300V CLASS T FAST ACTING NON TIME DELAY | Electrozad South
Product image for MERSEN A3T80 FUSE HRCI-T 80A 300V CLASS T FAST ACTING NON TIME DELAY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

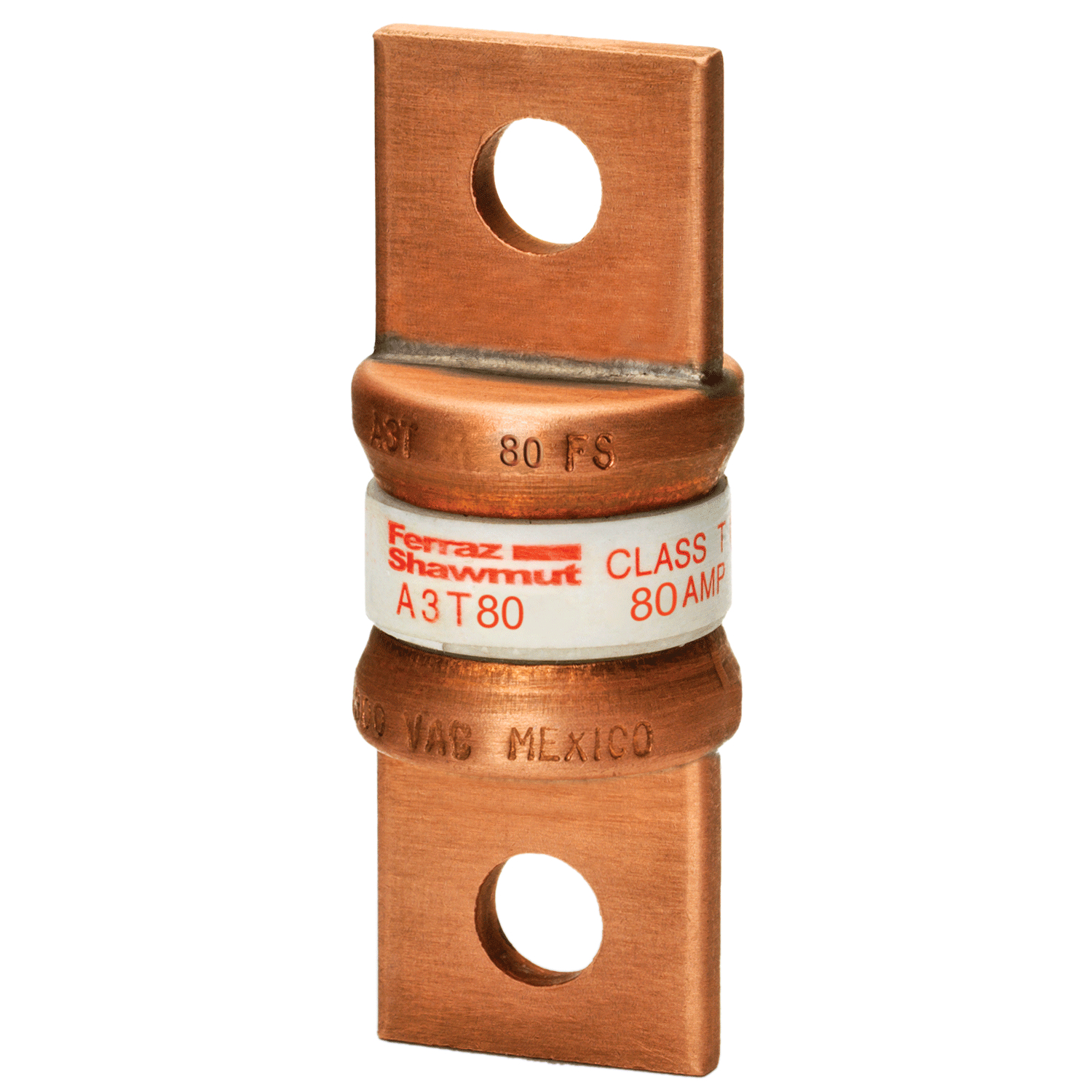

MERSEN A3T80 FUSE HRCI-T 80A 300V CLASS T FAST ACTING NON TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # A3T80 | Electrozad South Part # 22734
$56.63 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Technical Information

Amperage
80 A
Applications
Load Centers, Panelboards, Switchboards, Circuit Breakers and Metering Centers
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class T
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Bolt
Rated Voltage AC
300 V
Rated Voltage DC
160 V
TC Connection
Blade
Terminal Material
Copper
Terminal Type
Blade
Type
North American, Fast-Acting

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001890162
Class
T
Construction
GMG
GTIN
30782001890163
Product UPC
78200189016
Weight
0.075 lb

Dimensions

Diameter
0.81 in
Length
2.16 in
