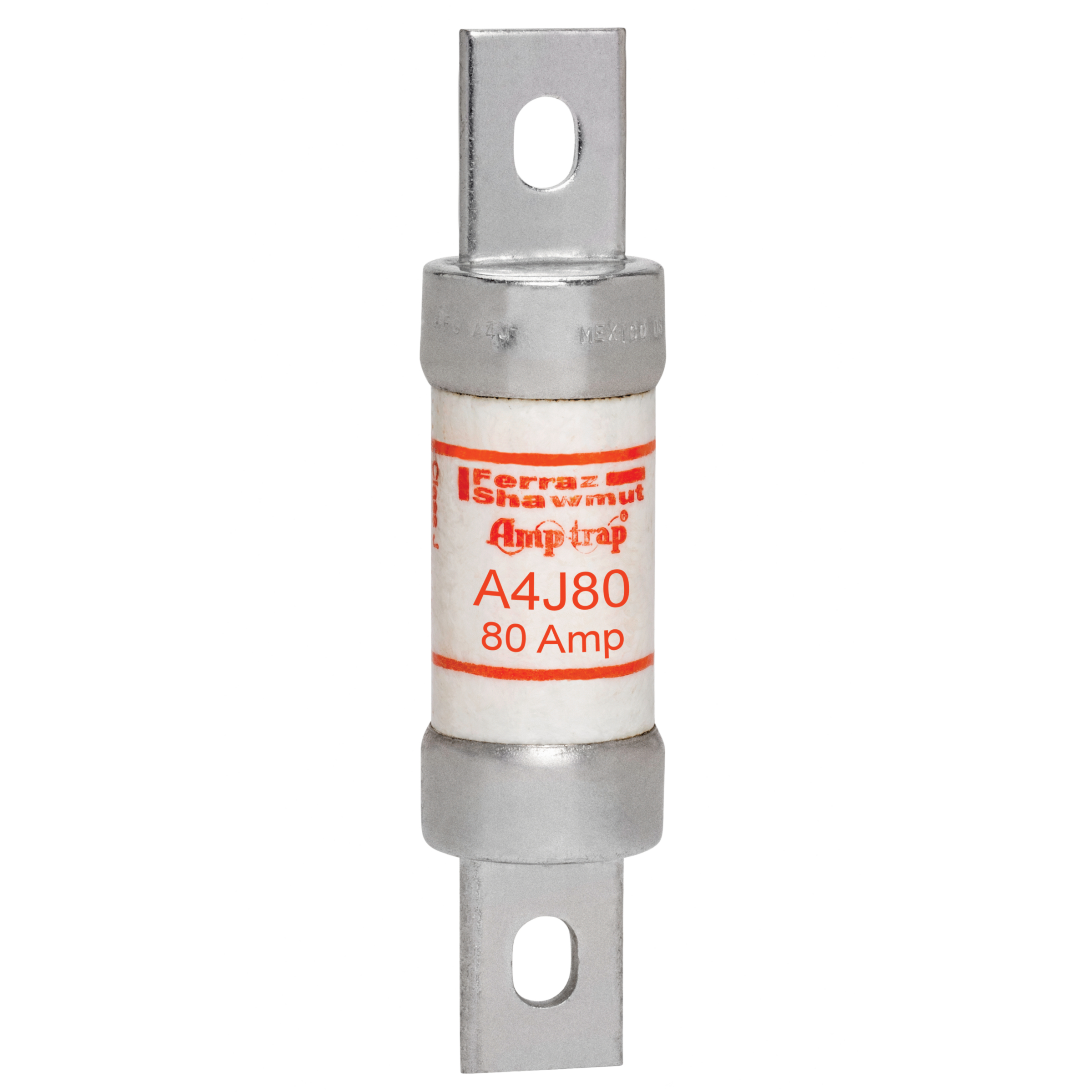

MERSEN A4J80 FUSE HRCI-J 80A 600VAC 300VDC FAST ACTING NON TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # A4J80 | Electrozad South Part # 22738
$25.48 /ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.

Technical Information

Amperage
80 A
Applications
For Capacitors, Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Circuit Breakers, Lighting, Heating and General Loads
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class J
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
North American Power Fuses

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001960308
Class
J
Construction
Fiberglass
GTIN
30782001960309
Product UPC
78200196030
Weight
0.24 lb

Dimensions

Diameter
1.06 in
Length
4.63 in
