PANDUIT NE4X4WH6 DUCT SLOTTED 4X4 HALOGEN FREE 6'LENGTH WHITE

Manufacturer: Panduit | Catalog # NE4X4WH6 | Electrozad South Part # 230083
$44.16 /ea
ea
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure

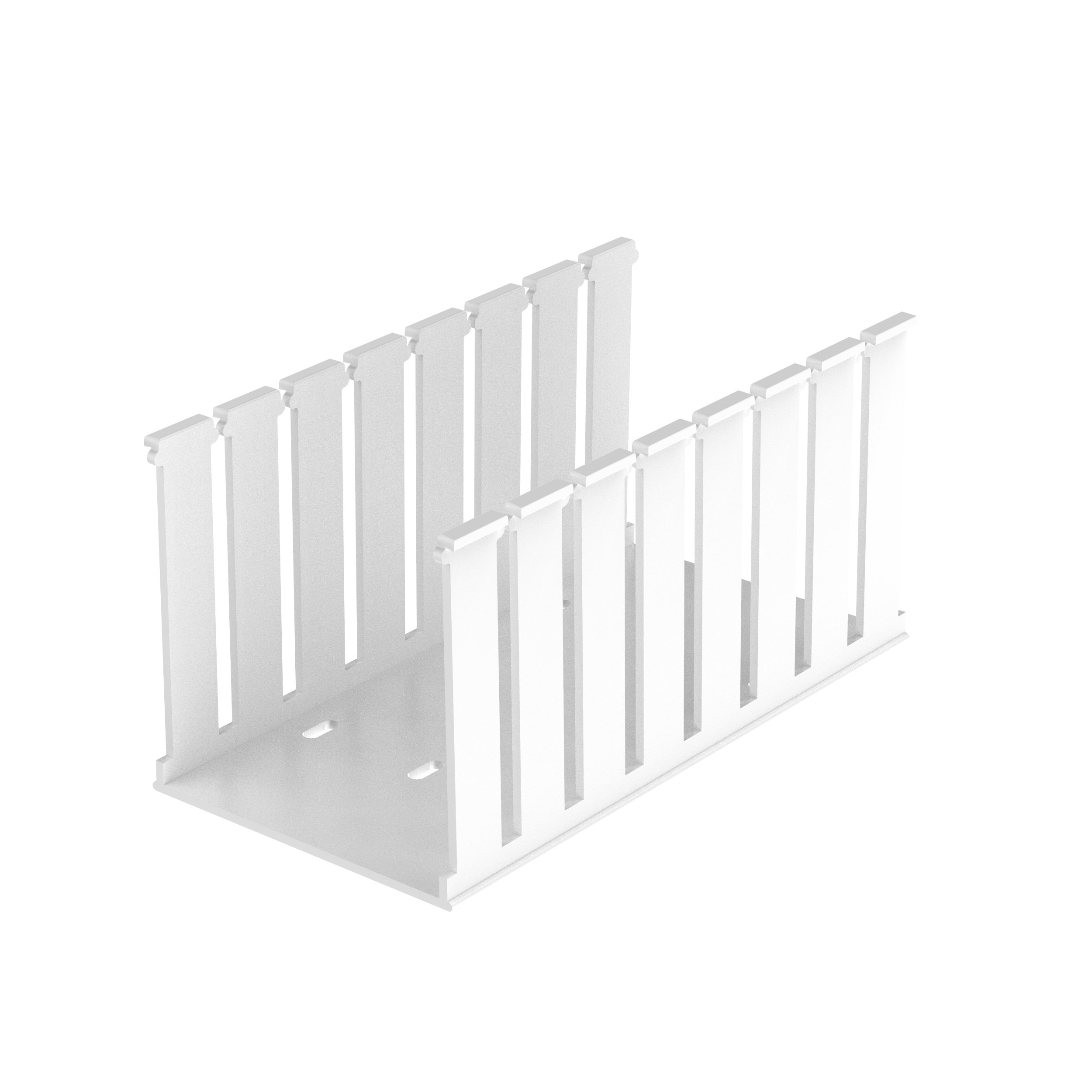

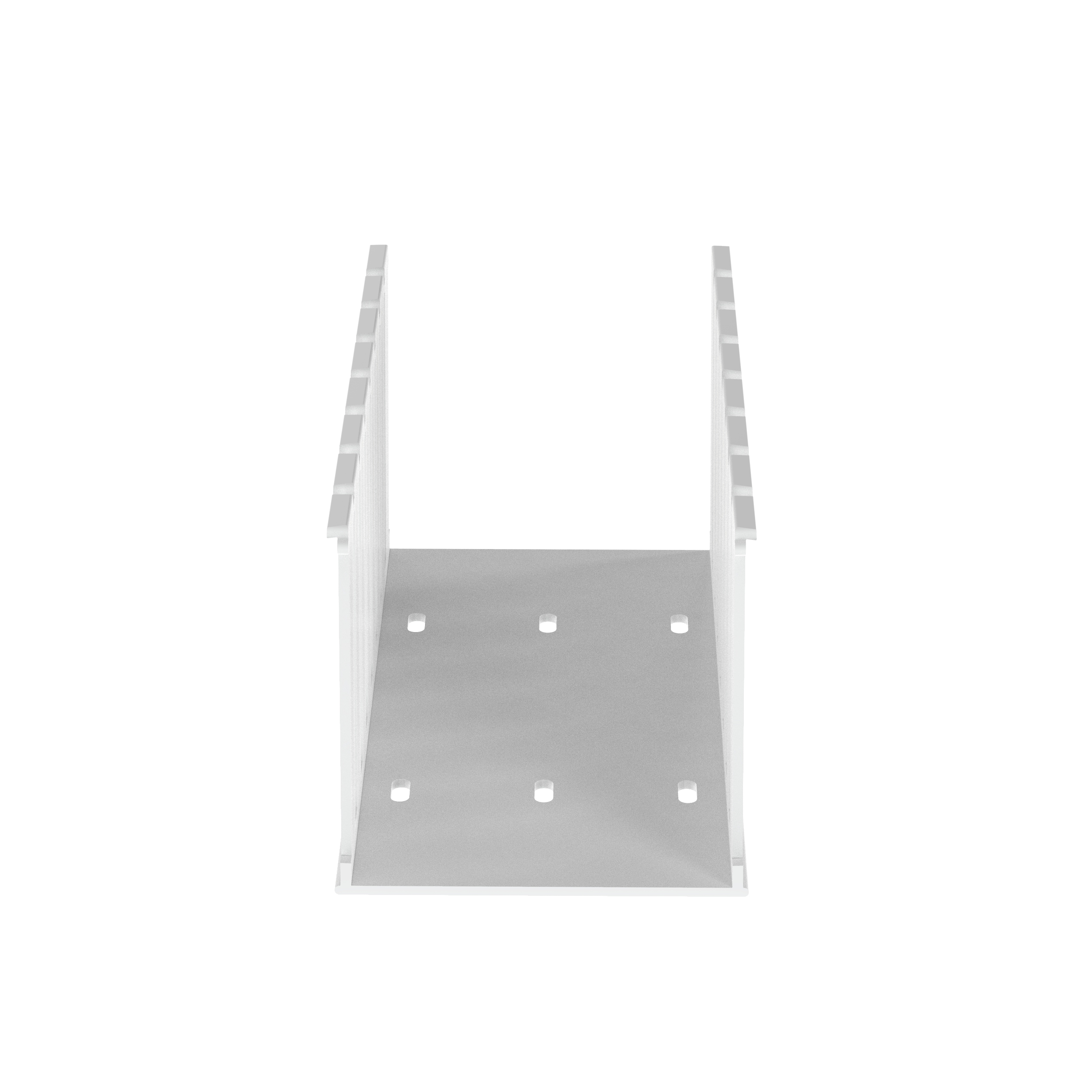

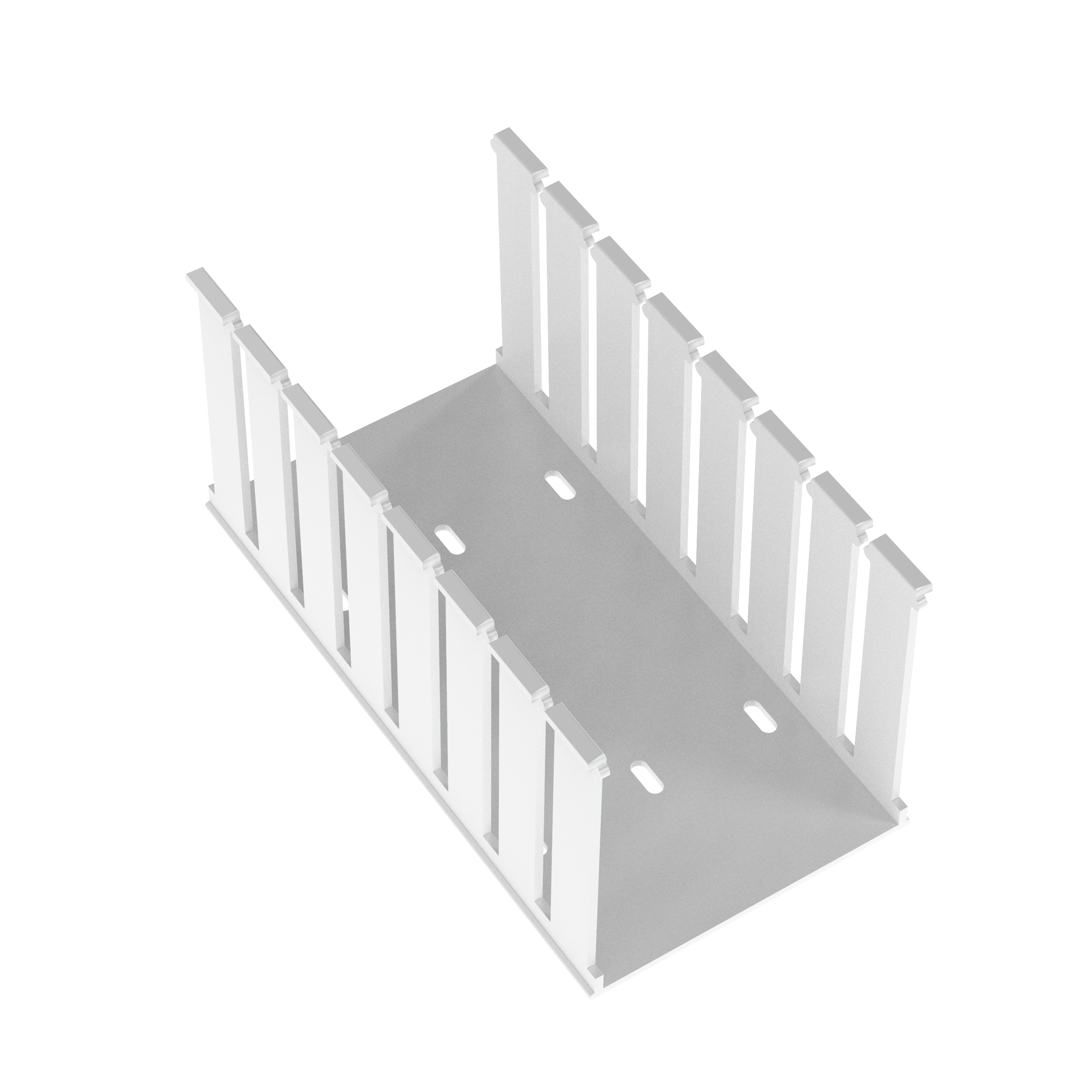

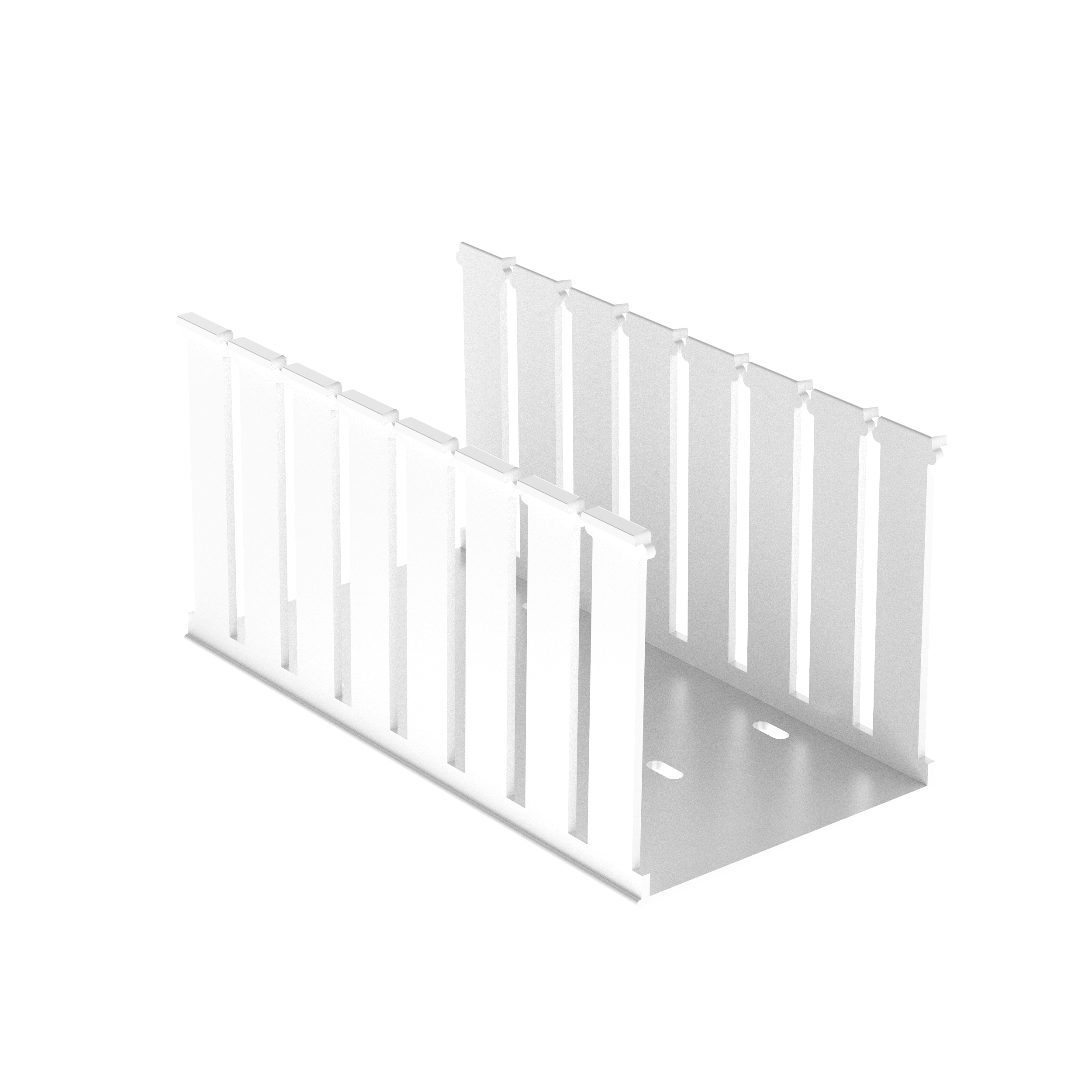

The NE4X4WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95..C (203..F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 4.06" x 4.14" (103.1 mm x 105.2 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.

Technical Information

Applications
Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications
Material
Polyphenylene Oxide
Mounting Type
DIN Standard Mounting Holes
Size
4.00 x 4.00
TC Connection
Standard
Type
Base Wiring Duct

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983215164
Color
White
GTIN
00074983215164
Product UPC
07498321516

Dimensions

Height
4.06 in
Length
1.8 m
Overall Length
6 ft
Thickness
0.08 IN
Width
4.14 in

Certifications & Compliance

Country of Origin
USA
