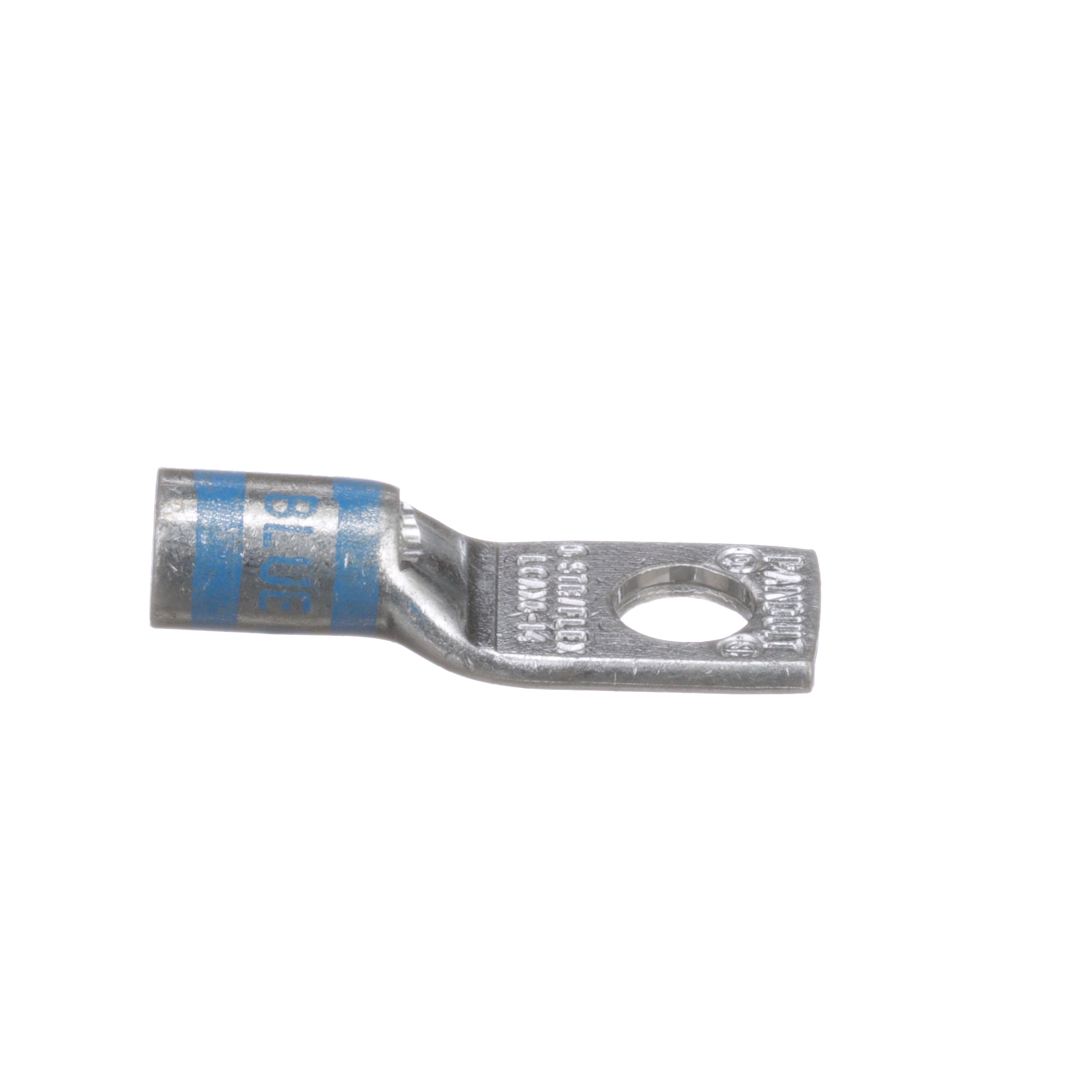

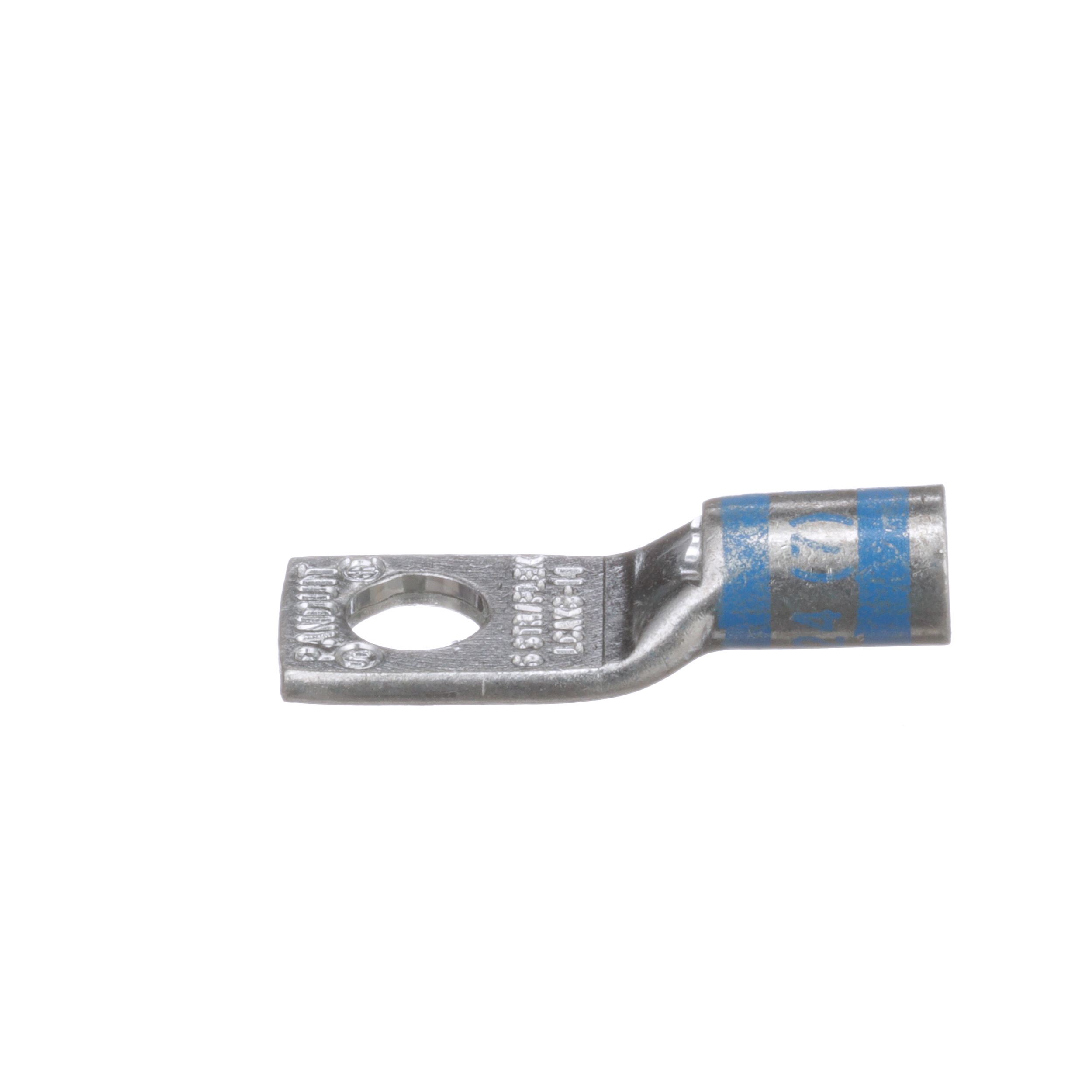

Product image for Pan-Lug™ LCAX6-14-L Comp. Lug, 6, Flex, Tin Plt Copper, One 1/4" Stud, PK50
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pan-Lug™ LCAX6-14-L Comp. Lug, 6, Flex, Tin Plt Copper, One 1/4" Stud, PK50

Manufacturer: Panduit | Catalog # LCAX6-14-L | Electrozad South Part # 230400
$452.79 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The LCAX6-14-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90..C.

Technical Information

Angle
Straight
Barrel Length
0.48 in
Barrel Type
Standard Barrel Length with Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
1
Size
#6 AWG Class B, C, G, H, I, K, M and DLO
Stud Size
1/4 in
Temperature Rating
90 degrees C
Tongue Thickness
0.08 in
Tongue Type
Standard
Tongue Width
0.48 in
Type
Compression Lug

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983433582
Color
Blue
Finish
Tin Plated
GTIN
00074983433582
Product UPC
07498343358

Dimensions

Outer Diameter
0.31 in
Overall Length
1.28 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
