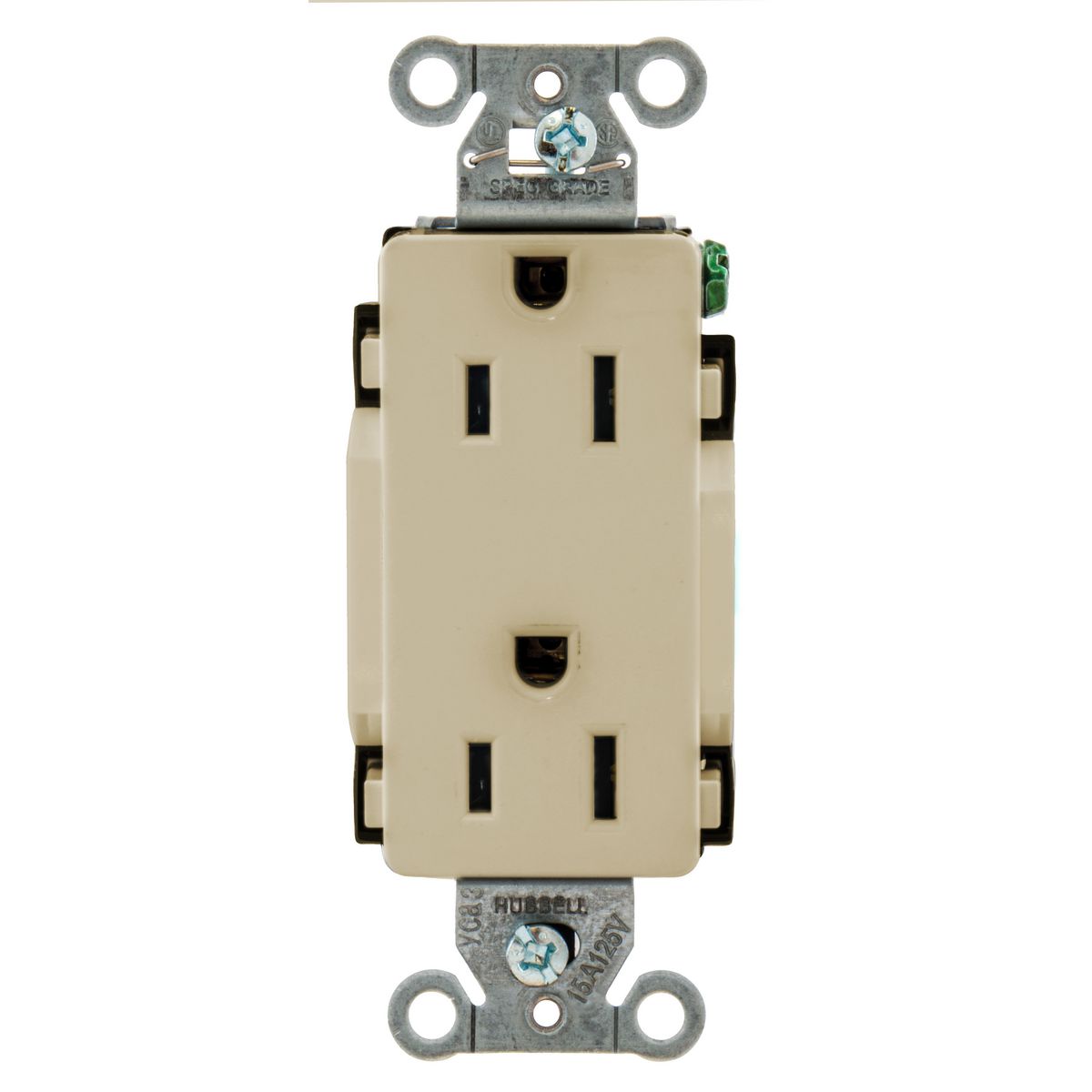

Receptacle duplex decorator 2-pole 15A 125V ivory

Manufacturer: Hubbell Wiring Devices | Catalog # DR15I | Electrozad South Part # 231279
$5.70 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Style Line® Commercial specification-grade decorator duplex receptacle. Back and side wired. 2-pole, 3-wire grounding. Smooth face style. Nylon face and base. 0.03 brass power contacts. Brass ground contacts. 0.062 inch nickel plated steel wire clamp. Plated steel terminal screws. 0.04 inch galvanized steel mounting strap. Stainless steel automatic self-grounding staple. Galvanized steel mounting screws. Aesthetic Style Line® decorator design. Triple wipe contacts.

Technical Information

Amperage
15 A
Applications
For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial Specification
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
1.29 in x 1.06 in x 3.28 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
TC Connection
Back and Side Wired
Type
Decorator
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
14 - 10

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585127804
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585127804
Product Series
Commercial Specification Grade
Product UPC
78358512780
Weight
0.2 lb

Dimensions

Height
3.28 in
Length
1.29 in
Width
1.06 in

Certifications & Compliance

Country of Origin
China
Overview
  • Triple wipe contacts
  • Aesthetic Style Line® decorator design
  • Smooth face
