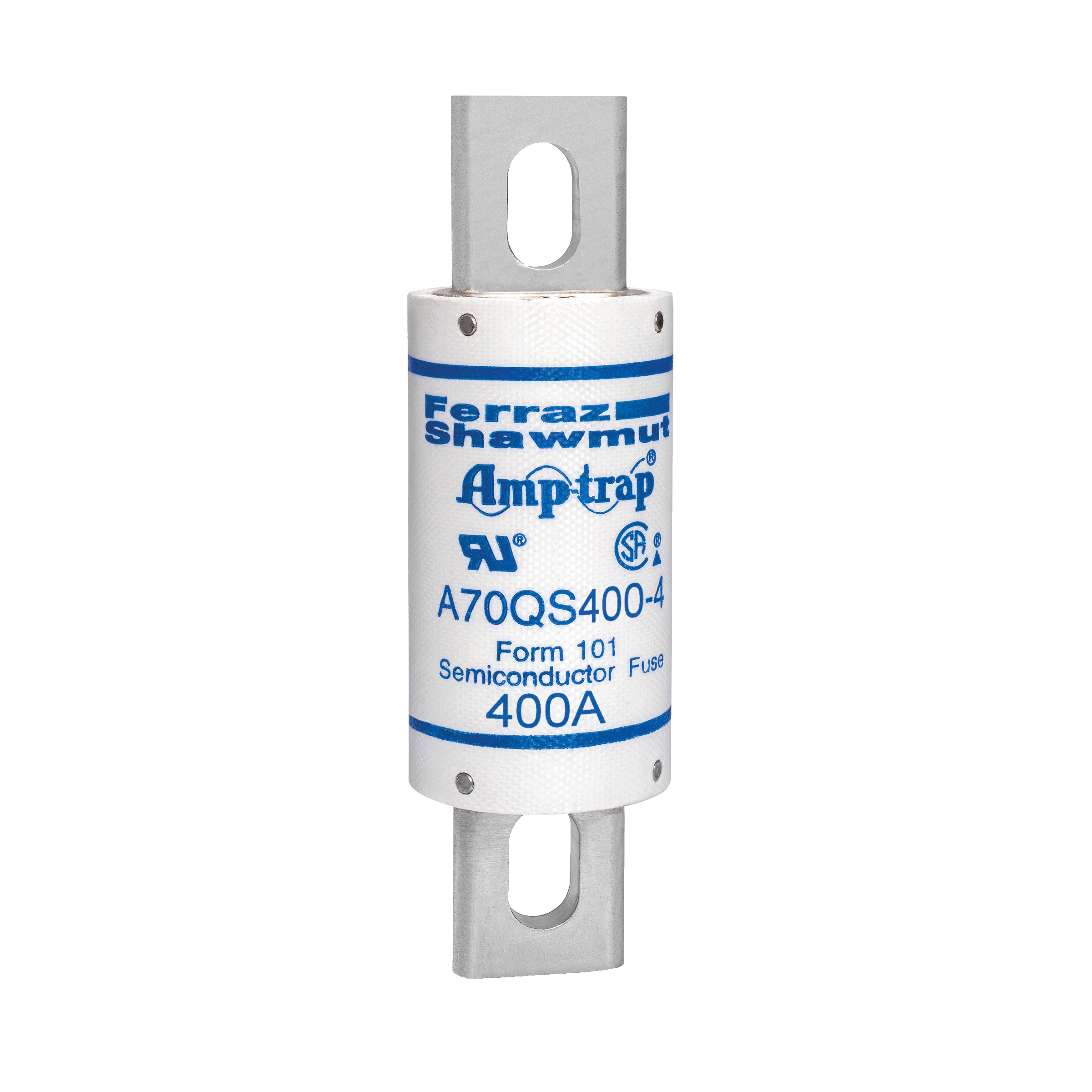

High Speed Fuse Amp-Trap® A70QS 700VAC 700VDC 400A Bolted Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A70QS400-4 | Electrozad South Part # 234336
$568.96 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet H TECHNICAL DRAWING URL
A70QS Amp-Trap® high speed fuses were developed in response to the need for improved overall performance of 700V semiconductor fuses for new equipment requirements. A70QS fuses have lower I2t for better protection, longer life when subjected to cyclic loading, plus lower watts loss. A70QS is the best choice to protect dynamic solid state equipment such as motor drives, UPS, etc.

Technical Information

Amperage
400 A
Applications
Protection of motor drives, UPS, inverters at 700V or less
Connection Type
Blade
Contact Material
Tin-Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
200 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
700 V
Rated Voltage DC
700 V
TC Connection
Bolted
Temperature Rating
80 degrees C
Terminal Material
Tin-Plated Brass
Terminal Type
Bolted
Type
Semi Conductor
Voltage
700 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001948795
Construction
GMG
GTIN
30782001948796
Product UPC
78200194879
Weight
0.95 lb

Dimensions

Diameter
1.5 in
Length
5.09 in

Certifications & Compliance

Country of Origin
Mexico
