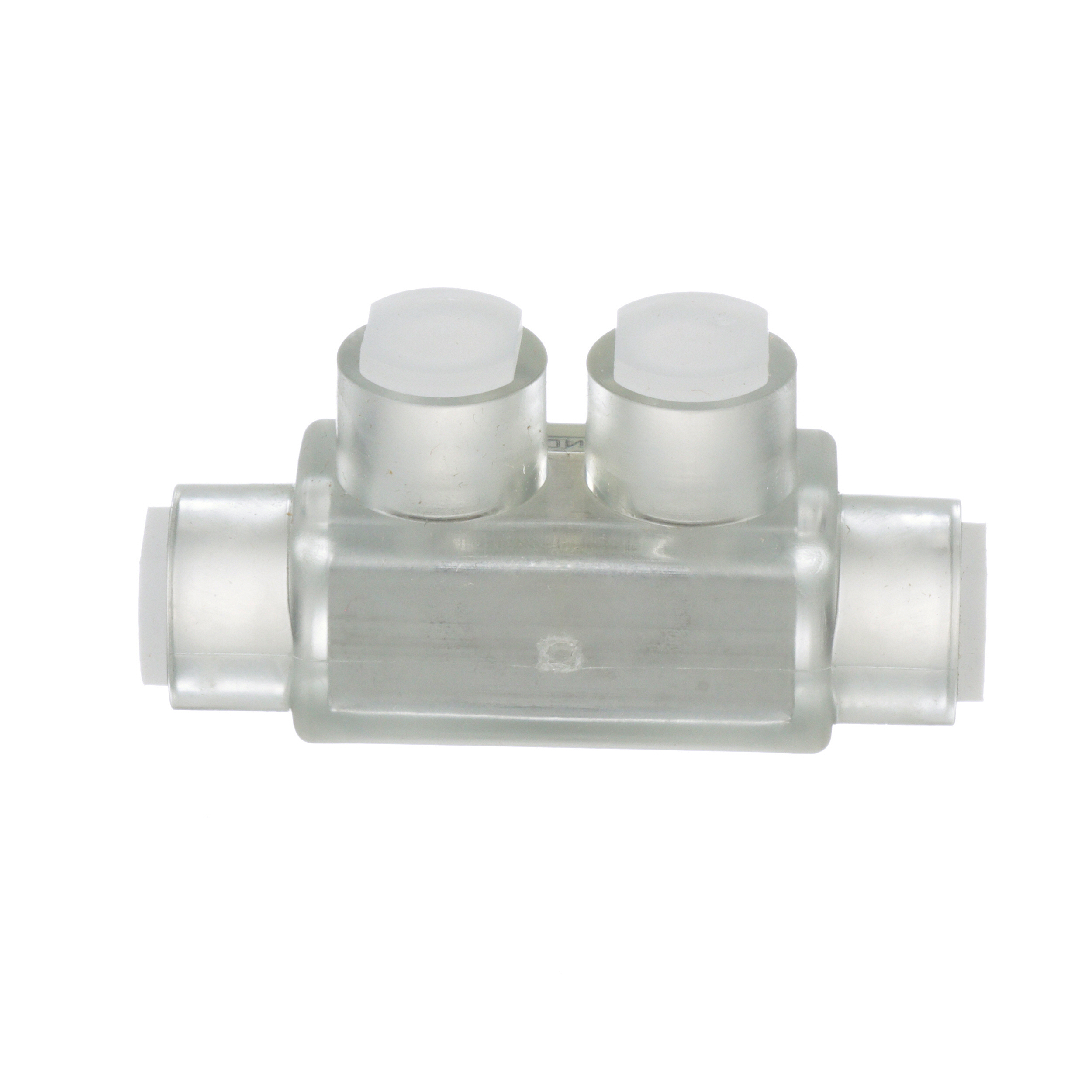

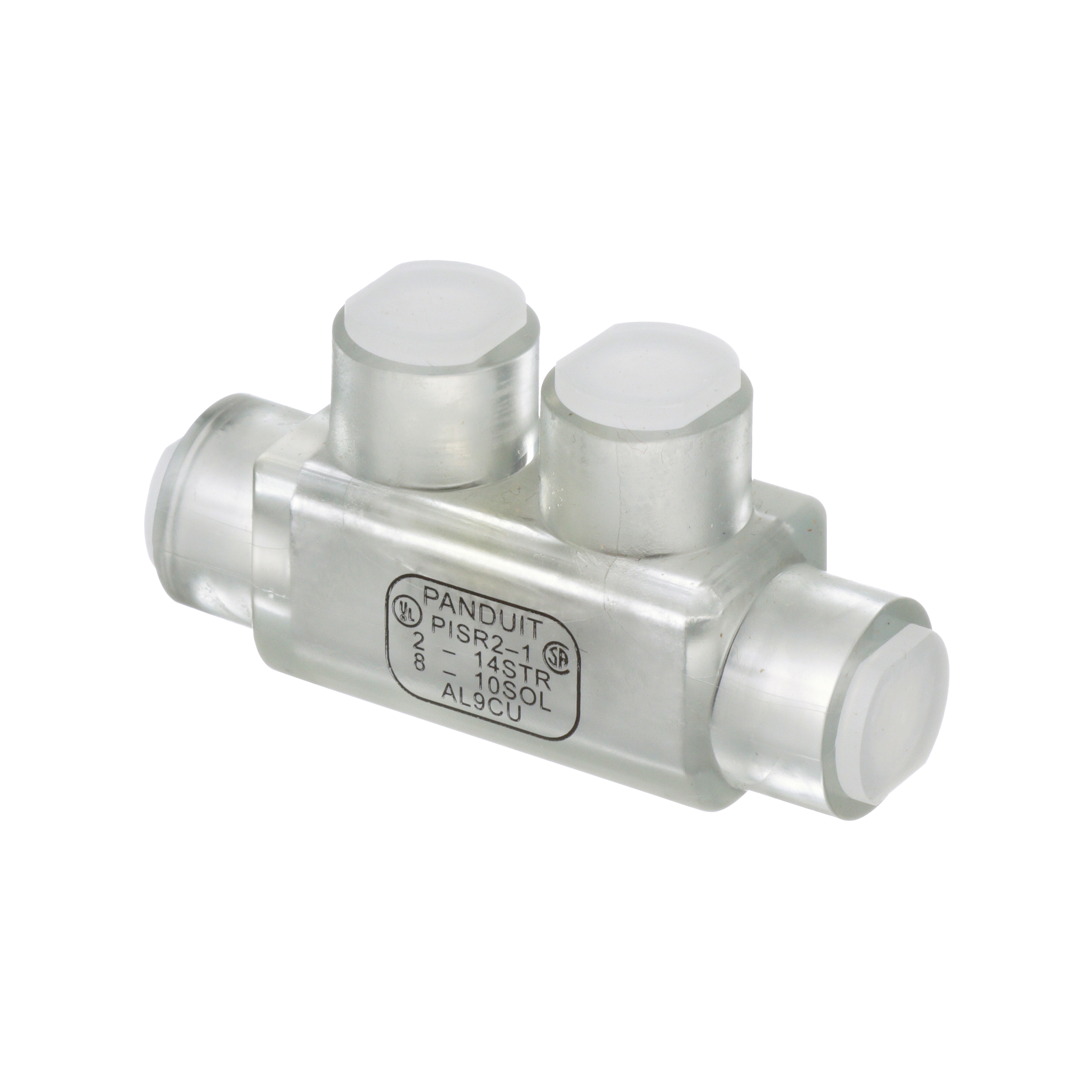

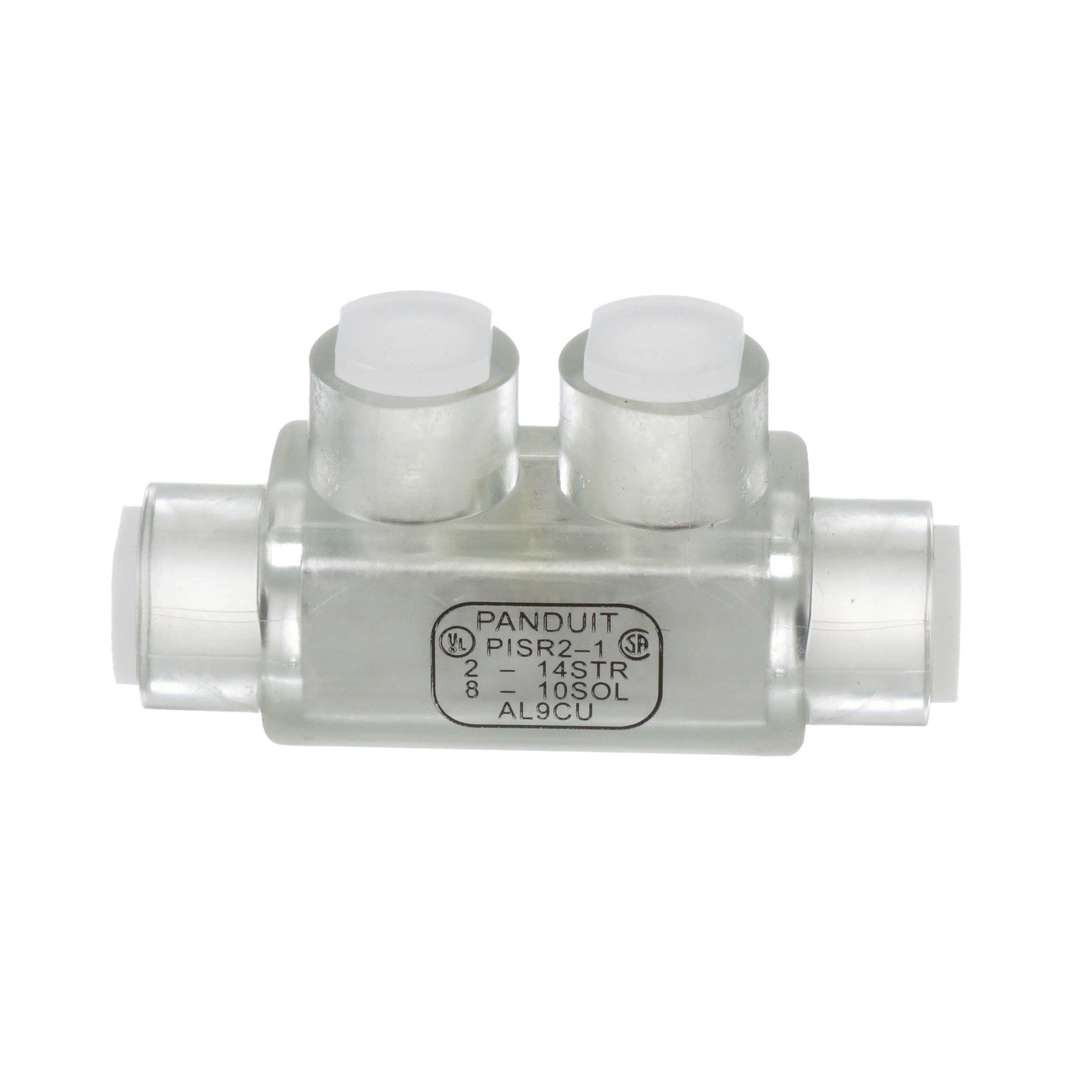

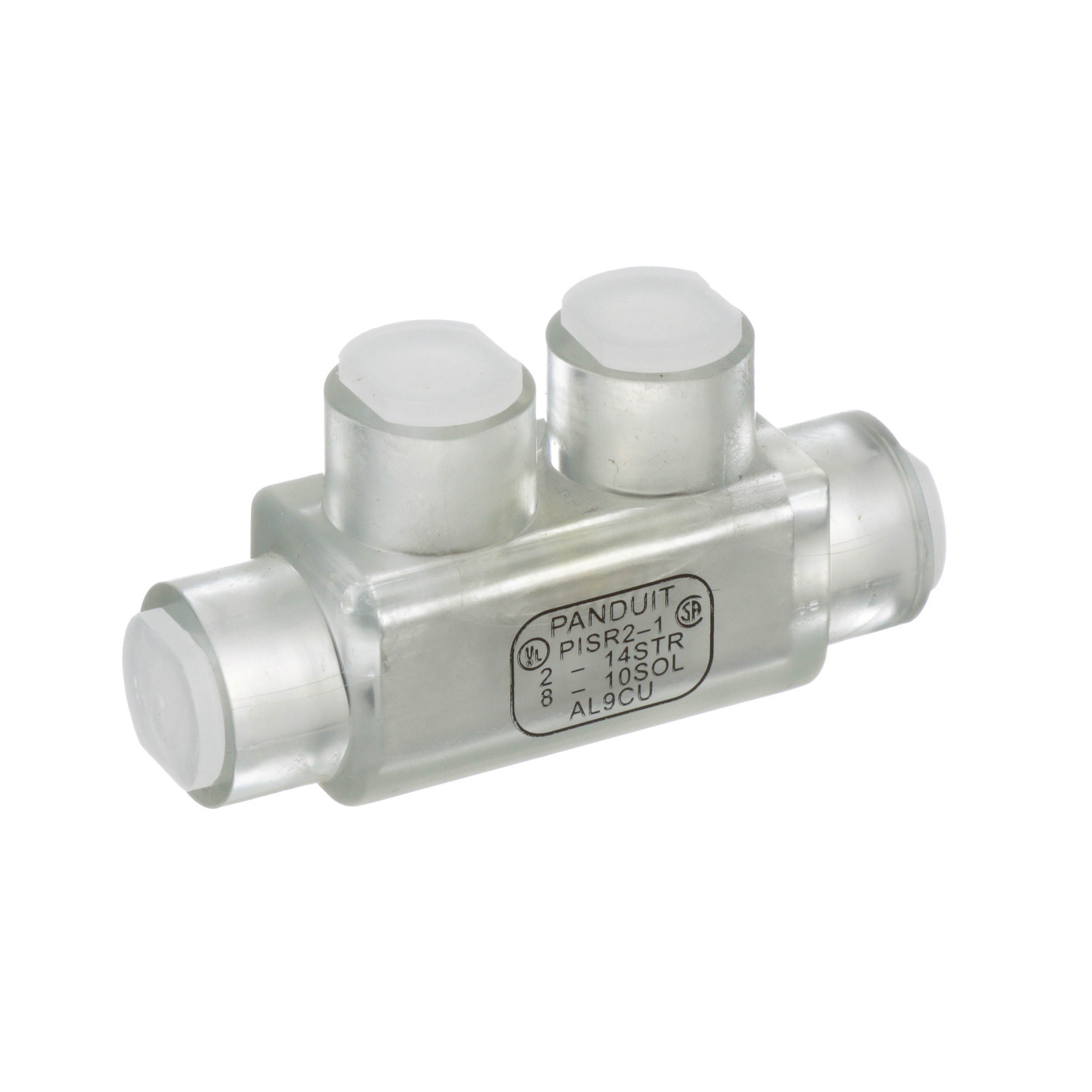

Product image for Splicer/reducer in-line aluminium 2-14AWG stranded
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

Splicer/reducer in-line aluminium 2-14AWG stranded

Manufacturer: Panduit | Catalog # PISR2-1 | Electrozad South Part # 235363

$3,041.05 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
47 available

For Delivery

Not in local stock *
Check another branch
In-line splicer or reducer with clear insulation for use with aluminium or copper code conductors. Flexible design can be used as a splice or reducer. Dual rated for use with copper or aluminium conductors. Made from high strength, extruded aluminium alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation. Wide wire range-taking capability minimizes inventory requirements. Plated steel or aluminium set screw provides high strength, durable electrical contact between conductor and connector.

Technical Information

Base Material
Aluminum
Conductor Size
2 AWG Stranded - 14 AWG Solid
Conductor Type
Aluminum/Copper
Material
PVC Insulation
Type
In-Line Splicer/Reducer

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983421497
GTIN
00074983421497
Product UPC
07498342149
UNSPSC
39121458
Used With
Aluminum and Copper Conductors

Dimensions

Height
31.8 mm
Length
2.38 in
Overall Length
2.38 in
Width
0.75 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
