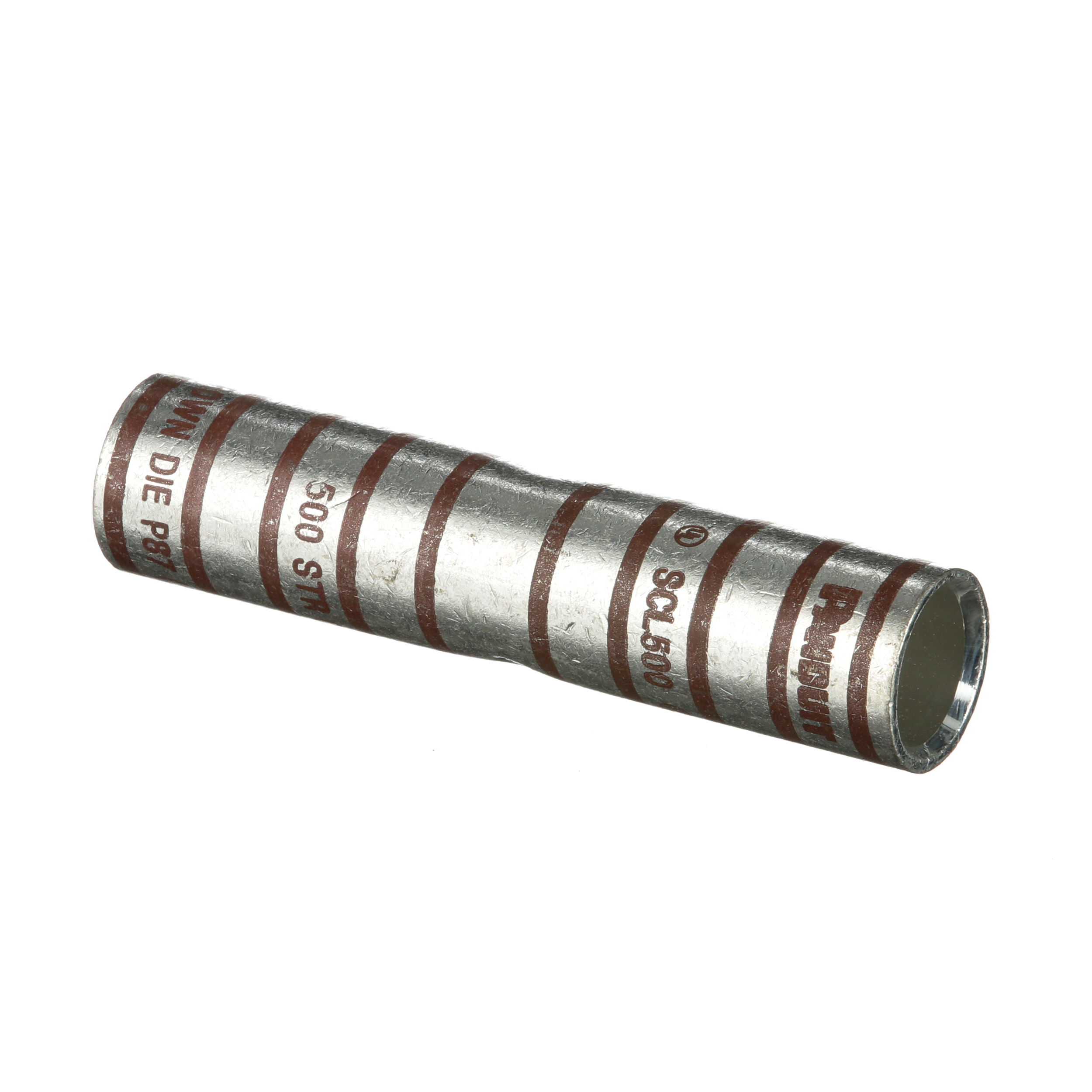

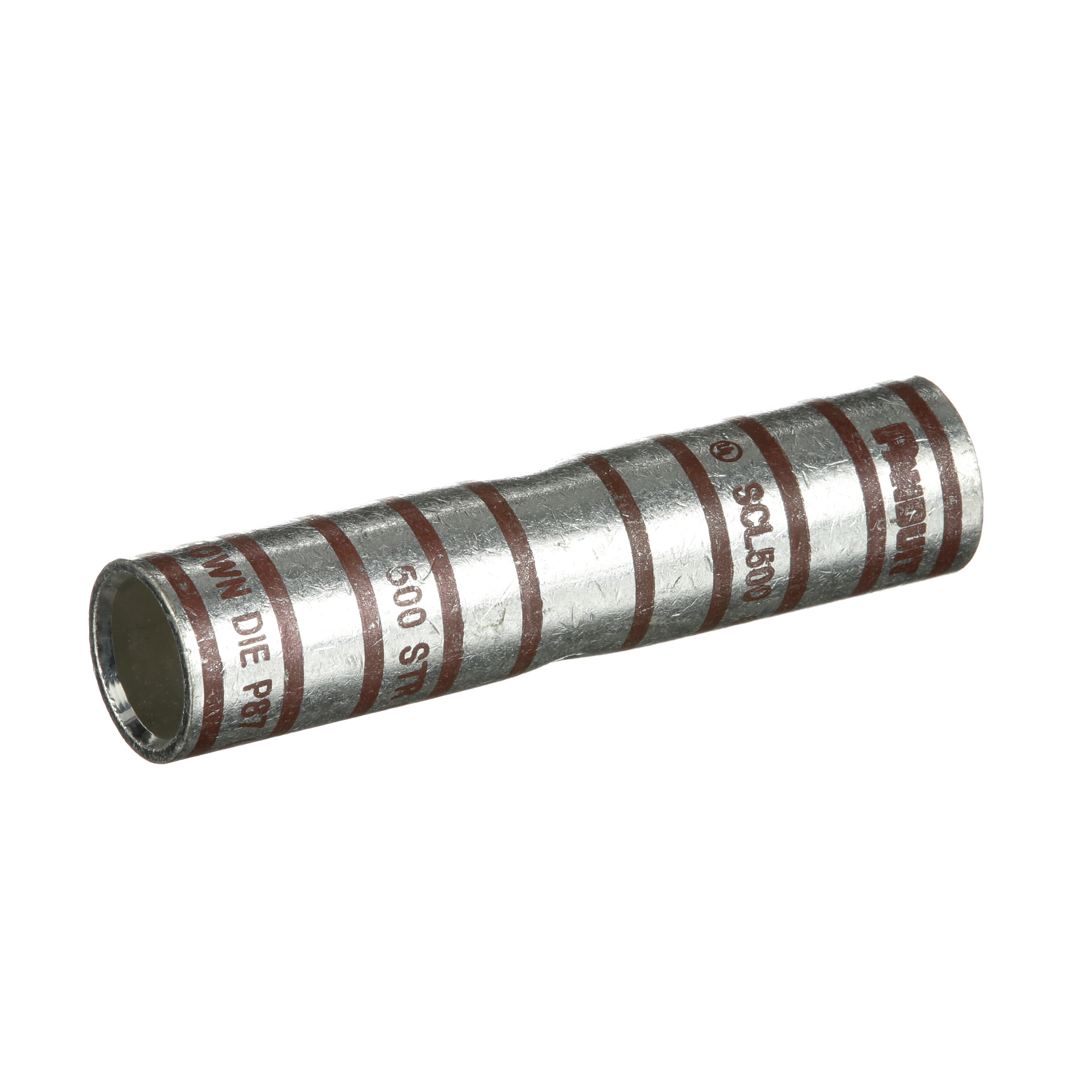

Product image for PANDUIT SCL500-6 BUTTSPLICE 500MCM CU COPPER COMPRESSION LONG BARREL TUBE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

PANDUIT SCL500-6 BUTTSPLICE 500MCM CU COPPER COMPRESSION LONG BARREL TUBE

Manufacturer: Panduit | Catalog # SCL500-6 | Electrozad South Part # 235607
$4,022.25 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual
Copper butt splice, long barrel, 500 kcmil cable.

Technical Information

Barrel Type
Long
Color Coding
Brown
Conductor Size
500 kcmil
Contact Material
Copper
Material
Copper
Size
NA
Standard
Yes
Strip Length
2-1/4 in
Temperature Rating
194 degrees F
Type
Compression Terminal Lug

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983904655
Color
Brown
Finish
Tin-Plated
GTiN
00074983904655
Product UPC
07498390465
UNSPSC
39121449
Used With
Stranded Copper Conductors

Dimensions

Overall Length
4.62 in

Certifications & Compliance

Country of Origin
Mexico
