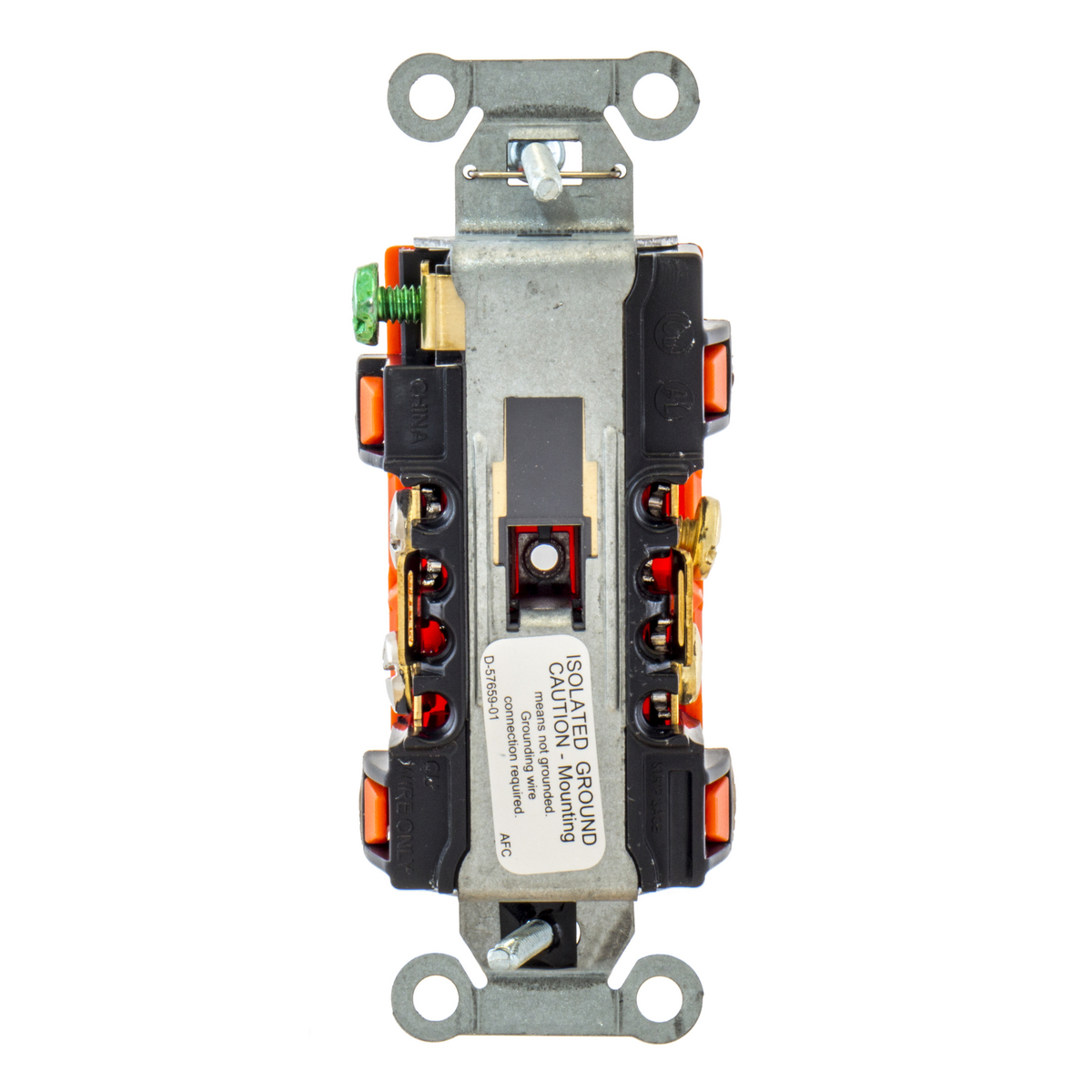

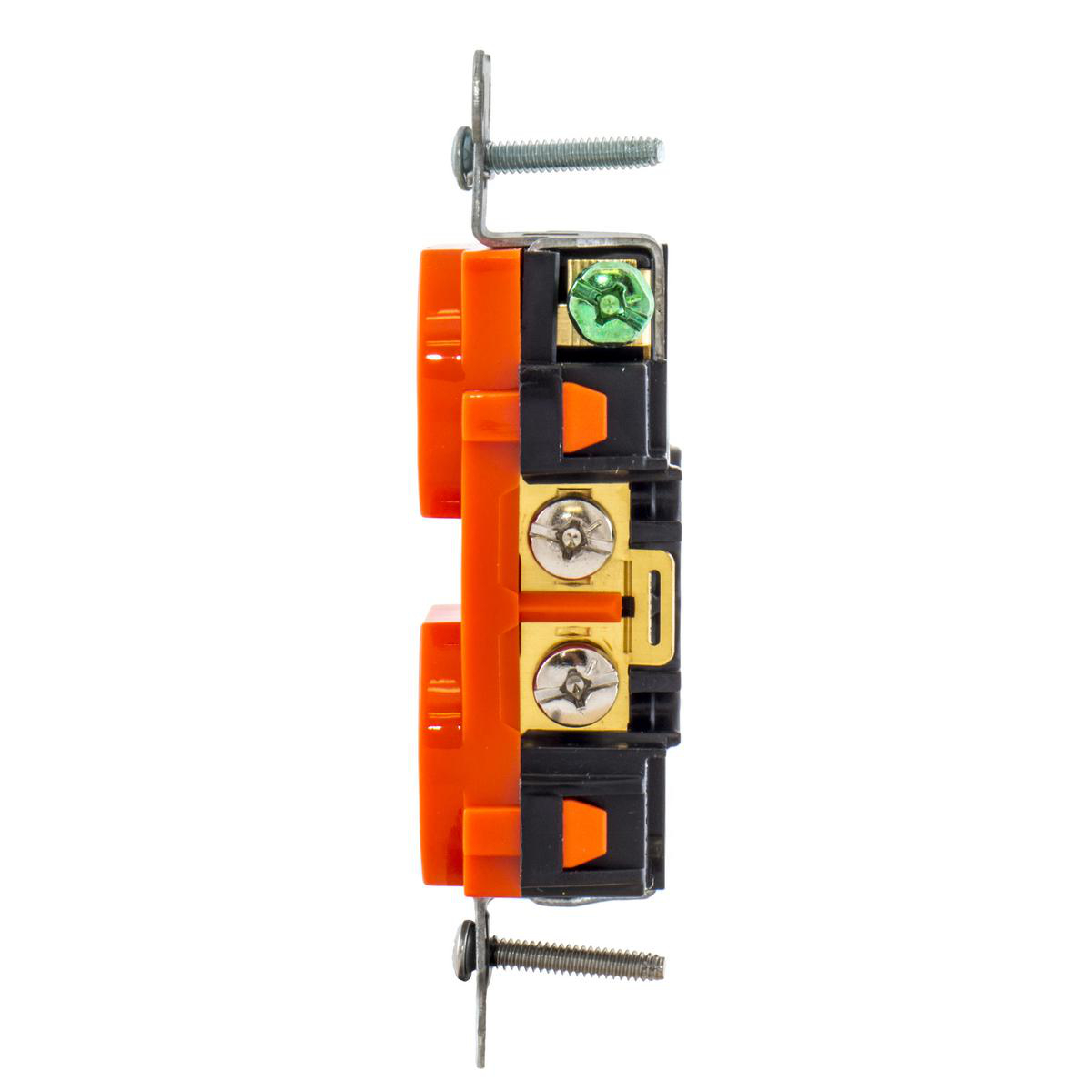

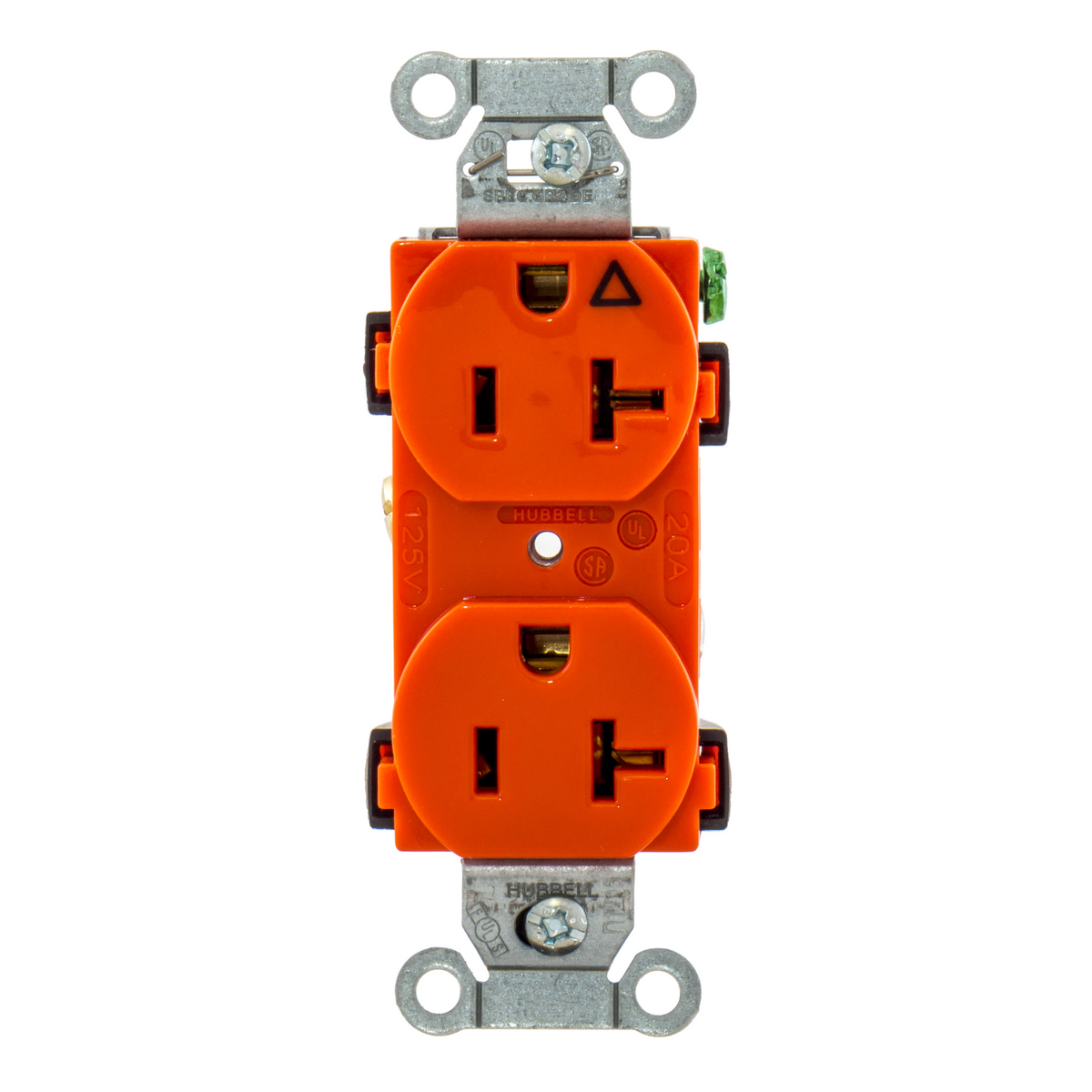

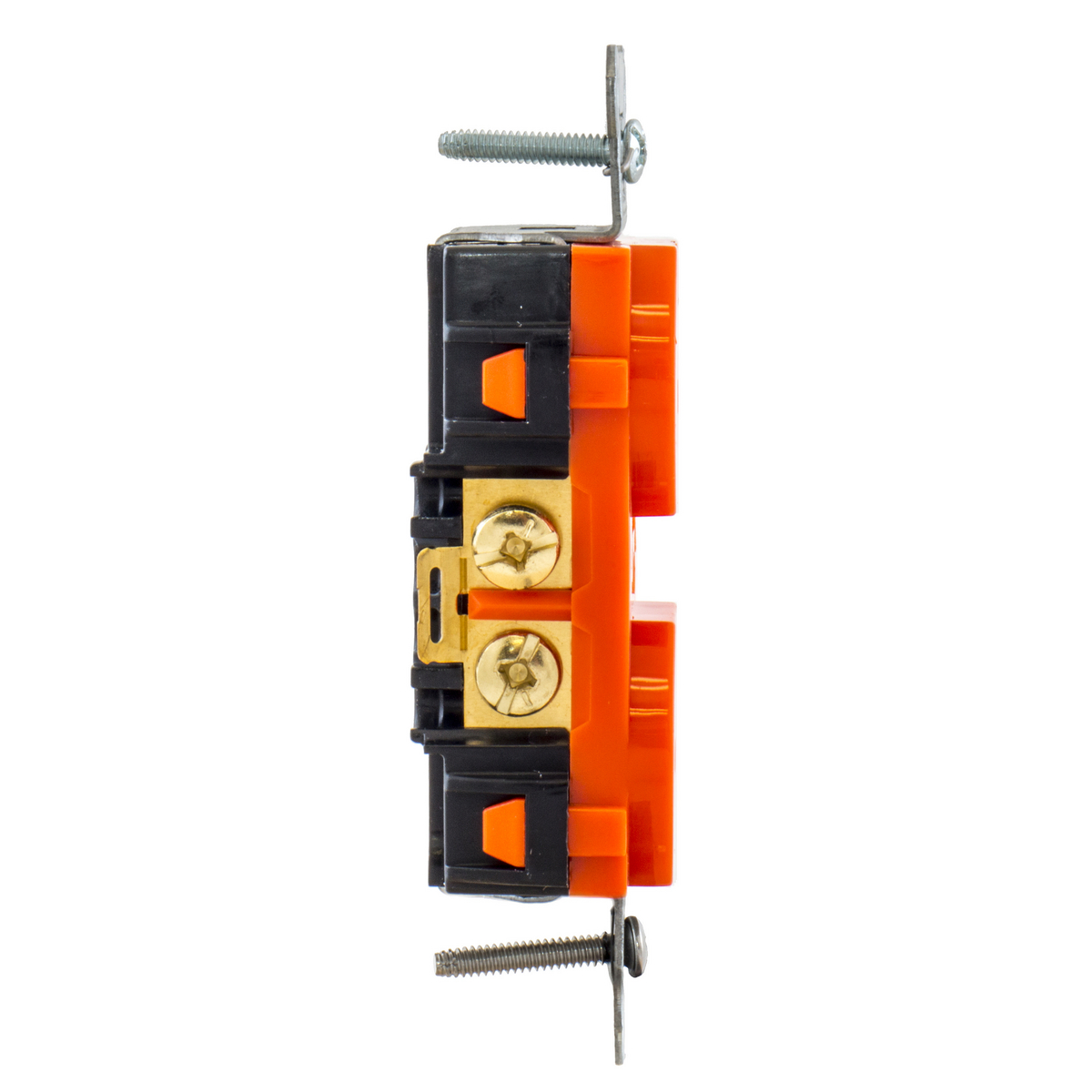

Receptacle 5-20R duplex ISO 2P 20A 125V orange

Manufacturer: Hubbell Wiring Devices | Catalog # IG5352 | Electrozad South Part # 235980
$31.73 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell PRO receptacle strait blade are made of nylon plastic round flat or finder groove face duplex outlet and nickel ground strap as standard. Available in almond, black, blue, brown, gray, ivory, white, off white & red (specification grade), black, brown, gray, ivory, white (WR weather resistant), black, blue, gray, ivory, white, off white, orange(isolated ground). They come in single and duplex version 2 poles, 3 wires 15 or 20 amp, 125 volts.

Technical Information

Amperage
20 A
Applications
Hubbell-Pro Heavy Duty
Base Material
Nylon,Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Contact Material
Brass
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
UL 94 V-2
Grade
Commercial
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Screw Material
Brass
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Smooth Face
TC Connection
Back and Side Wired Screw Terminals
Type
Heavy Duty, Isolated Ground
Voltage
125 V
Wattage
2000 W
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Hubbell Pro™

General Product Info

12-Digit UPC
783585146799
Color
Orange
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585146799
Product UPC
78358514679
Weight
0.15 lb

Dimensions

Height
1.07 in
Length
3.28 in
Width
1.57 in

Certifications & Compliance

Country of Origin
China
Overview
  • Smooth Face
  • Triangle marking on face indicates isolated ground
  • Slender/compact design
