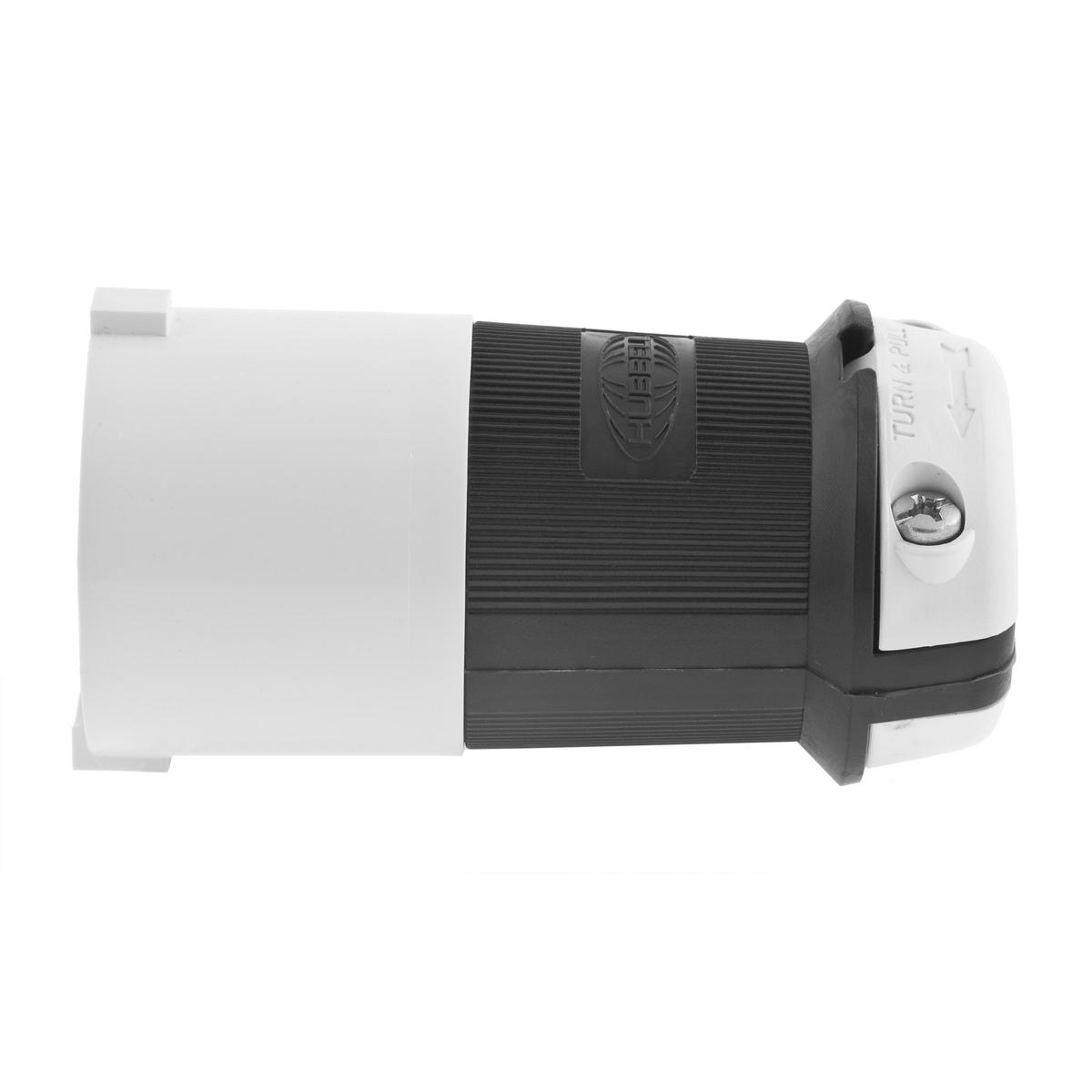

Product image for Plug nylon 3P4W 3..600VAC 30A L17-30P black/white
Image thumbnail 0
Image thumbnail 1
Email

Plug nylon 3P4W 3..600VAC 30A L17-30P black/white

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2741S | Electrozad South Part # 23631
$74.28 /ea
pc
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Twist-Lock® safety-shroud plug made of nylon with 3 pole, 4 wire grounding, 125 V AC, 15 A. 0.23 to 0.72 inch cord diameter.

Technical Information

Amperage
30 A
Applications
For Extra Heavy Duty Industrial Applications
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Cord Type
Portable
Current
30 A
Dielectric Strength
2000 V
Grounding
Yes
Material
Nylon
Mounting Type
Surface, Cord
NEMA
L17-30P
Number of Phases
3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
2.33 in x 2.33 in x 4.21 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard, Shrouded
Voltage
600 V
Wattage
18000 W
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®, Watertight Safety-Shroud®

General Product Info

12-Digit UPC
783585234946
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means, UL94 HB Flammability
GTIN
00783585234946
Product UPC
78358523494
Weight
0.45 lb

Dimensions

Height
4.21 in
Length
2.33 in
Width
2.33 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Superior cord grip design protects terminations from excess strain.
  • Impact resistant shroud protects blades against bending and breaking.
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Integral dust shield protects wiring chamber from dust or contaminants.
