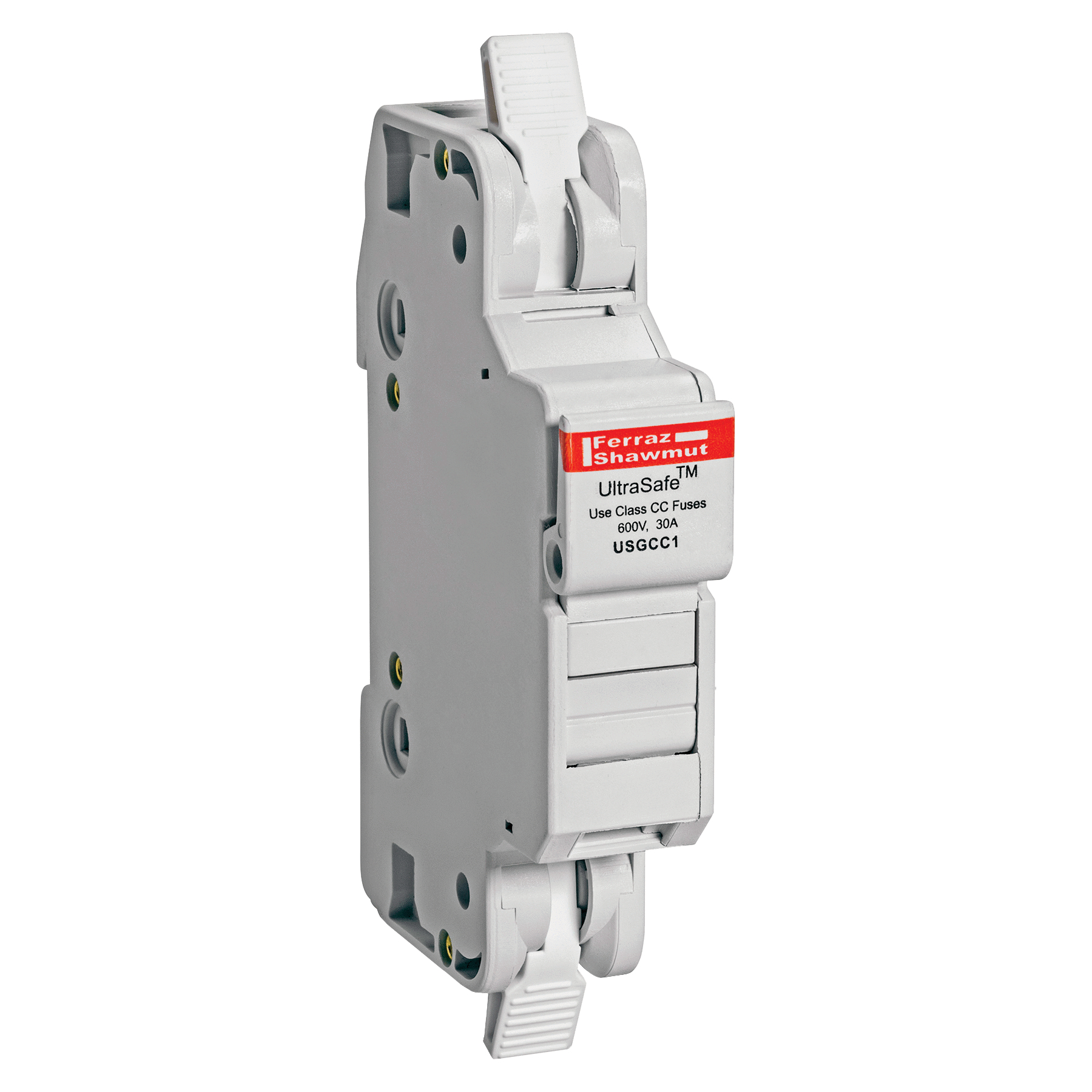

Fuse Holders 600V 30A Class CC 1-pole No Indicator, cage clamp

Manufacturer: Ferraz Shawmut Mersen | Catalog # USGCC1 | Electrozad South Part # 236702
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

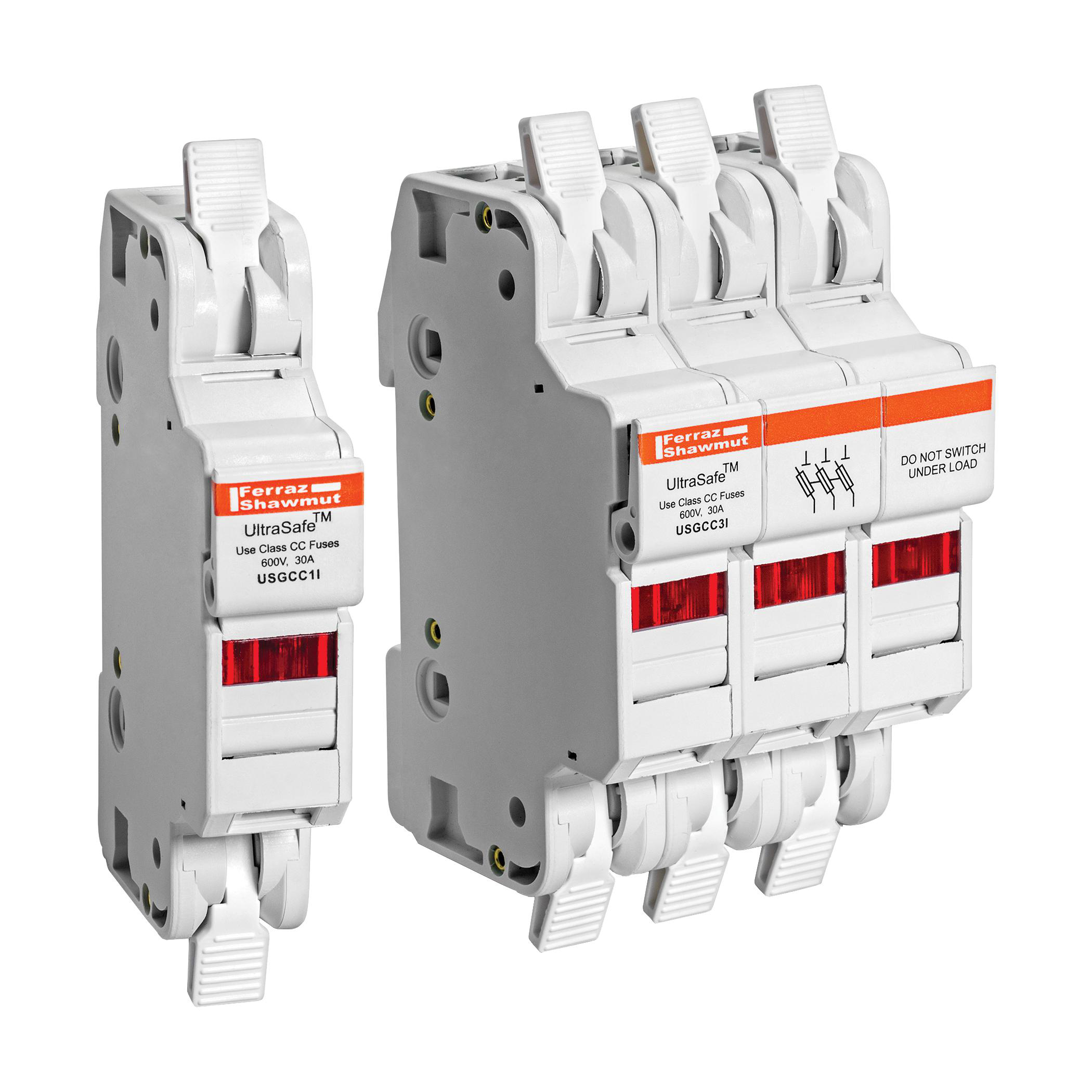

Mersen...s USGCC & USGM series fuse holders deliver the ultimate ease-of-use, time (labor) saving and reliable solution available in the marketplace. Mersen is the first manufacturer to offer screw-less, spring pressure, wire termination technology into a power fuse holder, delivering the best of both technologies to its customers. Now you can experience the combined benefits of safety, ease-of-use, labor savings and reliability of UltraSafe fuse holders and spring pressure technology.

Technical Information

Amperage
30 A
Applications
For Motors, Control Circuits, Transformers, etc.
Connector Type
Spring Pressure
Frequency
50/60 Hz
Fuse Class
Class CC
Fuse Interrupt Rating
30 A
Fuse Type
10 x 38 mm Class CC
Insulation Material
GFPC
Max Operating Temperature
80 degrees C
Mounting Type
DIN Rail
Number of Poles
1
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
Spring Pressure
Type
UltraSafe
Voltage
600 V

Packaging

Package Qty
12

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001438012
Class
CC
GTIN
00782001438012
Product UPC
78200143801
Used With
All Circuits (Including Branch-Circuits) up to 600 VAC/DC
Weight
0.14 lb

Dimensions

Height
2.17 in
Length
4.13 in
Width
0.68 in

Certifications & Compliance

Country of Origin
China
