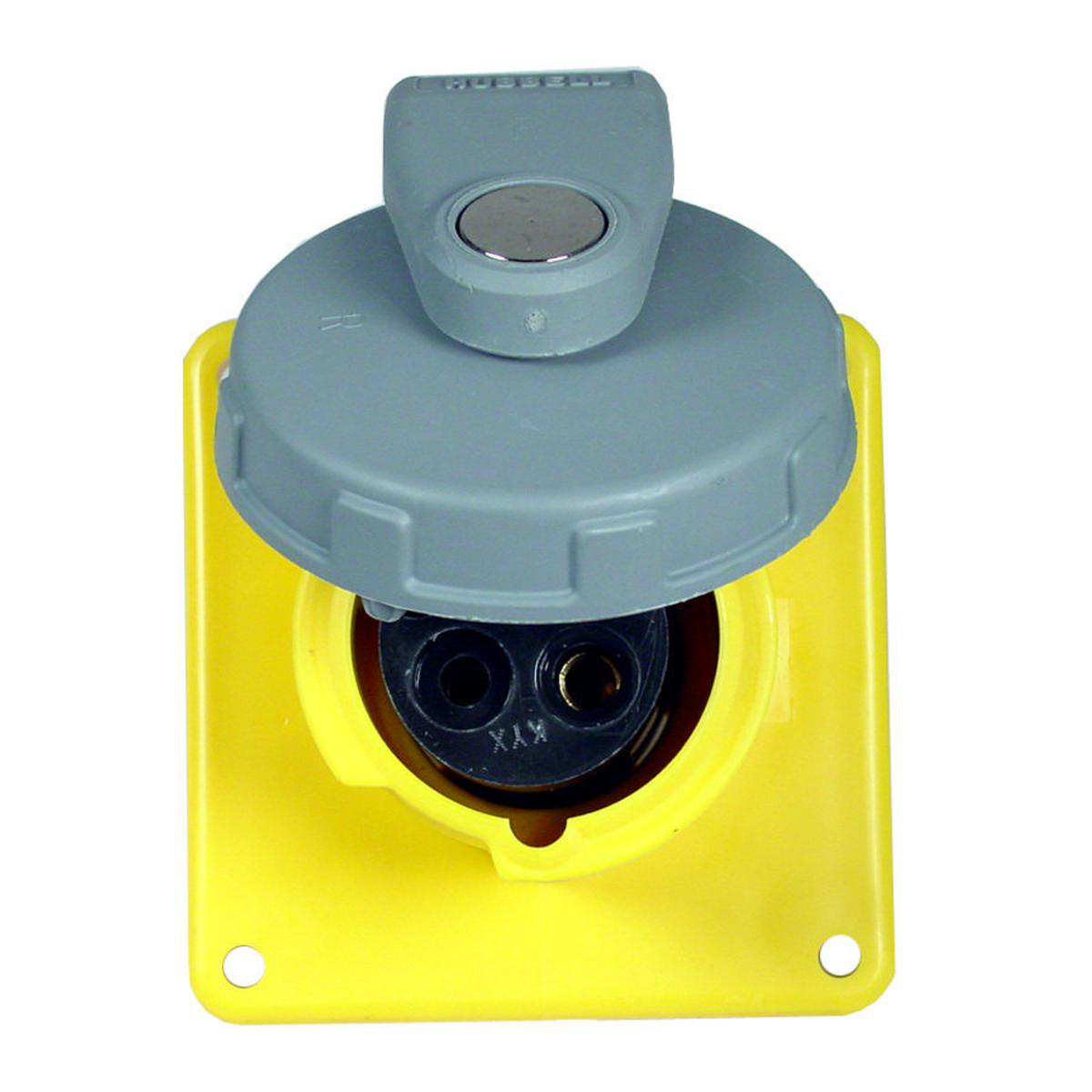

Rec.outlet+door pin&sleeve 2P 3W 20A 125V

Manufacturer: Hubbell Wiring Devices | Catalog # HBL320R4W | Electrozad South Part # 23763
$282.45 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell Pin and Sleeve series are available as cable plug, surface inlet with sealing ring, cable connector and surface outlet. Come with cap closure to insure continuous watertight connections. They come in version 20-30-60-100 amp (NEMA) and 16-32-63-125 amp (CEE rating), 2-3-4 poles depending on the voltage, yellow (130V), orange (125/250V), blue(250V), gray(277V), red (480V),black (600V). Angled low profile model, corrosion resistant model and grounded hood model also available. Several accessories, like back box, closure cap and cable adapters complete the serie.

Technical Information

Amperage
20 A
Applications
High Ampacity Watertight Connections
Conductor Size
14 - 10 AWG
Current
20 A
Grounding
Grounding
Material
Thermoplastic/Composite
Mounting Type
Screw, External, Surface
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
CSA,E2186,UL
Style
Standard Service
TC Connection
Pressure Plate
Type
Single Flanged
Voltage
125 V
Wattage
2500 W
Wire Count
3
Wire Size
14 - 10 A

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
IEC 309 Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585403427
Color
Yellow
Environmental Conditions
Watertight
GTIN
00783585403427
Product UPC
78358540342
Weight
0.9 lb

Dimensions

Height
4.060 in
Length
4.430 in
Width
4.9 in

Certifications & Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Overview
  • Color coded housings for easy identification
  • Corrosion-resistant self-closing gasketed cover
  • Insulated non-metallic housing
