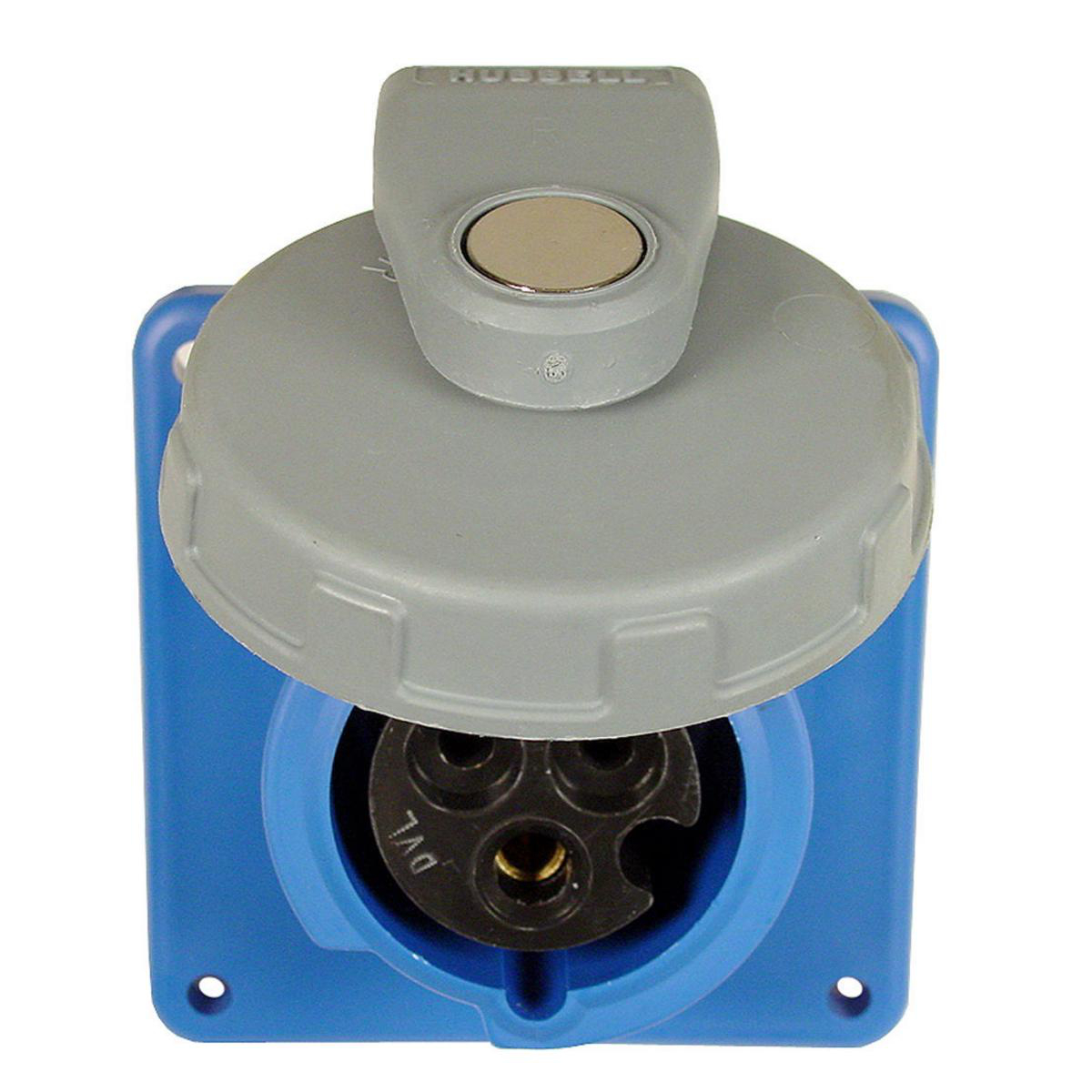

Receptacle 2 pole 3 wire 20A 250V blue

Manufacturer: Hubbell Wiring Devices | Catalog # HBL320R6W | Electrozad South Part # 23858
$282.45 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Watertight devices pin and sleeve receptacles. Pin and Sleeve products are designed and manufactured to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out a singly rated, non-interchangeable configuration for every voltage and type of service throughout the world. Pin and sleeve device housings are color coded by voltage rating.

Technical Information

Amperage
20 A
Applications
High Ampacity Watertight Connections
Conductor Size
14 - 10 AWG
Current
20 A
Grounding
Grounding
Material
Thermoplastic/Composite
Mounting Type
Screw
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
CSA,E2186,UL
Style
Standard Service
TC Connection
Pressure Plate
Type
Single Flanged
Voltage
250 V
Wattage
5000 W
Wire Count
3
Wire Size
14 - 10

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
IEC 309 Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585403434
Color
Blue
Environmental Conditions
Watertight
GTIN
00783585403434
Product UPC
78358540343
Weight
0.9 lb

Dimensions

Height
4.060 in
Length
4.430 in
Width
4.9 in

Certifications & Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Overview
  • Color coded housings for easy identification
  • Corrosion-resistant self-closing gasketed cover
  • Insulated non-metallic housing
