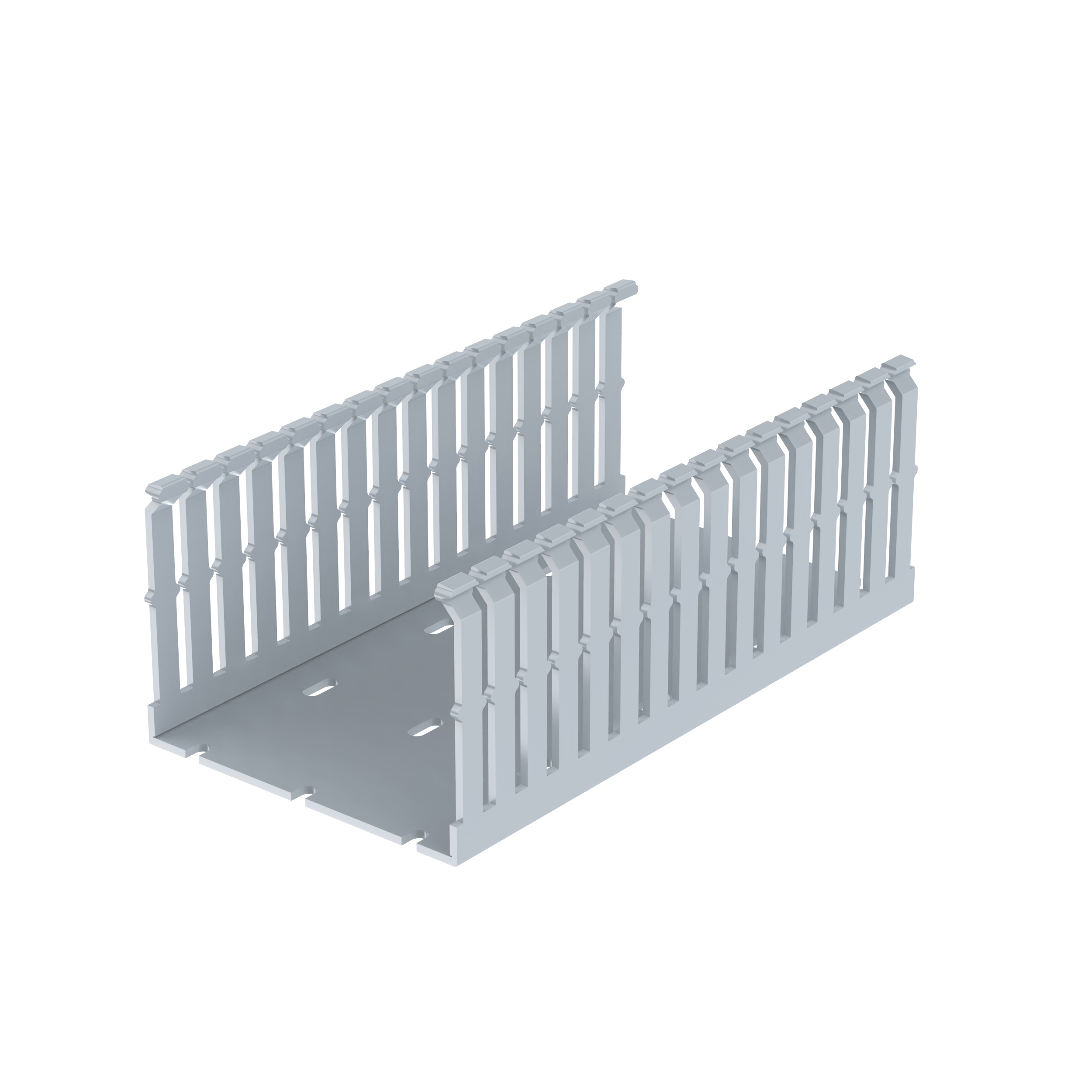

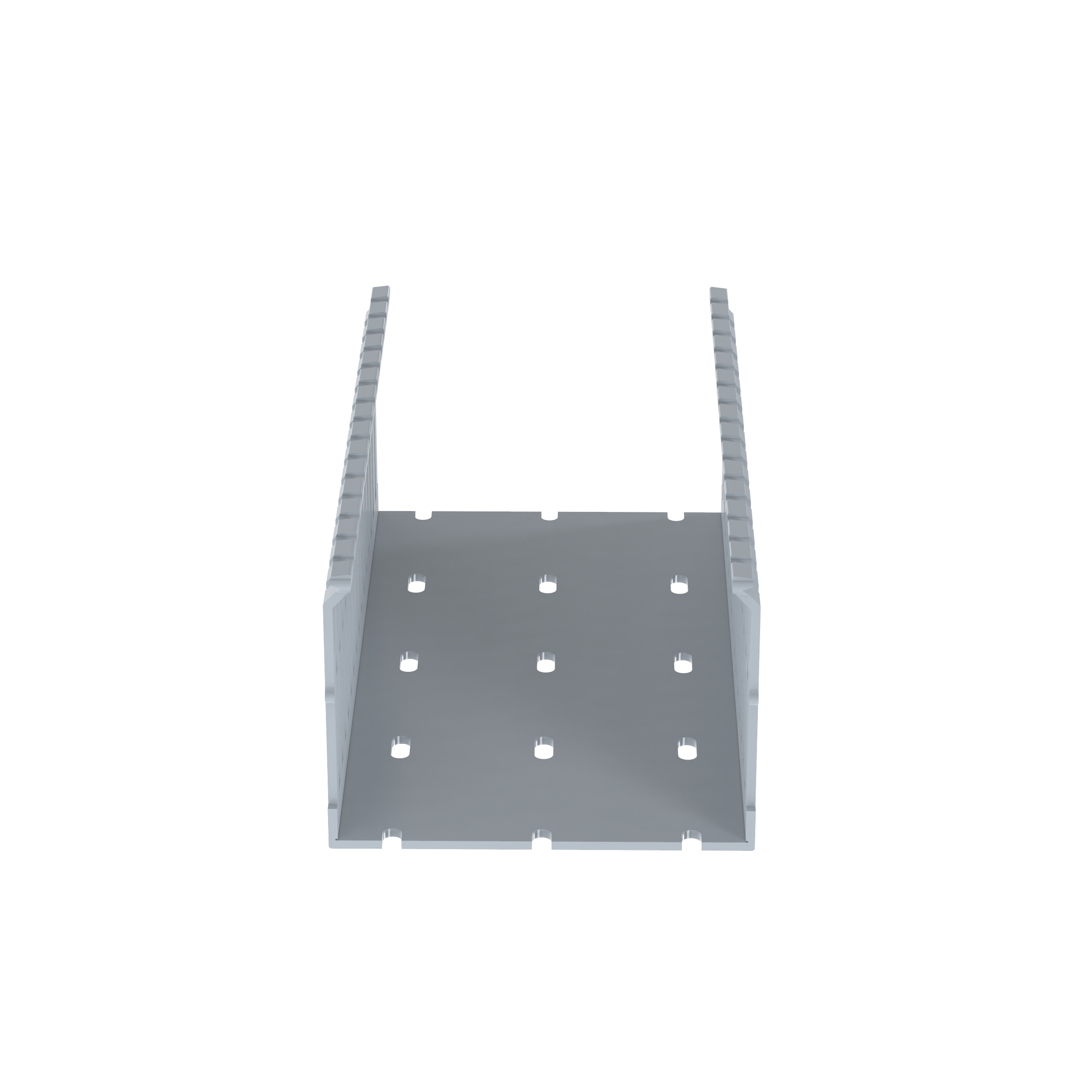

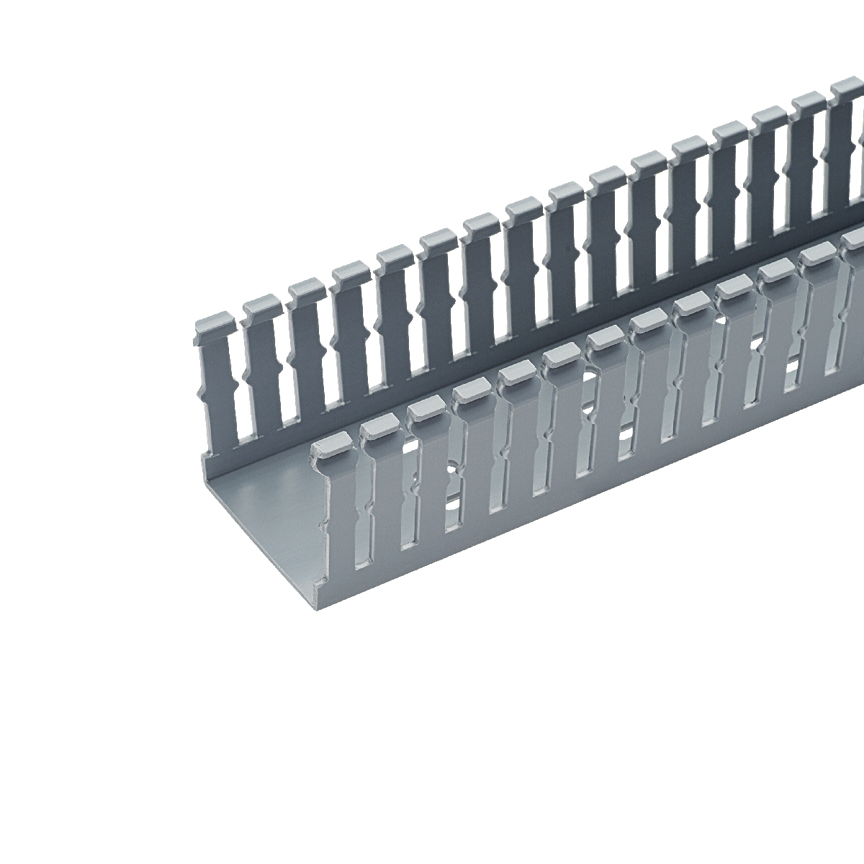

Product image for PANDUIT F4X2LG6 WIRING DUCT NARROW SLOT F 4X2 6'L PVC LIGHT GREY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT F4X2LG6 WIRING DUCT NARROW SLOT F 4X2 6'L PVC LIGHT GREY

Manufacturer: Panduit | Catalog # F4X2LG6 | Electrozad South Part # 23995
$12.28 /ft
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
The F4X2LG6 Panduct™ Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122..F (50..C). Mounting holes provided. Lead-free PVC. 4" x 2" (101.6 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.

Technical Information

Applications
Indoor
Material
PVC
Mounting Type
Mounting Holes
Size
4.00 x 2.00
TC Connection
Standard Mounting Holes
Type
Type F

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983375899
Color
Light Gray
GTIN
00074983375899
Product UPC
07498337589
UNSPSC
39131712

Dimensions

Height
2.12 in
Length
1.8 m
Overall Length
6 ft
Thickness
0.08 IN
Width
4.252 in

Certifications & Compliance

Country of Origin
USA
